How floor tile is set — comb, back-butter, beat in, grout

Set floor tile in four moves: comb the thinset into straight ridges with the trowel at 45°, back-butter and press the tile into the ridges, beat it in until the ridges collapse to full coverage (80% dry / 95% wet), then space it, let the mortar cure, and grout.

What this diagram shows

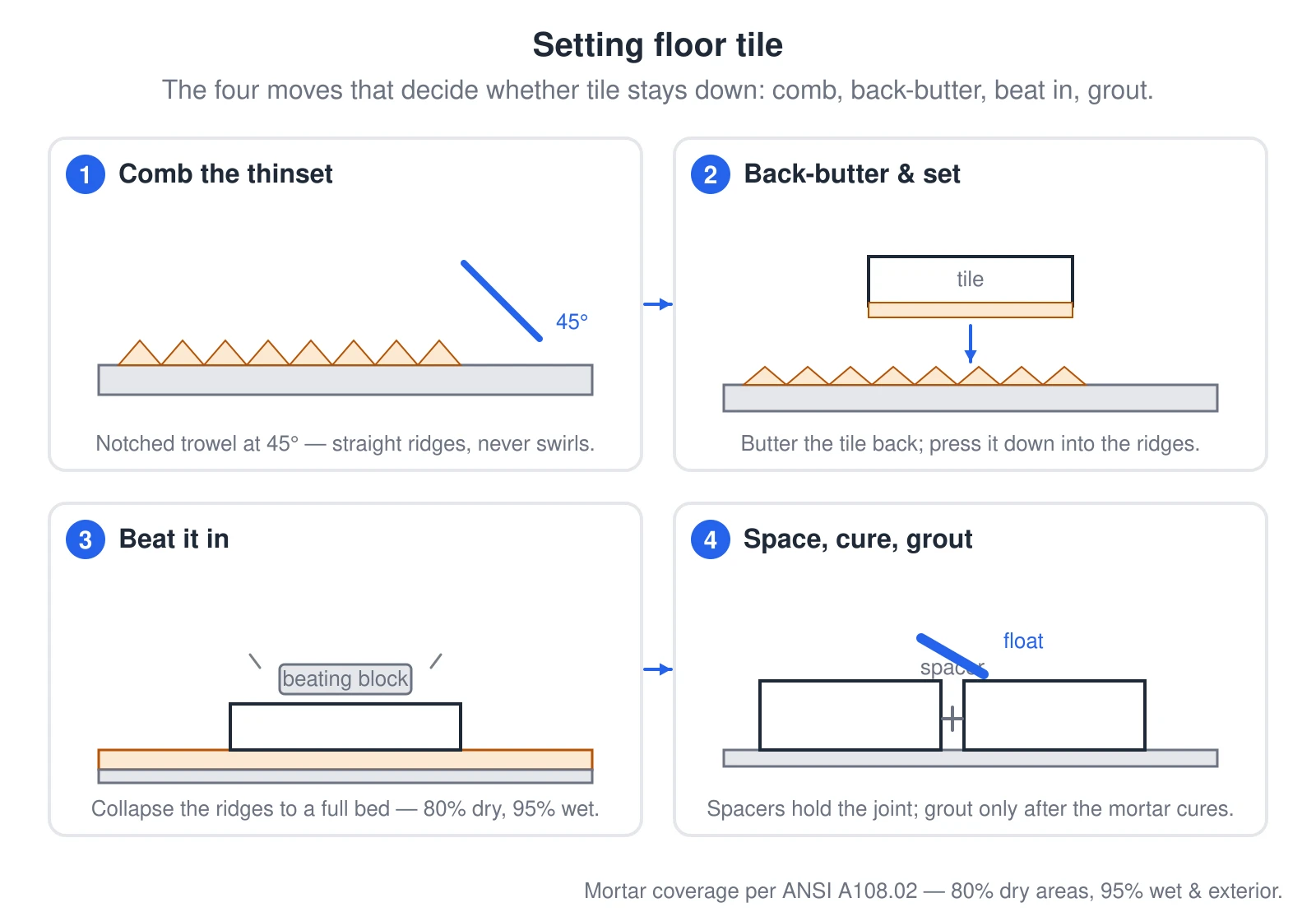

A four-panel walkthrough of setting floor tile. Panel 1: a notched trowel held at 45 degrees combing thinset mortar into straight parallel ridges on the substrate, not swirls. Panel 2: a tile being back-buttered and pressed down into the ridges. Panel 3: a beating block and mallet tapping the tile so the ridges collapse into a full mortar bed, with at least 80 percent coverage for dry areas and 95 percent for wet or exterior. Panel 4: spacers set between tiles and a rubber grout float pushing grout into the joint at 45 degrees, only after the mortar has cured.

Use this diagram — free

You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
