Vinyl Siding Calculator: Squares, Panels & Accessories
How much vinyl siding do you need? This free vinyl siding calculator turns your wall measurements into squares (100 sq ft each), panel counts, and cartons to order — with gables added as triangles and window and door openings handled the way you choose.
Vinyl is a full system, not just panels. Where a generic square-footage tool stops, this one keeps going: starter strip, J-channel, outside and inside corner posts, undersill/utility trim, finish trim, and soffit & fascia — each quantified in linear feet AND in stock-length pieces so you can order the whole job at once.
Built around ASTM D3679, the Vinyl Siding Institute (VSI) Installation Manual, and IRC §R703.11 — including the loose, floating fastening that makes vinyl different from nailed-tight fiber cement. Free, no signup, materials only (no pricing or labor).
Vinyl Siding Calculator
Squares, panels, and cartons plus the full accessory system — starter strip, J-channel, corner posts, undersill and finish trim, soffit & fascia, and nails — sized to ASTM D3679 and IRC §R703.11.
Walls to side
Windows and doors
On = subtract opening area (matches most DIY estimates). Off = leave openings in as a waste allowance (a common trade convention, since offcuts around openings are often unusable).
Vinyl siding product
Why does a "Double 4" panel cover 8", not its full width? See the exposure diagram
Coverage per panel = panel length × exposure. Double 4 ≈ 8.33 sq ft, Double 5 ≈ 10 sq ft at a 12'6" length. Pieces-per-box and coverage vary by manufacturer — confirm on the product data sheet.
Waste factor
Simple 10% · Moderate 12–15% · Complex 15–20% (gables, dormers, angles). Enter a percentage to override the tier.
Corners, trim & soffit
One corner post per corner, cut to wall height (10' stock). Roofline abutment = length where siding dies into a roof (extra J-channel).
Prefer to skip the math? Get free quotes from local pros
How vinyl siding coverage works
Three things drive a vinyl takeoff: a panel covers only its exposure (not its full width), you size the order by net wall area in 100-square-foot “squares,” and every terminal edge locks into an accessory that has to be counted separately. Here is how each one works.
The exposure-and-overlap cross-section defines the number the whole takeoff turns on. Each course laps the one below, so the height a panel reveals — its exposure, not its full width — is what the calculator divides into the wall. A “Double 4” panel shows two 4-inch courses for 8 inches of exposure.
The wall-area diagram is why the order is sized off net area, then waste. Openings come out of the gross wall (or stay in as a waste allowance, your choice), gables are added as triangles, and the leftover is divided into squares. That is why vinyl is ordered by the square and the box, not by the panel alone.

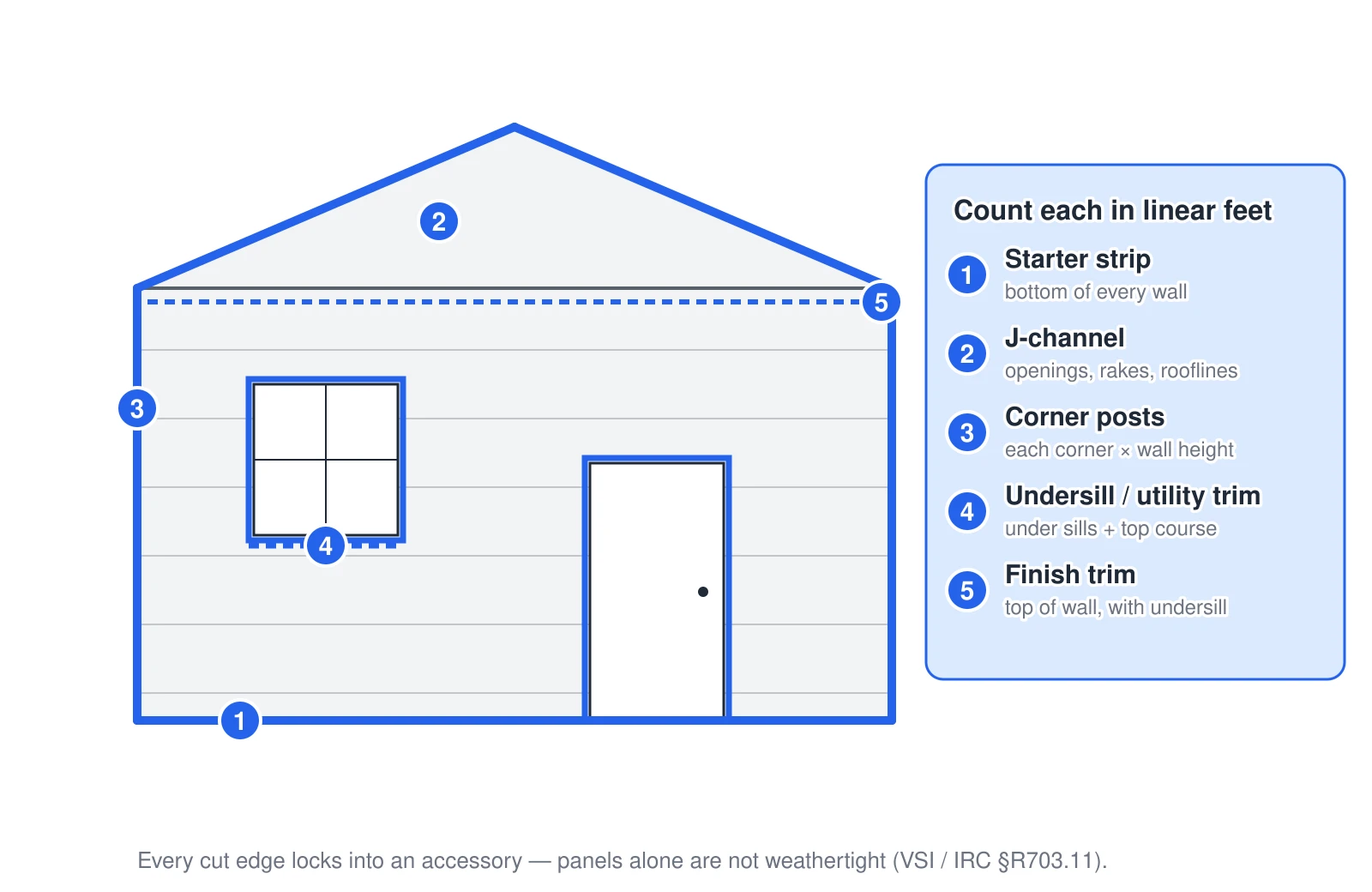

The accessory map is why the takeoff carries far more than panels. Every terminal edge locks into an accessory: a starter strip along the bottom, J-channel around openings and gable rakes, corner posts up each corner, and undersill/utility trim at sills and the top course. Each is counted in linear feet and stock-length pieces — skip one and the wall is not weathertight.

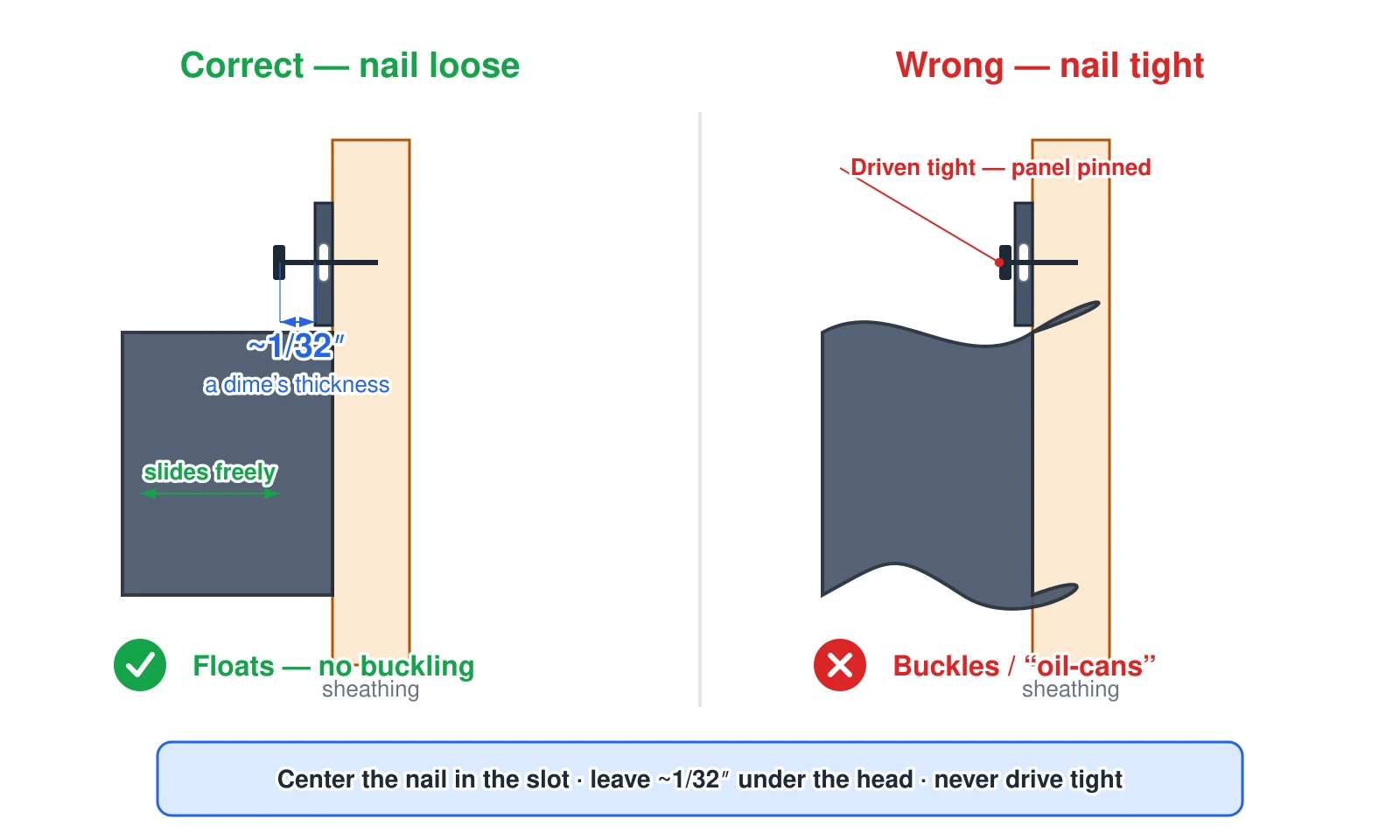

The fastener detail is the rule that separates vinyl from every other siding. Vinyl moves — a 12'6" panel can grow nearly half an inch on a hot day — so each nail is centered in its slot and left about 1/32" loose (a dime's thickness). Drive it tight the way you'd nail fiber cement and the pinned panel buckles into waves.

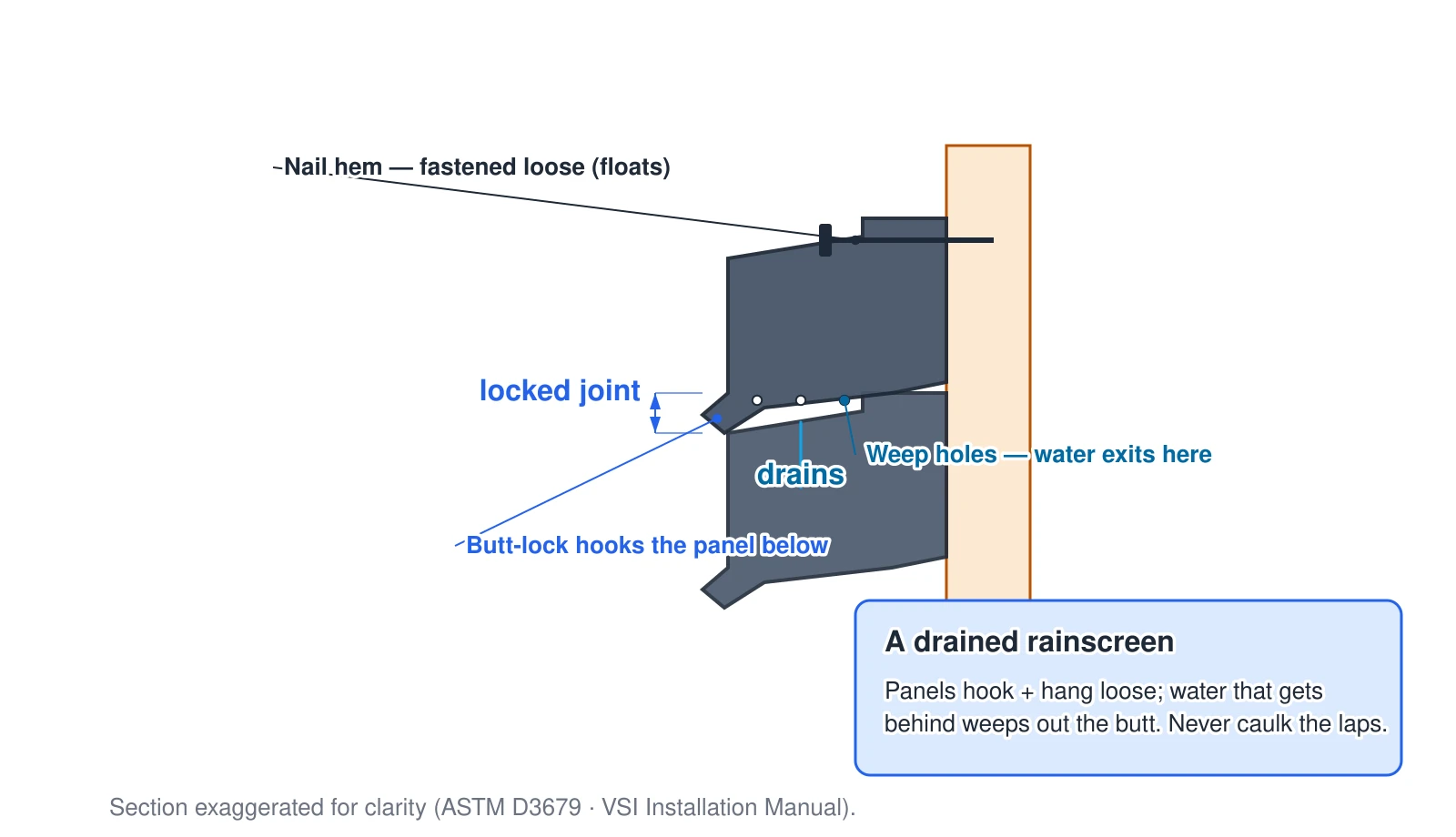

The joint section shows why the laps are never caulked. Each panel's butt-lock hooks the return of the panel below while the nail hem above stays loose, and weep holes at the butt drain any water that gets behind the siding. Vinyl is a drained rainscreen, not a sealed skin — caulking the laps traps the water it is designed to shed.
Calculation Formulas
Measure each rectangular wall section, then subtract only large openings (garage doors, picture windows over ~12 sq ft). Normal windows and doors are commonly left in as a built-in waste allowance — the 'subtract small openings' toggle lets you choose.
Example:
A 40 ft × 10 ft wall = 400 sq ft, minus a 16 ft × 7 ft garage door (112 sq ft) = 288 sq ft net.
A gable is a triangle, so its area is half of base times height. Add each gable to the rectangular wall area before applying waste.
Example:
A gable 30 ft wide with an 8 ft peak = (30 × 8) ÷ 2 = 120 sq ft.
Vinyl siding is sold and estimated by the 'square' — one square covers 100 sq ft. Add waste, divide by 100, and round up to the next whole square.
Example:
1,700 sq ft net × 1.10 (10% waste) = 1,870 sq ft ÷ 100 = 18.7 → order 19 squares.
Waste tracks complexity, not just area. Simple rectangular walls use 10%; walls with many openings and corners use 12–15%; homes with gables, dormers, or angled walls use 15–20%.
Example:
288 sq ft × 1.15 (moderate 15%) = 331 sq ft of siding to purchase for that wall.
Double 4 (D4) panels show an 8-inch exposure; Double 5 (D5) show a 10-inch exposure. At a 12 ft 6 in panel length, D4 covers ≈ 8.33 sq ft and D5 covers ≈ 10 sq ft per panel.
Example:
1,870 sq ft ÷ 10 sq ft (D5 at 12'6") ≈ 187 panels.
Cartons hold 1 square (100 sq ft) or 2 squares (200 sq ft) depending on profile and manufacturer — roughly 14–26 panels per box. Always confirm the box coverage printed on the carton and round up.
Example:
19 squares ÷ 2 squares per carton = 9.5 → order 10 double-square cartons.
Starter strip runs the bottom perimeter of every sided wall; J-channel wraps every window, door, gable rake, and roofline edge. Sum the linear feet and divide by the ~12 ft 6 in stock length. J-channel is the most under-estimated accessory — count doors and rooflines, not just windows.
Example:
160 LF of J-channel ÷ 12.5 = 12.8 → order 13 sticks.
Outside and inside corner posts are quantified by height and count. Posts come in 10 ft (and 20 ft) lengths; use one-piece runs where possible and overlap ~1 inch when the wall is taller than the stock.
Example:
A 9 ft wall needs one 10 ft post per corner; four outside corners = 4 posts.
Plan for roughly two-thirds of a pound of siding nails per square. Fasteners must be corrosion-resistant with a head at least 5/16 inch and a shank at least 1/8 inch, penetrating a minimum of 1 1/4 inch into sheathing plus framing.
Example:
19 squares × 0.67 ≈ 12.7 → buy 13 lb of siding nails.
Undersill/utility trim locks the cut top edge of panels beneath windows and at the top of walls; F-channel receives soffit at eave/wall intersections; finish trim caps top-of-wall runs. All are stocked in ~12–12.5 ft lengths.
Example:
50 LF of undersill ÷ 12.5 = 4 → order 4 pieces of utility trim.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| Vinyl Square | 100 sq ft | Standard estimating and ordering unit — one 'square' of vinyl siding covers 100 square feet of wall. |
| Double 4 (D4) Coverage | ≈ 8.33 sq ft/panel | 8-inch exposure at a 12 ft 6 in panel length. Two 4-inch courses per panel (hence 'Double 4'). |
| Double 5 (D5) Coverage | ≈ 10 sq ft/panel | 10-inch exposure at a 12 ft 6 in panel length. Two 5-inch courses per panel — the most common residential profile. |
| Simple Waste Factor | 10% | Rectangular walls with few openings and corners. Baseline trade consensus for vinyl, lower than fiber cement. |
| Moderate Waste Factor | 12–15% | Walls with many windows, doors, and corners that create more cut-off and short pieces. |
| Complex Waste Factor | 15–20% | Gables, dormers, angled walls, and vertical/board-and-batten layouts that generate angled offcuts. |
| Accessory Stock Length | ≈ 12 ft 6 in | Starter strip, J-channel, undersill/utility trim, finish trim, and F-channel are typically sold in 12 ft 6 in sticks. |
| Corner Post Stock Length | 10 ft (and 20 ft) | Outside and inside corner posts come in 10-foot lengths, with 20-foot runs available for tall or multi-story walls. |
| Fastener Allowance | ≈ 2/3 lb per square | Approximate siding-nail weight per 100 sq ft. Heads must be ≥ 5/16 in, shanks ≥ 1/8 in, corrosion-resistant. |
| Floating-Nail Gap | ≈ 1/32 in ('thickness of a dime') | The VSI-canonical gap left under the nail head so panels can expand and contract; never drive fasteners tight. |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
ASTM D3679 - Rigid Poly(Vinyl Chloride) (PVC) Siding(ASTM D3679-24)
View StandardThe current product specification for rigid vinyl siding. It sets impact resistance, weatherability, dimensional tolerances, and — critically — the nail-slot design that allows panels to move with temperature. Product certified to D3679 is what the IRC references for vinyl siding.
Key Requirements:
- •Panels manufactured with elongated nail slots to permit thermal expansion and contraction
- •Minimum weathering, impact, and dimensional-stability performance for exterior exposure
- •Historically installed per ASTM D4756; the VSI Installation Manual is now the living reference
- •Certification to D3679 is the code-recognized product basis under IRC R703.11
- •Confirm the specific profile's published exposure and box coverage before ordering
ASTM D4756 - Installation of Rigid PVC Siding & Soffit (WITHDRAWN 2023)(ASTM D4756 (historical))
View StandardThe former standard practice for installing rigid vinyl siding and soffit. It was withdrawn in 2023, so it is cited here for historical context only — the Vinyl Siding Institute (VSI) Installation Manual is the current, living authority for installation practice.
Key Requirements:
- •Loose, floating fastening so panels can expand and contract freely
- •Fasteners centered in the nail slots, not driven at the ends
- •Do not drive fastener heads tight against the nailing hem
- •Withdrawn in 2023 — verify current practice against the VSI Installation Manual
- •IRC still references certification to D3679 for the product itself
IRC R703.11 - Vinyl Siding(IRC R703.11)
View StandardThe section of the International Residential Code that governs vinyl siding. It requires certification to ASTM D3679, corrosion-resistant fasteners, minimum penetration into framing, and prescriptive details for starter strip, utility trim, and clearances.
Key Requirements:
- •Siding certified and labeled as conforming to ASTM D3679
- •Fasteners penetrate a minimum of 1 1/4 inch into wood framing/sheathing (R703.3.4)
- •Starter strip locked to the bottom course per R703.11.1.1
- •Cut top edges secured with utility (undersill) trim per R703.11.1.2
- •Weather-resistive barrier and flashing required behind the siding
IRC R703.3 - General Requirements & Fastening(IRC R703.3 / Table R703.3(1))
View StandardThe general exterior-covering fastening provisions, including Table R703.3(1) attachment schedules and the corrosion-resistance and penetration rules that apply to vinyl fasteners under R703.3.4.
Key Requirements:
- •Corrosion-resistant fasteners conforming to ASTM F1667
- •Fastener head diameter at least 5/16 inch, shank at least 1/8 inch
- •Minimum 1 1/4 inch penetration into studs or approved sheathing (R703.3.4)
- •Clearances at openings and terminations per R703.3.1
- •Water-resistive barrier and flashing integrated per R703.1 and R703.4
VSI Installation Manual & Certification Program(VSI Standards)
View StandardThe Vinyl Siding Institute publishes the industry Installation Manual and runs the third-party Certification Program for products and installers. Since ASTM D4756 was withdrawn, the VSI Manual is the living reference for the floating-fastening 'Basic Installation Rules.'
Key Requirements:
- •Leave approximately 1/32 inch (a dime's thickness) between the nail head and the panel
- •Center fasteners in the slots and space them: horizontal panels ≤ 16 in OC, vertical ≤ 12 in OC, accessories 8–12 in OC
- •Leave 1/4 inch clearance at openings and stops (3/8 inch when installing below 40°F)
- •Overlap panels ~1 to 1 1/4 inch and stagger end laps between courses
- •Do NOT caulk panel overlaps or panel-to-corner/J laps — vinyl is a drainage/rainscreen system
Manufacturer Installation Manuals & ICC-ES Reports(Manufacturer Specifications)
View StandardEach major vinyl siding brand publishes its own installation manual, and several carry ICC-ES evaluation reports confirming code compliance. Following the specific brand's manual is required for warranty coverage and to match accessory fit.
Key Requirements:
- •Alside vinyl siding recognized under ICC-ES ESR-1258
- •Follow the brand's published exposure, box coverage, and panel length for accurate counts
- •Use matching-brand accessories (corners, J-channel, trim) for proper fit and warranty
- •CertainTeed, Westlake Royal, Ply Gem/Variform, and Georgia-Pacific each publish profile-specific manuals
- •Observe brand-specific wind-load ratings and fastening enhancements for high-wind zones
Standards Disclaimer: Standards and codes are subject to periodic updates. Always verify current requirements with local building authorities and professional engineers before beginning construction. Links provided are for reference only.
Cold-Weather Installation & Brittleness
Wider clearances and careful handling below 40°F
Vinyl contracts in the cold and becomes more brittle, so installation clearances open up and panels must be handled and cut carefully to avoid cracking. The VSI Manual widens opening clearances when installing in cold weather.
Regional Examples:
High-Wind & Hurricane Zones
Enhanced panels and tighter fastening
Coastal and high-wind regions require vinyl rated for higher design wind speeds and, often, closer fastener spacing or specialized locking profiles. Product ratings and attachment must match the site's design wind pressure.
Regional Examples:
Thermal Expansion by Climate
Temperature swing drives the floating-nail rule
A 12 ft 6 in vinyl panel can move nearly half an inch across a full temperature swing. The larger the daily and seasonal swing, the more disciplined the floating fastening and end-lap allowances must be.
Regional Examples:
Wildfire (WUI) Restrictions
Vinyl may be limited or prohibited
In Wildland-Urban Interface zones, combustible claddings are increasingly restricted. Vinyl melts and deforms under radiant heat, so many fire-hazard jurisdictions limit or prohibit it near property lines.
Regional Examples:
High-UV Exposure & Color Selection
Fade and heat-warp risk in intense sun
Intense UV fades pigments and, combined with heat, can warp darker vinyl. South- and west-facing walls in high-sun regions see the most stress on color and dimensional stability.
Regional Examples:
Local Code Amendments & Continuous Insulation
Fastener length and substrate rules vary
Energy codes in colder climate zones often require continuous exterior insulation behind siding, which changes fastener length and may require furring. Local amendments can also tighten fastening or substrate requirements beyond the base IRC.
Regional Examples:
Before You Build
- •Contact your local building department for specific requirements
- •Verify frost line depths, wind zones, and seismic requirements for your area
- •Check if permits are required and schedule required inspections
- •Consult with a local contractor familiar with local codes
Size a dumpster for this debris
Don't guess at the container size — overage fees run $100–$300+ when you hit the weight cap or fill past the line. See the right size for this material.
Get the right dumpster size →
Related Calculators
Siding Calculator
Instantly calculate siding panels, trim & accessories for vinyl, fiber cement, wood or metal. Doors and windows subtracted automatically. Free, no signup.
Lap Siding Calculator
Free generic lap siding calculator for LP SmartSide, wood bevel, clapboard & vinyl. Boards per square, exposure, trim, corners & fasteners. Even coursing.
HardiePlank Calculator
Free HardiePlank calculator — boards, HardieTrim, kickout & butt-joint flashing, fasteners & sealant by HardieZone (HZ5/HZ10). Hardie HS11119 & IRC.
How to Use This Calculator
- Add each wall: enter length and height, and check "Has gable" for any wall with a triangle on top (enter its rise).
- Enter windows and doors: counts and average sizes. Toggle whether to subtract openings or leave them in as a waste allowance.
- Pick your profile and packaging: Double 4, Double 5, or custom exposure; panel length; and carton size (1 or 2 squares).
- Set the waste factor: choose a complexity tier (10% / 12–15% / 15–20%) or type a manual override.
- Add corners and trim: number of outside and inside corners, roofline abutment, and optional soffit/fascia and finish trim.
- Review the materials list: squares, panels, cartons, every accessory in LF and pieces, and a nail allowance — copy, print, or save it.
Vinyl Siding Coverage Standards
One square = 100 sq ft. Coverage per panel = panel length × exposure (Double 4 ≈ 8.33 sq ft, Double 5 ≈ 10 sq ft at 12’6″). Squares = net area × (1 + waste) ÷ 100, rounded up. Accessories come in ~12’6″ sticks (starter, J-channel, undersill) and 10′ (or 20′) corner posts. Panels float on ~1/32″ loose nails per ASTM D3679 and the VSI Installation Manual — never driven tight.
Frequently Asked Questions
How much vinyl siding do I need? How do I get squares?
Vinyl siding is estimated in 'squares' — one square covers 100 sq ft. Measure each wall (width × height), add gables as ½ × base × peak height, subtract only large openings, add a waste factor, then divide by 100 and round up. Example: 1,700 sq ft net × 1.10 (10% waste) = 1,870 sq ft ÷ 100 = 18.7 → order 19 squares. The calculator also converts squares into panel counts and cartons (each carton holds 1 or 2 squares) so you can order by the box.
How much waste factor should I add for vinyl siding?
Waste tracks complexity, not just square footage. Simple rectangular walls with few openings use about 10% — the trade-consensus baseline for vinyl, which is lower than fiber cement because panels cut cleanly and interlock. Walls with many windows, doors, and corners use 12–15%. Homes with gables, dormers, angled walls, or vertical/board-and-batten layouts use 15–20% because angled cuts create unusable triangular offcuts. Always round up to the next full square.
What accessories do I need — starter strip, J-channel, corner posts, undersill?
Vinyl is a full system, not just panels. Starter strip runs the bottom perimeter of every sided wall. J-channel wraps every window, door, gable rake, and roofline edge — it's the most under-estimated item because people count windows but miss doors and rooflines. Outside and inside corner posts are quantified by wall height × number of corners. Undersill (utility) trim locks the cut top edge of panels beneath windows and at the top of walls, and F-channel receives soffit at eaves. The calculator outputs each accessory in linear feet AND in stock-length pieces: ~12 ft 6 in sticks for starter/J-channel/undersill/finish/F-channel, and 10 ft (or 20 ft) corner posts.
Why does vinyl 'float' on the nails, and how is that different from HardiePlank?
Vinyl expands and contracts a lot — a 12 ft 6 in panel can move nearly half an inch across a full temperature swing — so it must hang loose on its fasteners. The VSI Installation Manual calls for leaving about a 1/32-inch gap under each nail head (the 'thickness of a dime'), centering nails in the elongated slots, and never driving them tight. That is the opposite of fiber cement: HardiePlank is nailed tight and snug because it barely moves. Nailing vinyl tight the way you'd nail Hardie causes permanent buckling and oil-canning waves. The calculator's fastener panel reflects the vinyl rule (head ≥ 5/16 in, shank ≥ 1/8 in, ≥ 1 1/4 in penetration, ~2/3 lb of nails per square).
What does this calculator NOT include?
No pricing and no labor — it outputs materials only: squares, panel and carton counts, every accessory in linear feet and stock-length pieces, and a fastener weight allowance. It doesn't estimate soffit/fascia finishes beyond the trim runs you enter, doesn't size house wrap or flashing, and doesn't quote installation. It's a free, no-signup takeoff tool. Confirm the exact box coverage and panel length printed on your chosen product's carton before ordering, since panels-per-box (roughly 14–26) and squares-per-carton (1 or 2) vary by manufacturer and profile.
How do I handle gable ends?
A gable is a triangle, so its area is half the base times the peak height: Gable Area = (Base Width × Peak Height) ÷ 2. Enter each gable separately and the calculator adds it to the rectangular wall area before applying waste. Gables raise your waste factor too — the angled rake cuts leave triangular offcuts you can't reuse — so homes with gables or dormers should use the 15–20% complex waste tier. Remember to run J-channel up both gable rakes; that linear footage is easy to forget.
Should I subtract windows and doors from the wall area?
It depends on the convention you choose, which is why the calculator has a 'subtract small openings' toggle. Many DIY tools deduct every window and door, while common trade practice leaves normal-sized openings in as a built-in waste allowance and deducts only large openings — garage doors, sliding-door walls, and picture windows over roughly 12 sq ft. Both approaches are defensible: subtracting small openings gives a leaner number, leaving them in cushions against cut waste. Deduct large openings either way, since they materially reduce how much siding you need.
