How many cinder blocks do you actually need? This free cinder block calculator gives DIYers and masons a complete take-off — not just a block count. Enter each wall segment, subtract your door and window openings, pick a block width, and get field blocks, corner and half units, mortar bags, grout or core-fill volume, bond-beam and lintel units, joint reinforcement, and prescriptive vertical rebar in one screen.
True cinder block (coal-cinder aggregate) is essentially no longer made — modern units are concrete masonry units (CMU) governed by ASTM C90. The names are used interchangeably at the counter. A standard 8×8×16 unit is really 7-5/8 × 7-5/8 × 15-5/8 in; one 3/8" mortar joint restores the 8×8×16 module, which is why the count works out to 1.125 blocks per square foot (119 per 100 ft² with waste, per NCMA/CMHA TEK 04-02A).
Every quantity traces to a standard — ASTM C90/C270/C476, TMS 402/602, IRC R403/R404.1.1/R606, and the NCMA/CMHA TEK 04-02A grout tables — and a hard-stop engineer gate trips when your project exceeds the prescriptive tables (backfill, wall height, seismic, or high-wind). Material quantities only: no pricing, no labor, and no structural design. Free, no signup.
Cinder Block / CMU Calculator
Estimate blocks, mortar, grout / core fill, bond-beam and lintel units, and prescriptive reinforcement for a concrete masonry (CMU) wall — with a hard-stop engineer gate when the project exceeds the code tables.
Wall segments
Odd-shaped wall? Work out the square footage first →
Each corner column consumes corner/half units per course to keep the running bond. A rectangular enclosure has 4.
Openings
No openings added — the whole wall area is counted as solid block.
Block & mortar joint
Grout & core fill
Reinforcement
Application & code context
Mortar type & waste
Block waste: 5% simple rectangular, 10% with a few openings, 15% complex / many corners (supplier estimating guides). Mortar 10% and grout 3% are the NCMA/CMHA TEK 04-02A allowances.
How the block, corner, and grout math works
The block count is the easy part. These engineering-style diagrams cover the three things that decide whether your order is right: what a concrete masonry unit actually is (and where the 1.125-blocks-per-square-foot figure comes from), how a running-bond corner consumes corner and half units, and where the steel and grout go in a reinforced wall.

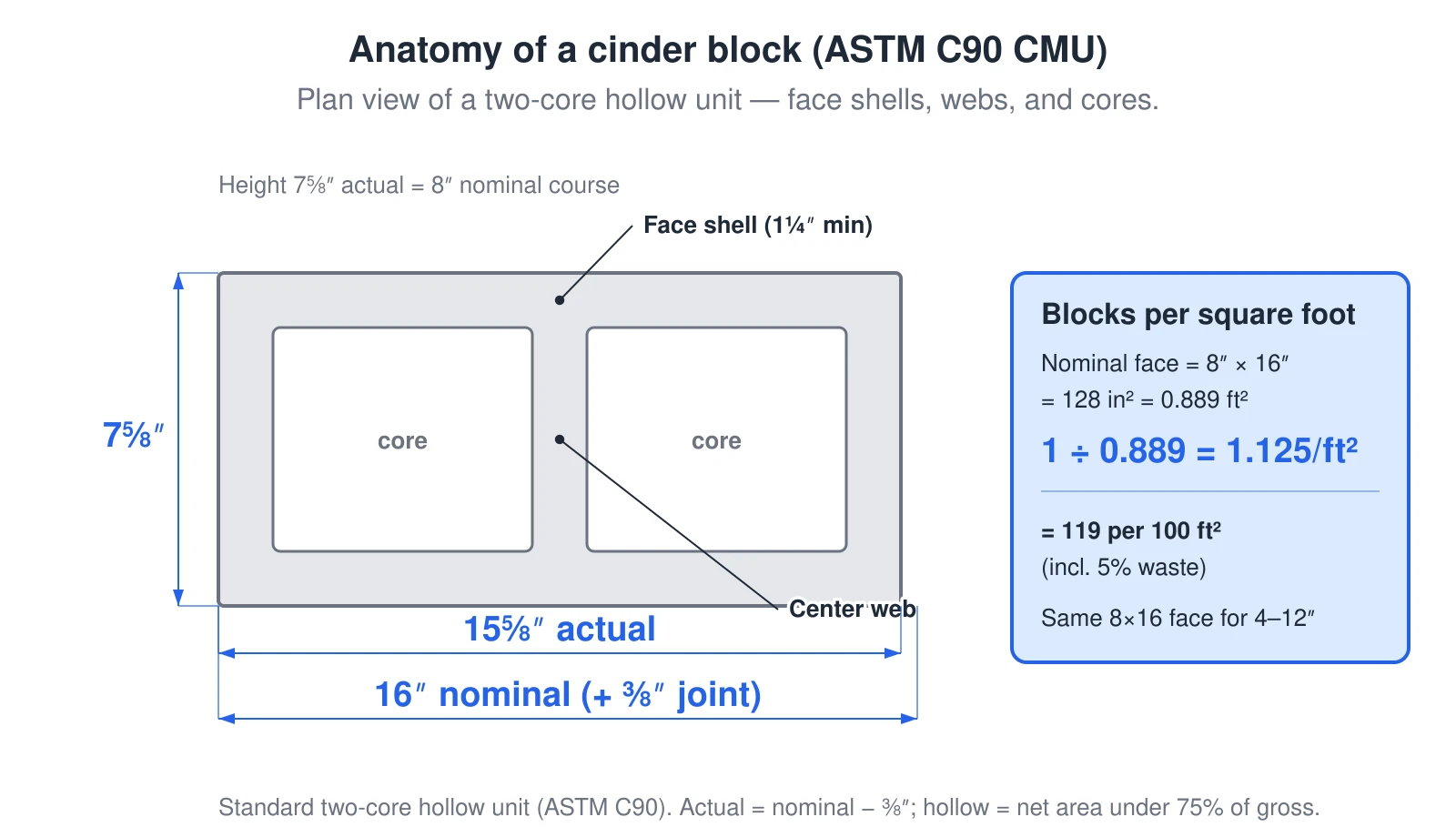

The anatomy diagram is why “cinder block” and CMU are the same order today. A standard unit is a two-core hollow block with two face shells tied by three webs; the actual size is the nominal size minus 3⁄8 inch, so one 3⁄8-inch mortar joint restores the 8×8×16 module. Because the nominal face is 0.889 square feet, the wall needs 1.125 blocks per square foot — 119 per 100 square feet once you add 5% waste.

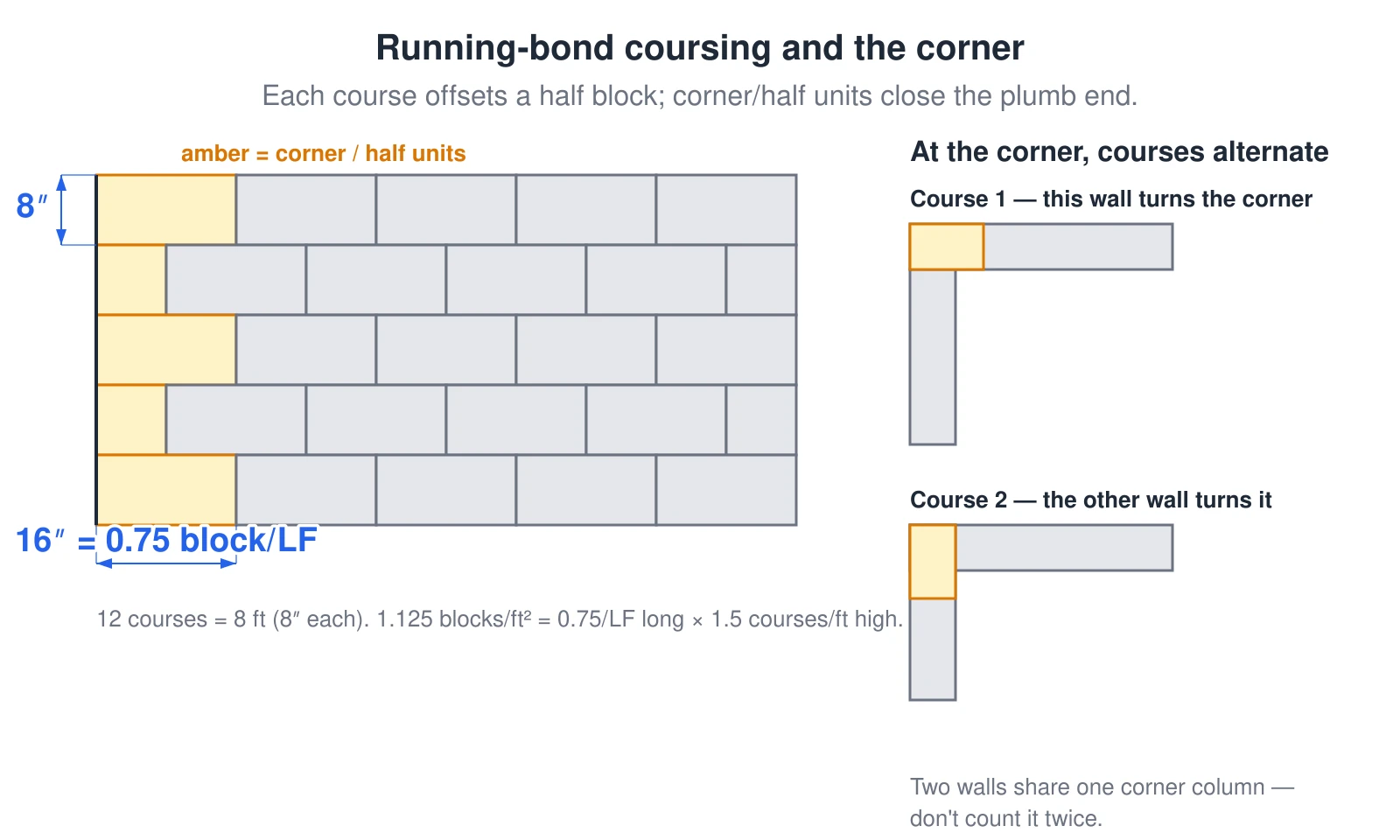

The running-bond diagram is why the corners change the count. Each course offsets a half block so the head joints never stack, and at a corner the units alternate direction course by course, so a corner or half unit closes every course. Two intersecting walls share the single corner column — counting it twice is a common over-order. The vertical module is 8 inches, so 12 courses make a nominal 8-foot wall.

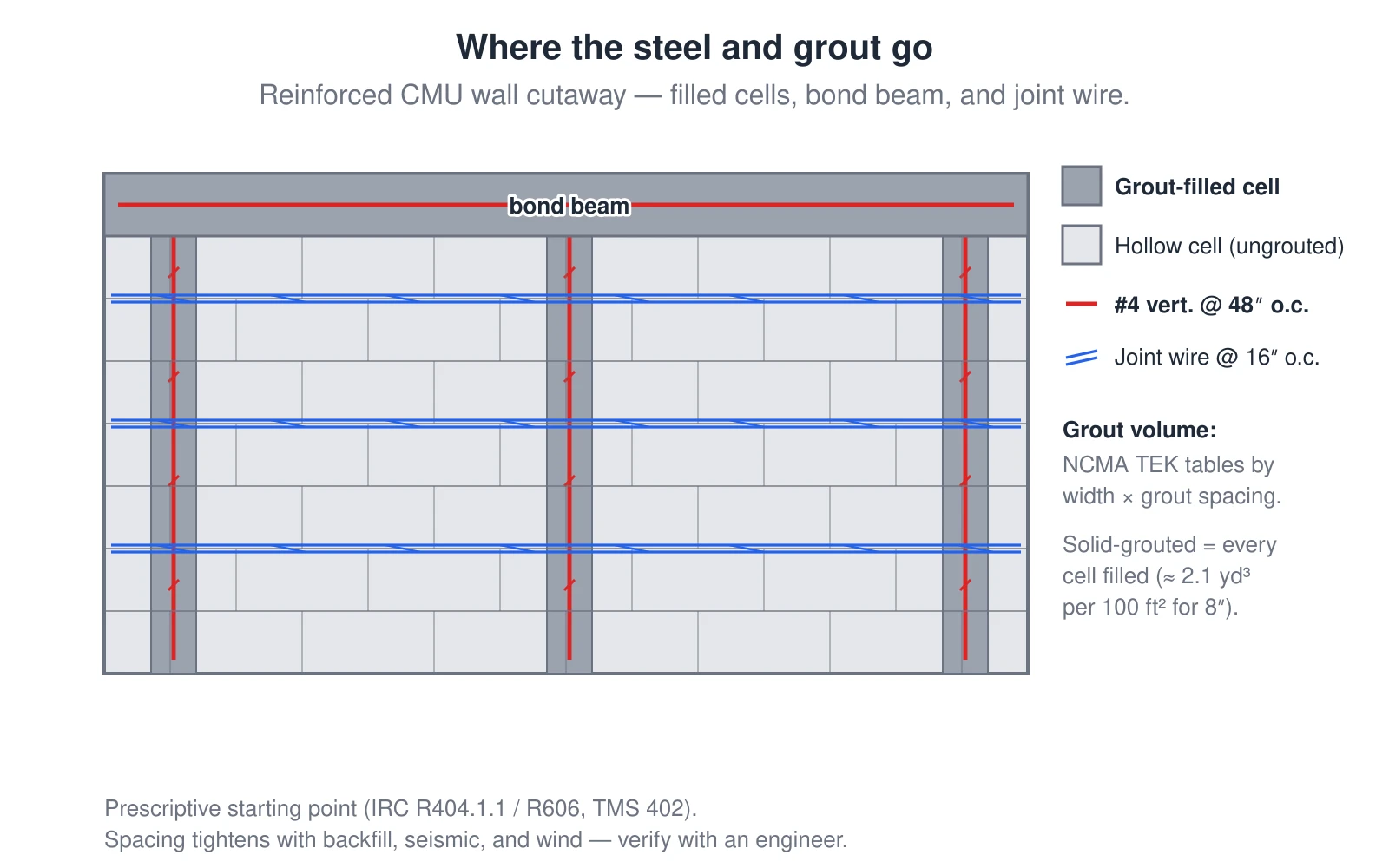

The reinforced-wall diagram is why grout and rebar are separate line items. Vertical bars sit in grout-filled cells at spacing (a common prescriptive default is #4 at 48 inches on center), a grouted bond-beam course with a horizontal bar caps the top and openings, and 9-gauge joint-reinforcement wire lies in the bed joint every 16 inches. Empty cells stay hollow — which is why grout volume comes from the NCMA tables by wall width and spacing, not by filling everything.
Calculation Formulas
Nominal 8×16 face = 128 in² = 0.889 ft², so 1 ÷ 0.889 = 1.125 blocks per square foot with a 3/8" joint. NCMA/CMHA TEK 04-02A: 119 units per 100 ft² including a 5% waste allowance.
Example:
3/8" joint → 1.125 blocks/ft². 100 ft² wall = 112.5 raw, ~119 with 5% waste.
Subtract every door, window, and vent opening from gross wall area BEFORE applying the blocks-per-ft² factor. Skipping this over-orders 10–25% on fenestrated walls.
Example:
30 ft × 8 ft wall = 240 ft² gross − a 3 ft × 6.67 ft door (20 ft²) = 220 ft² net.
Nominal course height is 8" (7-5/8" block + 3/8" joint). A nominal 8-ft wall is exactly 12 courses; each linear foot of wall is 0.75 block long.
Example:
8 ft wall → 96 in ÷ 8 = 12 courses. 30 ft run → 360 in ÷ 16 = 22.5 blocks per course.
NCMA/CMHA TEK 04-02A: ~8.5 ft³ of mortar per 100 ft² of wall at 3/8" face-shell joints with a 10% waste allowance. Bag yield varies by product — 13 block per 80-lb QUIKRETE Mason Mix bag, ~16 per preblended bag.
Example:
220 ft² → 18.7 ft³ mortar; ~250 blocks ÷ 13 = 20 bags of 80-lb mortar.
Grout is fully tabulated by wall width and vertical grout spacing in NCMA TEK 04-02A Table 3. An 8" wall grouted at 16" o.c. uses 18.1 ft³ per 100 ft²; at 48" o.c., 6.1 ft³; solid ≈ 55 ft³ (2.1 yd³).
Example:
220 ft² of 8" block at 48" o.c. → (220 ÷ 100) × 6.1 = 13.4 ft³ ≈ 21 × 80-lb bags.
An 80-lb bag of core-fill grout yields ~0.66 ft³ (TEK 04-02A Table 4) — enough for 2.7 cores of 8" block, 3.6 cores of 6", 2.2 of 10", 1.8 of 12". A 3,000-lb bulk bag ≈ 25 ft³ (110 cores of 8").
Example:
13.4 ft³ ÷ 0.66 = 20.3 → 21 bags, or about 0.5 of a 3,000-lb bulk bag.
Horizontal bond-beam channels are grouted separately from vertical cells. An 80-lb bag fills ~2.0 linear ft of 8" bond beam, 2.7 ft of 6", 1.6 ft of 12" (TEK 04-02A Table 5).
Example:
One 30-ft bond-beam course in 8" block → 30 ÷ 2.0 = 15 × 80-lb bags.
Place one bar per grouted-cell spacing plus one at each segment end, add one per corner, and add trim bars (2 per opening > 16" per TMS 402). Each bar runs the wall height plus lap/hook.
Example:
30 ft wall at 48" o.c. = 8 interior + trim + corners; ~10 bars × (8 ft + 2 ft lap) = 100 LF.
9-gauge (W1.7) ladder or truss wire is placed every 16" o.c. vertically — every second course on 8" coursing. Half-high units tighten to 12" o.c.
Example:
30-ft × 8-ft wall, wire every 16" → 6 reinforced courses × 30 ft = 180 LF.
One lintel course spans each opening plus ~8" bearing on each end. Lintel and bond-beam units are deducted from the field-block count so you don't double-order.
Example:
A 36" opening → (36 + 16) ÷ 16 = 3.25 → 4 lintel units, with 8" bearing each side.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| Nominal vs Actual (ASTM C90) | Actual = nominal − 3/8" | A nominal 8×8×16 unit is actually 7-5/8 × 7-5/8 × 15-5/8 in; one 3/8" mortar joint restores the 8×8×16 module. Dimensional tolerance is ±1/8". |
| Blocks per Square Foot | 1.125 (8×16 face) | Independent of wall width — the face module is 8×16 for 4", 6", 8", 10", and 12" units alike. Only the wythe width and cell geometry change. |
| Minimum Unit Strength | 2,000 psi net area | ASTM C90 minimum net-area compressive strength was raised from 1,900 to 2,000 psi in 2014 (reflected in C90-22). IRC foundation-wall table footnotes still carry 1,900 psi — cite the applicable value per context. |
| Mortar per 100 Block | ~3 bags / ~8.5 ft³ per 100 ft² | Rule of thumb is ~3 bags of mortar per 100 block; TEK 04-02A gives ~8.5 ft³ per 100 ft² of wall at 3/8" face-shell joints with 10% waste. Bag yields run 8–16 block per 80-lb bag by product. |
| Sand per Ton | ~240 CMU per ton | For site-mixed mortar, NCMA/CMHA TEK 04-02A: about 240 concrete masonry units per ton of masonry sand (~1 ton per 8 bags of masonry cement). |
| Grout Bag Yield | 0.66 ft³ per 80-lb bag | TEK 04-02A Table 4: an 80-lb bag of core-fill grout ≈ 0.66 ft³ — 2.7 cores of 8" block. A 3,000-lb bulk bag ≈ 25 ft³ (110 cores of 8"). |
| Joint Reinforcement Spacing | 16" o.c. vertically | 9-gauge (W1.7) ladder or truss wire at 16" o.c. is the standard prescriptive default (TMS 402). Minimum wire size is W1.1; maximum is half the joint thickness (~3/16" for a 3/8" joint). |
| Prescriptive Rebar Default | #4 @ 48" o.c. | #4 (1/2") vertical bar in grouted cells at 48" o.c. is the common residential prescriptive minimum (IRC R404.1.1 / R606, TMS 402). Spacing tightens with backfill height, soil class, and Seismic Design Category. |
| Waste Factors | Block 5–15% / Mortar 10% / Grout 3% | Block: 5% simple rectangular, 10% with 2–4 openings, 15% complex/many corners. Mortar 10% and grout 3% are the TEK 04-02A allowances already embedded in the coverage figures. |
| Footing Minimums (IRC R403) | 6" thick × 12" wide minimum | Continuous footing on undisturbed soil below the frost line, ≥ 12" below grade. Typical detail is a 16" wide × 8" thick footing (2× wall width) with two #4 bars — size it with the concrete/footing calculator. |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
ASTM C90 — Loadbearing Concrete Masonry Units(ASTM C90-24a)
View StandardThe governing specification for loadbearing CMU (what people call 'cinder block'). Defines dimensions and tolerances, minimum face-shell thickness, density classes, and minimum compressive strength. True cinder (coal-ash) block is largely obsolete and often does not meet C90.
Key Requirements:
- •Minimum net-area compressive strength 2,000 psi (raised from 1,900 psi in 2014)
- •Actual dimensions = nominal − 3/8"; tolerance ±1/8"
- •Minimum face-shell thickness 1-1/4" for 8" units
- •Hollow unit = net area less than 75% of gross area
- •Three density classes: lightweight < 105 pcf, medium 105–125, normal ≥ 125 pcf
ASTM C270 — Mortar for Unit Masonry(ASTM C270)
View StandardSpecifies the four mortar types by proportion or property. Type selection is driven by exposure and loading: N above grade, S at/below grade and loadbearing, M in soil contact, O interior non-loadbearing only. IRC foundation tables require Type M or S.
Key Requirements:
- •Type M ≥ 2,500 psi — foundations, retaining walls, severe below-grade exposure
- •Type S ≥ 1,800 psi — at/below grade, loadbearing, high wind/seismic
- •Type N ≥ 750 psi — above-grade general and non-loadbearing exterior
- •Type O ≥ 350 psi — interior non-loadbearing only
- •Type S is acceptable wherever Type N is specified ('if in doubt, use S')
ASTM C476 — Grout for Masonry(ASTM C476)
View StandardGoverns fine and coarse grout for filling CMU cells and bond beams. Coarse grout is permitted for larger cells, fine grout for smaller or congested spaces. Grout space and maximum pour height are limited by IRC R606.3.5.1 and TMS 402.
Key Requirements:
- •Fine grout: aggregate passing 3/8"; coarse grout: pea gravel permitted
- •Minimum grout compressive strength 2,000 psi at 28 days
- •Grout-space and pour-height limits per IRC R606.3.5.1 / TMS 402
- •Clean-outs required at the base of cells for pours over ~5 ft (TEK 03-02A)
- •NCMA does not recommend grouting conventional 4" units (cells too small)
TMS 402/602 — Building Code Requirements & Specification for Masonry(TMS 402 / TMS 602)
View StandardThe masonry design code (402) and specification (602) referenced by the IBC and IRC. Provides prescriptive reinforcement minimums, joint-reinforcement spacing, seismic detailing by SDC, and grout-space requirements.
Key Requirements:
- •Joint reinforcement at 16" o.c.; minimum wire W1.1, maximum half the joint thickness
- •Trim bars: not less than one #5 or two #4 on all sides of openings over 16"
- •Trim bars extend ≥ 24" (or 48 bar diameters) beyond openings/corners
- •Reinforcement quantity increases by Seismic Design Category
- •Prescriptive tables apply only within their stated limits — otherwise engineered design
IRC R404.1.1 — Masonry Foundation Walls(IRC R404.1.1(2))
View StandardThe prescriptive table for reinforced 8" masonry foundation walls, unchanged 2015→2021. Vertical bar size and spacing are read from wall height, unbalanced backfill height, and soil lateral-load class. Where the project exceeds the table, an engineer is required.
Key Requirements:
- •Table rows are 6'8", 7'4", 8', 8'8", 9'4", 10' — map your wall to the correct row
- •Soil groups: 30 psf/ft (GW/GP/SW/SP), 45 (GM/GC/SM/ML), 60 (SC/ML-CL/CL)
- •Mortar Type M or S; vertical steel Grade 60; d ≥ 5"
- •Max bar spacing 72" in SDC A/B/C, 48" in SDC D0/D1/D2
- •Prohibited for soil classes MH, CH, OL, OH, and peat — engineer required
IRC R606 — Above-Grade Masonry Construction(IRC R606)
View StandardPrescriptive requirements for above-grade masonry: lateral-support spacing, joint reinforcement, bond beams, and seismic reinforcement by SDC. R606.12.3.2 sets minimum total reinforcement ratios for SDC D0/D1.
Key Requirements:
- •Lateral support spacing per Table R606.9
- •SDC D0/D1: total reinforcement ≥ 0.002 × gross area; each direction ≥ 0.0007
- •Maximum reinforcement spacing 48" when solid-grouted open-end units
- •4" loadbearing masonry foundation wall limited to 4 ft height
- •Bond beams at wall tops, above openings, and at seismic intervals
IRC R403 — Footings(IRC R403.1)
View StandardSets minimum footing dimensions and bearing for masonry walls. The calculator outputs trigger dimensions only and defers footing design to the concrete/footing calculator — a CMU wall must never be built directly on soil.
Key Requirements:
- •Minimum footing thickness 6"; minimum width 12"
- •Projection 2" minimum and not more than the footing thickness
- •Bearing on undisturbed soil or engineered fill, below the frost line
- •Footing bottom ≥ 12" below undisturbed ground surface
- •Typical: footing width = 2× wall width, 2,500 psi concrete, two #4 bars (NCMA detail)
NCMA / CMHA TEK 04-02A — Estimating Concrete Masonry Materials(TEK 04-02A)
View StandardThe industry estimating reference behind every quantity constant in this calculator: units per 100 ft², mortar batch yields, and the grout Tables 3 (cell grout by width/spacing), 4 (core-fill bag yield), and 5 (bond-beam bag yield).
Key Requirements:
- •119 units per 100 ft² including 5% waste (8×8×16)
- •~8.5 ft³ mortar per 100 ft² at 3/8" face-shell joints, 10% waste
- •Grout Table 3: 8" wall = 18.1 ft³/100 ft² at 16" o.c., 6.1 at 48" o.c.
- •80-lb grout bag ≈ 0.66 ft³ (2.7 cores of 8" block)
- •~240 CMU per ton of masonry sand for site-mixed mortar
Standards Disclaimer: Standards and codes are subject to periodic updates. Always verify current requirements with local building authorities and professional engineers before beginning construction. Links provided are for reference only.
Seismic Design Category (Western States)
SDC drives grout spacing, bar size, and minimum reinforcement ratios
Seismic Design Category governs how much steel and grout a masonry wall needs. Low-seismic areas can use prescriptive #4 @ 48" o.c.; high-seismic zones tighten spacing, add horizontal steel, and often require solid grouting. SDC D2 and above falls outside the prescriptive tables entirely.
Regional Examples:
High-Wind and Coastal (Florida / Gulf Coast)
FBC HVHZ tie columns and filled cells raise grout and steel dramatically
High-wind construction, especially the Florida Building Code High-Velocity Hurricane Zone, requires a continuous load path with reinforced tie columns and tie beams. Filled-cell requirements sharply increase grout quantities over a typical partially-grouted wall.
Regional Examples:
Frost Depth and Footing Requirements
Footing depth is a local-climate variable, not a national constant
IRC R403 requires footings below the local frost line. A CMU wall built on a shallow or frost-susceptible footing heaves and cracks. The calculator outputs trigger dimensions only and cross-links to the concrete/footing calculator for the actual pour.
Regional Examples:
Mortar Type by Exposure and Below-Grade Condition
Type M/S below grade, Type N above — matching mortar to the wall's job
Mortar type is a code-driven regional and exposure choice, not a preference. Foundation and soil-contact masonry needs Type M or S; above-grade general work uses Type N; interior non-loadbearing can use Type O. Using Type N below grade is a common and costly error.
Regional Examples:
Density Class, Handling, and Delivery
Lightweight vs normal-weight changes crew fatigue and freight
ASTM C90 density class affects unit weight, handling, and delivery — not the block count. A normal-weight 8" unit runs 36–42 lb; a lightweight equivalent is 21–28 lb. Over a full wall the difference is tons of material to stage and lift.
Regional Examples:
Cinder Block vs CMU — Terminology and Availability
True cinder block is obsolete; you are ordering ASTM C90 CMU
'Cinder block' historically meant units made with coal-cinder (fly/bottom ash) aggregate — lighter but weaker, largely phased out by the 1970s. What ships today is ASTM C90 concrete masonry unit. The names are used interchangeably in conversation but only CMU meets modern code.
Regional Examples:
Before You Build
- •Contact your local building department for specific requirements
- •Verify frost line depths, wind zones, and seismic requirements for your area
- •Check if permits are required and schedule required inspections
- •Consult with a local contractor familiar with local codes
A standard 8×8×16 concrete block needs 1.125 blocks per square foot — or 119 units per 100 ft² once you add 5% waste (NCMA/CMHA TEK 04-02A). Plan ~3 bags of mortar per 100 block (about 8.5 ft³ per 100 ft² of wall at 3/8" face-shell joints). If you're grouting an 8" wall, figure ~6.1 ft³ of grout per 100 ft² at 48" on center and about 2.1 cubic yards per 100 ft² solid. Use Type M or S mortar below grade and Type N above grade. Every wall needs a footing below the frost line (IRC R403), and any wall retaining soil, over 10 ft tall, or in a high-seismic/high-wind zone must be designed by a licensed engineer.
🧱 1. Cinder Block vs Concrete Block vs CMU
The three names get used interchangeably at the yard, but only one is technically correct today. A true cinder block was made with coal-cinder aggregate — the fly ash and bottom ash left over from coal-burning power plants. It was lighter, but weaker, and it was largely phased out by the 1970s as coal plants closed and better aggregates took over. Genuine cinder units often do not meet modern code.
What you actually buy now is a concrete masonry unit (CMU), governed by ASTM C90 (Standard Specification for Loadbearing Concrete Masonry Units). “Concrete block” is just the everyday synonym. Since 2014, ASTM C90 requires a minimum net-area compressive strength of 2,000 psi (raised from 1,900 psi), and it defines the density classes, minimum face-shell thickness, and the tolerances that make the block count predictable.
Bottom line: when you search “cinder block,” you're shopping for ASTM C90 CMU. For anything structural — a foundation, a garage shell, a load-bearing wall — ask for “ASTM C90 concrete block” and confirm the density class and strength. For a garden wall or shed, the standard gray block on the pallet is exactly what you want.
📐 2. Block Types and When to Use Each
Every unit below keeps the same nominal 8×16 face module — that's why the block count (1.125 per square foot) is the same no matter the width. What changes is the wythe width and the internal geometry. Remember the ASTM C90 rule: actual size = nominal − 3/8", and one 3/8" mortar joint restores the module. A nominal 8×8×16 unit is actually 7-5/8 × 7-5/8 × 15-5/8 inches.
CMU Widths and Typical Use
| Nominal width | Hollow weight (NW) | Primary use |
|---|---|---|
| 4" | 22–26 lb | Non-loadbearing partitions, veneer backup |
| 6" | 28–34 lb | Loadbearing where 6" is adequate |
| 8" ★ | 36–42 lb | The default structural block |
| 10" | 40–50 lb | Higher load, better fire and sound rating |
| 12" | 52–58 lb | Heavy loadbearing, tall basement walls |
Specialty units
Beyond the plain stretcher block, a real wall needs a handful of shapes (CMHA TEK 02-02B). They all keep the 8×16 face so they course in with everything else:
- Half block (8×8×8): closes coursing at jambs and corners so the running bond stays true.
- Corner / sash unit: a finished flat end for exposed corners; sash units carry a slot for a jamb or control joint.
- Bond-beam block: notched or depressed webs form a continuous horizontal channel for rebar and grout — used at wall tops, above openings, and at seismic intervals.
- Lintel block: a deep U-channel, grouted around steel, that spans over doors and windows.
- Cap / solid block: solid units for wall tops and load distribution.
- Half-high (ashlar): 4"-tall units for a finer coursing look.
Density class (LW / MW / NW)
ASTM C90 sorts units by oven-dry density: lightweight (under 105 pcf), medium weight (105–125 pcf), and normal weight (125 pcf and up). Density doesn't change the block count — but it changes what you have to lift. A 200-block normal-weight 8" wall stages roughly 4 tons of block; the lightweight equivalent is about 2.5 tons. Lightweight also rates better for fire and sound, at a higher unit cost.
Advertisement
🔢 3. How to Estimate a Wall by Hand
The whole take-off comes from one number. A nominal 8×16 face is 128 in² = 0.889 ft², so a wall needs 1 ÷ 0.889 = 1.125 blocks per square foot. Work it in four steps:
- Gross area: length × height for every wall segment. Add gable triangles as ½ × base × height.
- Subtract openings: take out each door and window (width × height). This is the step DIYers skip — and it over-orders a fenestrated wall by 10–25%.
- Multiply by 1.125: net area × 1.125 = field blocks. Round up to whole units.
- Add waste: 5% for a simple rectangle, 10% with a few openings, 15% for complex layouts and lots of corners.
Two supporting facts make the coursing work out: each course is 8" tall nominal (7-5/8" block + 3/8" joint), so 12 courses = 8 ft; and each linear foot of wall is 0.75 block long. At a corner, the units alternate direction course by course, so a corner or half unit closes each course — and two intersecting walls share the single corner column, so don't count it twice.
Worked example. A 30 ft × 8 ft garden wall = 240 ft² gross. Subtract one 3 ft × 6.67 ft gate opening (20 ft²) → 220 ft² net. 220 × 1.125 = 248 field blocks; add 10% waste → about 273 blocks. That's 12 courses of ~22.5 block each.
Our cinder block calculator does all of this automatically — including the corner units, the bond-beam and lintel counts, and the mortar and grout — but it's worth knowing the 1.125 factor so you can sanity-check the result at the yard.
🪣 4. Mortar Type Selection (ASTM C270)
Mortar isn't one product — ASTM C270 defines four types by strength, and the wall's job decides which one you need. Using Type N below grade is a common, costly mistake: the joints fail before the block ever does.
ASTM C270 Mortar Types
| Type | Min. strength | Where it's used |
|---|---|---|
| M | 2,500 psi | Foundations, retaining walls, soil contact, severe below-grade |
| S | 1,800 psi | At/below grade, loadbearing, high wind or seismic |
| N | 750 psi | Above-grade general and non-loadbearing exterior |
| O | 350 psi | Interior non-loadbearing only |
A reliable rule: when in doubt, use Type S — it's acceptable anywhere Type N is specified, for a small premium and a lot of margin. IRC foundation tables require Type M or S.
For quantity, plan about 3 bags per 100 block — NCMA/CMHA TEK 04-02A gives ~8.5 ft³ of mortar per 100 ft² of wall at 3/8" face-shell joints with 10% waste. Bag yields vary: an 80-lb bag of QUIKRETE Mason Mix lays up to 13 standard blocks, a preblended 80-lb bag closer to 16. If you're site-mixing, figure about one ton of masonry sand per 240 blocks. Need thinset or thin-set-vs-mortar guidance for a tile job instead? See the mortar calculator.
🏗️ 5. When the Cores Must Be Filled
A plain block wall is hollow. You fill cells with grout only when the design calls for it — never “just because.” The common triggers: reinforced walls where the vertical rebar sits in a grouted cell; below-grade foundation walls resisting soil pressure; Seismic Design Category C and above; high-wind filled-cell requirements (Florida HVHZ); and localized fill at bond beams, lintels, and jambs. TMS 402 and the IRC prescriptive tables govern the spacing.
Grout volume is fully tabulated in NCMA TEK 04-02A Table 3 — it scales with wall width and grout spacing, so the answer isn't a single number. For an 8" wall:
Grout for an 8" Wall (ft³ per 100 ft²)
| Grouted-cell spacing | Grout per 100 ft² |
|---|---|
| 48" o.c. | 6.1 ft³ |
| 24" o.c. | 12.1 ft³ |
| 16" o.c. | 18.1 ft³ |
| Solid (every cell) | ~55 ft³ (≈ 2.1 yd³) |
For bagged grout, an 80-lb bag yields about 0.66 ft³ — enough for 2.7 cores of 8" block — and a 3,000-lb bulk bag holds roughly 25 ft³ (about 110 cores). One caution: NCMA does not recommend grouting conventional 4" units, because the cells are too small to consolidate reliably. Ordering ready-mix by the yard instead? Cross-check the volume with the concrete calculator.
Advertisement
🔩 6. Reinforcement Basics
Reinforced block walls carry steel in two directions. Horizontal joint reinforcement — 9-gauge (W1.7) ladder or truss wire — is laid in the bed joint every 16" on centervertically (every second course on 8" block; half-high units tighten to 12"). Vertical rebar sits in grouted cells; the common residential prescriptive default is #4 (1/2") at 48" on center, tightening with backfill height, soil class, and seismic category.
Bond beams tie the wall together horizontally: channel-shaped units grouted around a continuous bar, placed at wall tops, above openings, and at floor and roof lines. Around openings, TMS 402 requires trim bars — not less than one #5 or two #4 on all sides of an opening over 16", extending at least 24" (or 48 bar diameters) beyond.
These are prescriptive starting points, not a design. For a full rebar take-off on a slab or footing, use the rebar calculator; for a dry-stack landscape wall, the units and math are different — see the retaining wall calculator.
👷 7. DIY vs. Hiring a Mason
A short freestanding garden wall on a proper footing is a reasonable DIY project. A basement wall, a load-bearing shell, or anything retaining soil is not — and the reasons are structural, not just about skill.
- Weight and handling. Normal-weight 8" block runs 36–42 lb each; a day of laying block is real labor. Plan the pallet drop and staging, and get lifting help.
- The footing comes first. IRC R403 requires a continuous footing below the frost line — a wall built on a shallow footing heaves and cracks. Never build on bare soil.
- Permits. Most jurisdictions require a permit for a structural or retaining wall (and often for freestanding walls over a height limit). Check locally before you order.
- When you must hire an engineer. Any wall retaining more than a few feet of soil, over 10 ft tall, in Seismic Design Category D2 or above, or in a high-wind/HVHZ zone must be designed by a licensed engineer per TMS 402/602. The calculator hard-stops and suppresses its rebar defaults in exactly those cases.
As a rough budgeting frame, the material and labor ranges below help you decide whether to DIY or bid it out.
💵 What a Block Wall Costs (National Ranges)
The calculator itself is materials-only — no pricing — because per-SKU prices drift fast and vary by region. But for planning, here are the widest defensible national ranges. Treat them as relative comparisons, not quotes, and get local bids before you commit.
| Item | Typical range |
|---|---|
| Per block | $1–$5 each ($115–$225 per 70–90 pallet) |
| Materials only (block + mortar) | $3–$6 per sq ft |
| Freestanding wall, installed | $15–$30 per sq ft |
| Core-fill + rebar reinforcement | adds $1–$5.25 per sq ft |
| Retaining wall | $60–$200 per linear foot |
Prices last reviewed July 2026. National ranges from home-services aggregators (HomeGuide, Angi, HomeAdvisor, Homewyse); regional prices vary widely and drift over time — treat dollar figures as relative comparisons, not quotes.
Labor runs materially higher in high-cost coastal metros (California, New York) and in high-wind Florida, where filled-cell and tie-column requirements add both material and time.
⚠️ 8. Common First-Timer Mistakes
- Confusing nominal and actual size. A “16-inch” block is really 15-5/8"; the 3/8" joint makes up the difference. Lay out coursing on the nominal module (8" and 16"), not the actual unit.
- Using gross area instead of net. Forgetting to subtract doors and windows over-orders a fenestrated wall by 10–25%. Enter every opening.
- The wrong mortar below grade. Type N above grade is fine; below grade it fails. Use Type M or S in soil contact and foundations.
- Leaving cells that should be grouted. Reinforced, below-grade, seismic, and high-wind walls need filled cells around the steel — hollow cells there are a structural failure, not a shortcut.
- Skipping the footing. No CMU wall goes on bare soil. A continuous footing below the frost line (IRC R403) is non-negotiable — it's the top cause of cracked masonry walls in cold climates.
- Not counting the corners and bond beams. Corner and half units, bond-beam courses, and lintel units are separate line items. The calculator breaks them out so you order the right shapes, not just plain stretchers.
📚 Sources & Standards
Advertisement
Heavy material — watch the weight limit
Concrete, brick, and masonry hit tonnage caps fast. Most dumpsters cap heavy material at 10 tons, and overage fees stack quickly. See the disposal guide before you load.
Read the heavy-debris guide →
Related Calculators
Concrete Calculator
Instantly calculate cubic yards, 60lb/80lb bags & mix for slabs, footings & posts. Free concrete calculator, results in seconds—no signup needed.
Brick Calculator
Calculate brick veneer, multi-wythe walls, thin brick, pavers, and firebrick. Bricks, mortar bags, ties, weep holes, base aggregate. BIA TN 10.
Retaining Wall Calculator
Estimate blocks, caps, base & drainage stone, geogrid, rebar, timber, or gabion baskets for any retaining wall. Per NCMA & IRC. Free, no signup.
Rebar Calculator
Free rebar calculator: exact bar count, linear feet, weight, and stock sticks to buy for slabs, driveways, footings and round pads. ASTM A615 & ACI 318.
Mortar / Thinset Calculator
Pick the right ANSI mortar (A118.1/.4/.11/.15/.3 or A136.1 mastic) for substrate and tile, then get bag count by trowel notch. NTCA, TCNA, ANSI A108.
How to Use This Calculator
- Add each wall segment: length and height in feet. For curved or circular walls, enter the arc length as the segment length. Set the number of wall corners so corner/half units are counted.
- Add openings: door, window, and vent width and height in inches, and how many. Openings are subtracted from wall area before the block count (the gross-vs-net rule). Leave lintel units on to add a lintel course above each opening.
- Pick the block width (4, 6, 8, 10, or 12 in) and density class. The 8" unit is the default structural block; density only affects the estimated wall weight.
- Choose grout mode: none (hollow), partial with a grouted-cell spacing (8"–48" o.c.), or solid. Set bond-beam courses for wall tops and above openings. Grout volumes come straight from the NCMA TEK 04-02A tables.
- Set reinforcement: horizontal joint wire (16" o.c. default) and let the calculator resolve prescriptive vertical rebar from your application and code context.
- Pick your application (freestanding, shell, loadbearing, or foundation) and the code context — Seismic Design Category, and for foundations, unbalanced backfill height and soil class. This drives the prescriptive rebar defaults and the engineer gate.
- Choose mortar type (ASTM C270 N/S/M/O), bag yield, and waste factors, then click Calculate: see total blocks to order, mortar bags, grout bags, rebar sticks, joint reinforcement, wall weight, and footing trigger dimensions.
When the Calculator Refuses: the Engineer Gate
A CMU material estimate is not a structural design. This calculator hard-stops and suppresses its prescriptive rebar output whenever the project leaves the prescriptive code tables: unbalanced backfill beyond the IRC R404.1.1(2) row for your wall height and soil class (or an unlisted expansive/organic soil like CH, MH, OL, OH, or peat), wall height over 10 ft, Seismic Design Category D2 or higher, high-wind/HVHZ filled-cell tie-column requirements, or any concentrated load, surcharge, or hydrostatic condition. In those cases the block, mortar, and grout counts are still valid for ordering, but the reinforcement must come from a licensed engineer per TMS 402/602 — not from a table. This is the difference between a complete estimator and a block-count toy that quietly gives you unsafe steel.
Frequently Asked Questions
How many cinder blocks do I need per square foot?
About 1.125 blocks per square foot for standard 8×8×16 units. The nominal face is 8 in × 16 in = 128 in² = 0.889 ft², so 1 ÷ 0.889 = 1.125. NCMA/CMHA TEK 04-02A states it as 119 units per 100 ft² of wall including a 5% waste allowance. This factor is the same for 4", 6", 8", 10", and 12" block because they all share the 8×16 face module — only the wythe width changes. To estimate a wall, multiply the net wall area (gross minus openings) by 1.125, then add your waste factor and round up to whole units.
How many bags of mortar do I need per 100 block?
About 3 bags per 100 block is the industry rule of thumb, but bag yield varies by product. NCMA/CMHA TEK 04-02A gives ~8.5 ft³ of mortar per 100 ft² of wall at 3/8" face-shell joints with a 10% waste allowance. An 80-lb bag of QUIKRETE Mason Mix lays up to 13 standard 8×8×16 blocks; a preblended 80-lb bag runs closer to 16. For site-mixed mortar, figure about one ton of masonry sand per 240 blocks. Because yields swing 8–16 block per bag, the calculator lets you pick the bag yield rather than hard-coding one number.
How much grout do I need to fill cinder block cores?
It depends on wall width and how many cells you fill. NCMA TEK 04-02A Table 3 tabulates it: an 8" wall grouted at 48" o.c. uses about 6.1 ft³ per 100 ft², at 16" o.c. about 18.1 ft³, and fully solid about 55 ft³ per 100 ft² (roughly 2.1 cubic yards). An 80-lb bag of core-fill grout yields about 0.66 ft³ — enough for 2.7 cores of 8" block — and a 3,000-lb bulk bag holds about 25 ft³. The calculator reads the TEK table by your wall width and grout spacing rather than a single per-cell number, which varies by producer.
What is the difference between Type S and Type N mortar?
They differ in strength and where they're allowed. Per ASTM C270, Type S has a minimum compressive strength of 1,800 psi and is used at or below grade, for loadbearing walls, and in high wind or seismic areas. Type N is 750 psi minimum and is for above-grade, general, and non-loadbearing exterior work. Type M (2,500 psi) is for soil contact and foundations; Type O (350 psi) is interior non-loadbearing only. IRC foundation tables require Type M or S. A good rule: when in doubt, use Type S — it's acceptable anywhere Type N is specified.
Is a cinder block the same as a CMU?
Functionally, today, yes. True 'cinder block' was made with coal-cinder (fly or bottom ash) aggregate — lighter but weaker — and was largely phased out by the 1970s; it often does not meet modern code. What you actually buy now is a concrete masonry unit (CMU) governed by ASTM C90, with a minimum net-area compressive strength of 2,000 psi. People still say 'cinder block' out of habit, and suppliers know what you mean, but for anything structural you should specify 'ASTM C90 CMU' and confirm the density class and strength.
When do I have to fill the cores with grout?
You fill cells when the structural design requires it — not by default. Common triggers are: reinforced walls where the vertical rebar sits in grouted cells, below-grade foundation walls resisting soil pressure, Seismic Design Category C and above per the IBC, high-wind filled-cell requirements (Florida HVHZ), and localized filling at bond beams, lintels, and jambs. TMS 402 and the IRC prescriptive tables govern the spacing. NCMA does not recommend grouting conventional 4" units because the cells are too small to consolidate reliably, so the calculator suppresses grout output for 4" block.
What weight is a standard 8×8×16 concrete block?
It depends on the ASTM C90 density class. A normal-weight (≥ 125 pcf) hollow 8×8×16 unit runs about 36–42 lb, a medium-weight (105–125 pcf) unit about 29–35 lb, and a lightweight (< 105 pcf) unit about 21–28 lb. Design commonly uses ~38 lb for normal weight. The calculator uses your chosen density class to estimate total wall weight for delivery and staging — a 200-block normal-weight 8" wall stages roughly 4 tons of block, versus about 2.5 tons for the lightweight equivalent, which matters for pallet placement and lift help.
Do I need a footing for a cinder block wall?
Yes — never build a CMU wall directly on soil. IRC R403 requires a continuous footing at least 6" thick and 12" wide, bearing on undisturbed soil or engineered fill below the local frost line and at least 12" below grade. A typical detail is a footing twice the wall width (about 16" for an 8" wall) and 8" thick with two #4 bars, in 2,500 psi concrete. This calculator outputs those trigger dimensions only and defers the actual footing design to the concrete/footing calculator — a footing above the frost line is the top cause of cracked masonry walls in cold climates.
Can I use this calculator for curved or circular walls?
Yes — enter the developed arc length of the curve as the wall segment length, and the height as normal. The block count, mortar, and grout math work off net wall area and linear feet, so an unrolled curved wall estimates the same as a straight run of the same length and height. Add extra block waste (bump from 10% toward 15%) because curved and radial layouts generate more cut units. Note that tightly curved walls may need special radial or scored units from your supplier, which the count treats as standard face units.
