Driveway Sealer Calculator

How much sealer do you need to sealcoat your driveway? This free driveway sealer calculator answers it two ways from one physical basis. Homeowner mode sizes ready-to-use pails; Contractor mode sizes concentrate plus the water, silica sand, and polymer additive of a full mix design — both landing on the same manufacturer-TDS and FAA-anchored applied rate of about 0.11–0.13 gallons per square yard per coat. It also totals crack filler, oil-spot primer, and even checks whether coal-tar sealer is legal in your state.

It is brand-neutral by design. Instead of trusting an optimistic "400–500 sq ft per pail" label, Homeowner mode uses a conservative, independently tested coverage band (about 275 sq ft per pail on smooth asphalt, less on rough), models the first coat rich and each later coat about one-third leaner, and adds a spare pail for touch-ups. Contractor mode reproduces the standardized mix design — roughly 30–40% water, 2–5 lb of 40–70 mesh silica sand per gallon, and 1–3% latex/polymer additive — sized from the same gallons-per-square-yard rate.

It also does what the area-÷-coverage toys don't: it makes coal-tar regulatory status a first-class output (coal-tar sealer is banned statewide in six states plus D.C.), separates "sealable" from "repave" so alligator cracking gets sent to the Asphalt Driveway Calculator instead of sealed over, and flags new asphalt that needs 6–12 months to cure. Quantities only — no pricing, no labor, no signup.

View material estimation guides →

Driveway Sealer Calculator

Estimate how much asphalt sealcoat your driveway needs two ways from one physical basis: Homeowner mode sizes ready-to-use pails at a conservative, independently tested coverage; Contractor mode sizes concentrate plus the water, silica sand, and polymer additive of a full mix design. Add crack filler and oil-spot primer, check whether coal-tar sealer is legal in your state, and get steered to repave when the pavement is past sealing. Anchored to manufacturer TDS and FAA airport specs (~0.11–0.13 gal/sy per coat). Quantities only — free, no signup.

Driveway area

sq ft
ft
ft

Odd-shaped or curved driveway? Work out the square footage first

Coats & surface

The first coat soaks into porous asphalt; each later coat uses about one-third less material and just seals the remaining pores. That first-rich / later-lean split is built into the math.

Why does thickness matter more than the pail label? See the film cross-section

Estimate mode

How does gal/sy become pails? See the application-rate math

Crack filling (optional)

lin ft
in

Cracks deeper than 1/2" get backfilled with dry sand or foam backer rod first, then filler on top. Fill and cure all cracks before you sealcoat.

Fill, patch, or repave? See the crack-width decision tree

Oil spots & advisories (optional)

sq ft

How driveway sealcoating actually works

Sealcoat is a thin, sacrificial film that protects the asphalt binder — so the numbers that matter are film thickness, crack triage, and the application rate. These diagrams cover why a professional two-coat job outlasts a thin single coat at the label rate, how to tell whether a crack gets filled, patched, or repaved, and how the manufacturer gal/sy rate turns into pails at the store. Use the “see the diagram” links beside the inputs above to jump to the figure you need.

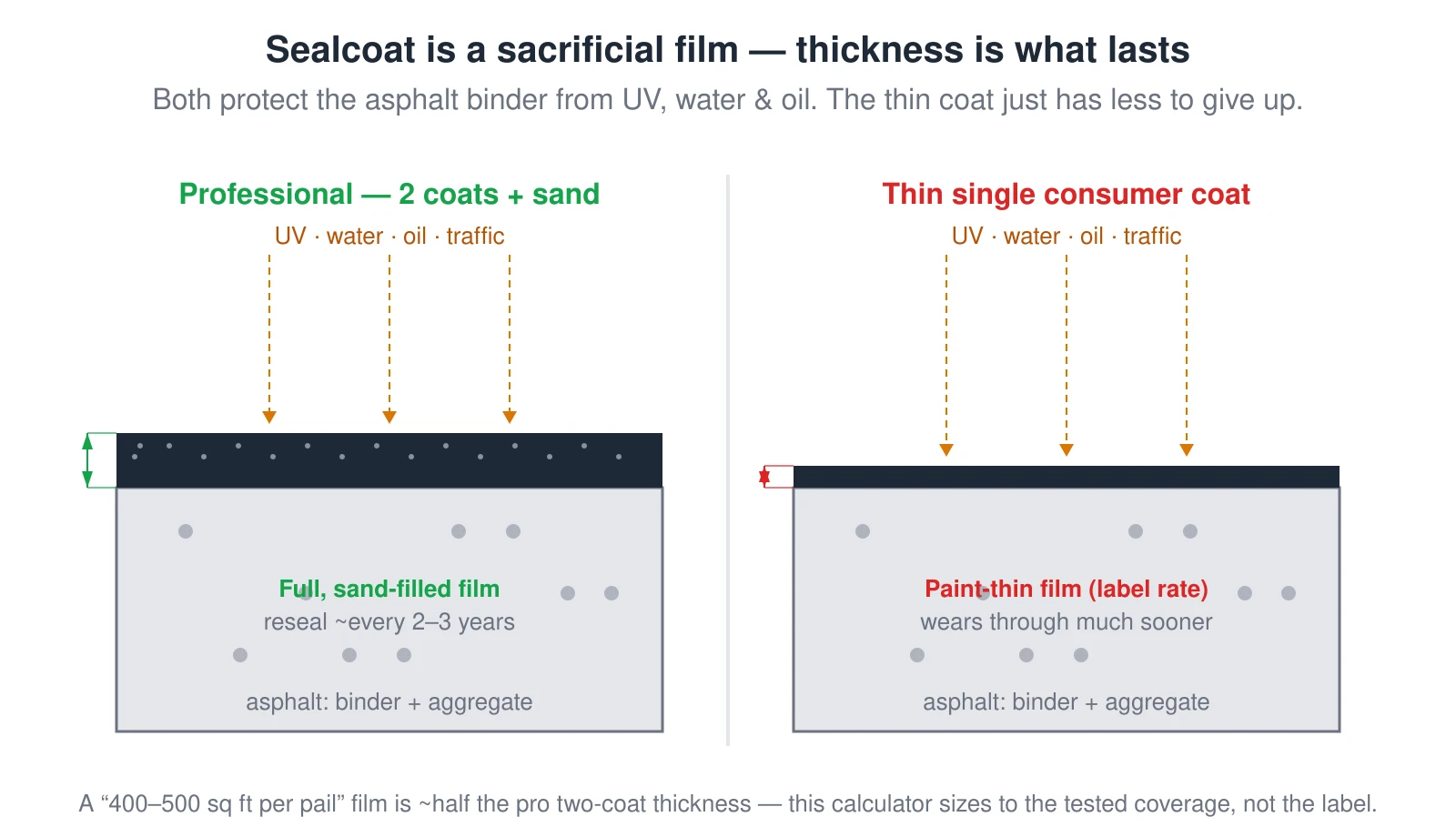

The cross-section is why the calculator’s Homeowner mode uses a conservative, tested coverage rather than the pail label. Sealcoat doesn’t add strength — it’s a wear layer that gives itself up to UV, water, and oil so the pavement underneath doesn’t. A professional two-coat job with silica sand lays a full film that reseals every two to three years; a single thin coat spread to a “400–500 sq ft per pail” claim is roughly half as thick, so it wears through far sooner even though the per-gallon number looks similar.

Sealcoat is a sacrificial film over the asphalt binder. A pro two-coat job lays a full, sand-filled film; a thin single coat at the label rate is roughly half as thick and wears out sooner.Source: Coverage reconciliation via film thickness (SealMaster / Neyra TDS; independent testing)See the Asphalt sealcoat film cross-section →

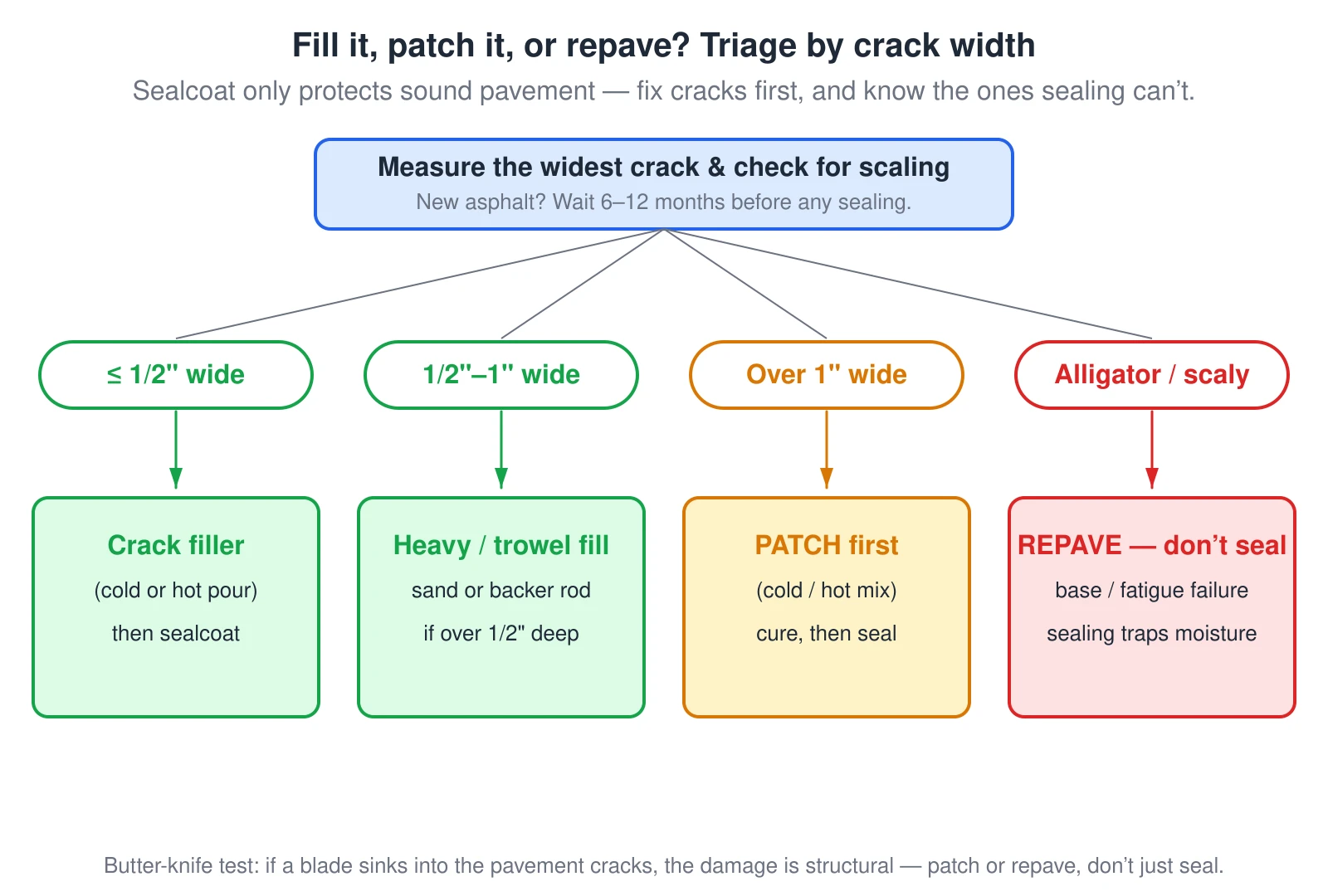

The crack decision tree is why the tool asks for crack width and flags alligatoring. Sealcoat only protects structurally sound pavement. Cracks up to a half-inch take pourable filler; a half-inch to an inch needs a heavy fill (with sand or backer rod when deep); over an inch needs patch material; and alligator, scaly cracking is base failure that must be repaved — sealing it only traps moisture and buys weeks. New asphalt has to cure six to twelve months before any of this.

Crack repair is triaged by width: fill up to 1/2″, heavy-fill or backer-rod to 1″, patch over 1″, and repave alligator cracking. Sealcoat only protects sound pavement.Source: Asphalt Kingdom / SealMaster crack-repair guidance; Wolf Paving (alligatoring = base failure)See the Asphalt crack-repair decision tree by width diagram →

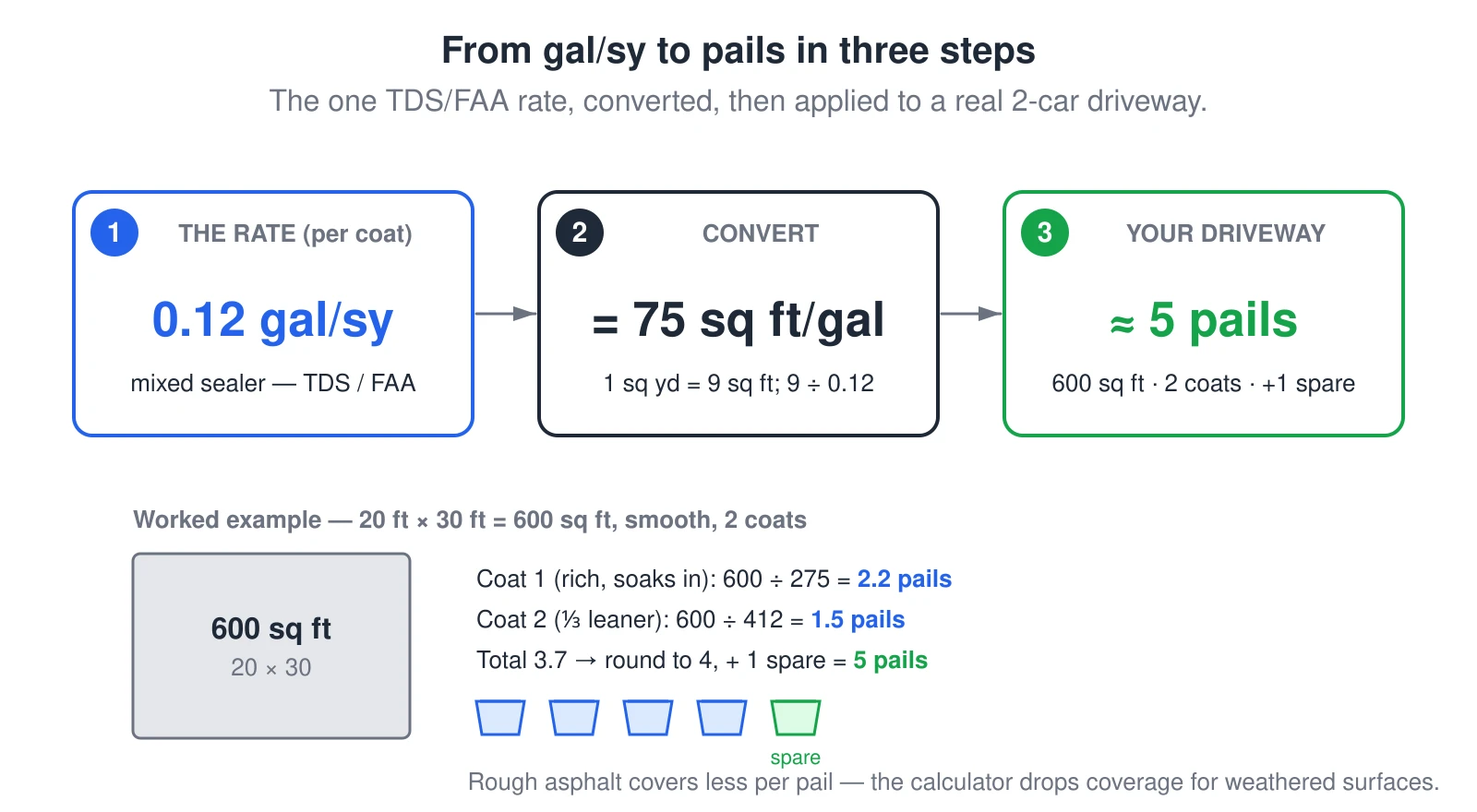

The rate diagram is why a gal/sy number becomes a pail count. Manufacturer data sheets and FAA airport specs agree on about 0.12 gallons per square yard per coat; since a square yard is nine square feet, that’s 75 square feet per gallon. Apply it to a 600-square-foot two-car driveway at two coats — with the first coat rich and the second about a third leaner — and it works out to roughly four pails plus a spare, which is exactly what the calculator returns.

From rate to pails: 0.12 gal/sy per coat = 75 sq ft/gal; a 600 sq ft driveway at two coats works out to about 4 pails plus a spare.Source: 1 sq yd = 9 sq ft; mixed rate 0.11–0.13 gal/sy (SealMaster / Neyra / GemSeal TDS, FAA AC 150/5370-10H)See the Driveway sealcoat application-rate math diagram →

Advertisement

📚

Want to Learn More?

How much driveway sealer you need, coal-tar bans by state, the crack-width fix, two-coat technique, cure windows, failure modes, and cost ranges.

Read the How to Sealcoat a Driveway

Plan disposal before you start

Smaller jobs still produce more debris than a few trash bags can hold. Check what's allowed in a dumpster and which disposal option fits the scope.

See disposal options →

Related Calculators

Explore Masonry, Stucco & Hardscape: calculators, diagrams & guidesEvery calculator, cross-section diagram, and guide for this trade in one place.

How to Use This Calculator

  1. Enter your driveway size — length × width, or switch to direct square footage. Subtract any area you won't seal (drain grates, planted islands). A typical 2-car driveway is about 600 sq ft.
  2. Pick your pavement condition (smooth / moderate / rough) and the number of coats. Two coats is the professional standard; the first coat is modeled rich and each later coat about one-third leaner.
  3. Choose your mode: Homeowner sizes ready-to-use pails at a conservative tested coverage; Contractor sizes concentrate plus water, silica sand, and additive for a full mix design.
  4. Optionally add crack filler (total linear feet + widest crack class + fill method) and oil-spot primer (square feet of stained pavement). Cracks over 1 inch or deeper than 1/2 inch get flagged for patch or backer rod.
  5. Enter your state to check coal-tar legality, and flag new asphalt or alligator cracking. Read your results: sealer quantity, crack filler, and primer by line item, plus a coverage reference and prep notes. Copy or print the take-off.

Why Two Modes From One Rate

Manufacturer data sheets (SealMaster, Neyra, GemSeal) and FAA airport specs all agree on one number: mixed, ready-to-apply sealer goes down at about 0.11–0.13 gallons per square yard per coat, which is 70–82 square feet per gallon. Everything else is derived from that identity. Contractor mode works forward from concentrate (100–120 sq ft/gal before water and sand extend it); Homeowner mode translates the same rate into ready-to-use pails, but deliberately uses independently tested coverage (250–300 sq ft/pail smooth) rather than the optimistic label claim, because a 400–500 sq ft/pail film is too thin to match a professional two-coat system. Sealcoat is preventive maintenance for structurally sound asphalt — alligator cracking is base failure that needs repaving, not sealing.

Frequently Asked Questions

How much sealer do I need for a 2-car driveway?

A typical 2-car driveway of about 600 square feet needs roughly 4 to 5 ready-to-use pails for two coats on smooth, previously sealed asphalt — buy one extra for touch-ups. Rough or oxidized pavement drinks up more, so plan for the higher end. In contractor terms, that's about 0.12 gallons of mixed sealer per square yard per coat (roughly 75 square feet per gallon). The calculator sizes both ways: pails in Homeowner mode, or concentrate plus water, sand, and additive in Contractor mode. Note that the first coat uses more material than the second, because it soaks into the porous surface while the second coat only seals the remaining pores.

Why does the calculator use less coverage per pail than the label says?

Consumer sealer labels commonly claim 400–500 square feet per pail on smooth asphalt, but independent testing (The Honest Reviewers) found real-world coverage closer to 250–300 square feet on smooth pavement and 150–200 on rough. The math reconciles through film thickness: a 400–500 square-foot-per-pail film is roughly half as thick as a professional two-coat system, so it won't last as long. The calculator defaults Homeowner mode to the conservative tested band (about 275 square feet per pail on smooth, first coat) so you don't run short mid-job. Treat the label figure as a best-case upper bound, not a planning number.

Is coal-tar sealer banned in my state?

Coal-tar sealer is banned statewide in six states plus Washington, D.C.: Washington (2011), Minnesota (2014), New York (2023), Maryland (2023), Maine (2024), Virginia (2025), and D.C. (2009). Many counties and cities ban it independently even where the state allows it — for example Dane County WI, several Maryland counties, Cook County IL, Suffolk County NY, Austin and San Antonio TX, and Ann Arbor MI. Enter your state above and the calculator flags the statewide status. Coal-tar sealer contains 35,000–200,000 mg/kg of PAHs — about 1,000 times the level in asphalt-based sealer, per USGS — so where it's banned (or wherever you'd rather avoid the exposure), use an asphalt-emulsion sealer (ASTM D8099), which is legal in all 50 states.

How long after new asphalt can I seal it?

Wait 6 to 12 months. New asphalt is full of surface oils that need to oxidize out before it will accept sealer without tracking and staying soft. Manufacturer minimums are shorter — SealMaster lists about 4 weeks, and Neyra and GemSeal about 30 days for coal tar — but 6 to 12 months is the accepted homeowner window and the safer bet. The calculator has a 'new asphalt' flag that warns you to wait rather than sizing a purchase you shouldn't make yet. Sealing too early is one of the most common causes of a sealcoat that never fully cures and tracks onto shoes and tires.

How often should I reseal my driveway?

Every 2 to 3 years for most driveways, and sooner in harsh climates or under heavy traffic. But don't overseal: piling on new coats before the previous film has worn causes buildup, and the excess sealer develops its own cosmetic hairline 'alligatoring' — fine cracking in the sealer itself, not the pavement. The signal to reseal is when the black has faded to gray and the surface starts looking porous again, not a fixed calendar date. Two thin coats every few years outlast one heavy coat applied too often.

My driveway has alligator (scaly) cracking — can I just seal it?

No. Alligator cracking — the interconnected, scaly pattern that looks like reptile skin — is base or fatigue failure, meaning the layers under the asphalt have given way. Sealcoat is a surface treatment; it can't add structural strength, and sealing over alligatoring only masks it briefly while trapping moisture that accelerates the failure. This pavement needs patching or repaving. A quick field check: if a butter knife or screwdriver sinks into the cracks, the damage is structural. The calculator has an alligatoring flag that hands you off to the Asphalt Driveway Calculator for repave tonnage instead of sizing sealer.

How much crack filler do I need, and when do I patch instead?

Cold-pour pourable crack filler covers roughly 75–150 linear feet per gallon depending on width (about 150 for hairline cracks, 100 for 1/4–1/2 inch, 60 for 1/2–1 inch); hot-pour melt boxes run about 200 linear feet each. Fill cracks up to about 1/2 inch wide. Cracks deeper than 1/2 inch should be backfilled with dry silica sand or foam backer rod to within 1/4–1/2 inch of the surface first, or the filler just sinks. Cracks wider than about 1 inch are past pourable filler — they need cold-patch or hot-mix patch material, cured before you sealcoat over them. The calculator sizes filler by width class and flags anything that needs patching or backer rod.

Do I really need two coats?

Yes, two coats is the professional standard, and many consumer sealer warranties actually require the second coat. The first coat is largely absorbed by the porous, oxidized asphalt; the second coat is what forms the continuous protective film and seals the remaining pores. Because of that, the second coat uses about one-third less material than the first — which the calculator's coat factor builds in (two coats is 1.67× the single-coat material, not 2×). A third coat is worth adding only on high-traffic zones like the apron and entrance, not the whole driveway.

Does this calculator include the cost to seal a driveway?

No — like every calculator on the site, it's pricing-free and gives you material quantities only: sealer (pails or a full concentrate-plus-mix breakdown), crack filler, and oil-spot primer. Sealcoating cost swings too widely to bake into a formula: it depends on DIY versus hiring out, your pavement condition and how much crack repair and cleaning it needs, the sealer type, and local labor. Take the quantities from this calculator to a supplier for current material pricing, and get installed quotes locally if you're hiring a contractor. The companion guide discusses cost ranges in general terms, but the calculator itself stays quantities-only.
