Board & Batten & Wainscoting Calculator
How far apart should your battens be? This free board and batten calculator solves the exact, even spacing for you — with a batten in every corner so no half-gap gets orphaned against an adjacent wall. Enter your target spacing and it returns the true resulting spacing per wall and per segment, plus the tighter neighbor layout whenever the target lands more than an inch off.
Because board and batten is a type of wainscoting, one style-driven tool covers it all: full-height or partial board & batten, Shaker flat-panel, applied picture-frame boxes, and beadboard. Add as many walls as your room has, split each wall at its doors and windows, and get a complete bill of materials — sticks (with stock-length optimization and the leftover drop), paintable caulk, construction adhesive, 18-gauge brads, finish nails, and underlayment or beadboard sheets.
Every constant is sourced — the even-spacing solver (Inch Calculator, Omni, Home By Alley), box math (Home By Alley), rule-of-thirds height (Builders FirstSource), the never-at-half rule (Barron Designs), WMMPA profiles, and manufacturer caulk/adhesive coverage. Quantities only — no pricing, no signup. It hands the paintable square footage to the Interior Paint Calculator and leaves the baseboard and chair-rail linear feet to the Trim Calculator.
This tool owns the panel field between the baseboard and the chair rail — battens, stiles, boxes, and their bill of materials. For the baseboard and chair rail as running trim (linear feet, stick counts, miter angles), use the Trim & Baseboards Calculator.
Board & Batten / Wainscoting Calculator
Get exact, even batten spacing with a batten in every corner, across as many walls as your room has — plus picture-frame box sizes, and a full bill of materials: sticks (with stock-length optimization), caulk, construction adhesive, brads, finish nails, and underlayment or beadboard sheets. Board and batten, Shaker flat-panel, and box wainscoting in one tool. Free, no signup, quantities only.
Style & material
Primed MDF swells with moisture — for a bathroom or wet area, choose PVC / AZEK instead.
Walls
No openings — the wall solves as one segment. Add a door or window to split it into independently-spaced segments.
Wall prep, base & stock
Three things that decide a board & batten layout
The counts are the easy part. What actually makes the wall look right is even spacing with a batten in every corner, a cap height that reads correctly, and — for box wainscot — knowing how the boxes are sized. These engineering-style diagrams cover each one.

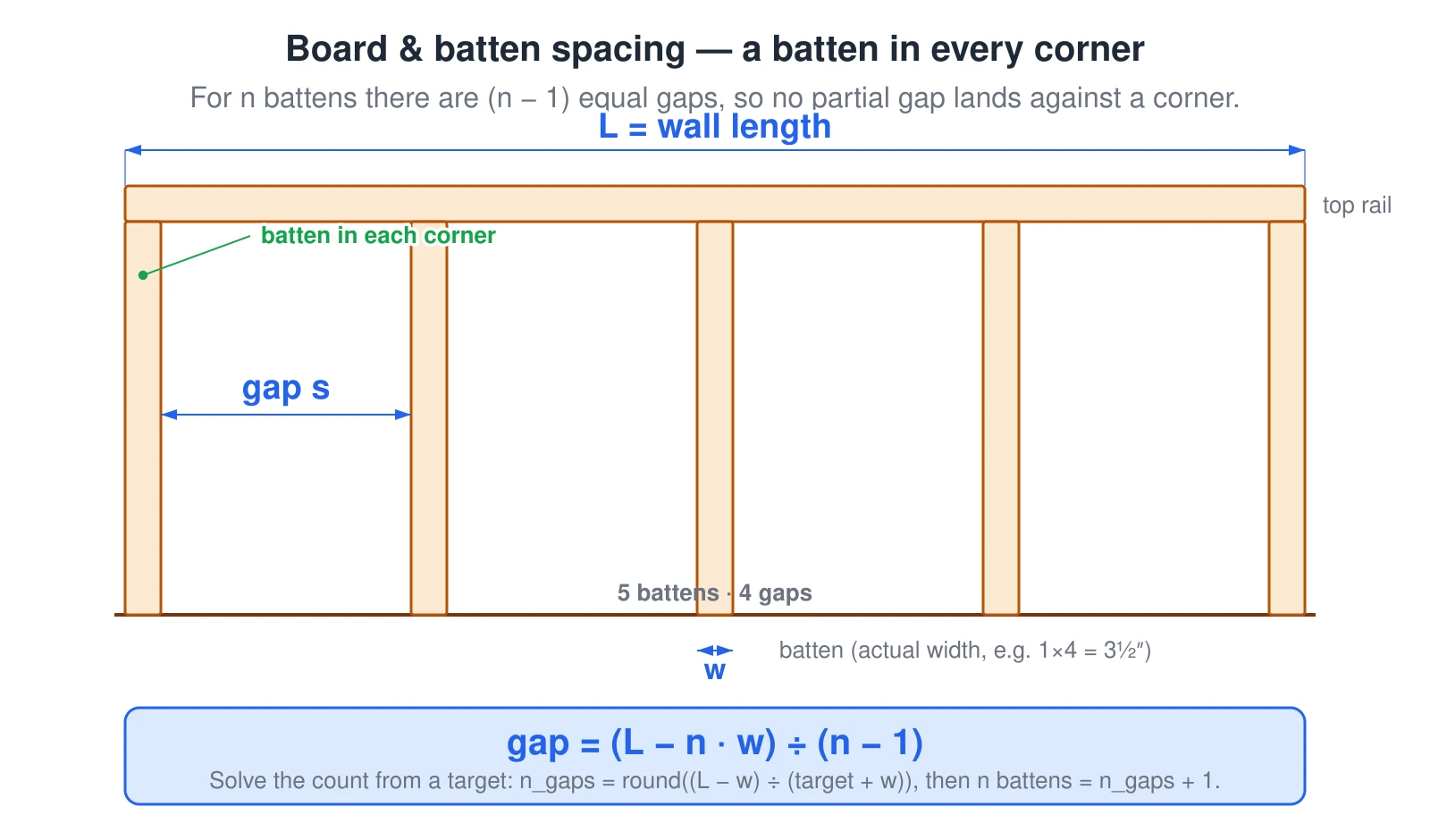

The first diagram is the spacing formula on a real wall. Because there is a batten at each end, n battens always create (n − 1) equal gaps, so the true gap is (L − n·w) ÷ (n − 1). The calculator solves the batten count from your target and reports the true spacing — the diagram is why a batten lands in every corner and no partial gap is orphaned.

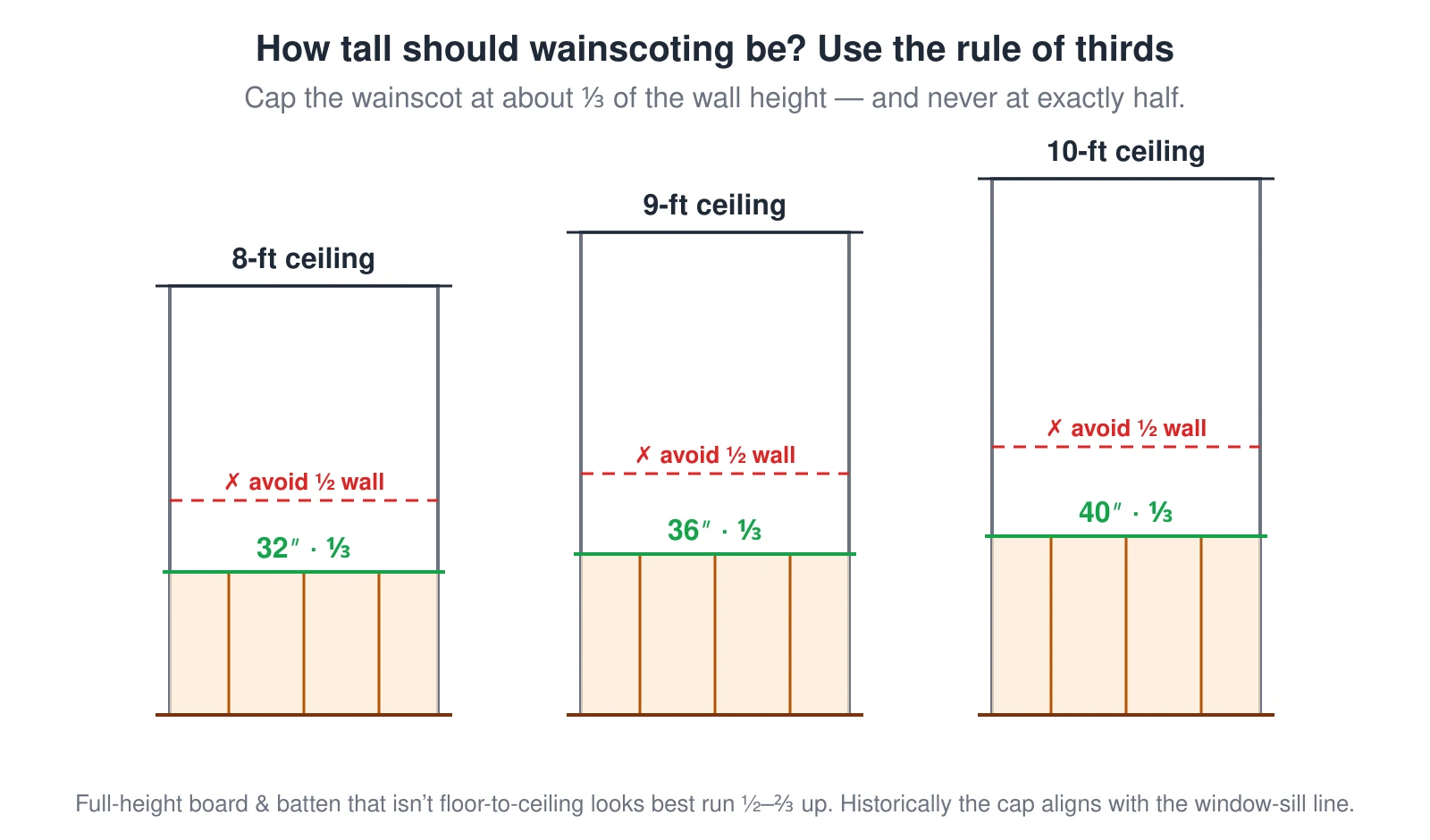

The second diagram is how tall to run the wainscot. The rule of thirds caps it at about a third of the wall height — 32–36″ on an 8-ft ceiling — and it scales up with taller ceilings. The one hard rule is to never land the rail at exactly half the wall, which reads static and choppy.

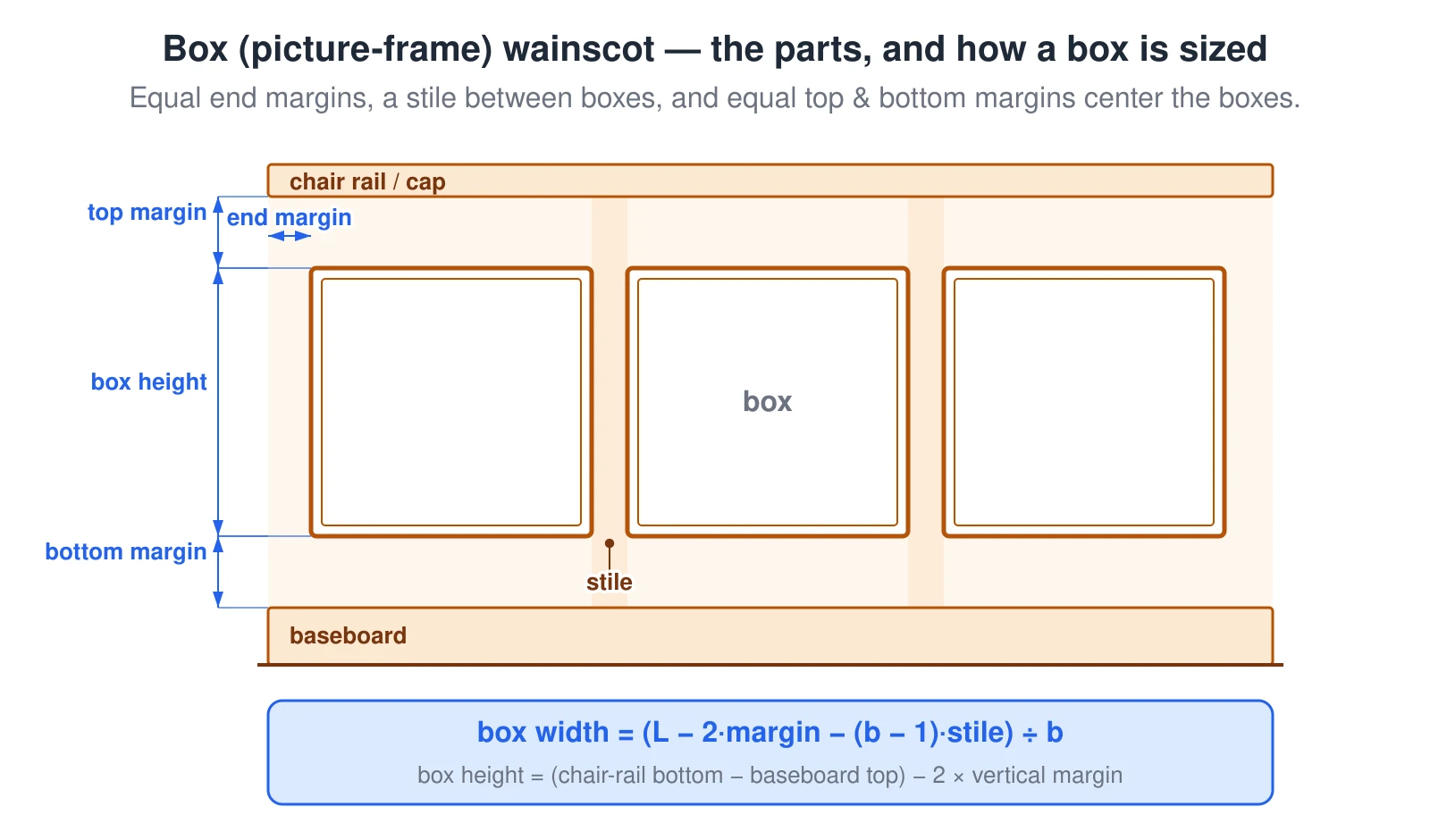

The third diagram is the anatomy of a picture-frame box wainscot: baseboard, bottom margin, box, stile, top margin, and chair-rail cap. Box width solves from the wall length, the end margins, and the stile between boxes; box height is the field between base and rail minus the vertical margins.
Calculation Formulas
For n battens with a batten at each end of a wall segment there are (n − 1) equal gaps. The calculator solves the batten count from your target spacing, then reports the TRUE resulting spacing per segment so you can see how far it lands from target. A batten in every corner is the finish-carpentry convention — no partial gap is orphaned.
Example:
A 12'4" wall (148") with 3-1/2" battens targeting 18": estimate 7 gaps → 8 battens → (148 − 8×3.5) ÷ 7 = 17.14" true spacing.
Because there is one more batten than gaps, the clean procedure estimates the number of GAPS first, then adds one for the extra batten. Rounding to the nearest whole gap keeps the true spacing closest to your target.
Example:
A 10-ft wall (120") with 2-1/2" battens targeting 16": round((120 − 2.5) ÷ (16 + 2.5)) = round(6.35) = 6 gaps → 7 battens.
When the true spacing drifts more than 1" from your target, the calculator also shows the next-tighter layout (one extra gap) so you can pick looser or tighter. Sub-1" differences are invisible from across a room, so it only surfaces the alternative when the gap is meaningful.
Example:
That 10-ft wall lands at 17.08" (1.08" wide of 16"), so it also offers 8 battens / 7 gaps at 14.29".
Given a wall length, end margins, and the stile between boxes, the box width follows directly. The calculator can also solve the box COUNT from a target box width, then read the true width back — the same round-the-count logic as battens.
Example:
A 12-ft wall (144") with 4 boxes, 3" stiles, 3-1/2" margins: (144 − 7 − 9) ÷ 4 = 32" per box.
The vertical field between the top of the baseboard and the bottom of the chair rail, minus equal top and bottom margins, is the box height. This is why the box look reads as balanced even on walls of different lengths.
Example:
Chair-rail bottom at 34", baseboard top at 6.5", 3" margins: (34 − 6.5) − 6 = 21.5" box height.
Both long edges of every batten, the top of the rail, and the inside corners get caulked — that is what turns applied trim into a built-in look. The design value is ~50 LF per 10-oz tube at the fine 1/8"–1/4" trim bead typical of batten edges (vs. ~30 LF at a heavier 1/4"×1/4" bead), plus 10% waste.
Example:
120 LF of battens → 2×120 + rail + corners ≈ 270 LF ÷ 50 × 1.10 ≈ 6 tubes.
One bead runs down the back of each batten and the rail. Coverage follows the PPG Liquid Nails LN-903 Heavy Duty data sheet — ~30 LF per 10-oz tube at a 1/4" bead (~85 LF for the 28-oz tube) — plus one spare tube.
Example:
132 LF of battens + rail ÷ 30 = 4.4 → 5 + 1 spare = 6 tubes.
18-gauge brads (1-1/4"–2") go into the battens/stiles every ~12"–16" over drywall — roughly one per linear foot plus a pair at each end — with adhesive doing the real holding, so studs are not required. The heavier top rail is nailed into studs at 16" o.c. with 15/16-gauge finish nails (2"–2-1/2"), about 1.5 per foot.
Example:
120 LF of battens across 40 pieces: ⌈120⌉ + 80 = 200 brads; a 30-LF rail: ⌈30 × 1.5⌉ = 45 finish nails.
Battens are cut from whole 8-, 12-, or 16-ft sticks. The calculator reports how many members come out of one stick and the leftover drop, so you can pick the stock length that wastes the least — the optimization competitors skip.
Example:
30" partial-height battens from an 8-ft (96") stick: ⌊96 ÷ 30⌋ = 3 per stick, 6" drop each.
A Shaker/flat-panel field (or beadboard) is covered by 4×8 sheets (32 sq ft each), with seams planned to fall behind a batten. Board & batten over a textured wall is fine as-is and needs no sheets; a recessed look on texture does.
Example:
An 8×5-ft wainscot field (40 sq ft) with 10% waste: ⌈40 ÷ 32 × 1.10⌉ = 2 sheets.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| 1×4 Batten (S4S actual) | 3/4" × 3-1/2" | Nominal lumber is surfaced smaller than its name: a 1×4 is actually 3/4" × 3-1/2" (PS 20). All spacing math uses the actual face width, not the nominal. |
| 1×2 / 1×3 / 1×6 | 1-1/2" / 2-1/2" / 5-1/2" | Actual face widths for the common batten/stile sizes. Narrower battens read as more traditional; wider battens read as modern farmhouse. |
| Rule-of-Thirds Height | 32–36" on an 8-ft wall | The dominant wainscot/chair-rail height is ~1/3 of the wall (Builders FirstSource: "take the wall height and divide it by 3"). Scale up with taller ceilings: ~36–40" at 9 ft, ~40–44" at 10 ft, 48"+ at 12 ft. |
| Never at Half Height | Avoid ~48" on an 8-ft wall | The one hard rule (Barron Designs): "never install wainscoting halfway up your wall." A rail at the exact half-wall line reads as static and choppy. The calculator warns when a rail lands within 2" of the halfway point. |
| Common Batten Spacing | 12"–20" (10–12" most common) | Inch Calculator notes "the most common spacing is 10 to 12 inches apart"; modern farmhouse layouts often run 16"–20". The calculator solves any target and reports the true spacing. |
| Caulk Coverage | ~50 LF / 10-oz tube (trim bead) | Design value at the fine 1/8"–1/4" bead typical of batten edges; a heavier 1/4"×1/4" bead yields ~30 LF (DAP/GE-class acrylic-latex). The calculator uses 50 LF + 10% waste. |
| Adhesive Coverage (LN-903) | ~30 LF / 10-oz · ~85 LF / 28-oz | PPG Liquid Nails LN-903 Heavy Duty Technical Data Sheet, at a 1/4" (6 mm) bead. Construction adhesive plus brads is the standard batten fastening method into drywall. |
| 4×8 Sheet Coverage | 32 sq ft | A standard 4×8 sheet of 1/4" underlayment (plywood/MDF/hardboard) or beadboard covers 32 sq ft; plan seams to fall behind a batten or stile. |
| Waste Factor | 5–10% paint-grade (10% default) | WoodWeb "Waste Allowance for Running Trim": 5–10% for cheap paint-grade stock. The calculator defaults to 10% for DIY (miters, defects, cope cuts); stain-grade runs 12–15%. |
| 18-ga Brads / 15-16-ga Finish Nails | 1-1/4"–2" / 2"–2-1/2" | 18-gauge brads pin the battens/stiles to drywall; heavier 15/16-gauge finish nails fasten the top rail and baseboard into studs. |
| WMMPA "WM" Chair-Rail Profiles | WM390 (11/16"×2-5/8"), WM300 (1-1/16"×3") | The Moulding & Millwork Producers Association standardized profile catalog. Cap/panel-mould family: WM166, WM163; rabbeted wainscot/plywood cap WM294 (1-1/8"×11/16"). |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
PS 20 American Softwood Lumber Standard (S4S dimensions)(PS 20)
View StandardThe US Department of Commerce voluntary product standard that defines nominal-vs-actual lumber sizes. It is why a "1×4" batten is actually 3/4" × 3-1/2" surfaced (S4S) — the number that must drive every spacing calculation.
Key Requirements:
- •1× boards finish to 3/4" thick
- •1×2 = 1-1/2", 1×3 = 2-1/2", 1×4 = 3-1/2", 1×6 = 5-1/2" actual face width
- •Always compute spacing from the ACTUAL width, never the nominal
- •Confirm the milled width of your specific stock — MDF and PVC trim boards can vary
- •Custom-ripped battens can be any width; enter the measured width
WMMPA / MMPA "WM" Moulding Profile Catalog(WM series)
View StandardThe Moulding & Millwork Producers Association (formerly WMMPA) publishes the standardized "WM" profile numbers that let you specify a chair-rail or cap without a drawing. "Setting the Standard of Millwork Since 1963."
Key Requirements:
- •Chair rail WM390 = 11/16" × 2-5/8"; WM300 = 1-1/16" × 3"
- •Base-cap / panel-mould WM166 = 11/16" × 1-1/4"; WM163 = 11/16" × 1-3/8"
- •Rabbeted wainscot / plywood cap WM294 = 1-1/8" × 11/16"
- •Minor cross-source dimension variance exists — verify against the current WM catalog
- •Profile numbers are consistent across manufacturers, unlike proprietary names
Manufacturer Install Guides (Metrie / WindsorONE / AZEK)(Mfr. guides)
View StandardMillwork and trim-board manufacturers publish the fastening, adhesive, acclimation, and expansion-gap guidance this calculator reflects — construction adhesive plus 18-ga brads for battens, finish nails into studs for rails, and material-specific handling for MDF, primed wood, and PVC.
Key Requirements:
- •Battens: construction adhesive + 18-ga brads (1-1/4" over drywall, 2" at studs)
- •Top rail / baseboard: 15/16-ga finish nails into studs at 16" o.c.
- •PVC/AZEK: ~1/8" expansion per 18 ft, PVC cement at PVC-to-PVC joints, vinyl-safe paint (LRV ≥ 55)
- •Beadboard: acclimate to the room, keep interior MC ≤ 8%, leave a 1/16" expansion gap
- •Plan sheet-good seams to fall behind a batten or stile
PPG Liquid Nails LN-903 & Caulk Coverage Data(Mfr. TDS)
View StandardAdhesive and caulk quantities come from published manufacturer coverage values, not invented coefficients. The PPG Liquid Nails LN-903 Heavy Duty Technical Data Sheet states the linear-foot yield per tube; acrylic-latex caulk coverage follows DAP/GE-class charts.
Key Requirements:
- •LN-903: ~30 LF per 10-oz tube and ~85 LF per 28-oz tube at a 1/4" (6 mm) bead
- •Acrylic-latex caulk: ~30 LF per 10-oz tube at a 1/4"×1/4" bead
- •~50 LF per tube is defensible at the fine 1/8"–1/4" trim bead of batten edges
- •Real-world yield varies with bead size and wall waviness — the tool adds 10% waste
- •Use a paintable acrylic-latex caulk so it takes the topcoat
Finish-Carpentry Layout Convention (no single code)(Trade practice)
View StandardThere is no building code for batten spacing — this is design and finish-carpentry consensus. The dominant convention is a batten in each corner with per-wall spacing (Young House Love notes walls "may require slightly different spacing… to prevent small or cut-off sections in the corners"), and the never-at-half height rule.
Key Requirements:
- •A batten at each end of every wall segment (convention a)
- •Solve each wall independently; matched spacing across walls is optional and low-value
- •Split a wall into independent segments at each door/window
- •Battens must never land on an outlet or switch — dry-lay and nudge
- •Full-height board & batten typically runs 1/2 to 2/3 up when not floor-to-ceiling
