Stone Veneer Calculator
This free stone veneer calculator solves the mistake that trips up almost every manufactured-stone order: corners are sold by the linear foot, but each linear foot of corner also covers some FLAT wall area that has to be subtracted from your flat order. Order flats for the whole wall AND corners separately and you double-buy the corner returns. The calculator applies a corner-to-flat conversion — 0.75, 0.67, or 0.50 square feet per linear foot to match your specific manufacturer — so the flat and corner counts are both right.
It handles adhered manufactured stone veneer (MSV) and thin natural stone: pick grouted or dry-stack joints, pick your substrate — wood/steel framing (which needs two layers of WRB, self-furring lath, a scratch coat, and a weep screed) or clean CMU/concrete (which can direct-bond with no lath) — and the material list adjusts automatically. Dry-stack layouts add the 10–22% tight-fit uplift that packaged coverage assumes a mortar joint, and drop jointing mortar to zero.
Everything is grounded in ASTM C1670 (the unit spec), ASTM C1780 and the MVMA/CMHA installation guide, TMS 402/602 §13, IRC R703.12, IBC 1404.11, and ASTM C926/C1063 for the scratch coat and lath. Quantities only — no pricing, no labor. Free with no signup.
Stone Veneer Calculator
Estimate flats and corners, mortar, lath, WRB, and weep screed for adhered manufactured or thin natural stone veneer — with the corner-to-flat conversion done right.
Wall area
Openings to deduct
Outside corners
Add the height of each outside vertical corner (e.g. two 9-ft corners = 18 LF). Inside corners are cut from flats — don't count them here. The conversion factor is manufacturer-specific; 0.75 sq ft/LF is the conservative default (Boral / Coronado).
System & waste
10% for simple rectangular walls, 15% for multiple corners, arches, or blended patterns. Dry-stack layouts automatically add a 15% tight-fit uplift and drop jointing mortar.
Packaging & flashing (optional)
Weep screed runs along the bottom of every framed wall. Leave blank to default to your wall length.
Where stone veneer take-offs go wrong
The square-foot math is the easy part. These engineering-style diagrams cover the three decisions that actually move the material list: how corner units eat into your flat order, what the wall assembly needs behind the stone, and how joint style changes both the stone count and the mortar.

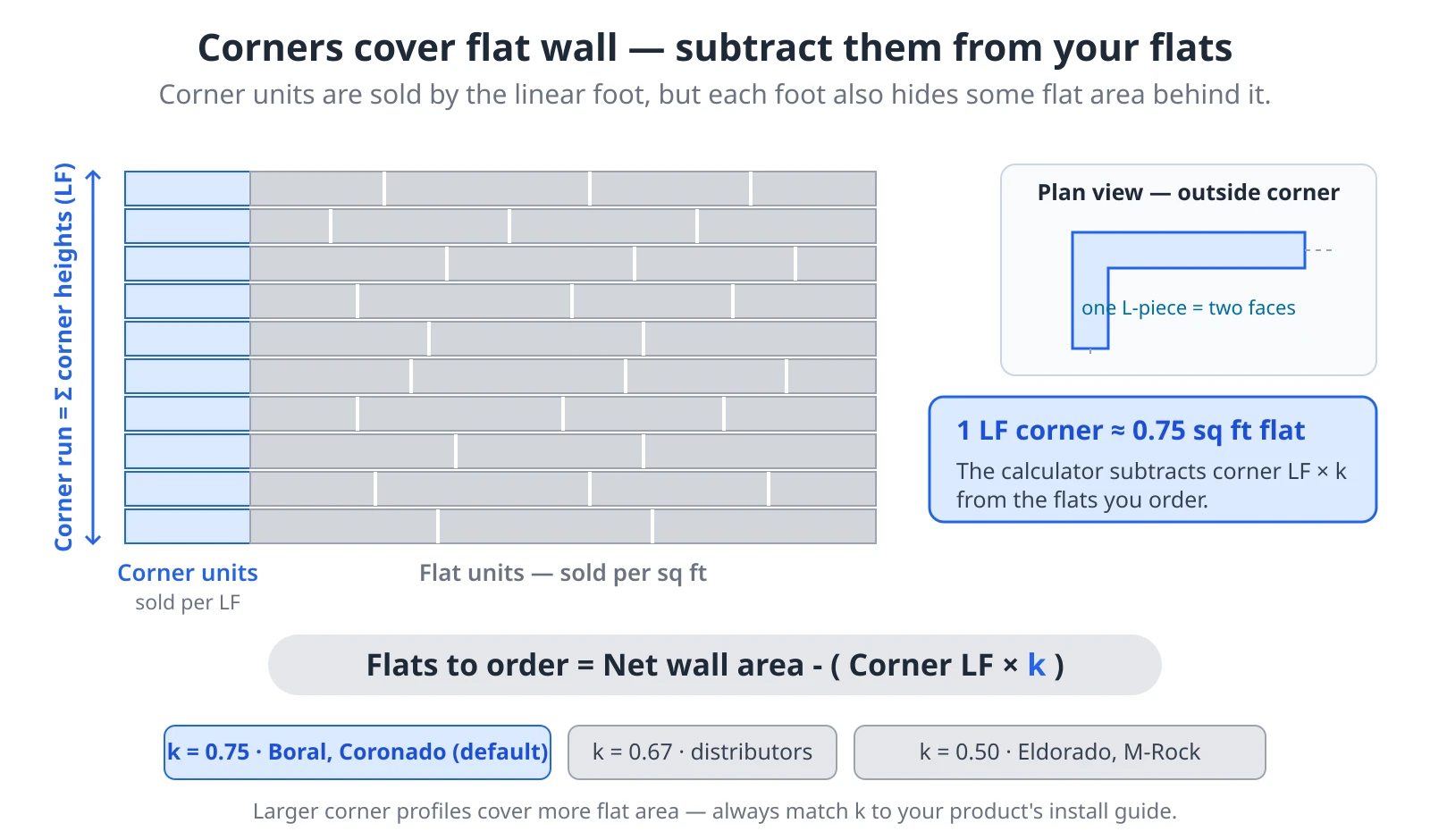

Corners are the number-one estimating trap. They're sold by the linear foot, but each foot of L-shaped corner also wraps onto the flat wall and covers roughly three-quarters of a square foot of it. That's why the calculator subtracts corner LF × k from your flats instead of ordering flats for the whole wall and corners on top — and why matching k to your manufacturer (0.75, 0.67, or 0.50) matters.

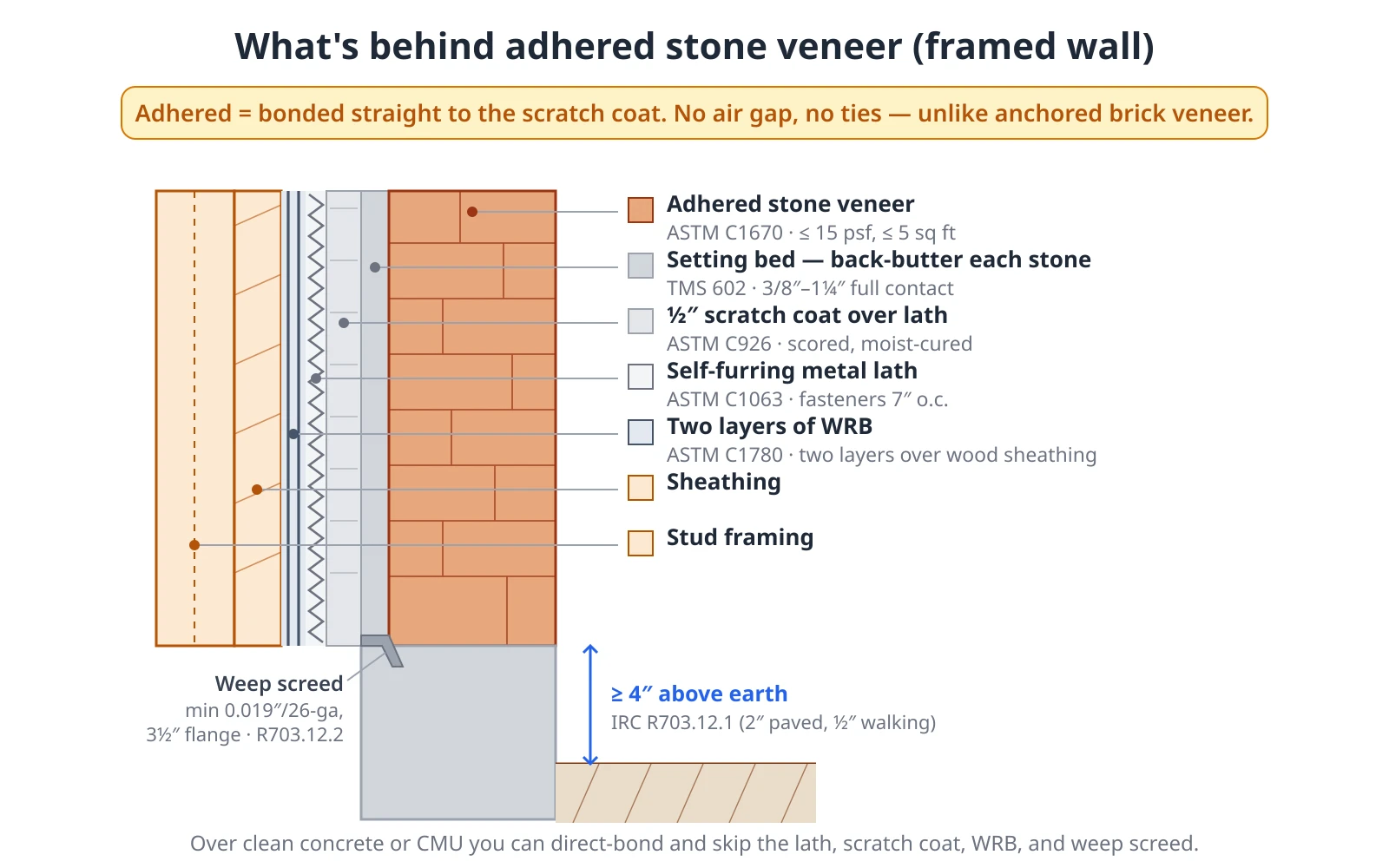

What sits behind the stone depends entirely on the substrate. Over framing you need the full stack — two layers of WRB, self-furring lath, a scratch coat, a setting bed, and a weep screed — and the veneer bonds directly with no air gap or ties, unlike anchored brick. Over sound concrete or CMU you can direct-bond and drop the lath, scratch coat, and WRB, which is exactly what the substrate selector changes in the material list.

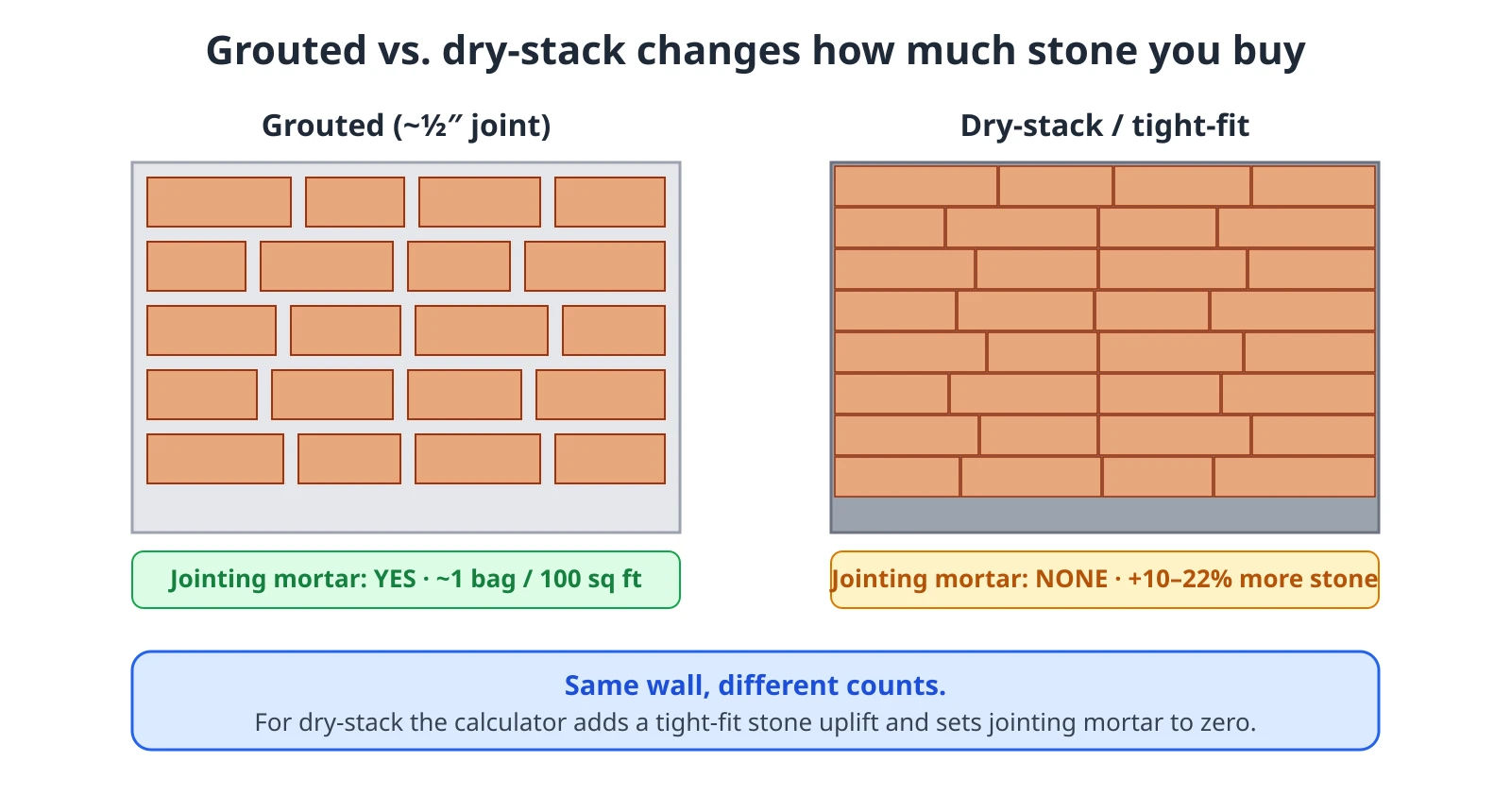

Joint style is not just a look. A dry-stack (tight-fit) layout packs 10–22% more stone into the same square foot than a grouted-packaged profile and needs no jointing mortar, so the calculator adds a tight-fit uplift and zeroes the jointing bags when you pick it. Grouted joints shed water better, which is why they're preferred in freeze-thaw climates.
Calculation Formulas
Start from the gross wall face and subtract every door, window, and vent. This is the full veneered face — the basis for setting-bed mortar, scratch coat, lath, and WRB.
Example:
20 ft × 9 ft = 180 sq ft, minus one 3 ft × 4 ft window (12 sq ft) = 168 sq ft net.
Each linear foot of outside-corner unit also wraps onto the flat wall and covers some flat square footage, which must be subtracted from the flat order. k is the manufacturer's corner-to-flat conversion (0.5–0.75 sq ft/LF).
Example:
18 LF of corners × 0.75 sq ft/LF = 13.5 sq ft of flat area covered by the corners.
The flat units only fill the wall area NOT covered by corners. Ordering flats for the full wall and corners separately double-buys the corner returns.
Example:
168 sq ft net − 13.5 sq ft corner-covered = 154.5 sq ft of flats before waste.
Add the run of every outside corner. Inside corners are cut from flats, not ordered as corner units.
Example:
Two full-height 9 ft outside corners = 18 LF of corner units.
Apply the waste factor after the corner deduction. Dry-stack / tight-fit layouts fit 10–22% more stone per sq ft than a grouted-packaged profile, so a 15% midpoint uplift is added for tight-fit.
Example:
154.5 sq ft flats × 1.10 waste = 170 sq ft to buy (grouted); × 1.15 uplift × 1.10 = 195 sq ft (dry-stack).
Round up to whole cartons. Flats are packaged by the square foot (commonly 10 sq ft/box), corners by the linear foot (commonly 6 LF/box) — but box coverage varies by profile, so it's editable.
Example:
170 sq ft ÷ 10 sq ft/box = 17 boxes of flats; 20 LF ÷ 6 LF/box = 4 boxes of corners.
A full 3/8"–1/2" setting bed is back-buttered behind every stone (TMS 602). An 80-lb bag of veneer mortar covers roughly 15 sq ft as a setting bed.
Example:
168 sq ft ÷ 15 = 12 bags (80 lb) for the setting bed.
Over metal lath on framing, a nominal 1/2" scratch coat fully encapsulates the lath (IBC 1404.11.1.4). An 80-lb bag covers ~17 sq ft as a scratch coat. Direct-bond over CMU/concrete skips this coat.
Example:
168 sq ft ÷ 17 = 10 bags (80 lb) of scratch coat.
A standard 27" × 96" lath sheet is 18 sq ft gross, ~16 sq ft net after ASTM C1063 overlaps (1" vertical, 1/2" horizontal). The 1.10 factor covers seam overlap and corner double-wraps.
Example:
168 sq ft × 1.10 = 185 sq ft ÷ 16 = 12 sheets of self-furring lath.
ASTM C1780 requires TWO separate WRB layers over wood sheathing, shingle-lapped with 2" horizontal / 6" vertical laps and 16" corner wraps — the 1.15 factor and ×2 capture both. Not required over CMU/concrete.
Example:
168 sq ft × 2 × 1.15 = 386 sq ft ≈ 2 rolls at 300 sq ft each.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| Corner-to-Flat Conversion (k) | 0.75 sq ft/LF (default); 0.67; 0.50 | The single most disputed figure. Boral/Cultured Stone and Coronado state ~0.75 sq ft/LF; distributors use ~0.67; Eldorado and M-Rock use 0.50. Larger corner profiles consume more flat area. Always match your specific product's install guide. |
| Flat Box Coverage | 10 sq ft/box (typical) | Eldorado and ProVia flats are commonly 10 sq ft per carton (some profiles 9 sq ft; big-box cartons 100–110 sq ft). Packaged assuming a 1/2" mortar joint unless labeled tight-fit. |
| Corner Box Coverage | 6 LF/box (typical) | Corners commonly ship 6–7 LF per carton (Coronado Dura-Pak 9–15 LF; big-box 60–120 LF). Coverage varies by profile — treat as an input, not a constant. |
| Waste Factor | 10% simple / 15% complex | 10% for simple rectangular walls, 15% for multiple corners, arches, or blended patterns; natural thin veneer often 15–20%. Driven by cuts, breakage, and color blending. |
| Tight-Fit / Dry-Stack Uplift | +10% to +22% stone | Cultured Stone: installing a grouted-packaged profile in a tight-fit application fits 10–22% more stone per sq ft. This calculator uses a 15% midpoint and drops jointing mortar to zero for dry-stack. |
| Setting-Bed Thickness | 3/8" min – 1-1/4" max | TMS 602: mortar behind adhered veneer not less than 3/8" nor more than 1-1/4". Full back-buttering to complete contact — spot-bedding is the leading cause of adhered-veneer failure. |
| Mortar Bag Yields | ~15 sq ft setting / ~17 sq ft scratch (80 lb) | Quikrete #1137 veneer mortar covers ~17 sq ft as a scratch coat, slightly less as a setting bed; Sakrete ~13 sq ft/80-lb; Donley cites ~2 bags/100 sq ft for scratch + set. Yields vary with thickness and substrate suction. |
| Weep Screed | Min 0.019" / 26-ga, 3-1/2" flange | IRC R703.12.2: corrosion-resistant weep screed at or below the foundation plate line on framed walls, min 3-1/2" vertical flange, extending 1" below the plate line, with WRB lapped over it. Sold in 10-ft galvanized sticks. |
| Base Clearances | 4" earth / 2" paved / 1/2" walking | IRC R703.12.1: keep veneer at least 4" above earth, 2" above paved areas, and 1/2" above walking surfaces on the same foundation, so trapped water can drain. |
| Unit Weight & Size Limits | ≤ 15 psf, ≤ 5 sq ft, ≤ 2-5/8" thick | ASTM C1670 / TMS 402 §13: adhered manufactured stone units cap at 15 lb/ft2 unit weight, 5 sq ft face area, 2-5/8" thickness, 36" max face dimension. Interior applications cap at 20 psf (IBC 1404.11). TMS 402-22 raises unit weight to 30 psf with a 50 psf assembly cap. |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
ASTM C1670 — Adhered Manufactured Stone Masonry Veneer Units(ASTM C1670/C1670M)
View StandardThe product specification defining adhered manufactured stone veneer (MSV) units — wet-cast cementitious units applied as an adhered veneer to exterior and interior walls. Sets physical requirements for strength, shrinkage, freeze-thaw durability, bond, dimensions, and unit weight.
Key Requirements:
- •Compressive strength: average ≥ 2,100 psi over five specimens, no individual specimen < 1,800 psi
- •Maximum linear drying shrinkage 0.10%
- •Freeze-thaw per ASTM C666: min 50 cycles, < 1.5% mass loss
- •Shear bond ≥ 50 psi per modified ASTM C482
- •Max thickness 2-5/8", max face dimension 36", max face area 5 sq ft, max unit weight 15 lb/ft2
ASTM C1780 — Installation Methods for Adhered Manufactured Stone Masonry Veneer(ASTM C1780)
View StandardThe standard practice for installing adhered manufactured stone veneer — the primary installation standard the MVMA/CMHA guide implements. Governs the layer stack, WRB, lath, scratch coat, and setting bed over each substrate type.
Key Requirements:
- •Two separate layers of water-resistive barrier over wood-based sheathing in exterior applications
- •Self-furring lath so ~1/4" of mortar sits behind the lath over ≥ 50% of the area
- •Nominal 1/2" scratch coat fully encapsulating the lath, scored when firm
- •Full setting bed back-buttered to complete contact — no spot bedding
- •Direct bond over clean, unpainted, unsealed, roughened concrete/CMU permitted without lath
TMS 402/602 — Building Code Requirements & Specification for Masonry Structures(TMS 402/602 §13 (formerly §12))
View StandardThe masonry structural code and specification governing adhered veneer. Sets the prescriptive unit limits, setting-bed thickness, and bond requirements referenced by the IBC and IRC. TMS 402-22 substantially revised the weight and mortar provisions.
Key Requirements:
- •Adhered unit ≤ 2-5/8" thick, ≤ 36" face dimension, ≤ 5 sq ft face area, ≤ 15 psf (30 psf in TMS 402-22)
- •Setting-bed mortar not less than 3/8" nor more than 1-1/4"
- •Shear bond ≥ 50 psi per ASTM C482, or comply with TMS 602 Article 3.3C
- •TMS 402-22: assembly weight ≤ 50 psf; prescriptive setting mortar polymer-modified ANSI A118.4/A118.15
- •TMS 402-22: max height above grade 60 ft; reduced fastener spacing in high seismic categories
IRC R703.12 — Adhered Masonry Veneer Installation(IRC R703.12 (2024))
View StandardThe residential code section for adhered masonry veneer. Points to TMS 402 §13 and TMS 602 Article 3.3D (or the manufacturer's instructions) and sets base clearances and foundation flashing / weep-screed requirements.
Key Requirements:
- •Install per R703.7.3 + TMS 402 §13.1/§13.3, TMS 602 Article 3.3D, or manufacturer's instructions
- •Base clearance: ≥ 4" above earth, ≥ 2" above paved, ≥ 1/2" above walking surfaces
- •Weep screed min 0.019" (26-ga) corrosion-resistant, min 3-1/2" vertical flange
- •Weep screed at or below the foundation plate line, extending ≥ 1" below it
- •WRB laps over the weep-screed flange
IBC 1404.11 — Adhered Masonry Veneer(IBC 1404.11)
View StandardThe commercial/multi-family code section for adhered masonry veneer. Specifies the lath-and-mortar method, WRB, flashing, and the interior weight cap.
Key Requirements:
- •Install per manufacturer's instructions + WRB per §2510.6 + flashing per §1404.4
- •Lath-and-mortar method: nominal 1/2" scratch coat encapsulating lath, scored horizontally
- •Units set in a nominal 1/2" setting bed worked to a nominal 3/8" after application
- •Interior adhered veneer maximum weight 20 psf
- •Wood supports for interior veneer limited to deflection 1/600 of span
ASTM C926 — Application of Portland Cement-Based Plaster (Scratch Coat)(ASTM C926)
View StandardGoverns the scratch coat (base plaster) that the stone is bedded onto over metal lath. Sets minimum thickness, scoring, and curing for the bonding base.
Key Requirements:
- •Scratch coat applied ≥ 3/8" over metal lath (nominal 1/2" for MSV to encapsulate lath)
- •Scored horizontally to key the setting bed
- •Moist-cured for at least 48 hours
- •Application temperature 40–100°F (industry practice 50°F minimum through cure)
- •Two-coat over masonry min nominal 5/8" combined
ASTM C1063 — Installation of Lathing and Furring for Portland Cement Plaster(ASTM C1063)
View StandardGoverns the metal lath and its fastening — the substrate the scratch coat keys into on framed walls.
Key Requirements:
- •Lath applied horizontally (cups up); overlap ≥ 1" vertical seams, ≥ 1/2" horizontal seams
- •Wrap inside/outside corners ≥ 12" past the corner; stagger vertical seams
- •Fasten every 7" vertically on each stud; studs ≤ 16" o.c.; fasteners penetrate wood ≥ 3/4"
- •Self-furring so ~1/4" of mortar sits behind the lath over ≥ 50% of area
- •Corrosion-resistant fasteners (min per MVMA/CMHA guide, typically 6" o.c. vertical to framing)
Standards Disclaimer: Standards and codes are subject to periodic updates. Always verify current requirements with local building authorities and professional engineers before beginning construction. Links provided are for reference only.
Substrate Decides Whether Lath & Scratch Coat Exist
Framed walls need the full stack; sound concrete/CMU can direct-bond
The single biggest swing in the material list is the backing. Over wood or steel framing you need two layers of WRB, self-furring lath, a scratch coat, and a weep screed. Over clean, unpainted, unsealed, roughened concrete or CMU you can bond stone directly with polymer-modified mortar — no lath, scratch coat, WRB, or weep screed.
Regional Examples:
Corner Conversion Is Manufacturer-Specific
The 0.5–0.75 sq ft/LF spread is the largest estimating error
Every corner unit covers some flat wall area that must be subtracted from the flat order, but manufacturers publish different conversion factors. Using the wrong one over- or under-orders flats on every wall with corners.
Regional Examples:
Freeze-Thaw & Cold-Climate Detailing
Units must pass ASTM C666; installers tighten joints and fastening
In freeze-thaw regions, MSV units must pass ASTM C666 (50 cycles, < 1.5% mass loss) to meet C1670 — a product spec. Installers also favor grouted joints (better water shedding than dry-stack) and closer lath fastening.
Regional Examples:
Code Year Changes Weight & Mortar Rules
TMS 402-22 substantially revises the adhered-veneer limits
The weight caps and setting-mortar requirements depend on which code your jurisdiction has adopted. Adoption of TMS 402-22 lags by state, so the same wall can be governed by different limits depending on location.
Regional Examples:
Full-Bed Anchored Veneer Is a Different Take-Off
This calculator is for ADHERED thin veneer, not full-bed stone
Adhered (thin) veneer bonds directly to a scratch coat or masonry with no air gap. Full-bed anchored stone veneer (4"+ nominal, structural) sits on a foundation ledge with an air gap, weep holes, and corrugated metal ties — an entirely different quantity model.
Regional Examples:
Before You Build
- •Contact your local building department for specific requirements
- •Verify frost line depths, wind zones, and seismic requirements for your area
- •Check if permits are required and schedule required inspections
- •Consult with a local contractor familiar with local codes
Heavy material — watch the weight limit
Concrete, brick, and masonry hit tonnage caps fast. Most dumpsters cap heavy material at 10 tons, and overage fees stack quickly. See the disposal guide before you load.
Read the heavy-debris guide →
Related Calculators
Stucco Calculator
3-coat / 2-coat / 1-coat stucco take-off — bags per coat, lath, weep screed, casing, control joints. Per IRC R703.7 / ASTM C926. Free.
Brick Calculator
Calculate brick veneer, multi-wythe walls, thin brick, pavers, and firebrick. Bricks, mortar bags, ties, weep holes, base aggregate. BIA TN 10.
Mortar / Thinset Calculator
Pick the right ANSI mortar (A118.1/.4/.11/.15/.3 or A136.1 mastic) for substrate and tile, then get bag count by trowel notch. NTCA, TCNA, ANSI A108.
How to Use This Calculator
- Enter your wall area — either wall length × height, or a direct square footage — then subtract doors, windows, and vents as openings.
- Enter the linear feet of outside corners (add the height of each outside vertical corner; inside corners are cut from flats and not counted here).
- Pick the corner-to-flat conversion that matches your manufacturer — 0.75 sq ft/LF (Boral/Coronado, the conservative default), 0.67, or 0.50 (Eldorado/M-Rock).
- Choose your joint style (grouted or dry-stack), substrate (framing or direct-bond concrete/CMU), and waste factor (10% simple, 15% complex).
- Optionally override the box coverage to match your product and set the base-wall length for weep screed.
- Click Calculate to get flats and corners to buy (square feet, linear feet, and boxes), mortar bags, lath sheets, WRB rolls, fasteners, weep screed, and installation notes.
Why the Corner Conversion Is the Whole Calculation
Manufactured stone corners are L-shaped pieces sold by the linear foot, and each foot of corner wraps onto the flat wall — so it covers flat square footage you would otherwise fill with flats. If you order flats for the full wall area and corners on top, you buy the corner returns twice. The fix is a corner-to-flat conversion factor, and it is genuinely manufacturer-specific: Boral/Cultured Stone and Coronado publish 0.75 sq ft per linear foot, distributors often use 0.67, and Eldorado and M-Rock use 0.50 ("divide corner LF by 2"). Larger, deeper corner profiles consume more flat area. This calculator subtracts corner-covered area from the flat order using the factor you pick, so both counts are right — and it is the single largest source of estimating error on any stone-veneer job, so always match the factor to your chosen product.
Frequently Asked Questions
How much stone veneer do I need?
Start from net wall area (length × height minus doors, windows, and vents), then subtract the flat area your corners already cover: Flat SF = Net Wall Area − (Corner LF × k), where k is the corner-to-flat conversion. Worked example: a 20 ft × 9 ft wall = 180 sq ft, minus one 3 ft × 4 ft window (12 sq ft) = 168 sq ft net; with 18 LF of outside corners at k = 0.75, corners cover 13.5 sq ft, leaving 154.5 sq ft of flats. Add 10% waste → ~170 sq ft of flats (17 boxes at 10 sq ft) plus 20 LF of corners (4 boxes at 6 LF). Flats are sold by the square foot, corners by the linear foot.
How do I convert corner linear feet to flat square feet?
Every linear foot of L-shaped corner unit also wraps onto the flat wall, covering flat area you'd otherwise fill with flats — so you subtract it from the flat order. The conversion factor is genuinely manufacturer-specific: Boral/Cultured Stone and Coronado state ~0.75 sq ft per linear foot (Boral notes a 0.5–0.75 range but says 'calculate using 3/4'), distributors often use 0.67, and Eldorado and M-Rock use 0.50 ('divide corner LF by 2'). Larger, deeper corner profiles consume more flat area. This calculator defaults to the conservative 0.75 and lets you pick 0.67 or 0.50 to match your product. Getting this wrong is the single largest source of stone-veneer estimating error. The corners-vs-flats diagram shows how the L-shaped corner units cover flat wall.
Do I need lath and a scratch coat behind stone veneer?
It depends on the substrate. Over wood or steel-stud framing, yes — ASTM C1780 and the MVMA/CMHA guide require two separate layers of water-resistive barrier, then self-furring metal lath (ASTM C1063), then a nominal 1/2" scratch coat that fully encapsulates the lath (ASTM C926 / IBC 1404.11), plus a weep screed at the base. Over clean, unpainted, unsealed, roughened CMU or poured concrete you can bond stone directly with polymer-modified mortar — no lath, scratch coat, WRB, or weep screed. If the masonry is smooth, painted, or sealed, the bond will fail and you must add lath and a scratch coat. Switch the substrate option to see which consumables are included. The wall-assembly diagram shows the full framed stack, weep screed, and base clearances.
How much mortar do I need for stone veneer?
Three mortar jobs, each an 80-lb bag estimate. Setting bed (back-buttered behind every stone) covers ~15 sq ft per bag over the full veneered face. Scratch coat (framed walls only, over lath) covers ~17 sq ft per bag. Jointing/pointing mortar for grouted joints runs ~1 bag per 100 sq ft at a 1/2" joint (Donley Brick), and is zero for dry-stack. For a 168 sq ft framed wall with grouted joints: ~12 bags setting bed + ~10 bags scratch coat + ~2 bags jointing ≈ 24 bags. Yields vary with thickness and substrate suction — use a polymer-modified (ANSI A118.4/A118.15) or Type S mortar rated for stone veneer, and full-bed each stone rather than spot-bedding.
What's the difference between grouted and dry-stack stone veneer?
Grouted layouts leave a ~1/2" mortar joint that you point with a grout bag after setting; dry-stack (tight-fit) butts the stones with no visible joint. The choice changes your material list two ways. First, jointing mortar: grouted needs it (~1 bag per 100 sq ft), dry-stack needs none. Second, coverage: manufactured stone is usually packaged assuming a 1/2" joint, so installing that same profile tight-fit fits 10–22% MORE stone per square foot (Cultured Stone). This calculator adds a 15% midpoint uplift to flats and corners for dry-stack and drops jointing mortar to zero. Grouted joints also shed water better, so they're preferred in freeze-thaw climates. The grouted-vs-dry-stack diagram shows why the counts differ.
How much waste should I add for stone veneer?
Order 10% extra for simple rectangular walls and 15% for walls with multiple corners, arches, or a blended pattern; natural thin veneer often warrants 15–20% for color and shape selection. Waste covers cuts, breakage, and blending stones from multiple boxes so no single area looks patterned. This is separate from the dry-stack tight-fit uplift, which accounts for more stone fitting per square foot rather than material lost to cutting. Blend from several boxes as you go — pulling all of one box then all of another creates visible color banding on the finished wall.
Does this calculator work for full-bed (structural) stone veneer?
No — it's built for ADHERED thin veneer: manufactured stone or natural stone sawn to about 1" that bonds directly to a scratch coat or masonry with no air gap. Full-bed anchored stone veneer (4"+ nominal) is a different system entirely — it sits on a foundation ledge or shelf angle with a 1" air gap, weep holes, and corrugated metal ties roughly every 2.67 sq ft, and it carries structural weight the adhered method doesn't. The quantity model, flashing, and support details are all different. If you're installing full-bed anchored stone, this take-off will omit the shelf angle, ties, and air-gap detailing you need. Confirm you're doing adhered thin veneer before ordering.
