Metal Siding Calculator: Panels, Screws & Accessories
How much metal siding do you need? This free metal siding calculator orders panels against their NET coverage width — the number the whole take-off turns on — for R-panel/PBR, 7/8″ and 1/2″ corrugated, box-rib, standing seam, metal board & batten, and aluminum lap. Vertical profiles return an orderable cut list, not just a square-foot total.
Metal is a full system, not just panels. Where a generic square-footage tool stops, this one keeps going: exposed field screws (or concealed clips), side-lap stitch screws, outside and inside corner trim, base and opening trim, head and sill flashing, gable rake and eave trim, profiled foam closures, butyl and sealant — each quantified in linear feet AND stock-length pieces.
Built around IRC §R703.3/§R703.4, ASTM A653/A792 (galvanized/Galvalume) and B209 (aluminum), Metal Construction Association guidance, and manufacturer install manuals — including a wind-zone/HVHZ fastener density and a coastal coating advisory. Free, no signup, materials only (no pricing or labor).
Metal Siding Calculator
Panels by net coverage — with a real cut list — plus the full accessory system: screws or concealed clips, corner/base/opening/rake trim, head & sill flashing, foam closures, butyl and sealant. Sized to IRC §R703 and ASTM A792/B209.
Walls to side
Windows and doors
Off (default) = leave openings under ~25 sq ft in as a cut-waste buffer — the common metal-trade convention, since offcuts around openings aren't reusable. On = subtract every opening for a leaner number. Large openings (garage doors) reduce siding either way.
Metal panel & coverage
Exposed-fastener vs concealed-clip vs board-and-batten — see the profile cross-sections
Vertical panels run full wall height across the width — the calculator returns an orderable cut list. Coverage varies by manufacturer and even by finish (7/8" corrugated: 34.67" SMP vs 37" PVDF). Confirm on the product data sheet.
Fastening, substrate & climate
~80 screws/square is the exposed-fastener baseline; high-wind and HVHZ tighten perimeter/corner spacing. Coastal sites drive the aluminum / Galvalume / stainless-fastener advisory.
Corners & trim
One corner trim per corner, cut to wall height (10' stock). Roofline transition = length where siding dies into a roof. Head/sill flashing, base, opening, rake, and eave trim are figured automatically from your walls and openings.
Prefer to skip the math? Get free quotes from local pros
How metal siding coverage works
A metal take-off turns on three numbers: how much a panel actually covers, how many panels a wall takes, and how many fasteners hold them on. Here is how the calculator gets each one.

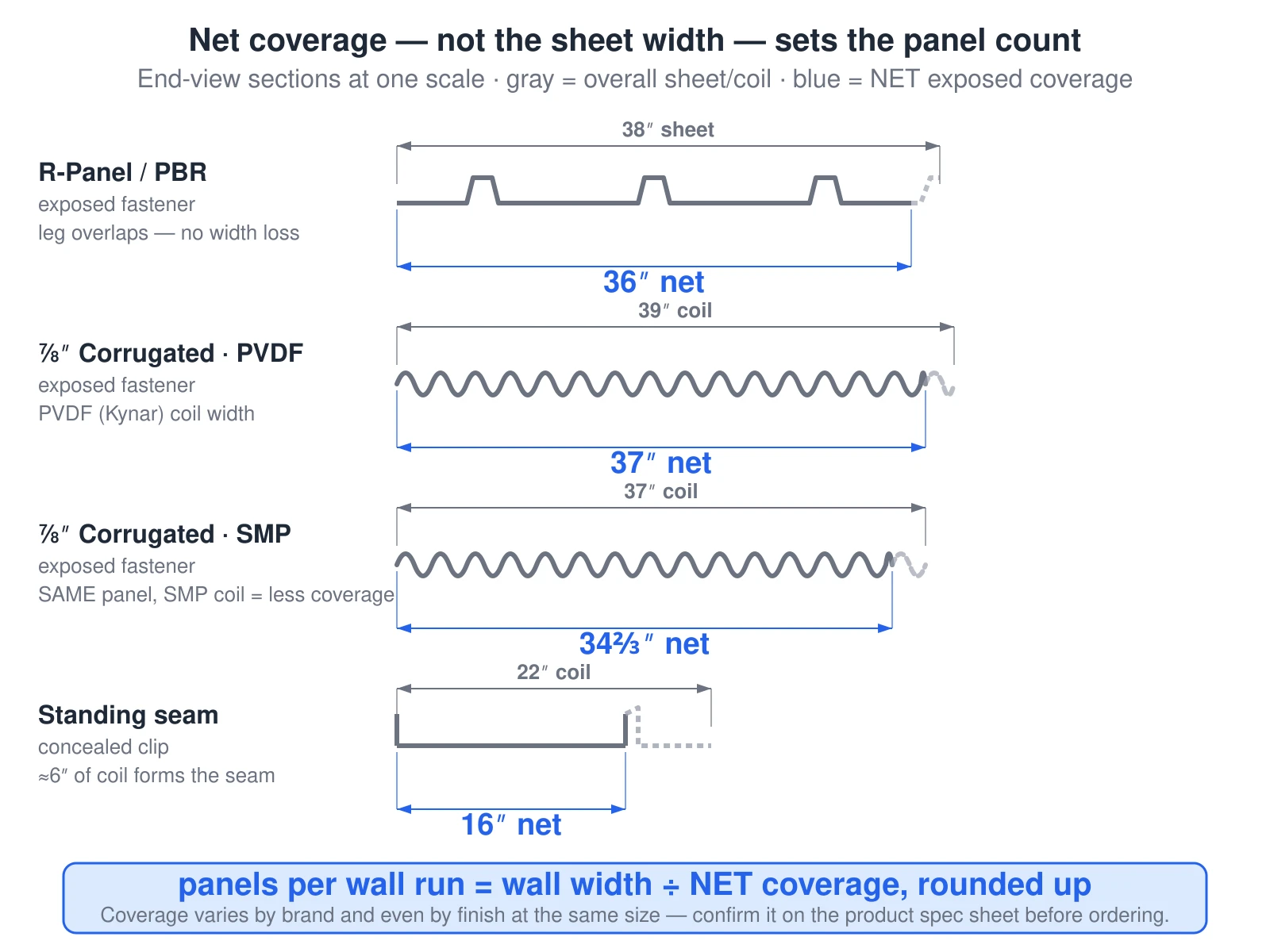

Net coverage — the usable width after the side lap — is the number the whole take-off turns on, never the nominal sheet width. The trap is real: the same ⅞″ corrugated panel covers 37″ in a PVDF finish but only 34⅔″ in SMP. Panels per wall run = wall width ÷ net coverage, rounded up.
Where the fastener lives sets the rest of the list. An exposed-fastener rib is screwed through the crown, so you count field screws and foam closures; snap-lock / standing-seam and board-and-batten profiles hide the fastener behind the seam or batten cap, so you count concealed clips instead.

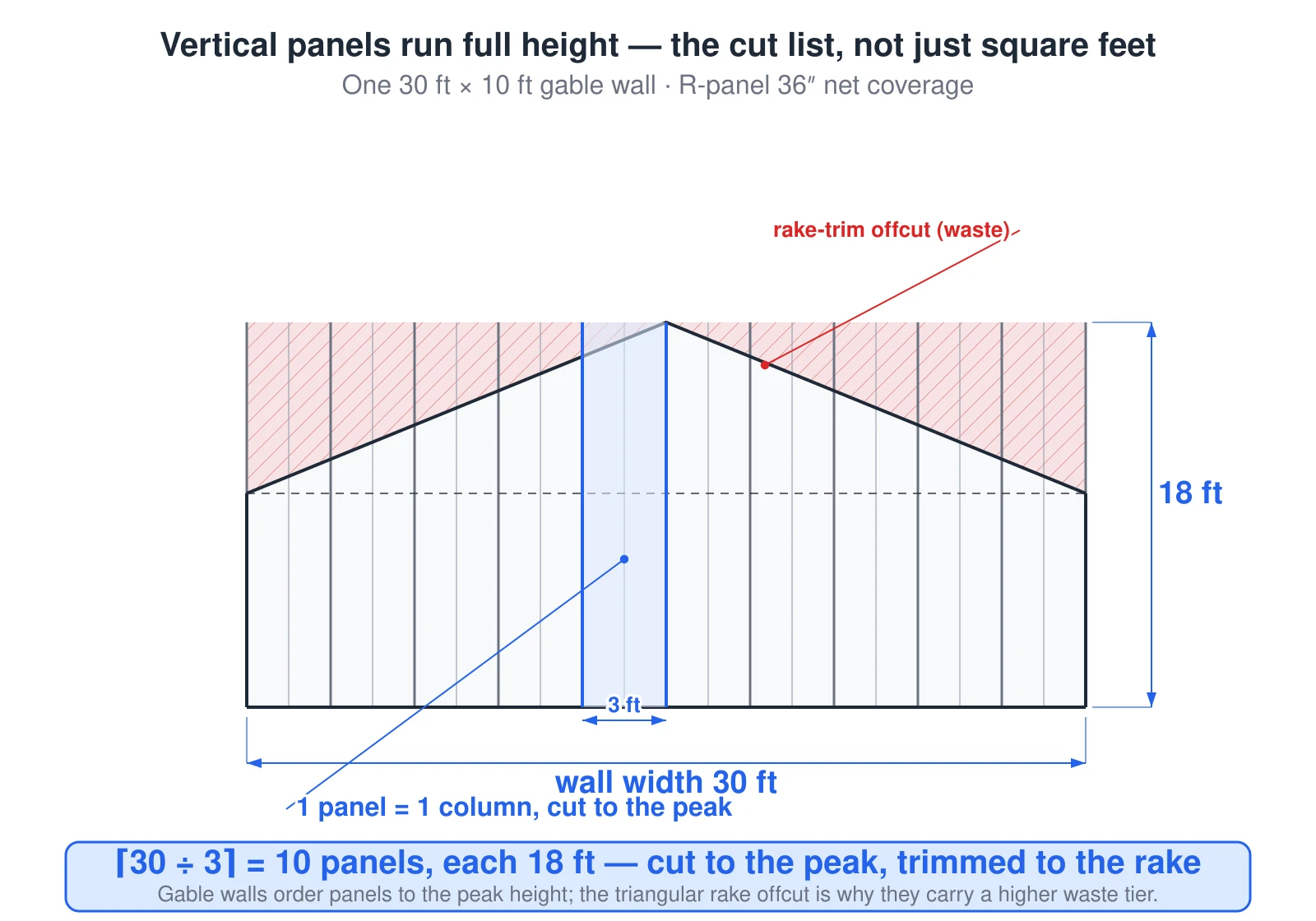

Vertical panels run the full wall height, side by side across the width — so the calculator counts one column per net-coverage width and cuts each to the wall height, to the peak on a gable. That returns an orderable cut list, not just a square-foot number, and the triangular rake-trim offcut is why gable-heavy walls carry a higher waste tier.

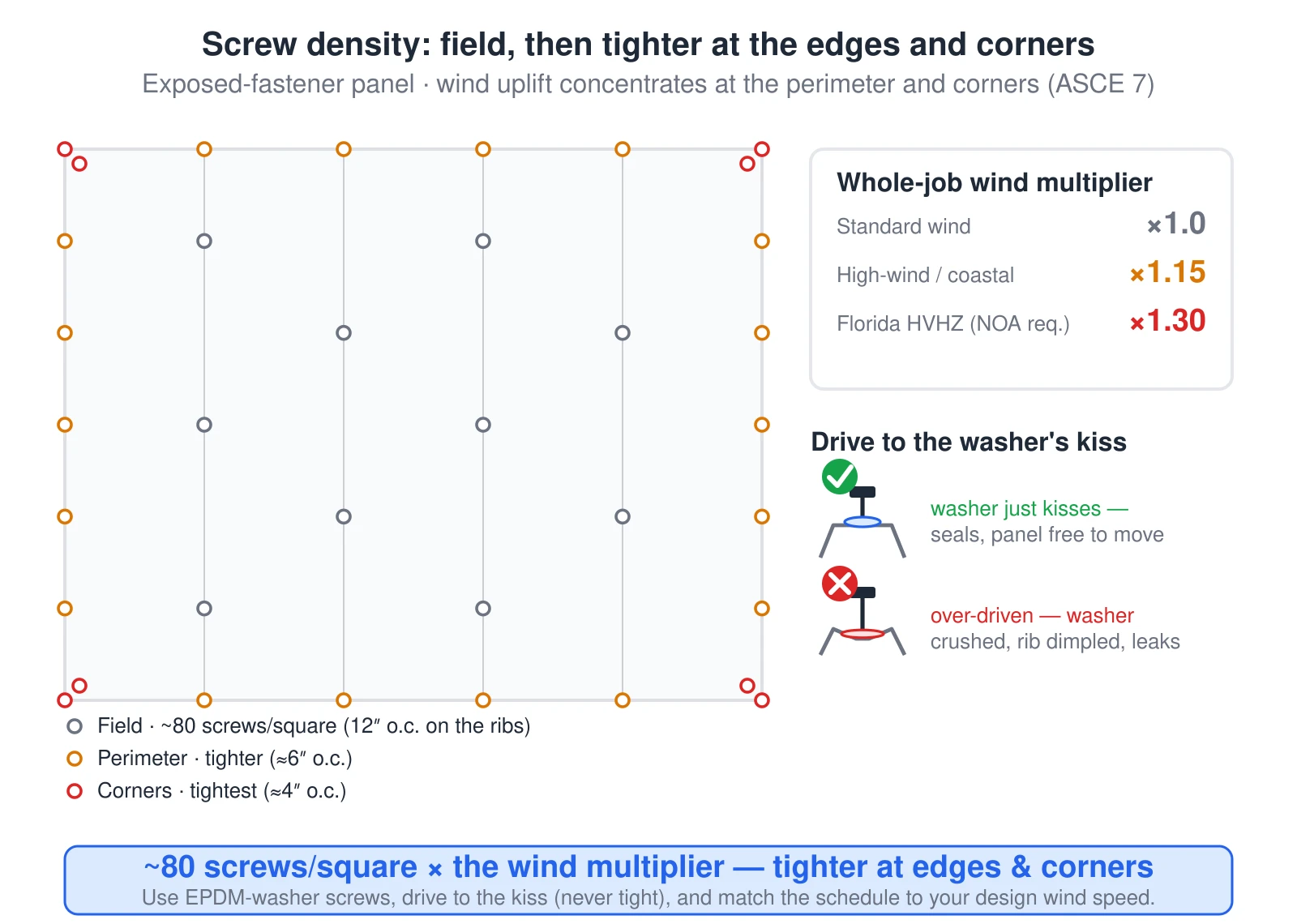

Exposed panels run about 80 screws per square in the field, tightened at the perimeter and corners where wind uplift concentrates, then scaled by the wind zone — about 15% more in high-wind counties and 30% more in Florida HVHZ. Each screw is driven only until the EPDM washer kisses the panel; over-driving crushes the washer and leaks.
Finally, the panels go on in a set order: a taped weather barrier with flashed penetrations, furring for a vented rainscreen gap, a level base flashing and a plumb first panel, then screws driven to the washer's kiss so the metal can expand and contract without oil-canning.
Calculation Formulas
Every metal take-off turns on NET coverage — the usable width after the side lap — never the nominal sheet width. R-panel/PBR covers 36 inches; 7/8-inch corrugated covers 34.67 inches in an SMP finish but 37 inches in PVDF at the same manufacturer. Confirm coverage on the product data sheet, because a 1-inch error moves the panel count about 3 percent.
Example:
A 40-inch-wide corrugated sheet that laps one full corrugation on the wall nets ~34.67 inches (SMP) = 2.89 ft of coverage.
Sum each rectangular wall, add gables as triangles, then decide on openings. Trade practice leaves openings under ~25 sq ft in as a cut-waste buffer and deducts only large openings (garage doors, glass walls). The 'subtract openings' toggle lets you choose either convention.
Example:
A 40 ft × 10 ft wall plus a ½ × 40 × 8 gable = 560 sq ft; less a 16 × 8 garage door (128 sq ft) = 432 sq ft net.
A gable is a triangle, so its area is half the base times the peak rise above the eave. Vertical panels on a gable wall are ordered to the peak height and trimmed to the rake — that rake-trim offcut is why gables raise the waste tier.
Example:
A 30 ft wide gable with an 8 ft rise = (30 × 8) ÷ 2 = 120 sq ft added to that wall.
Vertical ribbed, standing-seam, and board-and-batten panels run the full wall height, side by side across the width. Divide each wall's width by the net coverage and round up; the panel length is that wall's height (to the peak on a gable). This produces an orderable cut list, not just a square-foot number.
Example:
A 40 ft wall in R-panel (36 in = 3 ft coverage): 40 ÷ 3 = 13.3 → 14 panels, each cut to the wall height.
Aluminum lap siding stacks by exposure and is sold by the square/carton like vinyl. Double 4 shows an 8-inch exposure, Double 5 shows 10 inches. Divide net area (with waste) by coverage per panel and round up.
Example:
Double 5 aluminum at 12 ft: 12 × 10 ÷ 12 = 10 sq ft/panel; 1,500 sq ft net × 1.10 ÷ 10 ≈ 166 panels.
Metal is cut-to-length so long-run waste is low, but offcuts are not reusable and color batches must match, so cut-up complexity drives waste up faster than vinyl. Simple rectangular gables run ~10%; several corners and bump-outs ~13%; hips, dormers, diagonals, and many gables 15–20%.
Example:
432 sq ft × 1.10 (simple 10%) = 475 sq ft of panel to order — about 4.75 squares.
Exposed-fastener panels run about 80 self-tapping screws per square (100 sq ft) for 36-inch panels at 24-inch purlin spacing — the Fabral / Western States rule. High-wind and HVHZ zones tighten perimeter and corner spacing, applied here as a whole-job density multiplier (×1.15 high wind, ×1.30 HVHZ).
Example:
432 sq ft × 1.10 ÷ 100 × 80 = 381 → order 400 screws (rounded to the nearest 25).
Ribbed panels are stitched to each other at the side lap at roughly 18-inch spacing. Divide the area by the panel width and the stitch spacing. (7/8-inch corrugated wall laps often need no metal-to-metal stitch — turn stitch screws off for that profile.)
Example:
3,000 sq ft ÷ 3 ÷ 1.5 = 667 side-lap stitch screws.
Concealed systems fasten with hidden clips at 12–24 inches on center, one pancake screw per clip, zero exposed face screws. One clip covers coverage-width × clip-spacing of wall area; tighter spacing in higher wind zones raises the count.
Example:
16-inch panel (1.33 ft) at 24-inch spacing (2 ft) = 2.67 sq ft/clip; 1,500 sq ft ÷ 2.67 ≈ 562 clips.
Corner, base, opening, rake, eave, and roofline trim are each quantified in linear feet and divided by the 10-foot (10 ft 2 in) stock length with a lap allowance. Ribbed panels also need inside and outside profiled foam closures at base and top, sold in 3-foot strips (boxes of 100).
Example:
160 LF of opening trim ÷ 10 = 16 × 1.10 → 18 sticks; 480 LF of closure ÷ 3 = 160 strips → 2 boxes.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| R-Panel / PBR Coverage | 36 in net | The cleanest coverage in metal siding — 36-inch net equals the nominal width, with 1-1/4-inch ribs at 12 inches on center. Sold cut-to-length by the panel. |
| 7/8″ Corrugated Coverage | 34.67 in (SMP) / 37 in (PVDF) | The single biggest source of metal take-off error: coverage varies by manufacturer (32 in to 37-3/8 in) and even by paint finish. Always confirm the exact SKU. |
| Aluminum Lap Exposure | Double 4 = 8 in · Double 5 = 10 in | Horizontal aluminum lap is sold by exposure and by the square/carton, roughly 2 squares (24 panels) per carton. |
| Field Screw Density | ≈ 80 per square | Exposed-fastener rule for 36-inch panels at 24-inch spacing (Fabral / Western States). Ranges 40–120 by panel width, spacing, and wind zone. |
| Simple Waste Factor | 10% | Rectangular gable walls with few openings. Metal's cut-to-length efficiency keeps the baseline low. |
| Complex Waste Factor | 15–20% | Hips, dormers, diagonals, and many gables — non-reusable angled offcuts and color-batch matching push waste up. |
| Trim Stock Length | 10 ft (10 ft 2 in) | Metal corner, base, opening, rake, eave, and flashing trim are commonly stocked in 10-foot lengths (custom 6–20 ft available). |
| Foam Closure Strip | 3 ft (box of 100) | Profile-matched inside and outside foam closures for ribbed panels, sold in 3-foot strips — 100 per box covers 300 ft. |
| Galvalume Coating (A792) | AZ55 ≈ 0.55 oz/ft² | 55% aluminum-zinc alloy coating (ASTM A792). Outlasts G90 galvanized 2–4× in most exposures; AZ60/Coastalume for coastal sites. |
| Thermal Single-Run Limit | Aluminum ≈ 16 ft · Steel ≈ 40 ft | Exposed-fastened panels longer than this need an end-lap / expansion detail so thermal movement does not oil-can the wall (Fabral engineering). |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
IRC R703.3 - Exterior Covering Attachment(IRC R703.3 / Table R703.3(1))
View StandardThe general fastening provisions for exterior wall coverings. It sets minimum material thicknesses (aluminum siding min 0.019 in), corrosion-resistant fasteners, penetration into framing, and the stud-spacing basis for attachment. Aluminum siding must be attached with aluminum nails.
Key Requirements:
- •Aluminum siding minimum nominal thickness 0.019 in (+0.002 in tolerance)
- •Aluminum nails required for aluminum siding — no bare steel fasteners
- •Corrosion-resistant fasteners conforming to ASTM F1667
- •Fasteners penetrate framing per the attachment schedule (16 in o.c. stud basis)
- •Water-resistive barrier and flashing integrated behind the cladding
IRC R703.4 - Flashing(IRC R703.4)
View StandardRequires corrosion-resistant flashing at all exterior openings and terminations, installed shingle-fashion over the water-resistive barrier so water is directed out of the wall. Metal siding leans hard on head, jamb, and sill flashing at every window and door.
Key Requirements:
- •Corrosion-resistant flashing at window and door heads and jambs
- •Pan flashing at sills (AAMA 711 self-adhered or AAMA 714 fluid-applied)
- •Flashing lapped shingle-fashion over the WRB, never reverse-lapped
- •Kickout and step flashing where walls meet roofs
- •Base flashing terminating siding above grade / paving with a drainage path
ASTM A792 / A653 - Coated Steel Sheet(ASTM A792 (Galvalume) / A653 (galvanized))
View StandardThe material specs for coated steel siding. A792 covers 55% aluminum-zinc alloy (Galvalume) in AZ50/AZ55/AZ60 coating weights; A653 covers hot-dip galvanized (zinc) in G60/G90. Galvalume outlasts galvanized in most exposures; galvanized gives better sacrificial cut-edge protection and is preferred in livestock/ammonia environments.
Key Requirements:
- •Galvalume AZ55 ≈ 0.55 oz/ft² Al-Zn coating, both sides (A792)
- •Galvanized G90 ≈ 0.90 oz/ft² zinc coating, both sides (A653)
- •AZ60 / Coastalume for coastal salt exposure
- •Cut edges hemmed, lapped, or paint-penned to resist edge corrosion
- •Galvanized (not Galvalume) recommended for confined-livestock ammonia exposure
ASTM B209 & AAMA 2605 - Aluminum & Coatings(ASTM B209 / AAMA 2605)
View StandardB209 is the aluminum sheet specification (3000-series alloy for corrugated aluminum); AAMA 2605 is the high-performance PVDF/Kynar 500 coating spec. PVDF (min 70% fluoropolymer resin) outperforms SMP on fade and chalk resistance; SMP is harder and cheaper but chalks and fades sooner.
Key Requirements:
- •Aluminum sheet per ASTM B209 (self-healing oxide — the coastal default)
- •PVDF / Kynar 500 finish min 70% fluoropolymer resin (AAMA 2605)
- •SMP (silicone-modified polyester) finish for a harder, lower-cost coating
- •Match coating to exposure — high-UV south/west walls favor PVDF
- •Coating warranty terms vary by manufacturer and coating class
ASCE 7 & Florida HVHZ - Wind Load(ASCE 7 / Miami-Dade NOA)
View StandardDesign wind speed drives fastener density: perimeter and corner zones require tighter spacing. High-Velocity Hurricane Zones (Miami-Dade and Broward) require a product with a current Miami-Dade Notice of Acceptance (NOA) or Florida Product Approval and the assembly's specified fastening schedule.
Key Requirements:
- •Fastener spacing tightened at perimeter and corner zones per design wind pressure
- •High-wind coastal counties: heavier gauge and closer fastener/clip spacing
- •HVHZ: current Miami-Dade NOA or Florida Product Approval required
- •Stainless or hot-dipped galvanized fasteners near the shore (FEMA/NFIP)
- •Confirm the assembly wind rating against the site design wind speed
MCA & Manufacturer Install Manuals(MCA / Manufacturer Specifications)
View StandardThe Metal Construction Association publishes the industry guidance on Galvalume service life, coatings, and detailing, and every panel maker (McElroy, MBCI, Metal Sales, Fabral, Western States, Gulf Coast Supply) publishes profile-specific coverage, fastener, and closure schedules. The manufacturer manual governs where stricter than code and is required for warranty.
Key Requirements:
- •Use the specific profile's published net coverage, not a generic constant
- •Profile-matched inside/outside foam closures on ribbed panels
- •Vented rainscreen / drainage gap behind the panels per manufacturer detail
- •Screws driven to the washer 'kiss' — never over-driven
- •Exposed-fastened single-run limits (~16 ft aluminum, ~40 ft steel) before an expansion lap
Standards Disclaimer: Standards and codes are subject to periodic updates. Always verify current requirements with local building authorities and professional engineers before beginning construction. Links provided are for reference only.
Coastal Salt Exposure
Aluminum & Galvalume over bare galvanized
Salt air accelerates corrosion. Aluminum's self-healing oxide makes it the coastal default; Galvalume (AZ55/AZ60, Coastalume) outlasts galvanized 2–4× but most warranties still exclude the salt-spray zone within ~1,500 ft of the shore. Fasteners must be stainless.
Regional Examples:
High-Wind & Hurricane Zones
Tighter fastening and product approvals
Design wind speed drives fastener and clip density, with perimeter and corner zones tightened further. High-Velocity Hurricane Zones require a product with a current Notice of Acceptance and the assembly's specified schedule.
Regional Examples:
Thermal Expansion by Climate
Slot the fasteners; lap long runs
Metal expands and contracts with temperature. Exposed-fastener panels use slotted holes and are never over-driven; standing seam floats on clips; aluminum lap nails sit loose in the slot. Long single runs and dark colors move the most.
Regional Examples:
Cold Climates, Snow & Ice
Heavier gauge and drained base details
Snow load and ice favor heavier-gauge panels and disciplined base and rake detailing. Siding terminates above grade and paving with a drainage path so meltwater sheds instead of wicking into the wall.
Regional Examples:
Continuous Insulation & Rainscreen
Fastener length and drainage gap
Energy codes in colder zones require continuous exterior insulation, which lengthens fasteners and often adds furring. Behind the panels, a drainage gap or the panel's own vertical ribs form the rainscreen the wall relies on.
Regional Examples:
Wildfire (WUI) & Fire Zones
Where metal is an advantage
Steel and aluminum siding are noncombustible, which makes metal a favored cladding in Wildland-Urban Interface zones where combustible sidings are restricted. Local ignition-resistant-construction rules still govern the full assembly, including the WRB and trim.
Regional Examples:
Before You Build
- •Contact your local building department for specific requirements
- •Verify frost line depths, wind zones, and seismic requirements for your area
- •Check if permits are required and schedule required inspections
- •Consult with a local contractor familiar with local codes
Want to Learn More?
Metal siding by gauge, profile, and coating. Galvalume vs aluminum, PVDF vs SMP, HVHZ fastener density. Per MCA, ASTM A653/A792, AAMA, IRC R703.4.
Read the Metal Siding Guide
Size a dumpster for this debris
Don't guess at the container size — overage fees run $100–$300+ when you hit the weight cap or fill past the line. See the right size for this material.
Get the right dumpster size →
Related Calculators
Siding Calculator
Instantly calculate siding panels, trim & accessories for vinyl, fiber cement, wood or metal. Doors and windows subtracted automatically. Free, no signup.
Lap Siding Calculator
Free generic lap siding calculator for LP SmartSide, wood bevel, clapboard & vinyl. Boards per square, exposure, trim, corners & fasteners. Even coursing.
Metal Roofing Calculator
Free metal roofing calculator: panel count from NET coverage width, exposed-fastener screws or standing-seam clips, trim BOM, and underlayment. No signup.
How to Use This Calculator
- Add each wall: enter length and height, and check "Has gable" for any wall with a triangle on top (enter its rise).
- Enter windows and doors, then choose whether to subtract openings or leave them in as a cut-waste buffer (the metal-trade default).
- Pick your profile: R-panel, corrugated (SMP or PVDF coverage), standing seam, board & batten, aluminum lap, or a custom coverage width.
- Set fastening and climate: wind zone (standard / high-wind / HVHZ), substrate, coastal flag, and field-screw density.
- Add corners and roofline transitions; head/sill/rake/eave trim and closures are figured automatically.
- Review the materials list: cut list, panels and coverage, screws or clips, all trim and flashing in LF and pieces, closures and sealant — copy, print, or save it.
Metal Siding Coverage Standards
Order against NET coverage, never nominal width — R-panel is 36″, but 7/8″ corrugated covers 34.67″ in SMP and 37″ in PVDF. Vertical panels = Σ⌈wall width ÷ coverage⌉ cut to wall height; horizontal lap is sold by the square. Exposed panels run ~80 screws/square (Fabral/Western States), tightened in high-wind and HVHZ zones; standing seam uses concealed clips at 12–24″ o.c. Ribbed panels need inside and outside foam closures at base and top. Confirm coverage and fastener schedule on the product data sheet.
Frequently Asked Questions
How much metal siding do I need? How do I count panels?
It starts with NET coverage width — the usable width after the side lap — never the nominal sheet width. For vertical panels (R-panel, corrugated, standing seam, board & batten), divide each wall's width by the net coverage and round up: Panels = ⌈wall width ÷ coverage⌉, each cut to the wall height. R-panel covers 36 inches, so a 40-foot wall needs ⌈40 ÷ 3⌉ = 14 panels. Aluminum lap is horizontal and sold by the square (net area ÷ coverage per panel). The calculator returns an orderable cut list for vertical profiles and a square/panel count for lap.
What's the coverage width of corrugated metal siding?
It's the single biggest source of metal take-off error, because it varies by manufacturer AND by paint finish. Western States lists 7/8-inch corrugated at 34.67 inches of wall coverage in an SMP finish but 37 inches in PVDF — the same panel. Others list 32 inches or 37-3/8 inches. R-panel/PBR is the clean case at a consistent 36-inch net. That's why coverage is a per-profile field here, not a constant: always confirm the exact number on your product's data sheet, since a 1-inch error moves the panel count about 3 percent.
How many screws per square does metal siding need?
The dominant rule for exposed-fastener panels is about 80 screws per square (100 sq ft) for 36-inch panels at 24-inch purlin spacing — the Fabral and Western States figure. It ranges 40–120 depending on panel width, fastener spacing, and wind zone, so the calculator lets you override it. High-wind coastal counties and Florida HVHZ tighten perimeter and corner spacing, applied here as a density multiplier (×1.15 and ×1.30). Standing-seam and board-and-batten panels use no field screws at all — they fasten with hidden clips at 12–24 inches on center.
Do I need foam closures, and how many?
Yes — ribbed exposed-fastener panels (R-panel, corrugated, box-rib) need profiled foam closures at the base and the top of every run, inside and outside, or wind-driven rain, insects, and daylight get behind the panels. Closures are profile-specific and sold in 3-foot strips (boxes of 100 = 300 feet). The calculator figures the linear feet at base and top of each ribbed run and converts to strips and boxes. Flat lap and concealed board-and-batten don't use profiled closures the same way.
Can I use bare steel screws on aluminum siding?
No — that's a documented failure mode. Bare steel fasteners in aluminum set up galvanic corrosion: the steel screw corrodes and eventually fails while the aluminum siding stays intact. Use aluminum nails for aluminum lap siding (required by IRC Table R703.3(1)) and stainless screws for aluminum panels. On any coastal site (within ~1,500 feet of saltwater), use stainless fasteners regardless of the panel metal, and favor aluminum or Galvalume AZ55/AZ60 over bare galvanized. The calculator flags the fastener-metal rule whenever you pick an aluminum profile or check the coastal box.
How much waste factor should I add for metal siding?
Metal is cut-to-length so long-run waste is low, but offcuts aren't reusable and color batches must match, so cut-up complexity drives waste up faster than vinyl. Use about 10% for a simple rectangular gable with few openings, 13% for several corners and bump-outs, and 15–20% for hips, dormers, diagonals, and many gables. Vertical panels on gable walls are ordered to the peak height and trimmed to the rake — that rake-trim offcut is a big reason gable-heavy homes land in the higher tier.
What does this calculator NOT include?
No pricing and no labor — it outputs materials only: a panel cut list, coverage in squares, screws or clips, every trim and flashing run in linear feet and stock-length pieces, foam closures, and butyl/sealant. It doesn't size house wrap or the rainscreen furring, doesn't quote installation, and doesn't select a specific SKU for you. Confirm the exact net coverage, gauge, coating, and fastener schedule on your chosen product's data sheet before ordering — and in Florida HVHZ, confirm the required Miami-Dade Notice of Acceptance (NOA).
