The order metal siding goes on

Metal siding goes on in order: a taped weather barrier with flashed penetrations, furring for a vented rainscreen gap, a level base flashing and plumb first panel, then screws driven centered in the slot only to the washer’s kiss so the metal can expand and contract without oil-canning.

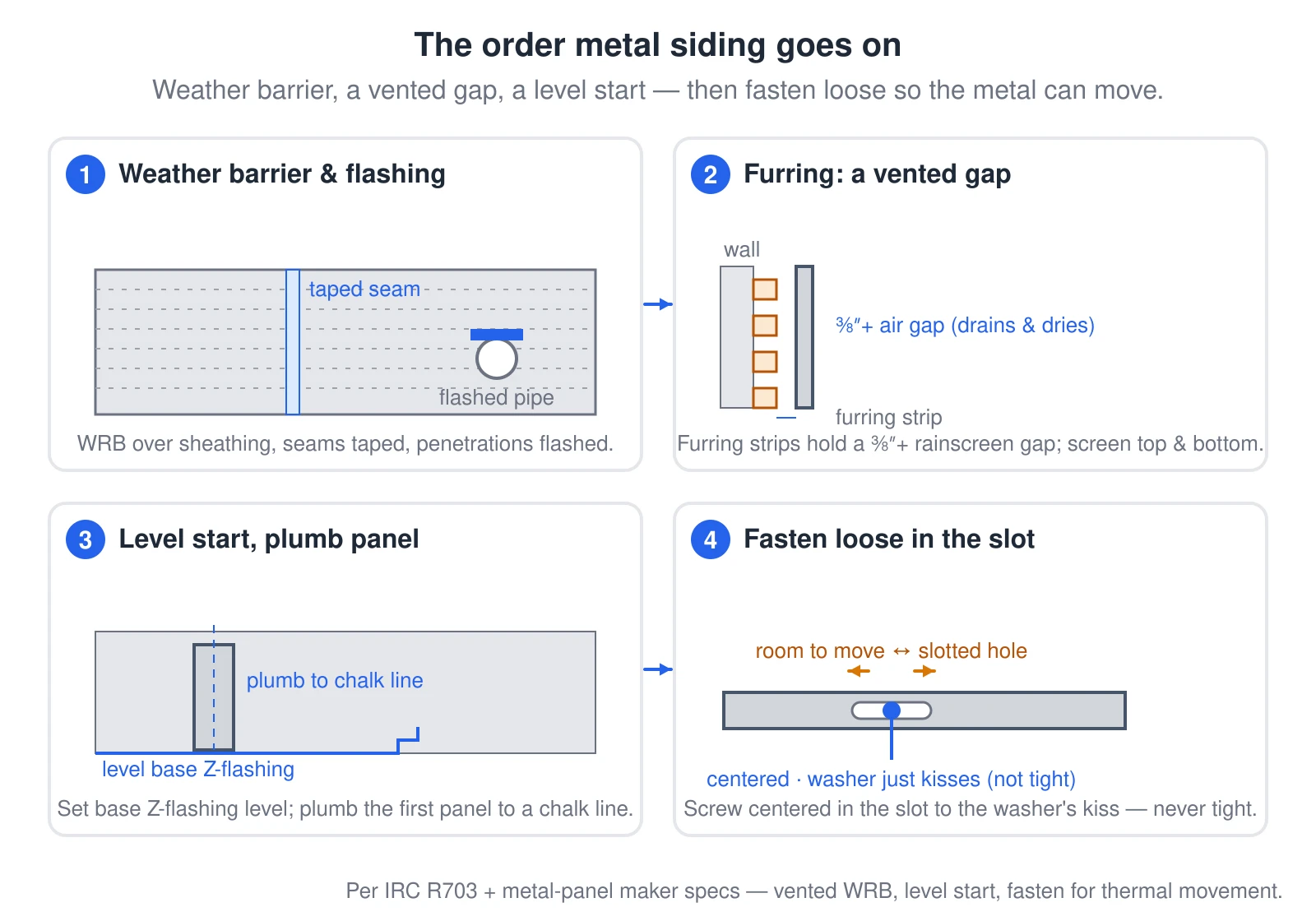

What this diagram shows

A four-panel walkthrough of metal siding install order. Panel 1: a weather-resistive barrier over sheathing with taped seams and a flashed pipe penetration. Panel 2: furring strips hold a vented rainscreen gap of at least three-eighths inch between the wall and the panel plane. Panel 3: a level base Z-flashing is set and the first panel is plumbed to a chalk line. Panel 4: a screw is driven centered in the panel’s slotted hole and only to the point the washer kisses the flange, leaving room for thermal movement, before the next panel interlocks.
