Rafter Length Calculator
This free rafter length calculator turns a building width, pitch, ridge thickness, and overhang into the exact common rafter length, cut angles, and lumber order length you need before you make the first cut. It handles the ridge-thickness deduction, the overhang tail, and rounds up to a real stock length — the same math a framer runs by hand with a speed square and a calculator on the plate.
Rafter length is not just the Pythagorean theorem: half the ridge board thickness comes off the run, the overhang tail is calculated at the same slope as the main rafter, and the plumb and seat cut angles change with every pitch. Switch to Hip/Valley mode for 45°-corner hip and valley rafter lengths and the jack rafter common-difference step, using the same 17-inch diagonal method framers use on paper — not the common-length-times-1.414 shortcut that overstates hip length by several percent.
It is built on IRC R802 — the ridge board (R802.3), 1½-inch bearing (R802.6.1), and D/4 birdsmouth-notch (R802.7.1) provisions — and the American Wood Council span methodology. Free, no signup, no pricing — just the length, the angles, and the board count. For roof pitch conversions and total roof area, use the Roof Pitch Calculator; for rafter sizing against span tables, consult IRC Table R802.4.1 for your species, grade, and snow load.
Need pitch conversions or total roof area? Use the Roof Pitch Calculator →
Rafter Length Calculator
Turn a building width, pitch, ridge thickness, and overhang into the exact common rafter length, plumb and seat cut angles, birdsmouth depth, and a lumber order length — plus hip, valley, and jack rafters in advanced mode. Built on IRC R802. Free, no signup.
Roof geometry
Enter the building width (the calculator halves it and subtracts the ridge), or a run directly for an addition or shed roof.
Ridge, overhang & spacing
Ridge thickness comes off the run; the overhang tail is cut at the same slope as the rafter.
Overhang length is style/climate driven (typically 12–24"), not an IRC-mandated number.
Count & options
Roof length gives a rafter count; nominal size is used only for a board-foot cross-reference, not span sizing.
Where rafter length and cuts go wrong
The straight-line length is the easy part. These engineering-style diagrams cover the four things that trip up a rafter take-off: what the run and rise actually measure, how deep a birdsmouth may legally be cut, why a hip is not just the common rafter times 1.414, and how jack rafters step down toward the corner.

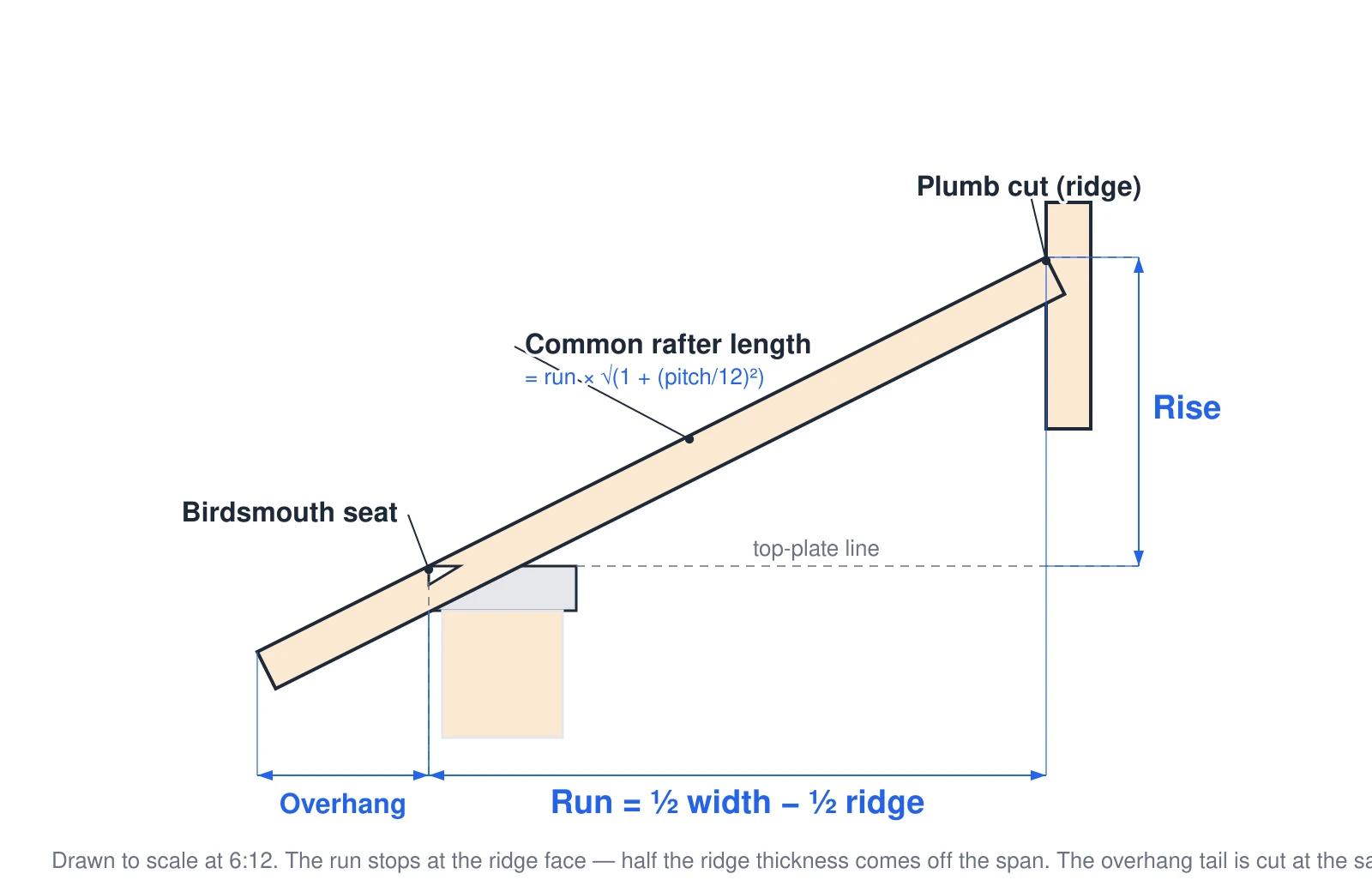

The anatomy diagram is why the run in this calculator is not simply half the building width. The run stops at the ridge face, so half the ridge thickness comes off the span; the rise is measured from the top-plate line up to the ridge; and the overhang tail is cut at the same slope as the body, with a plumb cut at the ridge and a birdsmouth seat on the plate.

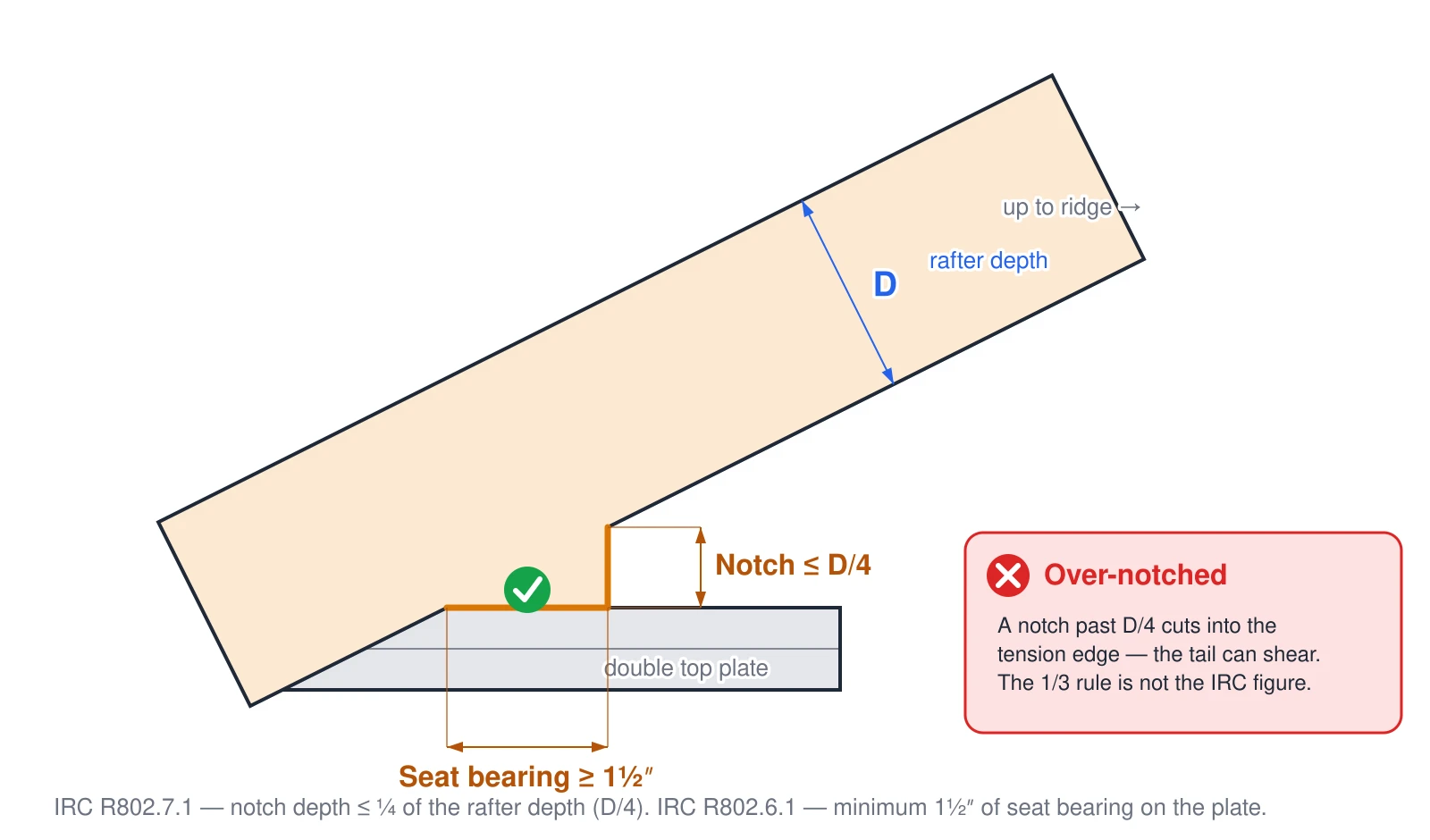

The birdsmouth diagram is the one worth getting right: IRC R802.7.1 limits the notch to a quarter of the rafter depth (D/4), with at least 1½″ of seat bearing per R802.6.1. Several popular calculators cite a “one-third” rule — that is a different standard, not the IRC, and cutting that deep eats into the tension edge and can shear the tail.

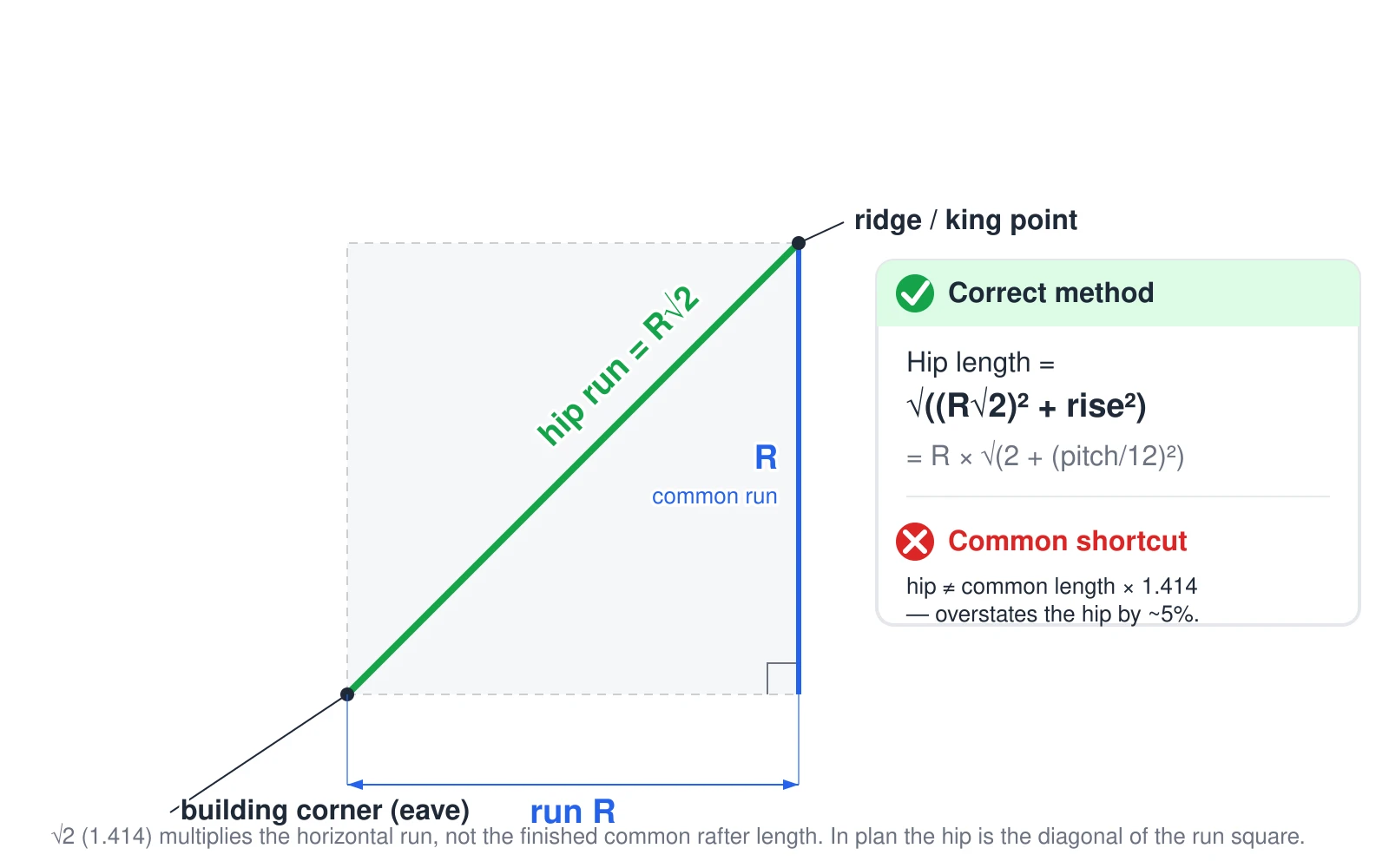

The hip diagram is why Hip/Valley mode does not just multiply the common rafter by 1.414. A hip runs the diagonal of the run square, so its horizontal run is R√2; the length comes from that diagonal and the rise. Applying 1.414 to the finished common length instead overstates a hip by about five percent — nearly a foot on an eighteen-foot hip.

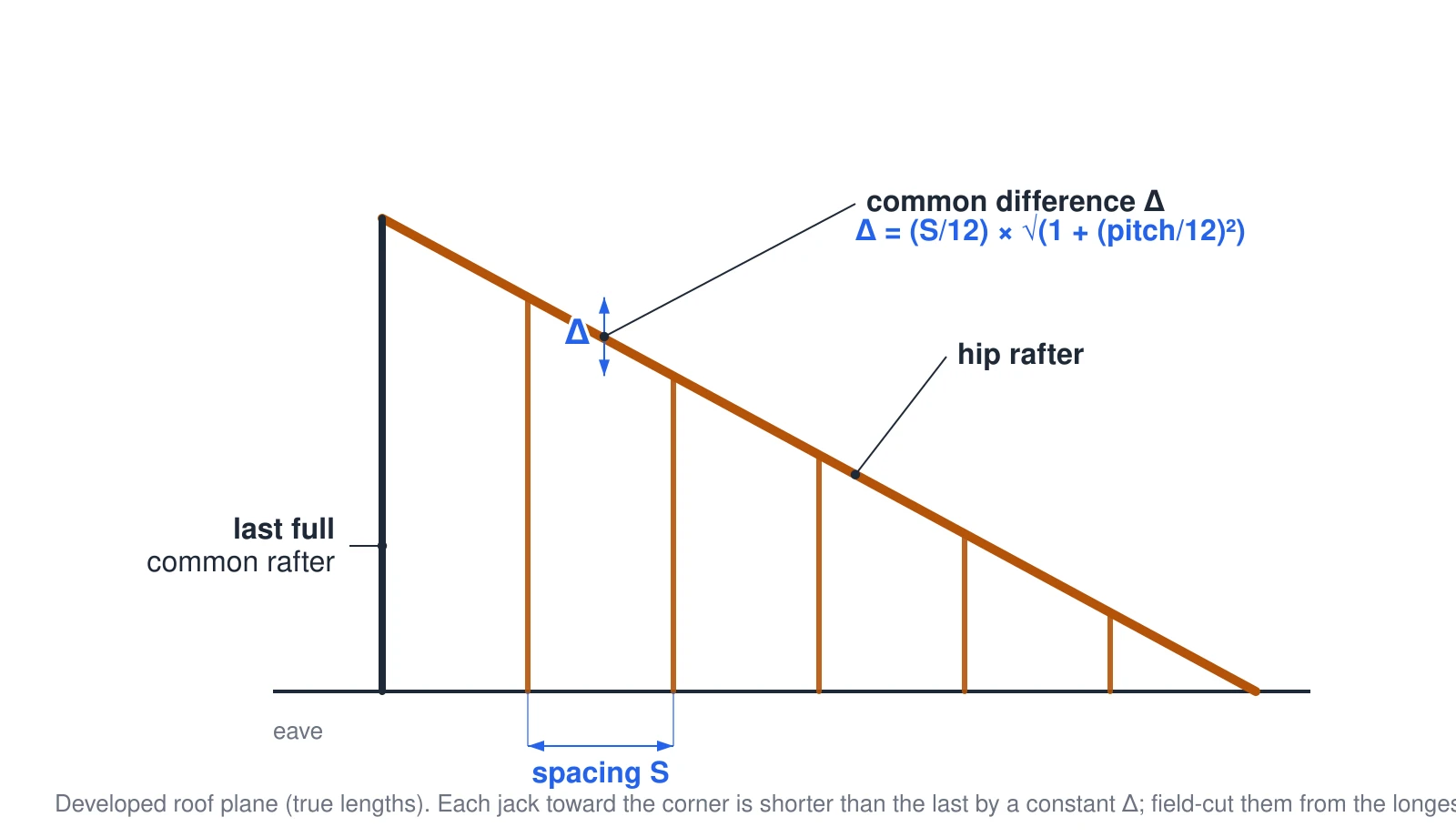

The jack-rafter diagram is why the calculator lists jacks as a stepped set. On the developed roof plane each jack toward the corner is shorter than the last by a constant common difference, Δ = (spacing ÷ 12) × the pitch multiplier, so you cut them in order from the longest rather than measuring each one.
Calculation Formulas
Half the building width W (ft) minus half the actual ridge thickness Rt (in). The rafter stops at the ridge FACE, not the building centerline — IRC R802.3 sets the minimum ridge member.
Example:
24 ft wide, 1.5" (2×) ridge → (24 − 0.125) / 2 = 11.94 ft run
Right-triangle multiplier for a common rafter, where P is the rise per 12" of run. Identical to the PITCH_MULTIPLIERS constant reused from the shingle-square take-off.
Example:
6/12 pitch → √(1 + 0.5²) = √1.25 = 1.11803
Vertical height gained from the plate line to the ridge face over the adjusted run.
Example:
11.94 ft run × 0.5 = 5.97 ft rise
Straight-line length of the rafter from the plate line (seat) to the ridge face, before the overhang tail is added.
Example:
11.94 ft × 1.11803 = 13.35 ft ≈ 13 ft 4-3/16"
The eave tail is cut at the same slope as the main rafter, so the same pitch multiplier applies to the horizontal overhang O (in).
Example:
16" overhang, 6/12 → (16/12) × 1.11803 = 1.49 ft ≈ 1 ft 5-7/8"
Full rafter length including the overhang, rounded UP to the next standard stock length for ordering (never a percentage waste).
Example:
13.35 + 1.49 = 14.84 ft → order 16 ft stock
The plumb cut (ridge and tail) and the level seat cut are complementary and depend only on the pitch. On a speed square, use the pitch number on the common scale.
Example:
6/12 → plumb = arctan(0.5) = 26.57°; seat = 63.43°
The hip runs the diagonal of the plan square, so the horizontal hip run is Run × √2. Do NOT use common length × 1.414 — that shortcut overstates the hip by ~5%.
Example:
12 ft common run, 6/12 → 12 × √(2 + 0.25) = 12 × 1.5 = 18.00 ft
Each successive jack rafter toward the hip corner is shorter than the last by this constant, where S is the rafter spacing (in) and M the common pitch multiplier.
Example:
16" o.c., 6/12 → (16/12) × 1.11803 = 1.49 ft ≈ 17.89" per step
A deterministic count from roof length and spacing S — not a coverage estimate, so no waste multiplier is applied to the count. Budget 1–2 extra pieces as a cut-error buffer.
Example:
40 ft roof at 16" o.c. → ⌈480/16⌉ + 1 = 31 pairs = 62 rafters
Standard Constants
| Constant | Value | Description |
|---|---|---|
| Common pitch multiplier — 6/12 | 1.118 | √(1 + (6/12)²); reused from PITCH_MULTIPLIERS. Ranges 1.031 (3/12) to 1.414 (12/12). |
| Hip / valley multiplier — 6/12 | 1.500 | Exact √(2 + (P/12)²) per foot of common run. Framing-square "17" table value √(17²+6²)/12 = 1.502 (0.13% higher). |
| Ridge board thickness — nominal 2× | 1.5" | Default; a dressed 2× member. Half of this comes off the run (IRC R802.3). |
| Ridge board thickness — nominal 1× | 0.75" | Lighter non-structural ridge board option. |
| Birdsmouth (notch) depth limit | D/4 | IRC R802.7.1 — end-notch depth shall not exceed one-quarter of the actual rafter depth D. (Not the "1/3" figure some sources cite.) |
| Minimum seat bearing | 1.5" | IRC R802.6.1 — minimum bearing for rafters on wood or metal, regardless of notch-depth headroom. |
| Standard rafter spacing | 16" or 24" o.c. | 12" and 19.2" also supported; final spacing is a span-table output, not a free geometric choice. |
| Typical overhang range | 12"–24" | Industry-typical, style/climate driven — NOT an IRC-mandated dimension. |
| Standard stock lengths | 8–24 ft (2-ft steps) | Order length = total rafter length rounded up to the next increment; anything over 24 ft needs an engineered or spliced member. |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
