Why an oversized air conditioner leaves a house clammy

An oversized AC cools fast and short-cycles, so it never removes moisture — cold but clammy (~65% RH). A right-sized unit runs longer and dries the air to a comfortable 30–50% RH.

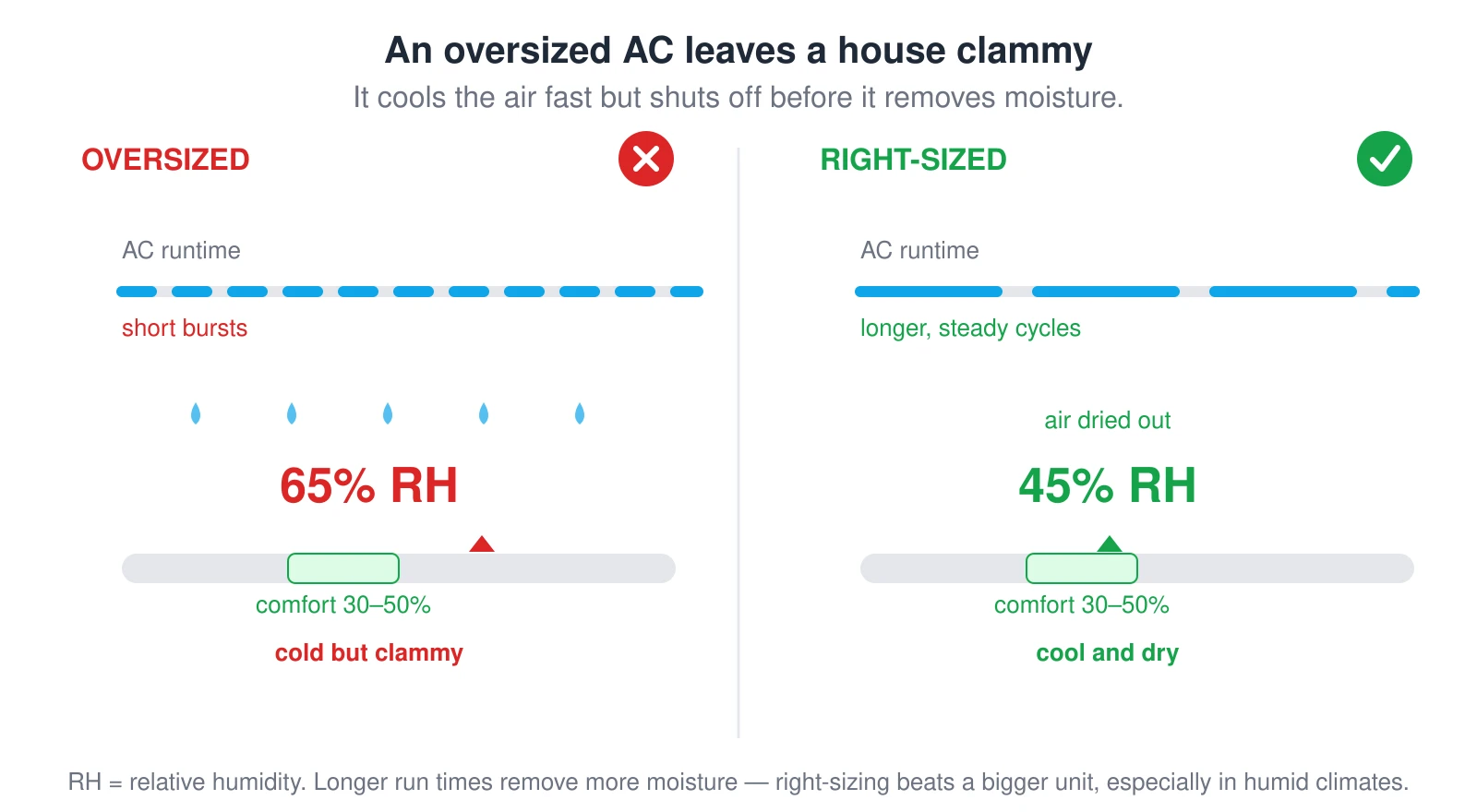

Two panels comparing an oversized and a right-sized air conditioner. The oversized one runs in short bursts and shuts off at about 65 percent relative humidity — cold but clammy, with moisture droplets in the air. The right-sized one runs longer, steadier cycles and pulls humidity down into the comfortable 30 to 50 percent range — cool and dry. — Source: ACCA Manual S / EPA 30–50% RH

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two panels comparing an oversized and a right-sized air conditioner. The oversized one runs in short bursts and shuts off at about 65 percent relative humidity — cold but clammy, with moisture droplets in the air. The right-sized one runs longer, steadier cycles and pulls humidity down into the comfortable 30 to 50 percent range — cool and dry.
