Rated versus delivered bathroom fan airflow — the same fan moves less through a real duct

Fans are rated at 0.1 in. of static, but a real duct sits near 0.25 in., where a typical fan delivers only ~70% of its rating.

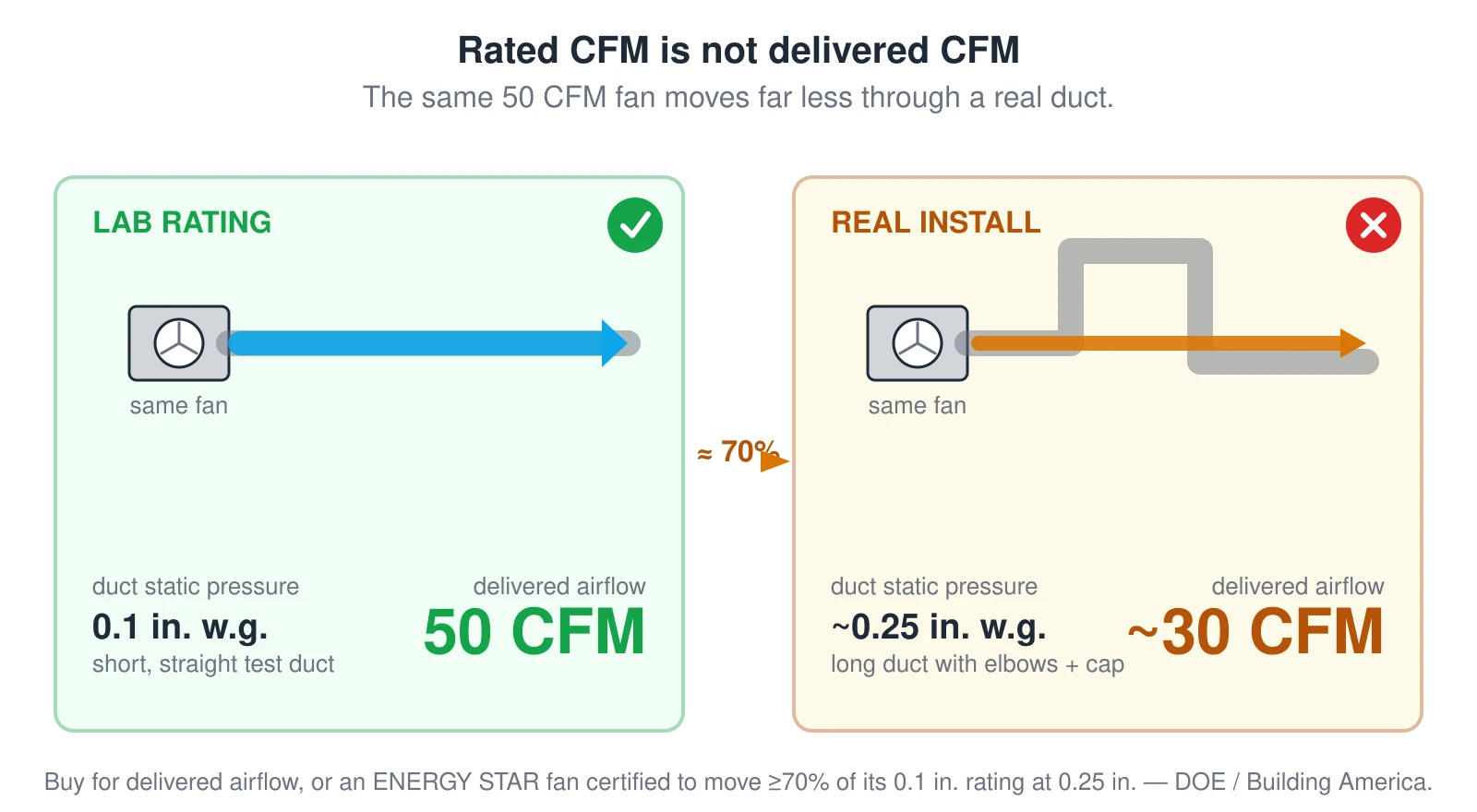

Two side-by-side panels of the same fan. The left green panel is the lab rating: a short, straight test duct at 0.1 inch of static pressure, where a thick airflow arrow shows the full rated 50 CFM. The right amber panel is a real install: a long duct with elbows and a wall cap at about 0.25 inch of static, where a thinner airflow arrow shows only about 30 CFM — roughly 70 percent of the rating. — Source: DOE / Building America; ENERGY STAR ≥70% at 0.25 in.

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two side-by-side panels of the same fan. The left green panel is the lab rating: a short, straight test duct at 0.1 inch of static pressure, where a thick airflow arrow shows the full rated 50 CFM. The right amber panel is a real install: a long duct with elbows and a wall cap at about 0.25 inch of static, where a thinner airflow arrow shows only about 30 CFM — roughly 70 percent of the rating.
