The order a deck goes together — footings to decking
A deck goes together bottom-up: pour footings below frost and stand posts on standoff bases, flash and bolt the ledger and set the beam, hang the joists between them, then lay the decking with a gap and add guards and stairs.

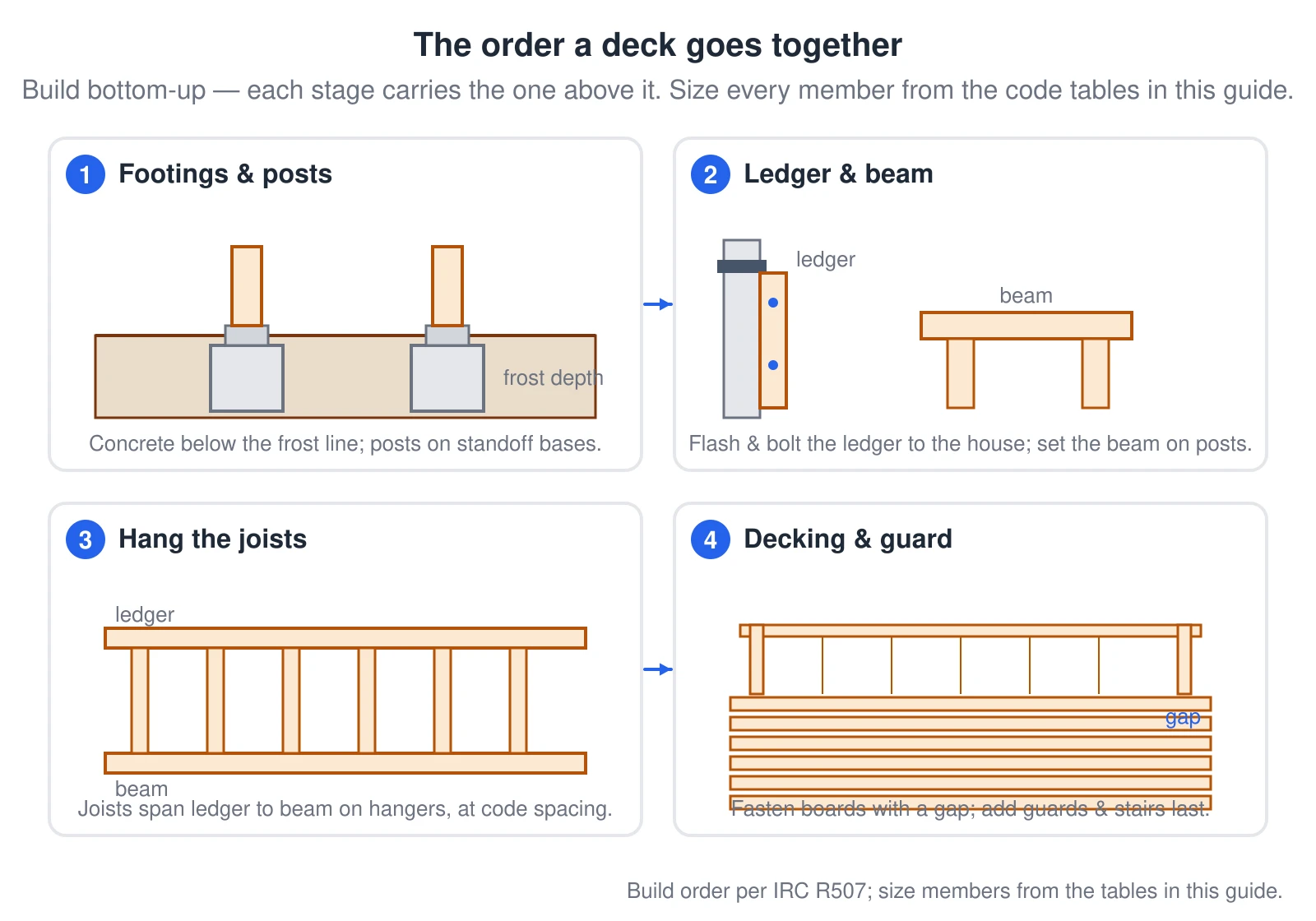

What this diagram shows
A four-panel walkthrough of the deck build order. Panel 1: concrete footings poured below the frost line with posts standing on standoff post bases that hold the wood off the concrete. Panel 2: a ledger board flashed and through-bolted to the house band joist, and a beam set on top of the posts. Panel 3: joists hung between the ledger and the beam on joist hangers at code spacing. Panel 4: decking boards fastened across the joists with a gap between them, then a guard rail.
Use this diagram — free
You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
Please keep the credit link intact and don't alter the diagram itself. Redistribution as part of a competing diagram library or template pack isn't permitted. Questions? Reach us via the site.
