Which way a fence gate brace goes — bottom hinge corner up to the top latch corner

The #1 gate mistake: a wood brace only works in compression. Run it from the bottom hinge corner up to the top latch corner so the weight loads into the bottom hinge. Run it the other way and the brace is in tension — the gate sags and won’t latch.

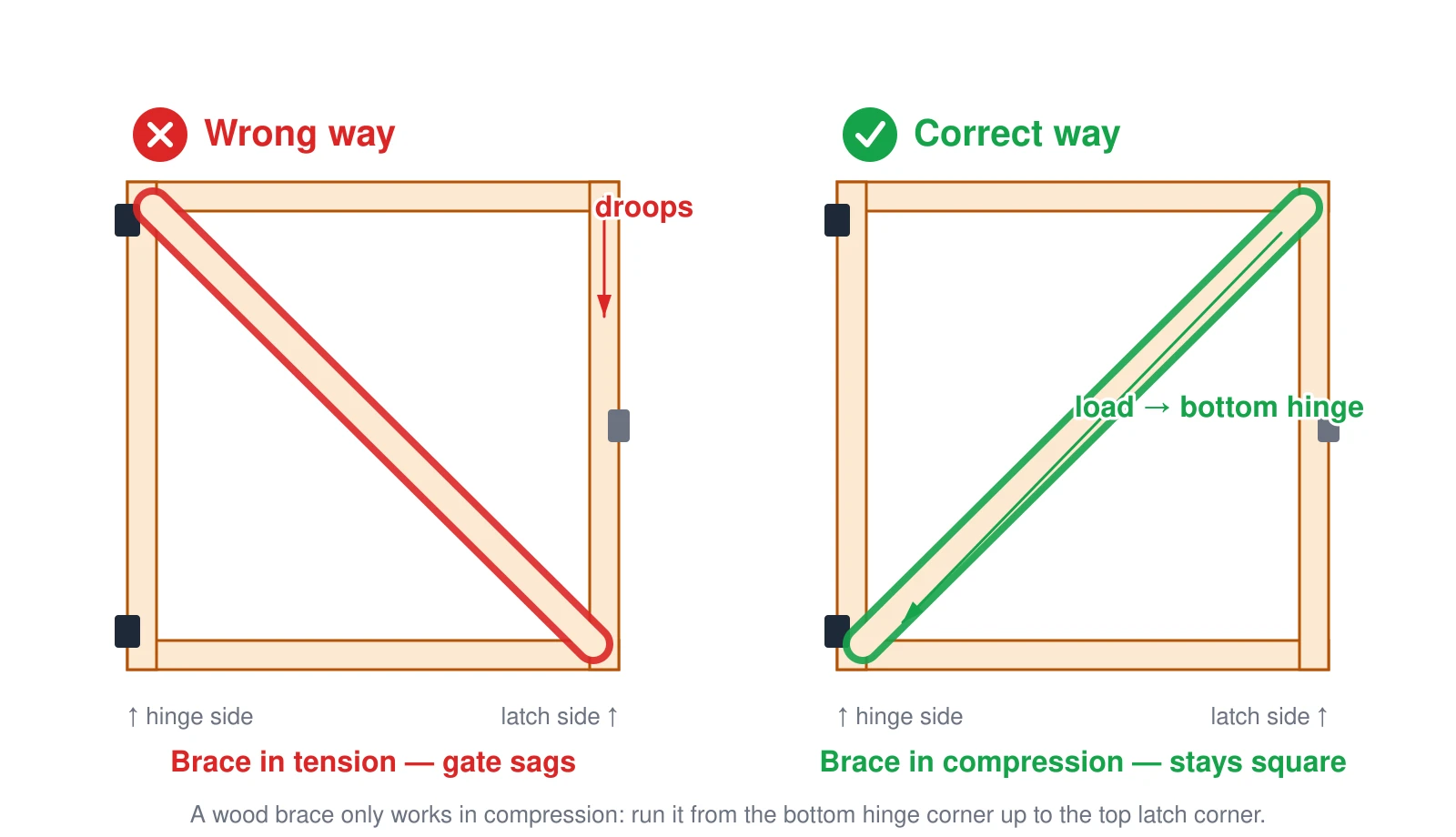

Two fence gate frames compared. On the left (wrong), the diagonal brace runs from the top hinge corner down to the bottom latch corner, which puts the wood brace in tension; wood cannot resist tension, so the latch corner droops and the gate sags and drags. On the right (correct), the brace runs from the bottom hinge corner up to the top latch corner, putting it in compression so the gate’s weight is carried down into the bottom hinge and the gate stays square. A wood gate brace only works in compression. — Source: Gate brace in compression (bottom-hinge to top-latch) — fence-building practice

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two fence gate frames compared. On the left (wrong), the diagonal brace runs from the top hinge corner down to the bottom latch corner, which puts the wood brace in tension; wood cannot resist tension, so the latch corner droops and the gate sags and drags. On the right (correct), the brace runs from the bottom hinge corner up to the top latch corner, putting it in compression so the gate’s weight is carried down into the bottom hinge and the gate stays square. A wood gate brace only works in compression.

Use this diagram — free

You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
