Flexible duct versus smooth metal at the same diameter

Flex has a rougher wall than smooth metal, so at the same diameter it carries less air — size it up one size, and never leave it sagging or compressed.

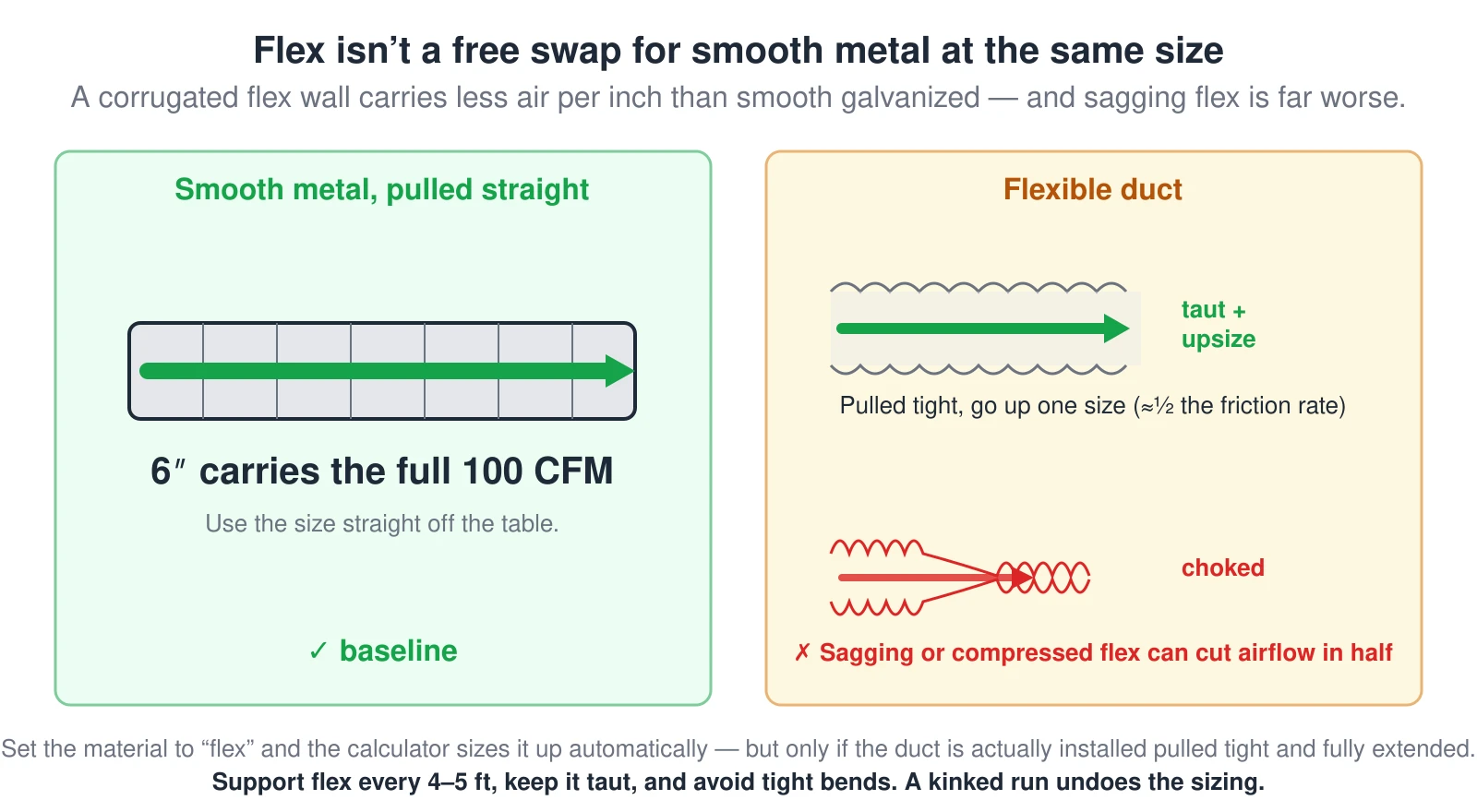

Two panels. On the left, a smooth straight galvanized metal duct with a full airflow arrow: a 6-inch duct carries the full 100 CFM, the baseline size straight off the table. On the right, flexible duct: pulled taut it still needs to be sized up one size because its corrugated wall roughly doubles the friction, and a sagging or compressed flex run is shown choked with a thin airflow arrow, cutting airflow in half. — Source: ACCA Manual D flexible-duct sizing

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two panels. On the left, a smooth straight galvanized metal duct with a full airflow arrow: a 6-inch duct carries the full 100 CFM, the baseline size straight off the table. On the right, flexible duct: pulled taut it still needs to be sized up one size because its corrugated wall roughly doubles the friction, and a sagging or compressed flex run is shown choked with a thin airflow arrow, cutting airflow in half.
