A furnace’s input rating is not its heat output

Furnaces are sold by INPUT, but only the output heats your home: output = input × AFUE. A 100,000 BTU/h, 95% AFUE furnace delivers 95,000 BTU/h. Size by output.

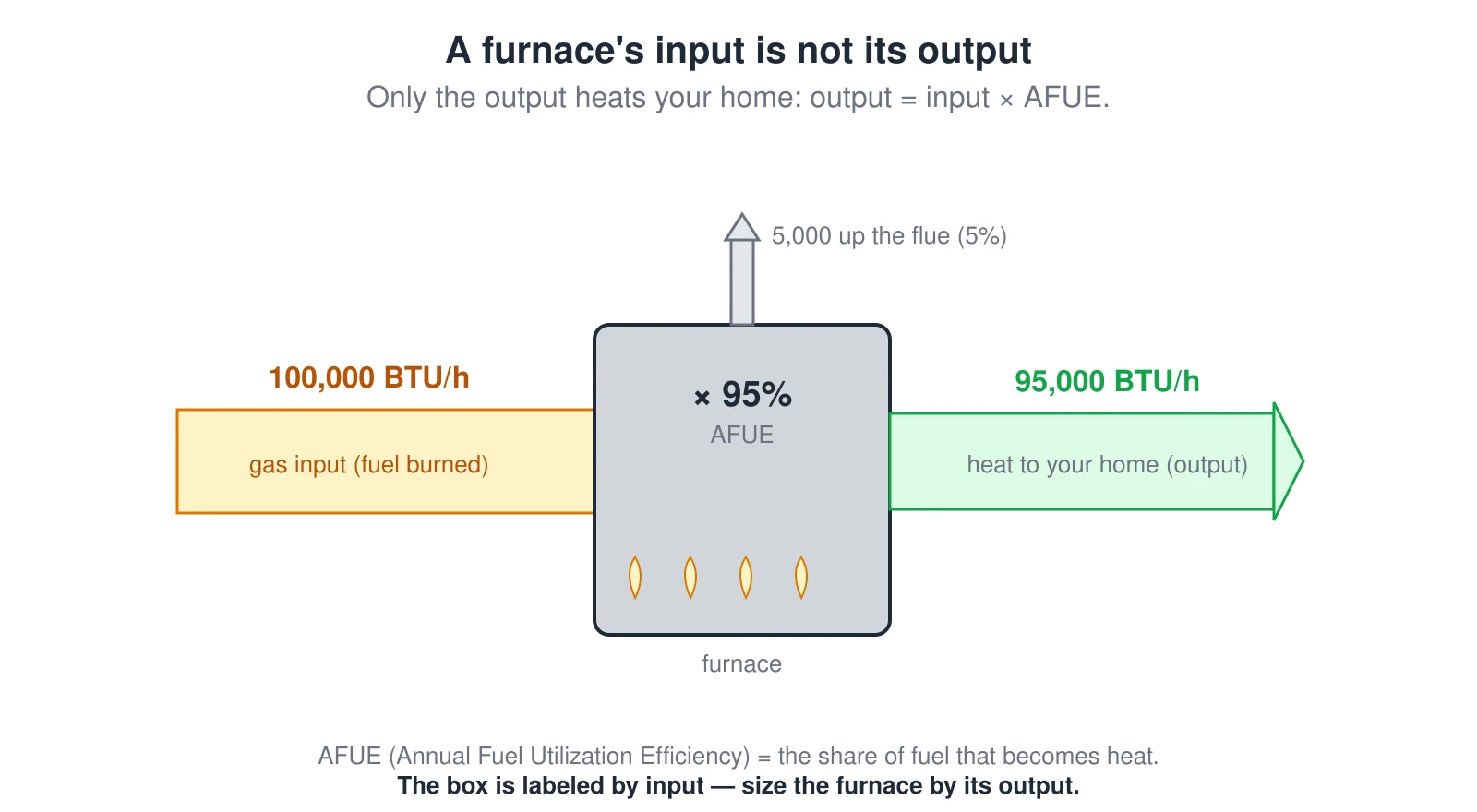

A flow diagram of a gas furnace. A 100,000 BTU/h input of fuel enters from the left; the furnace box is labeled 95% AFUE; 95,000 BTU/h of useful heat leaves to the right as the output, and 5,000 BTU/h goes up the flue. Output equals input times AFUE, so the input rating on the box is not the heat delivered — a furnace must be sized by its output. — Source: AHRI / DOE AFUE

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A flow diagram of a gas furnace. A 100,000 BTU/h input of fuel enters from the left; the furnace box is labeled 95% AFUE; 95,000 BTU/h of useful heat leaves to the right as the output, and 5,000 BTU/h goes up the flue. Output equals input times AFUE, so the input rating on the box is not the heat delivered — a furnace must be sized by its output.
