Cooling load is sensible plus latent, and the mix flips by climate

Cooling = sensible (temperature) + latent (moisture). Dry climates are almost all sensible; humid climates carry a big latent load, so oversizing leaves a house clammy.

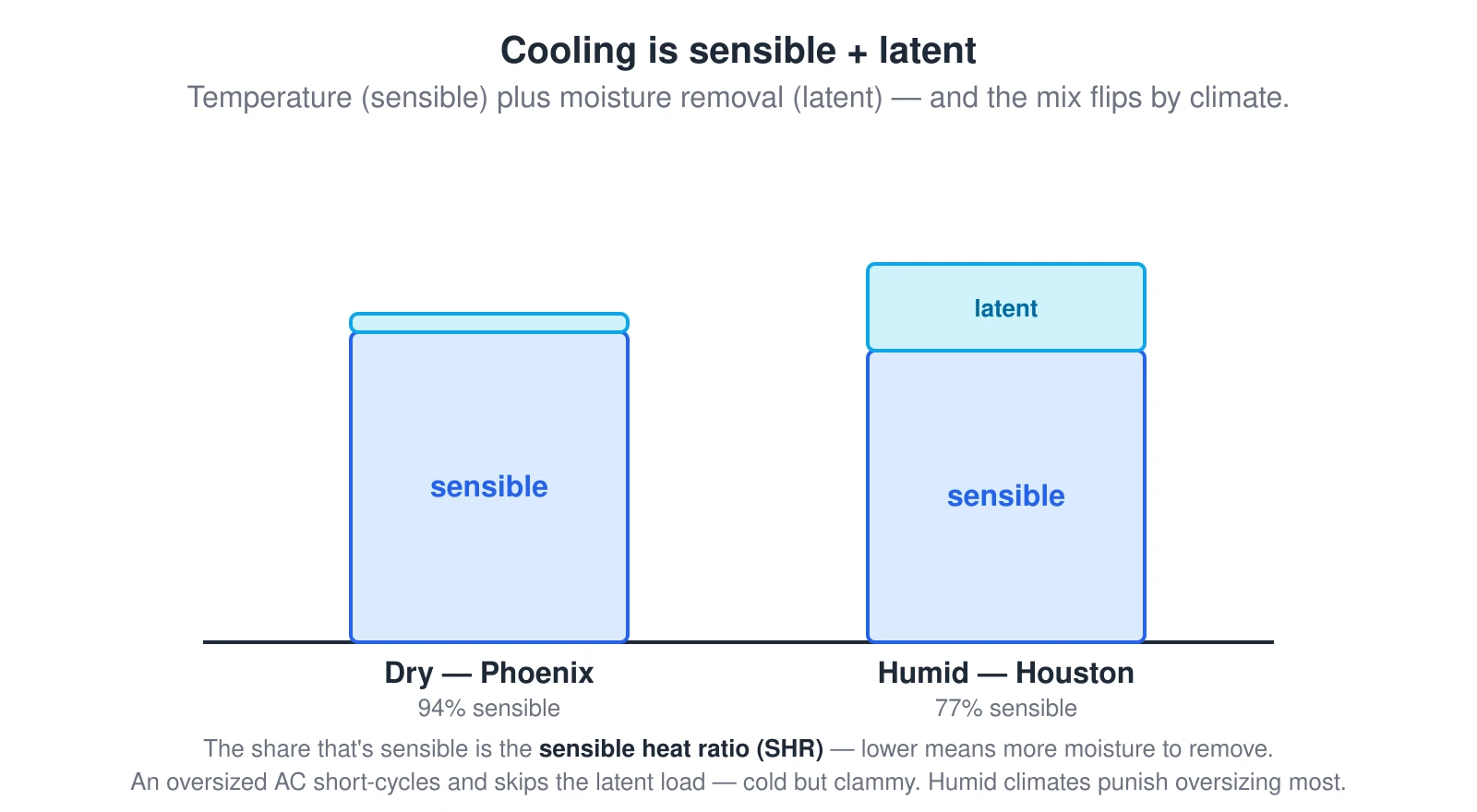

Two stacked bars splitting the cooling load into sensible (lowering temperature) and latent (removing moisture). The dry Phoenix bar is almost all sensible with a tiny latent cap and a sensible heat ratio near 0.94; the humid Houston bar carries a large latent portion on top of its sensible part with a ratio near 0.77. An oversized air conditioner short-cycles and never removes the latent load. — Source: ACCA Manual J / Manual S

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two stacked bars splitting the cooling load into sensible (lowering temperature) and latent (removing moisture). The dry Phoenix bar is almost all sensible with a tiny latent cap and a sensible heat ratio near 0.94; the humid Houston bar carries a large latent portion on top of its sensible part with a ratio near 0.77. An oversized air conditioner short-cycles and never removes the latent load.
