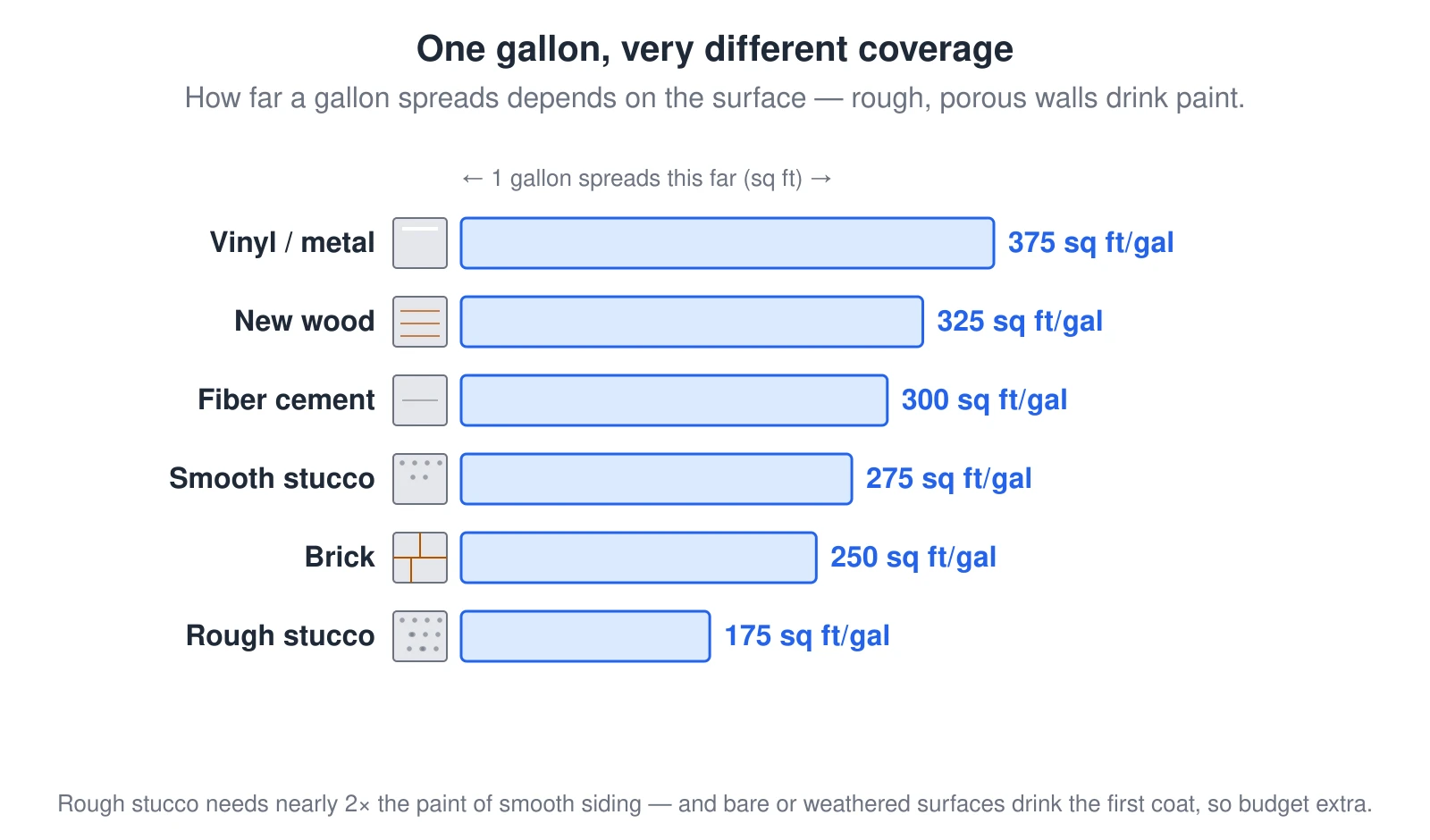

How paint coverage changes by surface — one gallon covers ~375 sq ft on smooth siding but only ~175 on rough stucco

One gallon spreads ~375 sq ft on smooth siding but only ~175 on rough stucco — nearly 2× difference. The surface’s texture and porosity, not the gallon math, is what throws off most paint estimates.

A comparison of how far one gallon of exterior paint spreads on different surfaces, shown as bars scaled to the coverage. Smooth, non-porous vinyl or metal siding reaches about 375 square feet per gallon; new wood about 325; fiber cement about 300; smooth stucco about 275; brick about 250; and rough stucco only about 175 square feet per gallon. Rough, porous surfaces drink paint, so coverage varies nearly two to one — and bare or weathered surfaces soak up even more on the first coat. The surface, not the gallon math, is the number-one reason paint estimates come up short. — Source: Coverage rates per the calculator’s surface data (industry spread rates 175–375 sq ft/gal)

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A comparison of how far one gallon of exterior paint spreads on different surfaces, shown as bars scaled to the coverage. Smooth, non-porous vinyl or metal siding reaches about 375 square feet per gallon; new wood about 325; fiber cement about 300; smooth stucco about 275; brick about 250; and rough stucco only about 175 square feet per gallon. Rough, porous surfaces drink paint, so coverage varies nearly two to one — and bare or weathered surfaces soak up even more on the first coat. The surface, not the gallon math, is the number-one reason paint estimates come up short.
