Why primer and why two coats — the exterior paint film from the substrate up

Skip primer on bare wood and the topcoat wicks into the pores — blotchy, paint-hungry, and stains bleed through. Primer seals the pores, blocks stains, and bonds to slick surfaces; then two thin coats hide far better than one thick one.

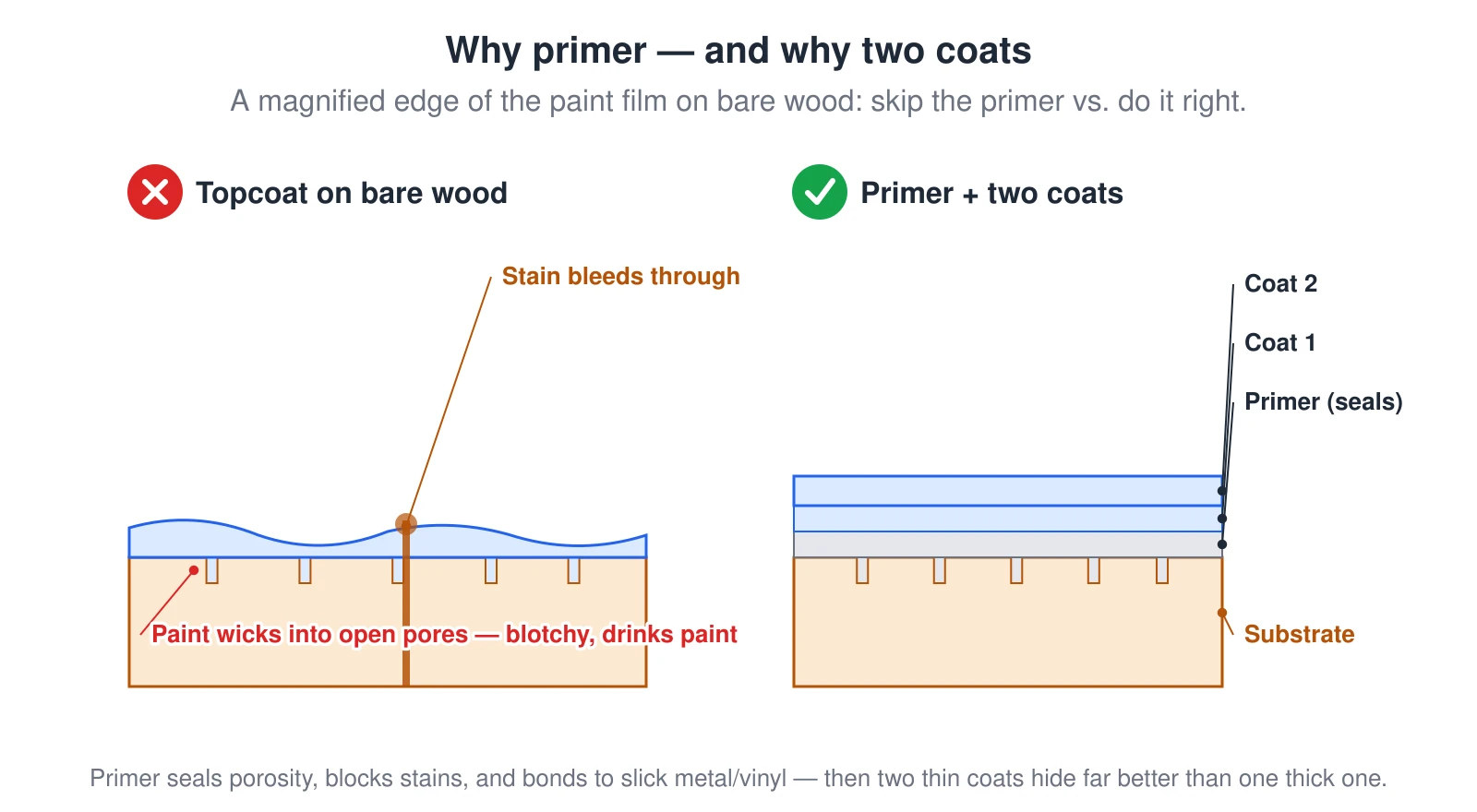

Two magnified cross-sections of an exterior paint film on bare wood. On the left, a topcoat brushed straight onto bare wood wicks down into the open pores, leaving a thin, blotchy film that drinks paint, and tannin stains bleed up through it. On the right, the correct build-up: a primer coat first seals the pores, blocks stains, and bonds to slick metal or vinyl, and then two thin color coats hide evenly. Two thin coats cover far better than one thick coat, and bare or porous surfaces always need the primer. — Source: Manufacturer coating-system practice (primer + 2 finish coats)

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two magnified cross-sections of an exterior paint film on bare wood. On the left, a topcoat brushed straight onto bare wood wicks down into the open pores, leaving a thin, blotchy film that drinks paint, and tannin stains bleed up through it. On the right, the correct build-up: a primer coat first seals the pores, blocks stains, and bonds to slick metal or vinyl, and then two thin color coats hide evenly. Two thin coats cover far better than one thick coat, and bare or porous surfaces always need the primer.

Use this diagram — free

You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.

Embed code (HTML)

<figure style="margin:0;max-width:800px">
  <a href="https://remodelcalculators.com/construction-diagrams/paint-primer-and-coats" target="_blank" rel="noopener">
    <img src="https://remodelcalculators.com/api/figure-embed/paint-primer-and-coats" alt="Two magnified cross-sections of an exterior paint film on bare wood. On the left, a topcoat brushed straight onto bare wood wicks down into the open pores, leaving a thin, blotchy film that drinks paint, and tannin stains bleed up through it. On the right, the correct build-up: a primer coat first seals the pores, blocks stains, and bonds to slick metal or vinyl, and then two thin color coats hide evenly. Two thin coats cover far better than one thick coat, and bare or porous surfaces always need the primer." width="800" height="440" style="width:100%;height:auto;border:0" loading="lazy">
  </a>
  <figcaption style="font:14px/1.4 -apple-system,sans-serif;margin-top:6px;color:#555">
    Diagram: <a href="https://remodelcalculators.com/construction-diagrams/paint-primer-and-coats" target="_blank" rel="noopener">Why primer and why two coats — the exterior paint film from the substrate up</a> — courtesy of <a href="https://remodelcalculators.com" target="_blank" rel="noopener">RemodelCalculators.com</a>
  </figcaption>
</figure>

Please keep the credit link intact and don't alter the diagram itself. Redistribution as part of a competing diagram library or template pack isn't permitted. Questions? Reach us via the site.
