Attic floor gate — ceiling joists carry 10 psf, a room needs 30–40 psf (IRC Table R301.5)
The floor is the gate most attic conversions fail. Ceiling joists (often 2×6) were sized for a 10 psf attic — enough to hold drywall and boxes, not people. A habitable room needs 30 psf (sleeping) to 40 psf (other rooms), so the joists almost always must be sistered with a deeper member or doubled up, and deepened to keep deflection within L/360, before any finishes go on.

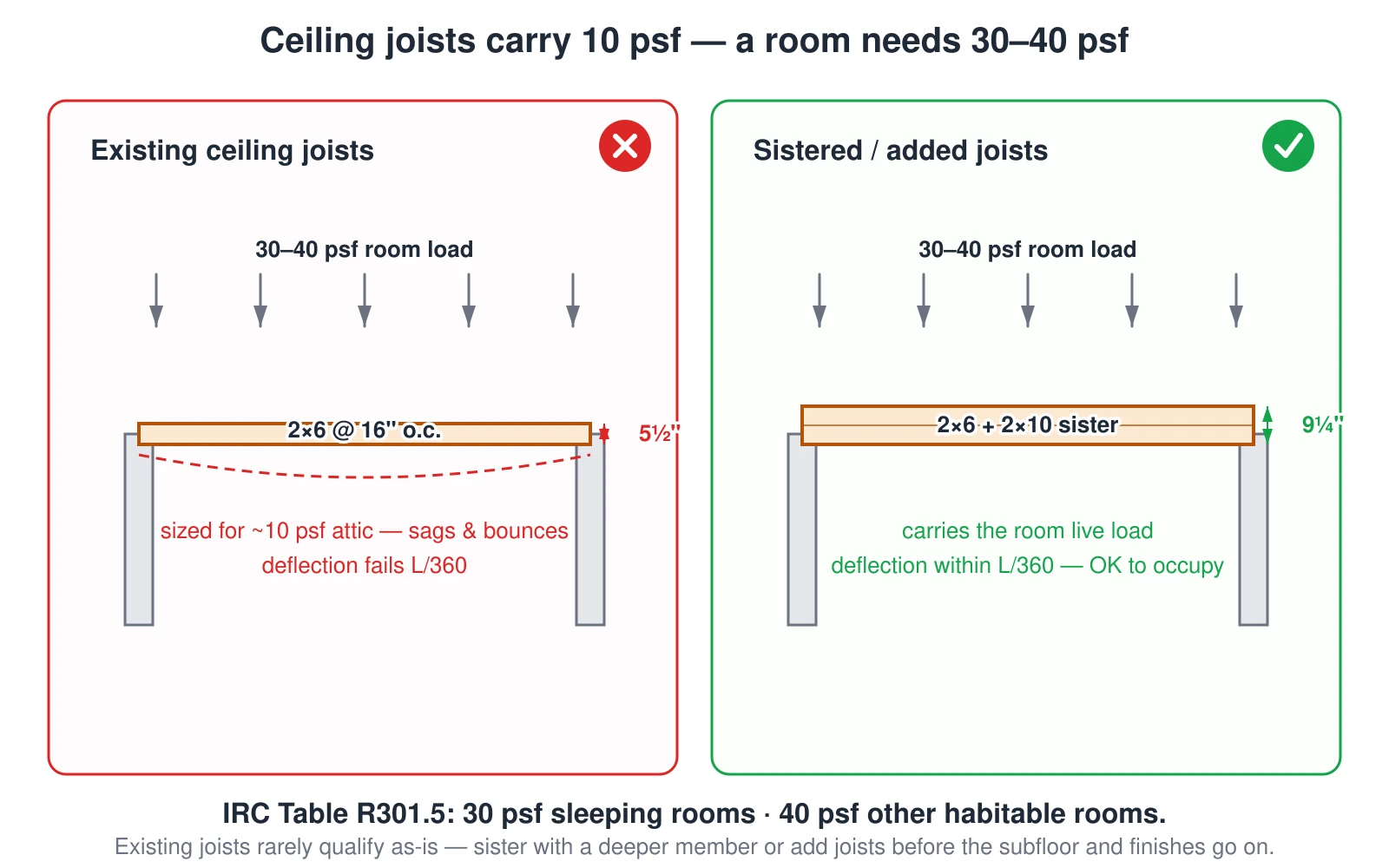

What this diagram shows
A wrong-versus-right comparison of the attic floor structure, which is the gate most attic conversions fail. On the left, the existing ceiling joists are 2-by-6s spanning the attic. They were sized only to hold up the ceiling drywall below and light storage — an attic live load of about 10 pounds per square foot — and a person standing between them makes them bounce and sag. On the right, the same bay is reinforced: each 2-by-6 is sistered with a deeper 2-by-10, or new joists are added between them, so the floor now carries the 30 pounds per square foot required for a sleeping room, or 40 for other habitable rooms. The label explains that a habitable floor must meet the live load in the code table, not the attic-storage number, so before drywall goes up the joists almost always have to be sistered or doubled and the depth increased to control deflection to L over 360.
