Garage to living space — three code jumps: insulate (IECC), egress window (IRC R310), add HVAC
A garage becomes living space by clearing three code jumps, each adding materials: (1) insulate walls + ceiling to the IECC minimum for the zone; (2) add an egress window per bedroom — IRC R310 wants ≥5.7 sf clear, ≥24″ high, ≥20″ wide, sill ≤44″ up; (3) add the new load to HVAC (Manual J) or a mini-split, since the garage was never conditioned. This is why a conversion is more than drywall and flooring.

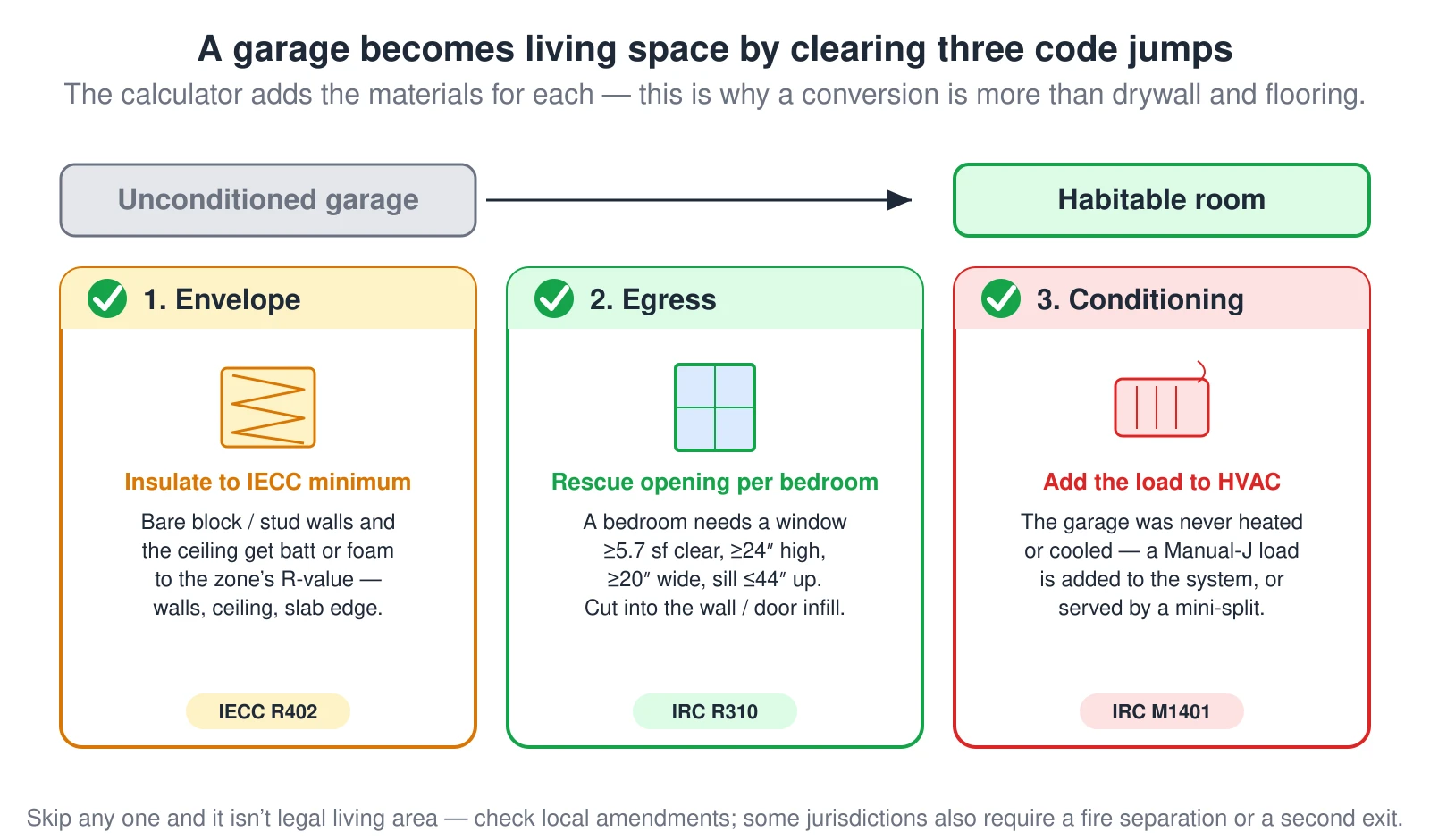

What this diagram shows
A diagram of the three code requirements that turn an unconditioned garage into legal habitable living space, each of which adds materials the composer accounts for. First, the envelope: the bare walls and ceiling must be insulated up to the IECC minimum R-value for the climate zone, covering walls, ceiling, and the slab edge, per IECC R402. Second, egress: a bedroom needs a rescue opening per IRC R310 — a window with at least 5.7 square feet of clear opening, at least 24 inches high, at least 20 inches wide, and a sill no more than 44 inches above the floor, cut into the wall or the garage-door infill. Third, conditioning: because the garage was never heated or cooled, the new load must be added to the HVAC system through a Manual-J calculation or served by a mini-split, per IRC M1401. Skip any one and the space is not legal living area.
