Inside trim corners — cope the joint instead of mitering it

Join inside corners with a coped joint, not a miter: the first piece butts into the corner and the second is back-cut to its profile. A mitered inside corner opens up because no drywall corner is truly square.

Source: Finish-carpentry practice (AWI 0620); per the calculator’s installation notes

Use this diagram free on your site — grab the embed codeGet the code

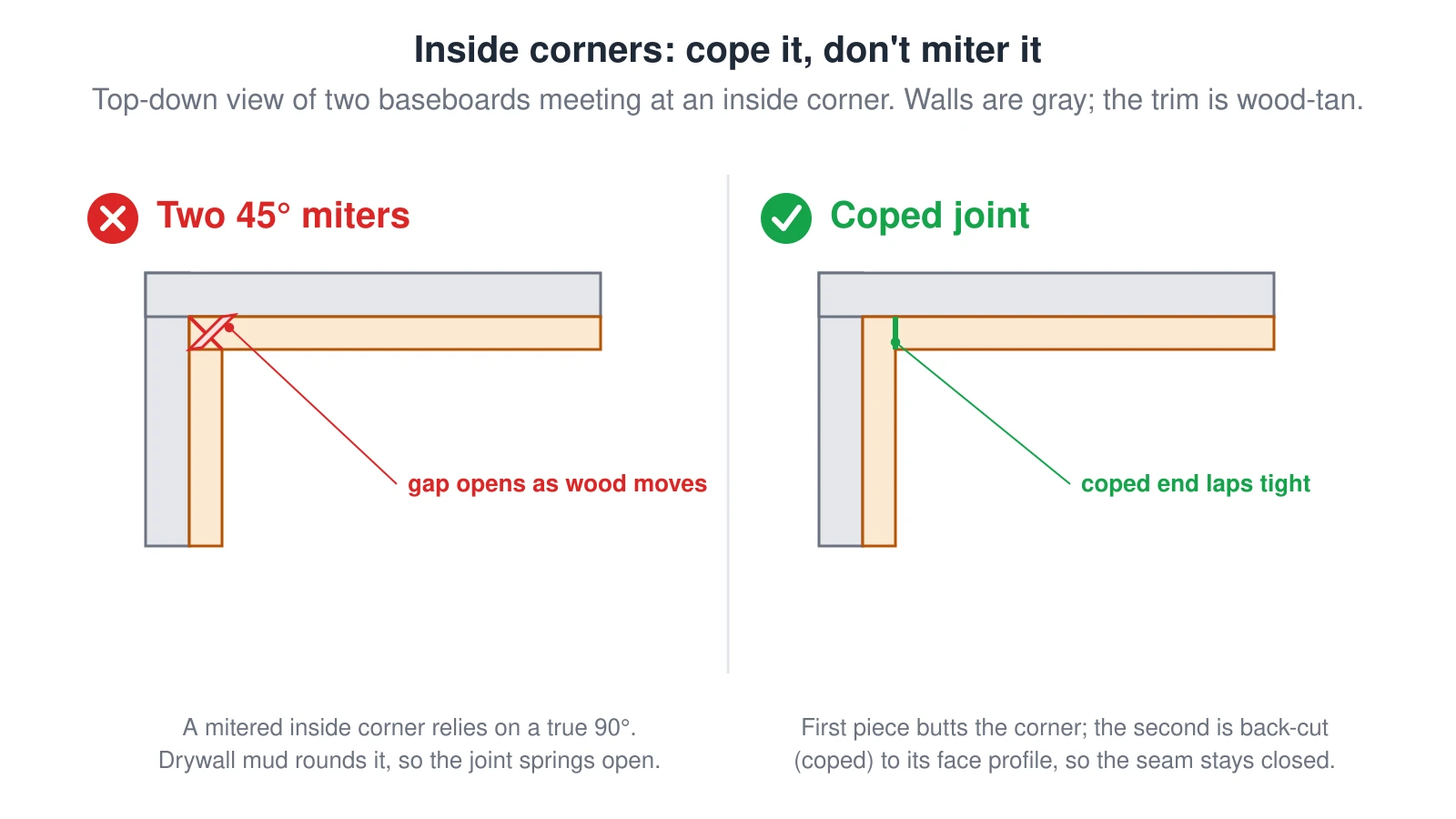

What this diagram shows

A top-down comparison of two baseboards meeting at an inside corner. On the wrong side the two pieces are each cut at 45 degrees and mitered together; because the joint depends on a true 90-degree corner, it springs open into a visible gap as the wood shrinks or because drywall mud rounds the corner. On the right side the joint is coped: the first piece runs square into the corner and butts the wall, and the second piece has its end back-cut to the moulding’s own face profile so it laps tightly over the first and the seam stays closed.

Use this diagram — free

You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
