Countertop overhang support — the seated cantilever limit and when a bracket is required

A seated overhang has a hard unsupported limit: ~6″ at 2 cm, ~10″ at 3 cm (NSI). Go past it and the stone cracks at the cabinet line — a deeper seating overhang needs a corbel or hidden steel bracket. A standard front overhang is only ~1¼″, so it never needs support.

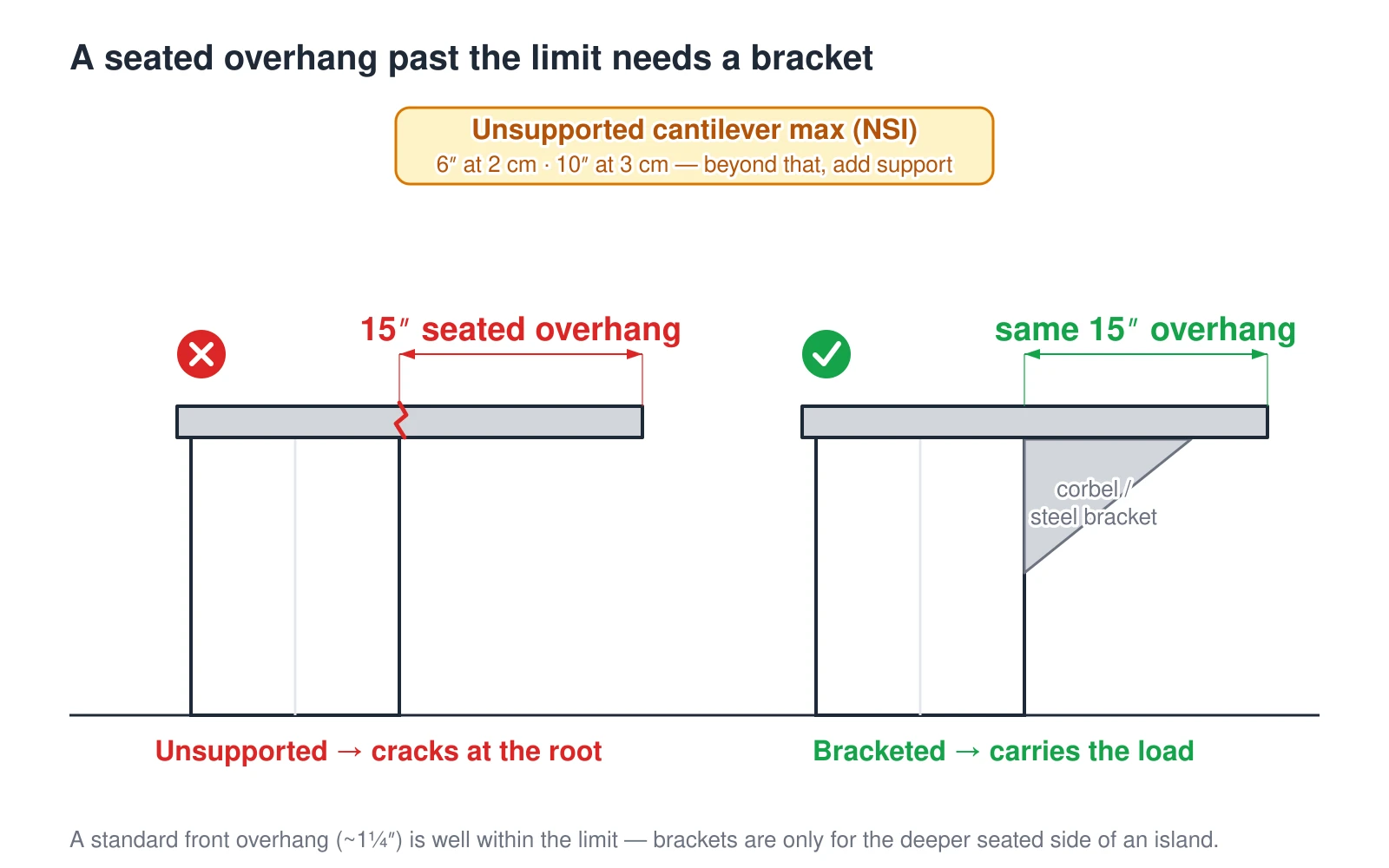

A side cross-section through a kitchen island comparing two seated overhangs. On the left, a 15-inch seated overhang with nothing supporting it cracks at the root where the slab passes the cabinet, because unsupported stone can only cantilever about 6 inches at 2 centimeters thickness or 10 inches at 3 centimeters per Natural Stone Institute guidance. On the right, the same 15-inch overhang is carried by a corbel or a hidden steel bracket and is safe. A standard non-seating front overhang is only about 1.25 inches, well within the limit. — Source: seatingOverhang cantilever check (6″/10″ by thickness) from the countertop calculator; NSI

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A side cross-section through a kitchen island comparing two seated overhangs. On the left, a 15-inch seated overhang with nothing supporting it cracks at the root where the slab passes the cabinet, because unsupported stone can only cantilever about 6 inches at 2 centimeters thickness or 10 inches at 3 centimeters per Natural Stone Institute guidance. On the right, the same 15-inch overhang is carried by a corbel or a hidden steel bracket and is safe. A standard non-seating front overhang is only about 1.25 inches, well within the limit.
