Bathroom sink rough-in heights and double-vanity centerline spacing

Rough-in: the drain stubs 18–20″ above the finished floor, the supplies 20–22″. An 8″ widespread faucet drills 3 holes (one 4″ each side of center); centerset is 3 holes 4″ apart; single-hole is 1. Two sinks need centerlines ≥30″ apart (IRC P2705.1.5; NKBA 36″), so a double vanity runs 60″ or wider.

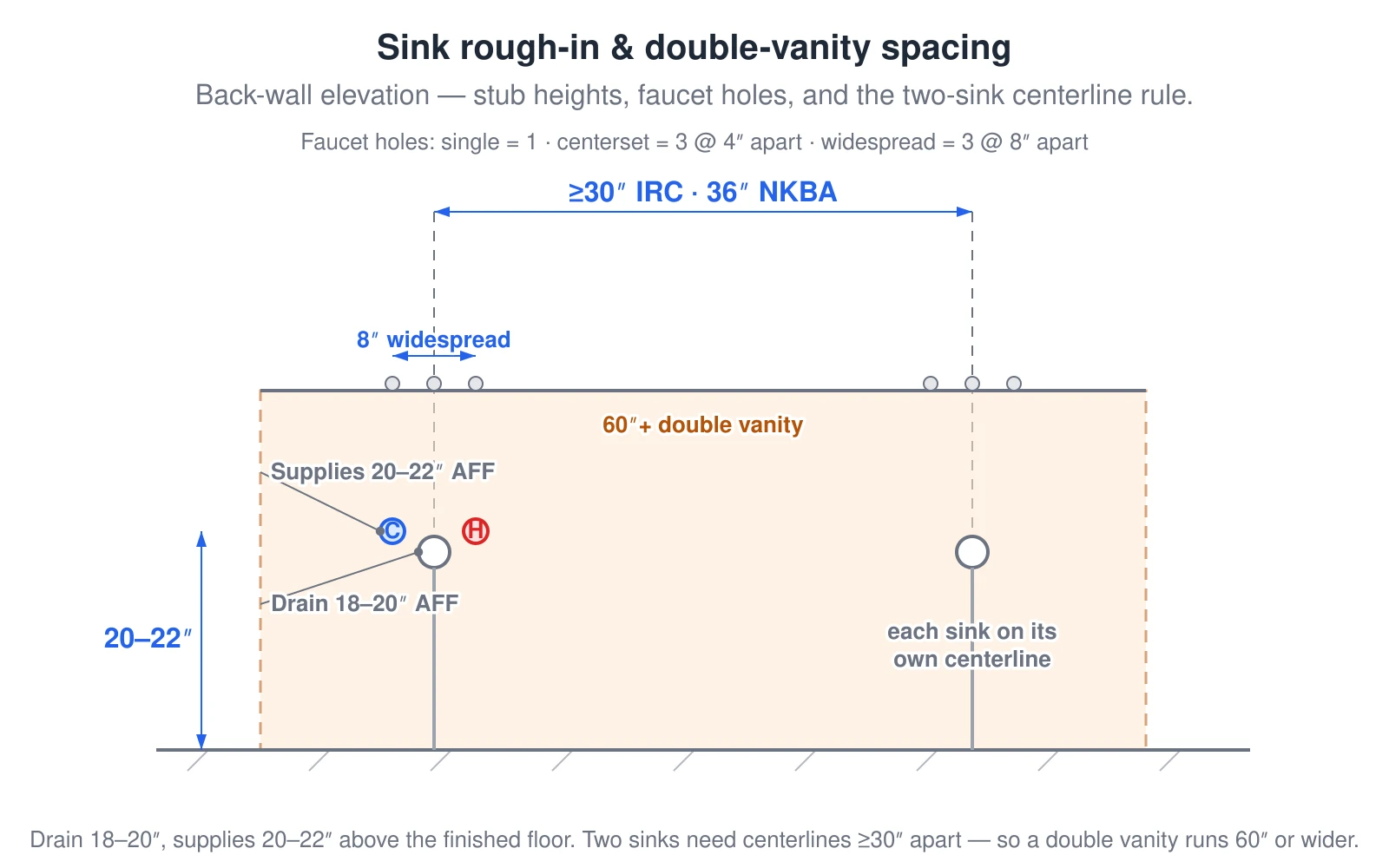

A back-wall elevation of a double vanity showing where the plumbing rough-in lands. Each sink drain stubs out 18 to 20 inches above the finished floor and the hot and cold supplies stub out 20 to 22 inches above the floor. An 8-inch widespread faucet drills three holes, one at the sink centerline and one 4 inches to each side; a centerset faucet drills three holes 4 inches apart and a single-hole faucet drills one. For two sinks the centerlines must be at least 30 inches apart per IRC P2705.1.5, with NKBA recommending 36 inches, which is why a double vanity has to be at least 60 inches wide. The hot supply is drawn on the right and the cold on the left of the left sink. — Source: IRC P2705.1.5 (fixture spacing); standard lavatory rough-in heights

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A back-wall elevation of a double vanity showing where the plumbing rough-in lands. Each sink drain stubs out 18 to 20 inches above the finished floor and the hot and cold supplies stub out 20 to 22 inches above the floor. An 8-inch widespread faucet drills three holes, one at the sink centerline and one 4 inches to each side; a centerset faucet drills three holes 4 inches apart and a single-hole faucet drills one. For two sinks the centerlines must be at least 30 inches apart per IRC P2705.1.5, with NKBA recommending 36 inches, which is why a double vanity has to be at least 60 inches wide. The hot supply is drawn on the right and the cold on the left of the left sink.

Use this diagram — free

You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
