Grout fills the joint full-depth — the joint is a channel of width × depth × length

Grout fills the joint full-depth (ANSI A108.10), not just the surface — so the grout in a joint is a channel: width × depth × length. Depth equals tile thickness, which is why a thick floor tile uses far more grout than a thin mosaic at the same joint width.

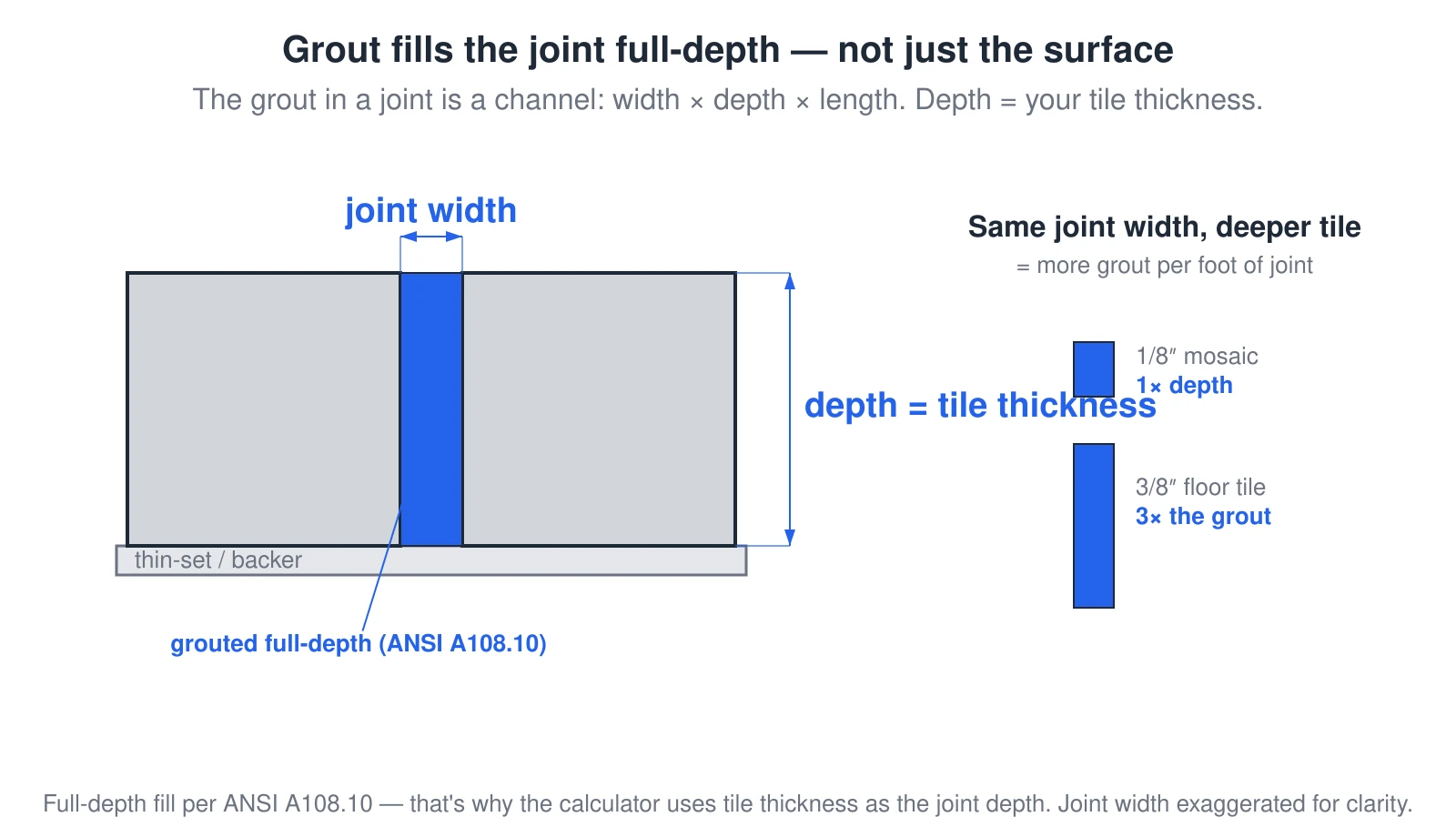

A cross-section of two tiles set on a thin-set bed with grout filling the joint between them all the way to the bottom. Grout is not a surface bead: it fills the joint the full depth of the tile per ANSI A108.10, so the grout in any joint is a channel whose volume is joint width times joint depth times length. The joint depth equals the tile thickness, which is why the calculator asks for it. A side comparison shows that at the same joint width a 3/8-inch-thick floor tile holds three times the grout of a 1/8-inch-thick mosaic, because the deeper joint is a deeper channel. — Source: ANSI A108.10 §5.3.4 full-depth joint fill

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A cross-section of two tiles set on a thin-set bed with grout filling the joint between them all the way to the bottom. Grout is not a surface bead: it fills the joint the full depth of the tile per ANSI A108.10, so the grout in any joint is a channel whose volume is joint width times joint depth times length. The joint depth equals the tile thickness, which is why the calculator asks for it. A side comparison shows that at the same joint width a 3/8-inch-thick floor tile holds three times the grout of a 1/8-inch-thick mosaic, because the deeper joint is a deeper channel.
