Irrigation Zone Calculator
This free irrigation zone calculator starts where most sprinkler calculators stop: your actual water supply. Instead of asking you to already know your GPM, it reads Hunter's own published System Design Capacity chart off your meter size, service line size and material, and static water pressure — or you can time a 5-gallon bucket fill for a quick real-world reading, or enter a well/pump's rated GPM. That supply number is the budget every other result in this calculator is checked against.
From there it sizes the zone the way Rain Bird's own design manual does: precipitation rate uses the 96.3 formula, normalized for each head's arc so a 180° half-circle head and a 360° full-circle head at the same spacing land on the same scale — the same math that produces the matched-precipitation-rate figures printed on manufacturer nozzle charts. That PR turns into an actual watering schedule, split into cycles with soak time between them per Texas A&M AgriLife Extension's cycle-and-soak guidance, so heavier soils and higher precipitation rates don't just run off before they soak in.
Finally, it checks your lateral pipe size against the ~5 ft/s industry velocity guideline Rain Bird cites for irrigation piping — an advisory check most zone calculators skip entirely. Sizing and scheduling only, no pricing. What this tool doesn't do: select or size a backflow preventer, set trenching depth, or design a drip/micro-irrigation zone — all local-code, product-, or plant-specific decisions covered in the notes, not calculated here. Free, no signup.
Irrigation Zone Calculator
How many sprinkler heads can one zone handle, what precipitation rate does it deliver, and how long should it run? Sized off your actual water supply — meter, service line, and pressure — not a guess. Free, no signup.
Water supply
How much water can this zone draw at once? Pick the method you have data for.
Sprinkler heads on this zone
Use ONE head model per zone — never mix rotors and sprays on the same valve.
Watering schedule
Sets the recommended run time and cycle-and-soak split.
Lateral pipe check
Advisory check against the ~5 ft/s industry velocity guideline.

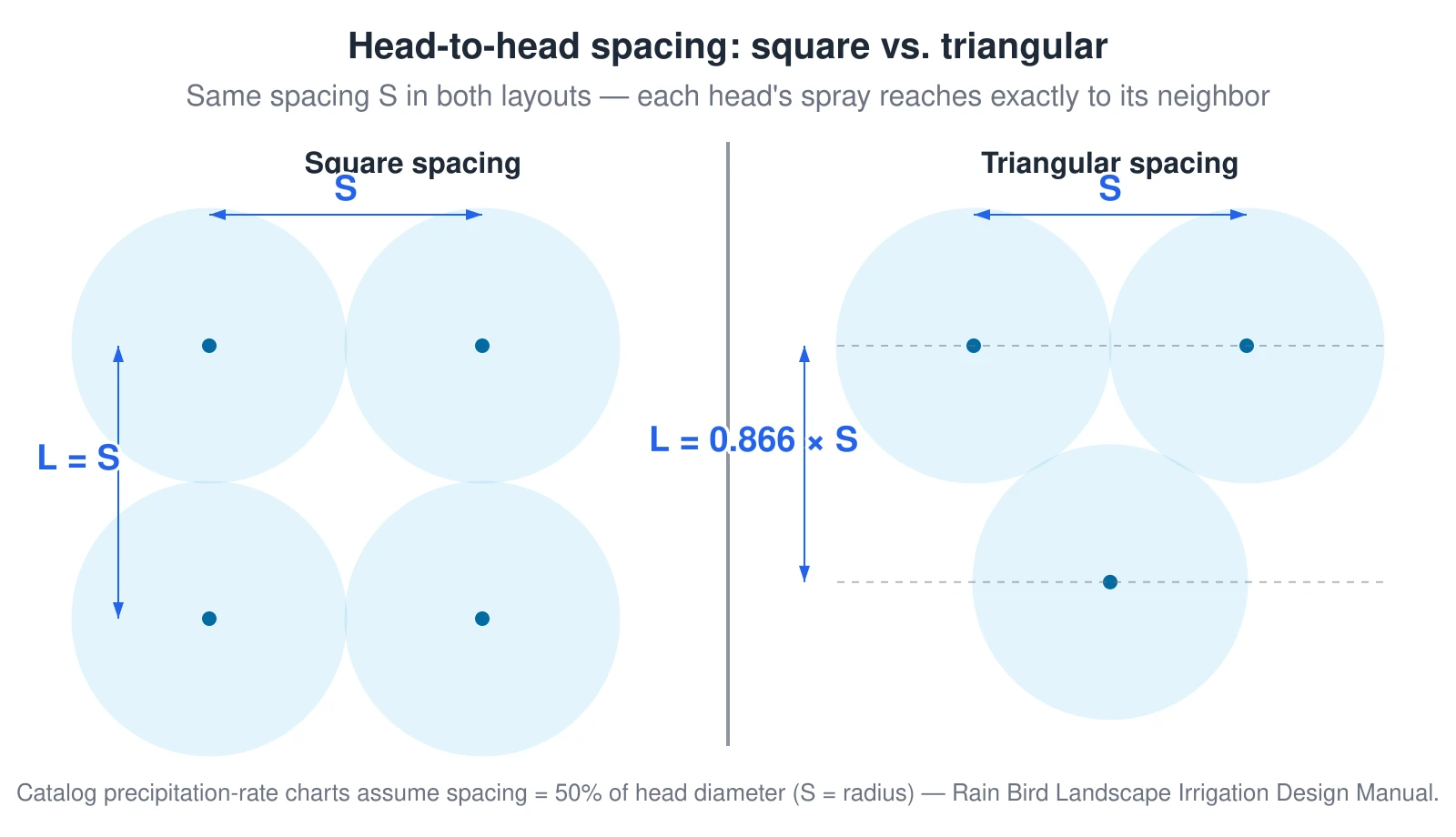

Why triangular spacing uses a shorter row distance
"Spacing" and "layout pattern" set the S × L footprint each head owns for the precipitation-rate math. Head-to-head coverage means each head's spray should just reach its neighbor — so in a triangular layout, the offset row sits closer (L = 0.866 × S) than a square layout (L = S), while every neighboring head stays exactly the same real-world distance apart.
Calculation Formulas
Static PSI is floored to the next-lower tabulated column rather than interpolated (the chart doesn't publish in-between values). Copper and galvanized service lines lose more to friction than the chart's PVC basis, so they get a fixed deduction (−2 / −5 GPM).
Example:
3/4" meter, 3/4" PVC service, 45 PSI static floors to the 40 PSI column: 6 GPM available at 30 PSI working pressure.
A homeowner-doable alternative when the meter/service-line size isn't known. Rain Bird's own worksheet flags results under 7 GPM for a retest, since a slow fill often means another fixture was drawing water during the test.
Example:
A 5-gallon bucket that fills in 30 seconds: 300 ÷ 30 = 10 GPM.
Every head on a zone (valve) opens at the same time, so the zone's total draw is the simple sum — not an average. This is why one head model per zone matters: mixing GPM values makes the sum meaningless for scheduling.
Example:
Six heads at 1.5 GPM each = 9.0 GPM zone draw.
96.3 comes from unit conversion (231 in³/gal ÷ 144 in²/ft² × 60 min = 96.25, rounded). The arc term scales a partial-circle head (e.g. 180° half-circle) up to its full-circle-equivalent flow, because it still "owns" the same S×L footprint as a full-circle head at the same spacing — this is what lets sprays and rotors at different arcs be compared on one PR scale. Triangular spacing uses L = S × 0.866.
Example:
A 180° head at 1.85 GPM on 15×15 ft square spacing: 96.3 × (1.85×2) ÷ 225 = 1.58 in/hr — matching Rain Bird's own catalog PR figure for that nozzle.
Turns the zone's precipitation rate into an actual timer setting for a target weekly watering depth.
Example:
1.0 in/week at 1.28 in/hr, over 2 watering days: (1.0 ÷ 1.28) × 60 = 46.9 min/week → 23.5 min/day.
Heavier soils and higher precipitation rates runoff before the water infiltrates if run in one long block. TAMU AGEN-PU-218 caps the safe single-cycle length by soil type and precipitation rate, and caps any single run at 60 minutes regardless of soil.
Example:
85.7 min/day at 0.35 in/hr on clay soil (18-min max cycle at that PR): 5 cycles of about 17.1 min, 60-min soak between.
An industry guideline (not a plumbing code) against water hammer and excess friction loss in PVC irrigation piping. Advisory — flagged as "exceeds guideline," not "unsafe" or "code violation."
Example:
9.0 GPM through 3/4" Schedule 40 PVC (ID 0.804", max 7.9 GPM at 5 ft/s): velocity = 9.0 ÷ (2.45 × 0.804²) = 5.68 ft/s — exceeds the guideline.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| PR constant | 96.3 (exact 96.25) | Rain Bird Landscape Irrigation Design Manual, p.44 — unit conversion for gallons-per-minute over a square-foot area into inches-per-hour. |
| Triangular spacing factor | L = S × 0.866 | Row spacing for a triangular (offset) head layout, vs. L = S for square spacing. |
| Max lateral velocity | 5 ft/s | Rain Bird LIDM p.6: "the industry has established 5 ft/s… as an acceptable maximum velocity" for irrigation laterals — an industry guideline, not a plumbing code requirement. |
| Bucket-test constant | 300 ÷ seconds | Rain Bird's homeowner FAQ method: GPM from timing a 5-gallon bucket fill. Retest if the result is under 7 GPM. |
| Service-material deduction | −2 GPM copper, −5 GPM galvanized | Hunter's chart is built on 100 ft of thick-wall/Schedule 40 PVC service line; copper and (especially) older galvanized pipe lose more to friction. |
| Universal cycle cap | 60 minutes | TAMU AGEN-PU-218: not recommended to irrigate for more than 1 hour at a time regardless of soil type. |
| Soak time | 30–60 minutes | TAMU: heavy clay soils need at least 60 minutes of soak between cycles; other soils, 30 minutes minimum. |
| Never mix head types on a zone | Hunter design rule | Rotors and fixed sprays (or heads of different arc/GPM without a matched-precipitation nozzle set) should never share a zone — their differing precipitation rates mean some areas flood while others starve. |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
Hunter Residential Sprinkler System Design and Installation Guide(LIT-226-US)
View StandardThe System Design Capacity chart (p.5) this calculator's supply-gate module reads from — max GPM by meter size, service-line size, and static pressure. Built on Rain Bird's three underlying design rules: meter pressure loss ≤10% of static, ≤75% of the meter's rated maximum safe flow, and 5–7.5 ft/s service-line velocity.
Key Requirements:
- •Static pressure floored to the nearest published column (30/40/50/60/70/80 PSI), not interpolated
- •Chart basis: 100 ft of thick-wall/Schedule 40 PVC service line
- •Copper (−2 GPM) and galvanized (−5 GPM) service lines get a fixed deduction from the chart value
Rain Bird Landscape Irrigation Design Manual(LIDM (©2000))
View StandardSource for the precipitation-rate formula (96.3 constant), the triangular-spacing row factor (0.866), and the 5 ft/s lateral velocity guideline this calculator's PR and pipe-check modules are built on.
Key Requirements:
- •PR (in/hr) = 96.3 × GPM ÷ (S × L)
- •Full-circle-equivalent GPM used when a head's arc is less than 360° (arc normalization)
- •5 ft/s cited as the industry-established maximum acceptable lateral velocity
TAMU AgriLife Extension — Cycle and Soak Irrigation(AGEN-PU-218 (11/22))
View StandardPublished maximum minutes per irrigation cycle by soil type and precipitation rate, to avoid runoff before water infiltrates — the basis for this calculator's cycle-and-soak schedule.
Key Requirements:
- •Max cycle minutes decrease as precipitation rate increases and as soil gets heavier (clay < loam < sand)
- •Never irrigate more than 60 minutes in a single cycle, regardless of soil
- •Soak (rest) between cycles: at least 30 minutes generally, at least 60 minutes on clay
Manufacturer nozzle performance charts(Rain Bird MPR Nozzles; Rain Bird 5000 Series Tech Spec D42380; Toro MPR Plus Spray Nozzles)
View StandardPer-nozzle GPM, radius, and published precipitation rate at a stated operating pressure — the catalog head options this calculator offers, verified against the manufacturer's own PR figures.
Key Requirements:
- •Every catalog head figure is a single manufacturer-published data point, not an average across a product family
- •Matched-precipitation-rate (MPR) nozzle families are designed so full/half/quarter-arc heads on the same zone deliver the same PR
Standards Disclaimer: Standards and codes are subject to periodic updates. Always verify current requirements with local building authorities and professional engineers before beginning construction. Links provided are for reference only.
Backflow Prevention
Local code and water-purveyor rules, not a national standard
Hunter's own installation guide tells installers to check with the local permitting agency for which backflow-preventer type is required — the answer depends on your water purveyor and jurisdiction, and can range from a simple atmospheric vacuum breaker to a reduced-pressure zone assembly. This calculator does not size or select a backflow device.
Regional Examples:
Trenching Depth
Hunter's own default only applies where no local code exists
Hunter's guide gives 10–12" main-line and 6–8" lateral-line trenching depths explicitly "if there are no established local codes" — meaning a local code, where one exists, overrides that default. Frost depth, freeze risk, and local ordinances all factor in.
Regional Examples:
Well / Private Supply vs. Municipal Meter
The design-capacity chart assumes a metered municipal supply
Hunter's chart is built around a house's meter and service line. A well or private pump system doesn't have a meter to chart from — this calculator's "well/pump" supply method takes the pump's rated GPM as given rather than modeling pump curve, drawdown, or storage-tank behavior, and flags that the figure should be confirmed with the pump's installer or manufacturer curve.
Regional Examples:
Before You Build
- •Contact your local building department for specific requirements
- •Verify frost line depths, wind zones, and seismic requirements for your area
- •Check if permits are required and schedule required inspections
- •Consult with a local contractor familiar with local codes
Related Calculators
Sod Calculator
Free sod calculator: square feet, slabs, rolls, and pallets for your lawn — with editable, region-aware pallet coverage plus topsoil and starter fertilizer.
Grass Seed Calculator
Free grass seed calculator with extension-cited rates by species for new lawns, overseeding & winter overseed. Get pounds to buy, bags, and starter fertilizer.
Square Footage Calculator
Free square footage calculator: add multiple rooms or odd shapes, subtract doors and windows, and convert to sq ft, sq yards, square meters and squares.
How to Use This Calculator
- Pick a supply method: enter your meter size, service line size/material, and static PSI (most accurate); time a 5-gallon bucket fill; or enter a well/pump's rated GPM.
- Pick one sprinkler head model for this zone — from the catalog, or enter a custom GPM and arc. Never mix rotors and sprays on the same zone.
- Enter how many heads are on this zone, the layout pattern (square or triangular), and the head-to-head spacing.
- Set your soil type, target watering depth per week, and how many days a week you water. Check the slope box if the site drops a foot or more over 20 feet.
- Pick your lateral pipe type and size, then click Calculate for the zone GPM (checked against your supply), precipitation rate, a cycle-and-soak run schedule, and the pipe velocity check.
Why the Supply Number Comes First
Every other number this calculator returns is only as good as the water supply it's checked against. Hunter's published design-capacity chart converts your meter size, service line size, and static pressure into a maximum safe GPM — built on Rain Bird's own underlying rules that a meter shouldn't lose more than 10% of static pressure and shouldn't be pushed past 75% of its rated maximum flow, since running a meter too hard eventually knocks it out of calibration. That available-GPM figure caps how many heads a zone can actually run at once: adding heads past that point doesn't give you more coverage, it gives you weak, uneven pressure at every head on the zone. This calculator checks your entered head count and GPM against that real supply number before it ever gets to precipitation rate or scheduling, so an over-capacity zone gets flagged and split rather than silently under-delivering water.
Frequently Asked Questions
How many sprinkler heads can I put on one zone?
It depends on your available water supply and each head's GPM — there's no fixed number. Hunter's published System Design Capacity chart gives max GPM by your meter size, service line size, and static pressure (for example, a 3/4" meter with a 3/4" PVC service line at 40 PSI static delivers about 6 GPM). Divide that available GPM by your chosen head's GPM to get a rough head count, then confirm with this calculator's zone-GPM check. Every head on a zone runs at the same time, so the zone's total draw is the simple sum of every head's GPM — not an average.
How do I find my GPM without a plumber?
Rain Bird's own homeowner method: time how long it takes to fill a 5-gallon bucket from an outdoor spigot, then divide 300 by that number of seconds (GPM = 300 ÷ seconds). A 30-second fill works out to 10 GPM. If the result comes out under 7 GPM, Rain Bird recommends retesting — a slow fill often means another fixture in the house was drawing water during the test. This calculator accepts either a bucket-test result or your meter/service-line details for a more precise figure from Hunter's design chart.
What is precipitation rate and why does it matter?
Precipitation rate (PR, in inches per hour) is how fast a zone actually applies water to the ground — the number that turns a target weekly watering depth into an actual sprinkler run time. It comes from Rain Bird's formula, PR = 96.3 × GPM ÷ (spacing × row spacing), normalized for each head's arc so a 180° half-circle head and a 360° full-circle head at the same spacing land on the same PR scale. Rotors typically run 0.3–0.5 in/hr because their GPM is spread over a much larger area, while fixed spray heads often run 1.0–2.0 in/hr or higher over a tighter footprint.
Can I run rotors and spray heads on the same zone?
No — Hunter's design guidance is explicit that large-area rotors and small-area fixed sprays should never share a zone. They deliver very different precipitation rates for the same run time, so a schedule that's correct for one head type badly over- or under-waters the other, and you'll typically see soggy or dead patches where the two overlap. Give each head type its own zone, even if that means smaller zones.
What is cycle-and-soak and when do I need it?
Cycle-and-soak splits a zone's total daily run time into several shorter cycles with a rest (soak) period between them, instead of one long continuous run. It matters most on clay soil and at higher precipitation rates, where water can't infiltrate as fast as a sprinkler applies it — run too long in one shot and the excess just runs off instead of soaking into the root zone. Texas A&M AgriLife Extension publishes maximum single-cycle minutes by soil type and precipitation rate; this calculator reads that table and recommends both the cycle count and the soak time (at least 30 minutes generally, 60 minutes on clay) for your inputs.
What pipe size do I need for a sprinkler zone?
Whatever size keeps water velocity at or below the roughly 5 ft/s industry guideline Rain Bird cites for irrigation laterals — going faster risks water hammer and excess friction loss, though it isn't a plumbing-code violation. For Schedule 40 PVC, that works out to about 7.9 GPM max for 3/4" pipe, 13.0 GPM for 1", and 22.7 GPM for 1-1/4" (Class 200 pipe, with a slightly larger inside diameter, allows a bit more at each size). This calculator checks your entered pipe size and type against your zone's total GPM and flags it when the guideline is exceeded.
Does this calculator size my backflow preventer or trenching depth?
No — both are set by local code and your water purveyor, not by a universal formula. Hunter's own installation guide tells installers to check with the local permitting agency for which backflow-preventer type is required, and its 10-12" main-line / 6-8" lateral trenching depths are stated as defaults only "if there are no established local codes." This calculator focuses on GPM budget, precipitation rate, run-time scheduling, and lateral pipe velocity — check locally for backflow device selection, trenching depth, and permit requirements before installing or modifying a system.
