Fire Pit Calculator
This free fire pit calculator sizes a masonry fire pit ring the way a mason plans it: from the ring’s inside diameter and finished wall height, not a rule of thumb. Pick a standard concrete block ring — sized from the same NCMA CMU module cinder-block-calculator uses, with the real mortar-joint gap a curve creates shown, not hidden — or a manufacturer fire pit kit, where you enter the blocks-per-course and course height straight off the product’s own spec sheet, since real curved kits are precision-cut and shouldn’t be approximated.
It also handles the two things a generic block calculator would miss: an optional firebrick liner (splits, large splits, or straights, with the refractory mortar quantity scaled to match) to protect the ring from direct flame, and the compacted gravel base underneath, sized at the same ICPI Tech Spec 2 depth paver-base-calculator uses. And because "how far from my house" is the single most important question for a fire pit, every result includes a clearance advisory — the 25-ft model-code baseline (IFC 307.4.2 / NFPA 1 §10.10.4.3), stated plainly as a default to verify locally rather than a rule this site can guarantee for your city.
Sizing only — no pricing, no signup. This is not a fire-code compliance check: always confirm your local setback, permit, and burn-ban rules with your fire marshal before you build or light a fire.
Fire Pit Calculator
Size a masonry fire pit ring — block count, gravel base, optional firebrick liner, and a clearance advisory — for a standard concrete block ring or a manufacturer kit. Free, no signup.
Ring size
Inside diameter is the open fuel area — the space the fire actually sits in.
Ring material
Standard block gives an approximate joint gap (straight block on a curve). A manufacturer kit is precision-cut — enter its own spec-sheet numbers.
Cap stones (optional)
Firebrick liner (optional)
Protects the block ring from direct flame contact and heat spalling.
Base
Compacted gravel base under the whole footprint, same ICPI baseline the Paver Base Calculator uses.
What goes into the ring

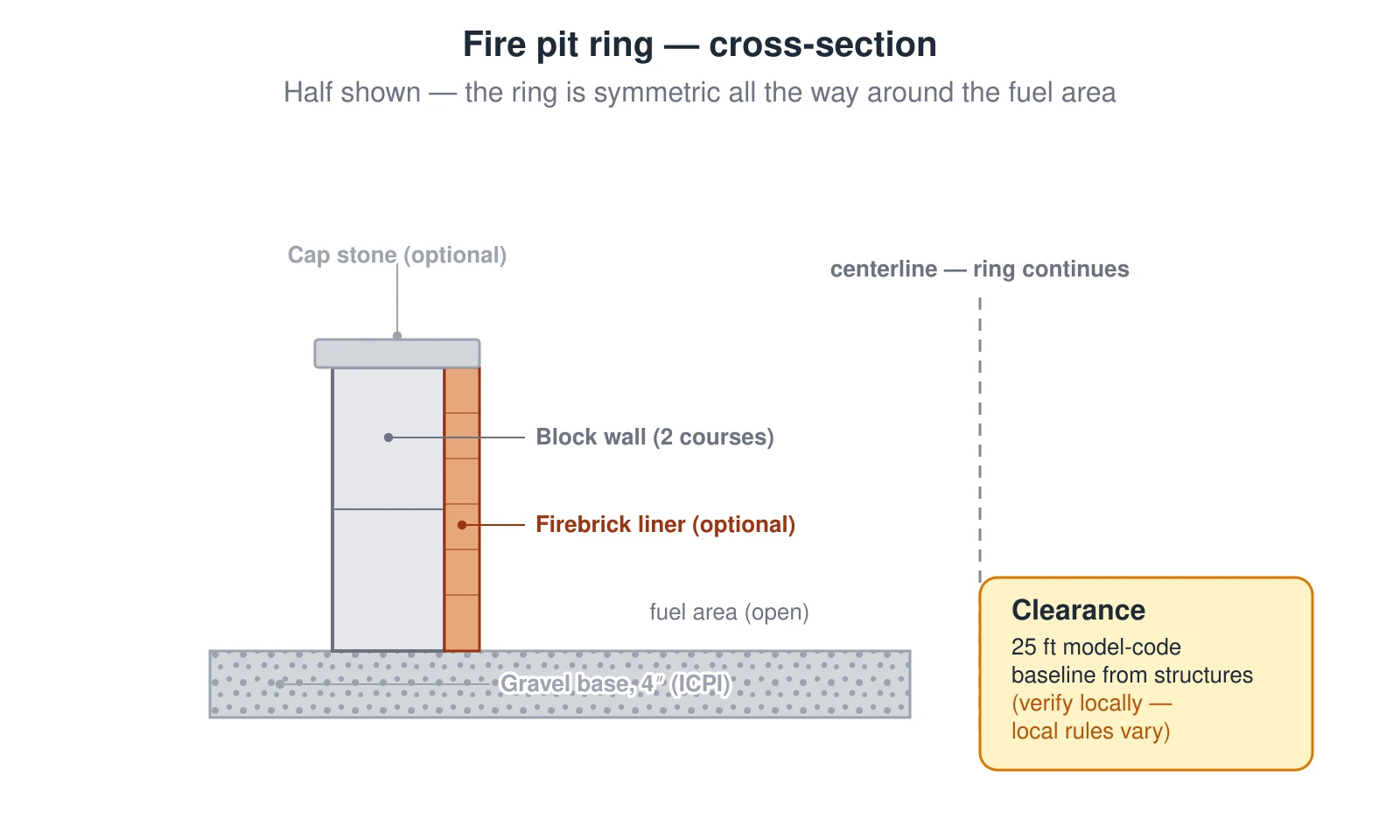

The ring is symmetric, so one cross-section tells the whole story: a gravel base under the whole footprint, the block wall itself, an optional firebrick liner protecting it from direct flame, and an optional cap stone on top.
Why straight block leaves a gap
Standard block is straight, but a fire pit ring is round — so adjacent blocks meet at an angle instead of flush, leaving a wedge-shaped mortar joint. A small ring needs a sharper angle between blocks than a large one, which is exactly what the joint-gap warning above is telling you.
Calculation Formulas
The ring's block count is floored against the block's ACTUAL length (not the nominal module) so the blocks physically fit the circle without overlapping. The mean circumference runs through the wall's centerline (inside diameter + wall thickness).
Example:
44" inside diameter, 8" block (7.625" actual): mean circumference ≈ 162", floor(162 ÷ 15.625) = 10 blocks per course.
Straight-faced block wedges the mortar joint open on a curve — the gap widens as the block count drops (smaller ring, or fewer/wider blocks). This is shown, not hidden, so a builder can judge whether standard block or a manufacturer curved kit is the better call for their diameter.
Example:
44" ring at 10 blocks/course: gap ≈ 0.6", a normal joint. Drop to a 30" ring at 7 blocks/course and the gap opens to ≈ 1.3" — flagged as visibly wide.
The liner sits against the inner wall face, coursed independently of the ring blocks (firebrick face height is much shorter than a CMU course).
Example:
40" inside diameter, 14" liner height, 9×4.5×1.25" splits: 4 courses (14 ÷ 4.5) × 15 splits/course = 60 splits.
Rutland Dry Mix 211's published rate (30 standard 9×4.5×1.25" splits per 10-lb pail) is scaled by actual brick volume so a larger split size (e.g. the 2" or 2.5" options) correctly uses more mortar per unit, not the same per-brick rate.
Example:
60 standard splits → 60 ÷ 30 = 2 pails. 60 of the 2"-thick large splits (1.6× the volume) → ceil(96 ÷ 30) = 4 pails.
Same K_YD3=324 conversion and 1.25 loose-to-compacted order multiplier paver-base-calculator uses, applied to a circular footprint (outer ring diameter + a 6" practical excavation margin) at the ICPI Tech Spec 2 pedestrian-patio base depth (4").
Example:
44" ring, 8" block: outer diameter ≈ 59", footprint diameter ≈ 71" (+6" margin), area ≈ 27.7 sq ft × 4" ÷ 324 × 1.25 ≈ 0.43 yd³.
Unlike the span-table calculators on this site, there is no single national number here — documented local amendments range roughly 10–25 ft, and property-line setbacks exist only in local codes. The calculator states the model-code baseline plainly and tells the user to verify locally, the same honest treatment given to ground snow load.
Example:
A ring whose inside diameter exceeds 36" (3 ft) or wall height exceeds 24" (2 ft) is flagged as possibly falling under stricter open-burning rules (up to 50 ft) instead of the 25-ft recreational-fire baseline.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| CMU module | 16" nominal length, 15⅝" actual | NCMA TEK 04-02A — same module cinderBlock.js already cites. A 3/8" mortar joint restores the module on a straight wall; on a ring the joint varies (see Joint Gap above). |
| CMU course height | 8" nominal | Standard block course height used to convert a finished wall height into a course count. |
| Firebrick split (default) | 9" × 4½" × 1¼" | Most common split size, confirmed against multiple masonry-supply spec sheets (Sandkuhl, Smith Sharpe, Sheffield Pottery, Whitacre Greer). Large split (2") and straight (2½") also offered — don't assume one universal size. |
| Firebrick standard | ASTM C1261 / C27 | ASTM C1261 (firebox brick for residential fireplaces) and ASTM C27 (fireclay refractory brick) — the firebrick manufacturing/testing standards. |
| Refractory mortar rate | 30 splits / 10-lb pail | Rutland Dry Mix 211 (air-setting, ASTM C199 medium-duty, manufacturer-rated for outdoor use — does not require a heat cure before exposure to weather). Other refractory products vary; Heat Stop 50 runs ≈50 lb per 100 firebricks at 2½" thick. |
| Refractory joint | ⅓⅔" typical, ≤½" max | ASTM C1261 Note 1 gives a typical 1/8" joint; product data sheets (Heat Stop) allow up to 1/2". |
| Discontinued mortar spec | ASTM C105 — do not use | Per Heat Stop's own FAQ: ASTM C-105 fire clay is a discontinued specification and should not be specified for new work. |
| Gravel base depth | 4" (ICPI Tech Spec 2, pedestrian) | Same pedestrian-patio baseline paver.js and paver-base-calculator already cite — reused directly, not re-derived. |
| Clearance baseline | 25 ft (recreational fire) | IFC 307.4.2 and NFPA 1 §10.10.4.3 — a MODEL-CODE default. Portable outdoor fireplaces: 15 ft (IFC 307.4.3). Open burning / bonfires: 50 ft (IFC 307.4 / 307.4.1). |
| Recreational-fire size limit | ≤3 ft dia × ≤2 ft high | The fuel-area threshold both IFC and NFPA 1 use to define a "recreational fire" (vs. open burning). Exceeding it can push a build into the stricter 50-ft open-burning bracket in some jurisdictions. |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
IFC 307.4.2 / NFPA 1 §10.10.4.3 — Recreational Fire Clearance(IFC §307.4.2; NFPA 1 §10.10.4.3)
View StandardThe model-code baseline: a recreational fire (fuel area ≤3 ft diameter, ≤2 ft high) may not be conducted within 25 ft of a structure or combustible material. This is a MODEL-CODE default — local amendments are common and documented from roughly 10 ft to 25 ft, and property-line setbacks exist only in local codes, never in the model codes themselves.
Key Requirements:
- •25 ft from structures/combustibles for a recreational fire (IFC/NFPA 1 baseline)
- •15 ft for a portable outdoor fireplace (IFC 307.4.3); exempted at 1-/2-family dwellings in the 2024 text
- •50 ft for open burning / bonfires (IFC 307.4 / 307.4.1; NFPA 1 §10.10.4.1)
- •Property-line setbacks are set locally, not by either model code
- •Fire must be attended with an extinguishing method on hand (IFC §307.5; NFPA 1 §10.10.5)
ASTM C1261 / C27 — Firebrick(ASTM C1261; ASTM C27)
View StandardC1261 covers firebox brick for residential fireplaces (dimensions, modulus of rupture, warpage); C27 covers fireclay/high-alumina refractory brick generally. Firebrick liner splits sold for fire pits are manufactured/tested to these standards.
Key Requirements:
- •Standard split: 9" × 4½" × 1¼" (most common; larger splits and one alternate 8¼"×4"×1¼" size also stocked)
- •Typical mortar joint ≈ 1/8" (C1261 Note 1)
- •ASTM C105 fire clay is discontinued — do not specify
ASTM C199 — Refractory Mortar(ASTM C199)
View StandardMedium-duty refractory mortar specification. Air-setting products rated for outdoor use (e.g. Rutland Dry Mix 211) don't require a heat cure before weather exposure — relevant for a pit that won't be fired immediately after building.
Key Requirements:
- •Medium-duty refractory mortar meeting ASTM C199
- •30 standard splits (9×4.5×1.25") per 10-lb pail (Rutland Dry Mix 211)
- •Confirm outdoor-rating on the specific product — some refractory cements require a heat cure and are less suited to an uncured outdoor installation
NCMA TEK 04-02A — CMU Module(NCMA TEK 04-02A)
View StandardThe concrete masonry module (16"×8" nominal, 15⅝"×7⅝" actual) this calculator's standard-block ring option uses — the same source cinder-block-calculator already cites, reused rather than re-derived.
Key Requirements:
- •16" nominal / 15⅝" actual unit length
- •8" nominal course height
- •3/8" mortar joint restores the module on a straight wall (varies on a ring — see the joint-gap output)
ICPI Tech Spec 2 — Gravel Base Depth(ICPI/CMHA Tech Spec 2)
View StandardThe pedestrian/patio base-depth baseline (4" compacted dense-graded aggregate) this calculator reuses directly from paver.js — the same source paver-calculator and paver-base-calculator cite.
Key Requirements:
- •4" minimum compacted base for a pedestrian/patio application
- •1.25× loose-to-compacted order multiplier
- •Add depth for soft, wet, or poorly draining soil
Standards Disclaimer: Standards and codes are subject to periodic updates. Always verify current requirements with local building authorities and professional engineers before beginning construction. Links provided are for reference only.
Clearance Distance
10 ft to 25 ft, plus property-line rules
IFC and NFPA 1 both set a 25-ft recreational-fire baseline, but documented local amendments vary widely: Cary, NC uses 15 ft from structures (plus a 5-ft property-line rule for stationary pits); Tahoe Douglas, NV uses 15 ft; Manhattan, KS extends the 25-ft rule to property lines too. Some jurisdictions grandfather existing pits (Minnetonka, MN) or exempt gas fire pits from the recreational-fire definition entirely.
Regional Examples:
Fire Pit vs. Portable Outdoor Fireplace vs. Open Burning
Different definitions, different clearances
A small built-in ring (≤3 ft fuel diameter, ≤2 ft high) is typically a "recreational fire" (25 ft). A listed portable unit gets 15 ft (and may be exempt entirely at a 1-/2-family home under the 2024 IFC). Anything larger, or an unconfined pile, can fall under open-burning or bonfire rules — 50 ft.
Regional Examples:
Gas Fire Pits
A different rulebook entirely
Gas fire pits are listed appliances (ANSI Z21.97/CSA 2.41), not "recreational fires" burning solid fuel — some AHJs explicitly exempt them from the 25-ft rule on that basis. Clearance for a gas unit comes from its own listing and installation instructions, not the wood-fire code sections this calculator's advisory is based on.
Regional Examples:
Burn Bans & Air Quality Rules
Can override a compliant, permitted pit
Meeting the setback doesn't guarantee you can legally light a fire on a given day. Red-flag fire-weather days, seasonal burn bans, and state air-quality rules (e.g. Washington's WAC 173-425, layered on top of Seattle's local fire code) can prohibit burning even at a fully compliant, correctly-cleared fire pit.
Regional Examples:
Before You Build
- •Contact your local building department for specific requirements
- •Verify frost line depths, wind zones, and seismic requirements for your area
- •Check if permits are required and schedule required inspections
- •Consult with a local contractor familiar with local codes
Heavy material — watch the weight limit
Concrete, brick, and masonry hit tonnage caps fast. Most dumpsters cap heavy material at 10 tons, and overage fees stack quickly. See the disposal guide before you load.
Read the heavy-debris guide →
Related Calculators
Cinder Block / CMU Calculator
Estimate cinder block (CMU) quantities: blocks, mortar bags, grout, bond-beam & lintel units, and rebar — from ASTM C90 & NCMA TEK. Free, no signup.
Paver Base Calculator
How much gravel base and bedding sand for a paver patio or driveway? Base depth, compaction, and bedding by application — per ICPI Tech Spec 2.
Retaining Wall Calculator
Estimate blocks, caps, base & drainage stone, geogrid, rebar, timber, or gabion baskets for any retaining wall. Per NCMA & IRC. Free, no signup.
Brick Calculator
Calculate brick veneer, multi-wythe walls, thin brick, pavers, and firebrick. Bricks, mortar bags, ties, weep holes, base aggregate. BIA TN 10.
How to Use This Calculator
- Enter the ring’s inside diameter (the open fuel area) and finished wall height, in inches.
- Choose standard concrete block (pick a block width) or a manufacturer kit (enter its blocks-per-course, course height, and block thickness from the spec sheet).
- Optionally include cap stones around the top, and a firebrick liner (pick a split size).
- Add extra base depth if your soil is soft or poorly draining.
- Click Calculate for the block count, gravel base, optional liner and cap materials, and the clearance advisory.
- Before you build, verify your local fire code’s setback and permit requirements — the calculator’s clearance figure is a model-code default, not a local guarantee.
Why Fire Pit Clearance Doesn’t Have One Answer
Most of the calculators on this site cite one authoritative number from one code table. Fire pit clearance is different: the International Fire Code and NFPA 1 both set a 25-ft baseline for a "recreational fire" (fuel area 3 ft or less in diameter, 2 ft or less high) from any structure or combustible material — but that is a model-code default, and cities and counties amend it constantly. Documented local rules run from about 10 ft up to the full 25 ft, and separate property-line setbacks exist only in local ordinances, never in the model codes themselves. A larger ring can also cross into stricter territory: exceed the recreational-fire size definition and some jurisdictions apply open-burning rules instead, with clearances up to 50 ft. The honest answer is the same one this site gives for ground snow load: the real number is set locally, so verify with your fire marshal before you dig.
Frequently Asked Questions
How many blocks do I need for a fire pit?
It depends on the ring's diameter, wall height, and block width. For a common 44-inch inside diameter with 8-inch-wide standard concrete block (7⅝" actual length per NCMA TEK 04-02A), you'd need about 10 blocks per course; at a 14-inch finished height (two 8-inch courses), that's roughly 20 blocks total. A manufacturer fire pit kit will give you a different, product-specific count straight off its spec sheet — enter that directly rather than estimating from generic block dimensions.
How far does a fire pit need to be from my house?
The model-code baseline is 25 feet from any structure or combustible material for a "recreational fire" (fuel area 3 ft or less in diameter, 2 ft or less high) — per IFC 307.4.2 and NFPA 1 §10.10.4.3. But this is NOT a universal number: documented local amendments range from about 10 feet to the full 25 feet, and property-line setbacks exist only in local ordinances, never in the model codes. Always check your city or county fire code and any HOA rules before you dig — the same way you'd verify ground snow load rather than trust one nationwide figure.
Can I use regular concrete block for a fire pit ring?
Yes, and it's a common budget DIY approach — but straight-faced block on a circle leaves a wedge-shaped mortar joint that widens as the ring gets smaller. This calculator shows that gap: for a typical 40–48-inch ring it usually comes out under an inch and looks like a normal joint, but on a tight ring (under about 32 inches) the gap can open past an inch and start looking sloppy. A manufacturer fire pit kit uses trapezoidal blocks cut to close a curve with a consistent joint, at the cost of being locked into that product's specific diameter.
Do I need a firebrick liner inside a fire pit?
It's optional but recommended for a wood-burning pit — it protects the structural block ring from direct flame contact and heat spalling. There's no code-mandated liner thickness for an OUTDOOR fire pit (the IRC's 2-inch firebrick rule applies only to indoor masonry fireplaces), so a single course of standard 9×4½×1¼-inch splits, set with refractory mortar rated to ASTM C199, is a reasonable and commonly used approach. Don't use regular masonry mortar for the liner — it isn't rated for direct flame exposure.
What size gravel base does a fire pit need?
This calculator uses the same 4-inch compacted dense-graded aggregate base as the Paver Base Calculator (ICPI Tech Spec 2's pedestrian/patio depth) — appropriate since a fire pit footprint sees foot traffic and weather but no vehicle load. The base footprint extends about 6 inches past the ring's outer edge for a stable excavation. Add extra depth if your soil is soft, wet, or poorly draining.
Is a fire pit the same thing as an outdoor fireplace for code purposes?
No — they're distinct categories with different rules. The IFC and NFPA 1 define a "recreational fire" (most backyard fire pit rings, 25-ft clearance) separately from a "portable outdoor fireplace" (a manufactured unit, 15-ft clearance, sometimes exempt entirely at a one- or two-family home) and from "outdoor fireplaces" generally, which need prior AHJ approval and an approved spark arrester on any opening. A gas fire pit is different again — it's a listed appliance under ANSI Z21.97/CSA 2.41, with clearance set by its own manufacturer instructions, not these wood-fire code sections.
