Beam Span Calculator
This free beam span calculator sizes a floor girder — the beam that picks up floor joists in a basement, crawlspace, or first floor and carries them down to posts, piers, or a foundation wall — the way a plans examiner checks it, not a rule of thumb. IRC R502.5 states plainly that a dimension-lumber girder span cannot exceed the values in Table R602.7(1) or R602.7(2), the same prescriptive tables used to size a door or window header. Tell it your building width, whether the girder also carries roof and ceiling load (an exterior/perimeter condition) or floors only (interior), and it returns the smallest built-up girder from 2-ply 2×4 up to 4-ply 2×12, for a combined No. 2 species column — no species to guess at.
Because a girder is not just a span, it also gives you what a header calculator does not: how many posts or piers you need across the girder’s total run and how far apart to space them, the minimum bearing at each end (1½" on wood or metal, 3" on masonry or concrete per IRC R502.6), and the minimum post size (4×4 wood or 3" Schedule 40 steel pipe per R407.3 — a code floor, not a load rating, which this calculator says plainly rather than pretending to size your post for you). It also applies the same footnote reduction headers use: an unbraced 2×8, 2×10, or 2×12 girder loses 30 percent of its tabulated span.
It covers both IRC tables — R602.7(1) for an exterior/perimeter girder (ground snow 30, 50, and 70 psf, five supported conditions) and R602.7(2) for an interior girder (one or two floors, no snow) — at building widths of 12, 24, and 36 feet. Sizing only — no pricing, no signup. For an opening in a wall instead of a floor beam, use the Header Size Calculator; for the post footing, use the Footing Size Calculator.
Floor Beam / Girder Span Calculator
Size a built-up floor girder — the basement or crawlspace beam that carries joists to posts or piers — plus post/pier spacing, end bearing, and minimum post size, straight from IRC Table R602.7 and R502.6. Free, no signup.
What are you solving for?
Find the smallest girder for the post spacing you want, or the widest post spacing a girder size can carry.
The girder & the load
An interior girder (Table R602.7(2), floors only) or an exterior/perimeter girder that also carries roof + ceiling (Table R602.7(1), any snow load).
Values use the combined No. 2 species column (Douglas fir-larch, hem-fir, Southern pine, spruce-pine-fir), so no species picker is needed — the same table used for door and window headers (IRC R502.5).
Posts & run
Code edition, lateral bracing, and the total run the girder covers (for post count).
Uncheck only if the girder top genuinely has nothing bracing it — the footnote then cuts the span of 2×8/2×10/2×12 girders by 30%.
Bearing & posts
What the girder ends bear on, and the post/column material.
Girder span table — 24-ft building, interior bearing
Maximum girder span (ft-in) by size, per IRC Table R602.7(2) — combined No. 2 species, one floor only. Change the building width or support above to see other columns.
| Girder size | Max span between posts |
|---|---|
| 2-ply 2×4 | 2'-10" |
| 2-ply 2×6 | 4'-4" |
| 2-ply 2×8 | 5'-5" |
| 2-ply 2×10 | 6'-6" |
| 2-ply 2×12 | 7'-7" |
| 3-ply 2×8 | 6'-10" |
| 3-ply 2×10 | 8'-1" |
| 3-ply 2×12 | 9'-6" |
| 4-ply 2×8 | 7'-11" |
| 4-ply 2×10 | 9'-4" |
| 4-ply 2×12 | 11'-0" |
Post/column size is the IRC R407.3 code minimum (4×4 wood or 3" Schedule 40 steel pipe), not a load table — verify the post you use is rated for its tributary load. Verify your locally adopted IRC edition.
How a floor girder actually sits

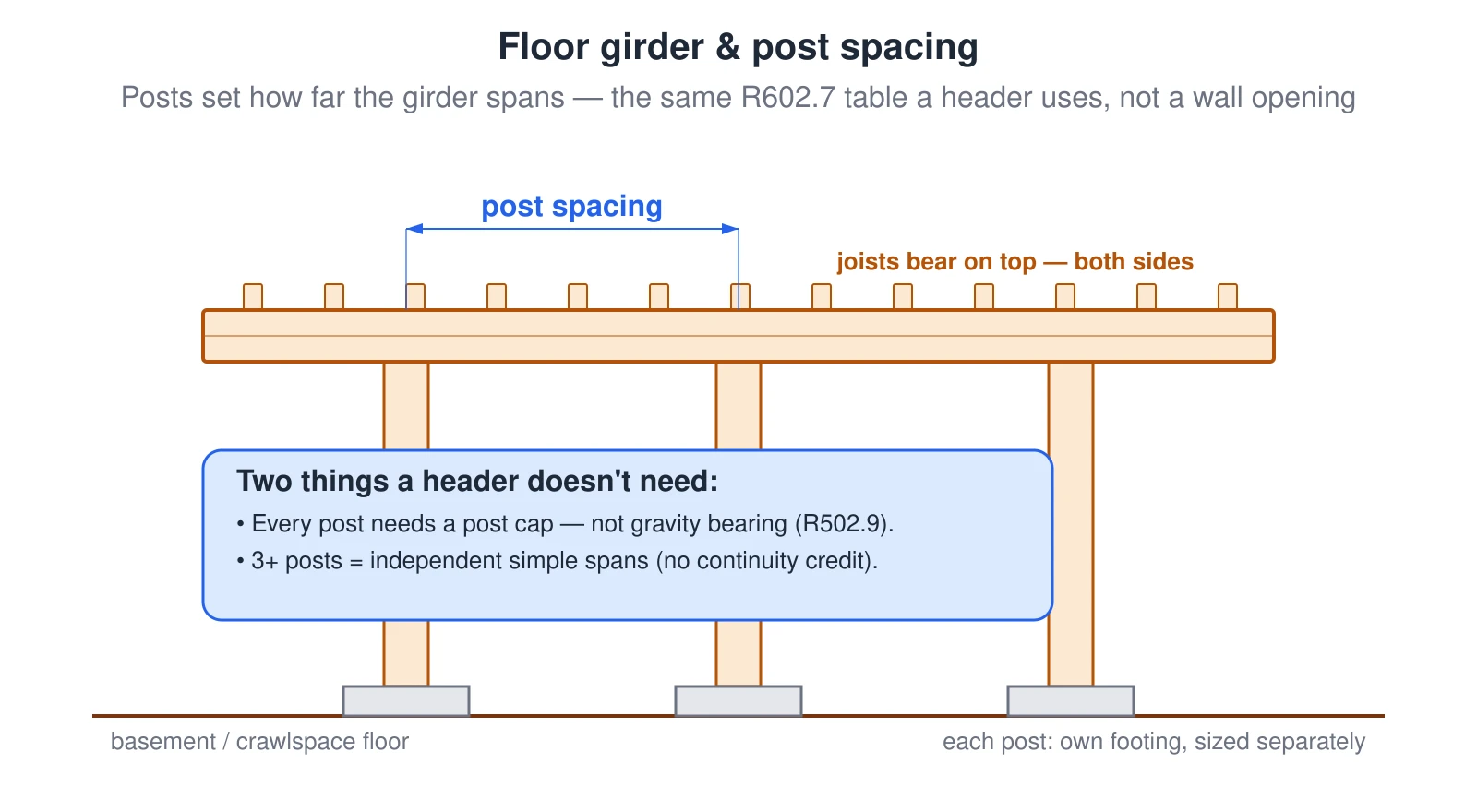

A girder isn't a header in a wall — it runs through open floor framing, picks up joists from both sides, and lands on posts down to their own footings. The span you enter above is measured post to post; the posts and their footings are what actually carry it to the ground.
How much bearing does code actually require?
The minimum contact length between the girder and its support depends on what it's resting on — wood and metal need less than masonry and concrete. Either way, gravity bearing alone isn't enough; every connection needs to resist uplift and lateral movement too.
Calculation Formulas
IRC R502.5 states the allowable span of a floor girder fabricated of dimension lumber cannot exceed the values in Tables R602.7(1), (2) and (3) — the same table used to size a door or window header. The maximum span is read directly from that table, not calculated.
Example:
24-ft building, 2-ply 2×10, interior girder, one floor → 6'-6" maximum span.
For a target post/pier spacing, the calculator walks the built-up sizes from fewest plies and shallowest depth upward and returns the first whose tabulated span covers that spacing.
Example:
An 8-ft post spacing in a 24-ft-wide house, one floor, needs a 2-ply 2×10 (6'-6" — too short) or a 3-ply 2×8 (6'-10" — still short); a 2-ply 2×12 (7'-7") reaches it.
Given the total length the girder must run, the calculator divides it into the fewest equal bays that each stay within the achievable span, then spaces the posts evenly — never wider than the table allows.
Example:
A 20-ft run with an achievable span of 7'-7" needs 3 bays (posts every 6'-8"), not 2 bays at 10 ft.
When the top of the girder is not laterally braced by perpendicular framing (subfloor sheathing normally provides this), the tabulated span for 2×8, 2×10, and 2×12 sizes is reduced by 30 percent — the same footnote that applies to wall headers.
Example:
A 2-ply 2×10 interior girder at 12-ft width, one floor: 9'-2" braced → 6'-5" unbraced.
IRC R502.6 sets the minimum bearing length at each end of a joist, beam, or girder by what it bears on. Bearing on masonry or concrete without direct contact needs a 2"-nominal sill plate with at least 48 sq in of bearing area.
Example:
A girder pocketed into a concrete foundation wall needs 3" of bearing; the same girder on a wood post needs 1½".
IRC R407.3 sets these as code MINIMUM sizes only — not a load-capacity table. The actual post needed for a given tributary load is a separate engineering or manufacturer-rating question, which this calculator flags rather than guesses.
Example:
A 4×4 satisfies the code minimum for any wood post regardless of height, but may be undersized for the load it carries — verify separately.
Standard Constants
| Constant | Value | Description |
|---|---|---|
| Species basis | Combined No. 2 (DF-L / HF / SP / SPF) | The same single governing No. 2 column the header table uses — no species selection needed. Southern-Pine-only jurisdictions use a separate reduced-value supplement. |
| Building widths | 12 / 24 / 36 ft | The 2018/2021 IRC table's width axis. Interpolation between widths is permitted (footnote c). |
| Snow columns (exterior only) | 30 / 50 / 70 psf | Ground-snow columns for an exterior/perimeter girder that also carries roof and ceiling load. An interior girder skips this — Table R602.7(2) has no snow dimension. |
| Footnote factor | ×0.70 unbraced | Tabulated spans for 2×8/2×10/2×12 are multiplied by 0.70 where the girder top is not laterally braced. |
| Bearing — wood/metal | 1½" minimum each end | R502.6 minimum bearing on wood or metal, or an approved joist hanger rated for the reaction. |
| Bearing — masonry/concrete | 3" minimum each end | R502.6 minimum bearing on masonry or concrete, direct or via a 2"-nominal sill plate with ≥48 sq in of bearing area. |
| Column minimum — wood | 4×4 nominal | R407.3 minimum wood column size — a code floor, not a load rating. |
| Column minimum — steel | 3" dia. Schedule 40 pipe | R407.3 minimum steel column size (ASTM A53/A53M Grade B or approved equivalent) — an adjustable (Lally) column's real capacity is its manufacturer rating. |
| Built-up nailing | 20d @ 32" o.c. staggered | IRC Table R602.3(1) item 28: 2-inch built-up girder/beam layers get 20d common (or 10d box/3"×0.131" nails at closer spacing) at top and bottom, staggered, plus 2-20d common face-nailed at every end and splice. |
| Positive connection | Post cap or equivalent | R502.9 requires a positive connection against uplift and lateral displacement wherever a post or beam bears on floor framing — gravity bearing alone is not enough. |
Note: All calculations include appropriate waste factors based on project complexity and material type. Results are estimates and should be verified by professionals before purchasing materials.
IRC R502.5 — Allowable Girder and Header Spans(IRC R502.5)
View StandardDirects that dimension-lumber floor girder spans follow the same Tables R602.7(1), (2), and (3) used for wall headers — the code provision that makes this calculator's table reuse correct, not a shortcut.
Key Requirements:
- •Girder spans = header/girder span table values
- •No separate girder-specific span table exists in the IRC
- •Combined No. 2 species basis carries over from the header table
IRC Table R602.7(1)/(2) — Girder & Header Spans(IRC Table R602.7(1) (exterior), R602.7(2) (interior))
View StandardThe prescriptive span table itself: maximum span by building width, ground snow load (exterior only), supported condition, and built-up girder/header size, for a single combined No. 2 species column.
Key Requirements:
- •Span read from the table by width and size
- •Building widths 12/24/36 ft; interpolation permitted between widths
- •Exterior table: 30/50/70 psf snow, five supported conditions
- •Interior table: one-floor or two-floor supported conditions, no snow dimension
- •Footnote: reduce 2×8/2×10/2×12 spans by 0.70 when the top is unbraced
IRC R502.6 — Bearing(IRC R502.6)
View StandardSets the minimum bearing length for the ends of joists, beams, and girders — 1½" on wood or metal, 3" on masonry or concrete, or an approved joist hanger, with a sill-plate alternative for indirect masonry bearing.
Key Requirements:
- •1½" minimum bearing on wood/metal
- •3" minimum bearing on masonry/concrete
- •Approved joist hanger may substitute for direct bearing
- •2"-nominal sill plate with ≥48 sq in bearing area where masonry contact isn't direct
IRC R502.9 / R407.3 — Connections & Columns(IRC R502.9, R407.3)
View StandardR502.9 requires a positive connection against uplift and lateral displacement wherever post-and-beam construction supports floor framing. R407.3 sets minimum column sizes (4×4 wood, 3" Schedule 40 steel pipe) and requires lateral restraint at the column base — but is not a load-capacity table.
Key Requirements:
- •Positive connection (post cap or equivalent) at every post-to-girder bearing point
- •4×4 nominal minimum wood column size
- •3" diameter Schedule 40 steel pipe minimum
- •Column base restrained against lateral displacement
- •Column load capacity is a separate engineering/manufacturer question — not prescribed by size alone
IRC Table R602.3(1) Item 28 — Built-Up Girder Nailing(IRC Table R602.3(1))
View StandardThe fastening schedule for laminating 2-inch built-up girders and beams from multiple plies.
Key Requirements:
- •20d common nails at 32" o.c., top and bottom, staggered — or
- •10d box (or 3"×0.131") nails at 24" o.c., staggered on opposite sides
- •2-20d common (or 3-10d box) face-nailed at every end and splice
Standards Disclaimer: Standards and codes are subject to periodic updates. Always verify current requirements with local building authorities and professional engineers before beginning construction. Links provided are for reference only.
Code Edition
2015 vs. 2018/2021
The girder/header table's building-width axis changed between editions — the 2015 IRC used 20/28/36 ft, while the 2018 and 2021 IRC use 12/24/36 ft. The 2024 IRC expands to widths of 20/24/28/32/36/40 ft.
Regional Examples:
Interior vs. Exterior Bearing
Which table applies
A center girder buried in a basement or crawlspace, carrying only floor joists, uses the interior table (no snow dimension). A perimeter girder that's also part of an exterior bearing wall — carrying roof and ceiling load down to the same posts — uses the exterior table and needs a ground-snow input.
Regional Examples:
Ground Snow Load
Exterior/perimeter girders only
Where a girder also carries roof and ceiling load, heavier ground snow shrinks its achievable span the same way it shrinks a header's. Interior-only girders (floors alone) are unaffected by snow.
Regional Examples:
Foundation Type & Post Base
Slab, crawlspace, basement
How a post's bottom end is restrained (R407.3) and how its footing is built varies with foundation type — a basement post typically lands on a poured footing, a crawlspace post on a pier, and a slab-on-grade post on an embedded or surface-mounted base. Frost depth also drives footing depth regionally.
Regional Examples:
Beyond the Prescriptive Table
When you need an engineered beam
Post spacing wider than the largest tabulated span for a size, girders carrying a concentrated point load (a post, wall, or beam bearing on them), and long open spans all fall outside the prescriptive code. These need an engineered solution — commonly an LVL, LSL, glulam, or steel beam sized by the manufacturer or an engineer.
Regional Examples:
Before You Build
- •Contact your local building department for specific requirements
- •Verify frost line depths, wind zones, and seismic requirements for your area
- •Check if permits are required and schedule required inspections
- •Consult with a local contractor familiar with local codes
