Girder bearing by support type — 1½″ on wood/metal, 3″ on masonry/concrete

Minimum bearing length depends on what the girder rests on: 1½″ on wood or metal, 3″ on masonry or concrete (IRC R502.6). Either way, a positive connection is required (R502.9) — gravity bearing alone isn’t enough.

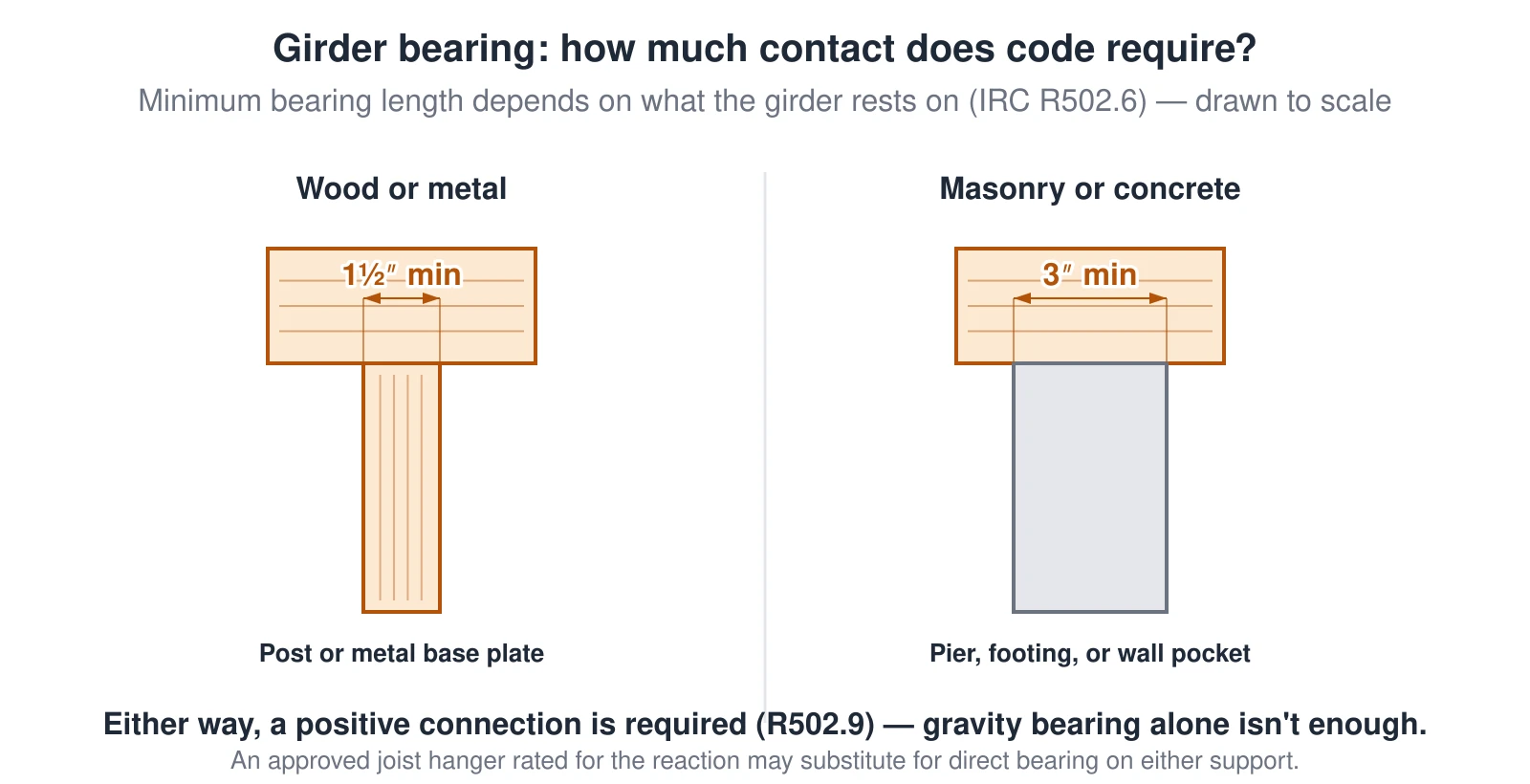

A side-by-side comparison of a floor girder’s end resting on two different support types. On the left, the girder bears on a wood post or metal base plate, with a shaded bearing zone dimensioned at one and a half inches minimum. On the right, the same girder bears on a masonry pier, footing, or foundation wall pocket, with the bearing zone dimensioned at three inches minimum. A note below both states that a positive connection is required either way per IRC R502.9 — gravity bearing alone is not enough — and that an approved joist hanger rated for the reaction may substitute for direct bearing. — Source: IRC R502.6 (bearing); R502.9 (positive connection)

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A side-by-side comparison of a floor girder’s end resting on two different support types. On the left, the girder bears on a wood post or metal base plate, with a shaded bearing zone dimensioned at one and a half inches minimum. On the right, the same girder bears on a masonry pier, footing, or foundation wall pocket, with the bearing zone dimensioned at three inches minimum. A note below both states that a positive connection is required either way per IRC R502.9 — gravity bearing alone is not enough — and that an approved joist hanger rated for the reaction may substitute for direct bearing.
