An EV charger (Level 2 EVSE) is a continuous load, so NEC Article 625 requires the circuit to be sized at 125% of the charging current: a 48 A charger needs a 60 A breaker and wire rated for 60 A; a 32 A charger needs a 40 A circuit. It must be a dedicated branch circuit (625.40), and if it's a plug-in unit on a receptacle, that receptacle needs GFCI protection (625.54). Hardwiring is required above 48 A. Most homes land on a 40 A or 60 A, 240 V circuit — but confirm your panel has the capacity before you add one.
Wiring a home charger? The EV charger circuit calculator sizes the breaker and wire from the EVSE's charging amps per Article 625 — free, no signup. This guide explains the 125% continuous-load rule, plug-in vs hardwired, and why the panel is often the real limit.

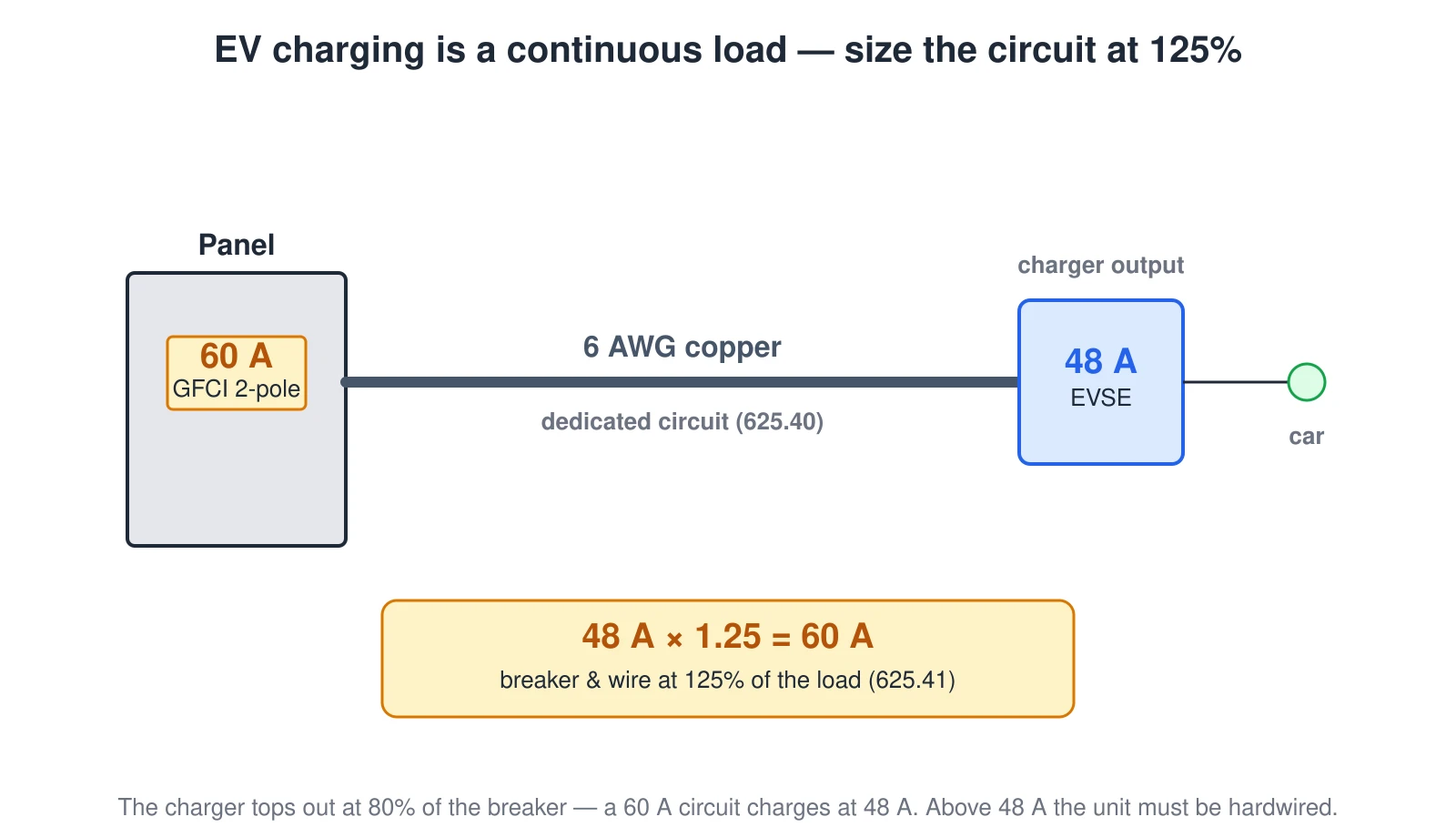

⚡ The 125% continuous-load rule
A load that runs for three hours or more is “continuous” in the NEC, and EV charging — often hours at a stretch — is the textbook case. The code requires the overcurrent device and conductors for a continuous load to be sized at 125% of the load (Article 625.41). So you take the charger's rated output current and multiply by 1.25.
- A 32 A charger → 40 A circuit (32 × 1.25 = 40).
- A 40 A charger → 50 A circuit.
- A 48 A charger → 60 A circuit — the most common maximum for a residential hardwired unit.
That's also why a “50 A” circuit charges at only 40 A: the continuous-load rule caps the charger at 80% of the breaker. Set the charger's output to match the circuit, not the other way around.
🔗 Dedicated circuit & GFCI
Article 625.40 requires the EVSE to be on its own dedicated branch circuit — no sharing with the garage lights or outlets. And if the charger plugs into a receptacle (typically a NEMA 14-50), that receptacle must have GFCI protection (625.54), which usually means a GFCI breaker.
Plug-in vs hardwired. A plug-in unit on a 14-50 is limited to a 40 A circuit (32 A charging) and needs the GFCI receptacle rule. Hardwiring lets you run up to 48 A (60 A circuit) or beyond, is generally more robust for daily use, and is required for units above 48 A. Many electricians prefer hardwiring for high-power chargers.
🧵 What wire the circuit needs
Once you know the circuit ampacity, the conductor follows Table 310.16 and the termination rules. Common results: a 40 A circuit takes 8 AWG copper; a 60 A circuit takes 6 AWG copper (THHN) — though NM-B (Romex) is rated at the 60°C column, so a 60 A run in NM-B steps up to 4 AWG. The wiring method matters, which is why the calculator asks.
For the exact gauge on your run and wiring method, the wire size calculator shows the full termination-rule math, and long garage runs are worth a voltage-drop check.
🏠 Can your panel handle it?
The wire is the easy part — the harder question is whether your service has room for a continuous 40–60 A load. Adding an EV charger to a panel that's already near capacity can push the total demand past the service rating.
Before you commit, run an electrical load calculation in existing-dwelling mode (NEC 220.83) to confirm your service can absorb the new load. If it can't, you're looking at a service upgrade — or a load-management device that throttles the charger when other big loads run. Note that EV-charger demand treatment is genuinely unsettled under the 2020/2023 codes (the 2026 NEC counts EVSE at 100%), so confirm with your AHJ.
✅ The bottom line
Size the EV circuit at 125% of the charging current, put it on a dedicated circuit, and add GFCI for a plug-in receptacle. Hardwire anything above 48 A. Pick the wire for your circuit size and wiring method, check long runs for voltage drop, and — most important — confirm your service has the capacity before you add the load.
This is a planning tool; adopted NEC editions and local amendments vary, and EVSE rules are actively changing. Size the circuit with the EV charger calculator, then have a licensed electrician confirm the install and your AHJ sign off.
