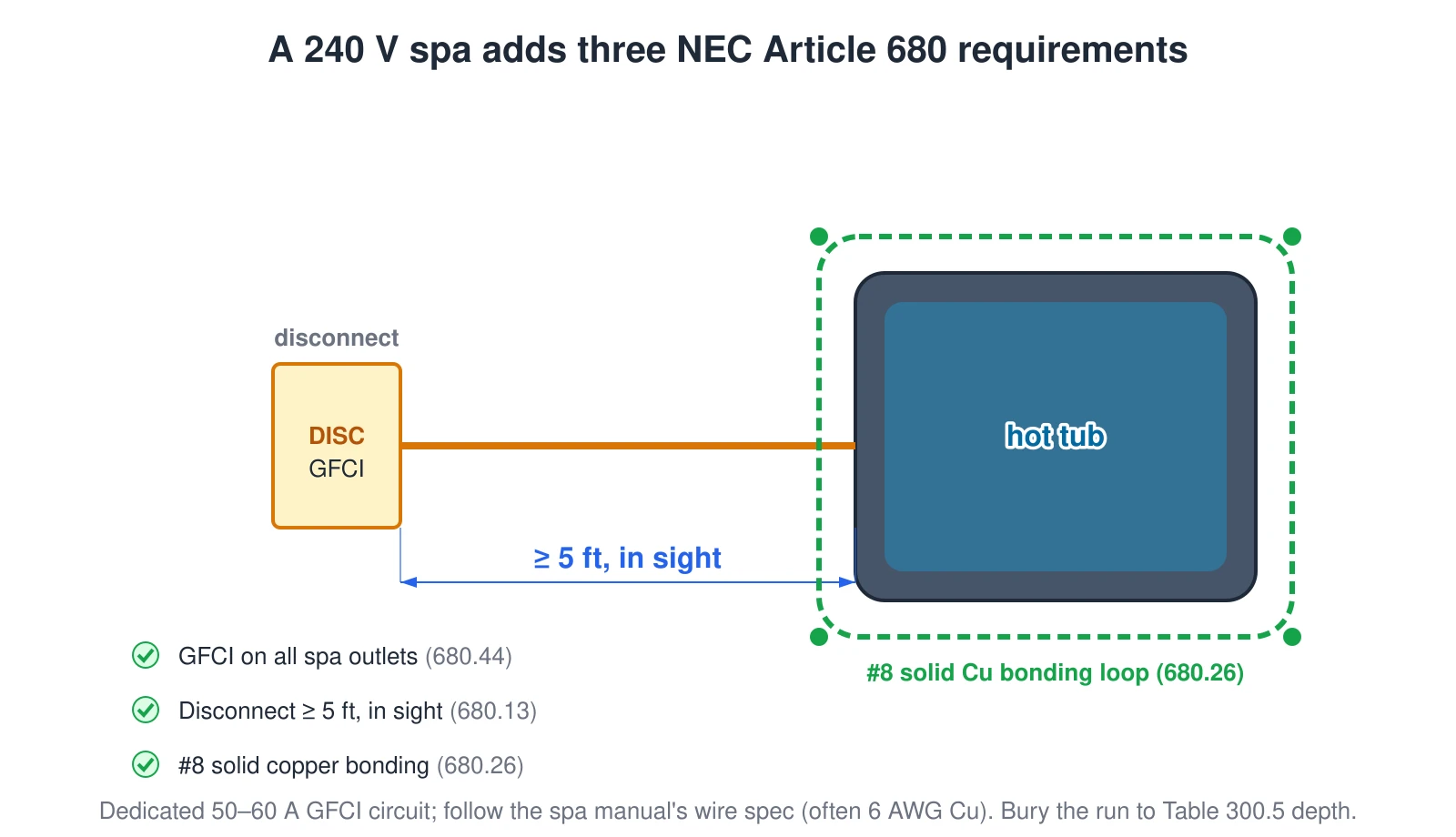

A 240 V hot tub or spa needs a dedicated GFCI-protected circuit — most are 50 A or 60 A, four-wire (two hots, neutral, ground). NEC Article 680 adds three things a normal circuit doesn't: a GFCI on all spa outlets (680.44), a maintenance disconnect within sight and at least 5 feet from the water (680.13), and equipotential bonding with a solid #8 copper wire tying the metal parts together (680.26). Follow the spa's manual for the wire size — it often specifies 6 AWG copper, which can be stricter than the code table.
Wiring a spa? The hot tub wiring calculator sizes the circuit and walks the Article 680 chain — GFCI, disconnect, bonding, and burial depth — free, no signup. This guide explains the safety rules that make spa wiring different from any other circuit.
🔌 The circuit: 50–60 A, GFCI, dedicated
Most 240 V spas run on a 50 A or 60 A dedicated circuit; larger three-pump models use 60 A, smaller ones 30–40 A. It's a four-wire circuit (two hots, a neutral, and an equipment ground), and the whole circuit must be GFCI-protected (680.44) — almost always via a GFCI breaker at the panel.
The manual can beat the code table. Spa makers (Bullfrog, for example) commonly specify 6 AWG copper minimum for 50–60 A spa circuits — stricter than what the ampacity table alone allows for THHN. When the manufacturer's wire spec is larger than the code minimum, the manual governs.
🔦 The maintenance disconnect
Article 680.13 requires a disconnecting means for the spa that is within sight of it, readily accessible, and at least 5 feet horizontally from the water (unless separated by a permanent barrier). This lets a service tech kill power at the tub without walking back to the panel — and keeps the disconnect far enough away that nobody reaches it from inside the water.
It's the piece most DIY spa installs miss. A breaker in the basement panel is not a substitute for the local disconnect at the tub.
🔗 Equipotential bonding
This is the rule unique to pools and spas, and the one that saves lives. Equipotential bonding (680.26) ties all the metal in and around the spa — the pump, the metal frame, any metal within 5 feet, and the reinforcing steel if it's in a deck — together with a solid #8 AWG copper wire. The goal isn't to carry fault current to ground; it's to keep everything a swimmer can touch at the same voltage, so there's no potential difference to shock across.
Bonding is separate from the equipment ground in the circuit, and it must be a continuous solid conductor. Skipping it is both a code failure and a genuine hazard.
⛏️ Burial depth for the run
If the circuit runs underground to an outdoor spa, the burial depth depends on the wiring method (Table 300.5):
- UF cable, direct burial — 24 inches
- PVC conduit (rigid nonmetallic) — 18 inches
- Rigid or intermediate metal conduit — 6 inches
Deeper conduit costs more trenching but protects the run; the shallow metal-conduit option trades material cost for less digging.
✅ The bottom line
A spa circuit is a dedicated 50–60 A, GFCI-protected, four-wire circuit, sized to the nameplate (and to the manual's wire spec, which often means 6 AWG copper). Add the three Article 680 requirements every time: GFCI on all outlets, a maintenance disconnect 5+ feet from the water and within sight, and #8 solid copper equipotential bonding. Bury the run to the Table 300.5 depth for your method.
Spa wiring is life-safety wiring around water — this is a planning tool, not a substitute for a licensed electrician and permit. Size the circuit with the hot tub wiring calculator, then have the install inspected. Adopted NEC editions and local amendments vary.
