Ceiling fan clearances and when to use two fans

Keep blade tips 18–24 in. from walls and 7 ft off the floor; over ~400 sq ft, two fans beat one oversized fan.

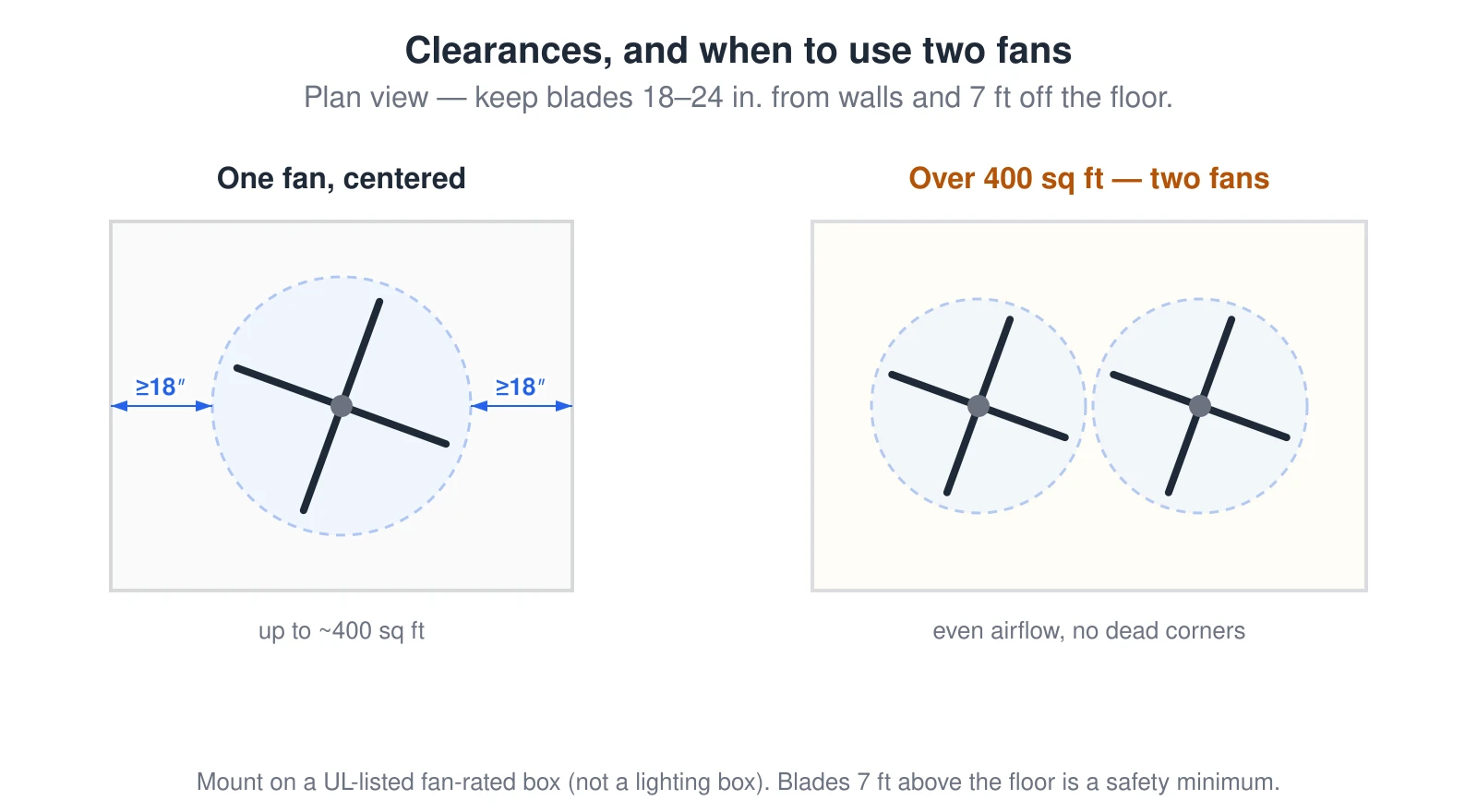

Two plan views. On the left, one fan is centered in a room with dimension arrows showing at least 18 inches of blade-to-wall clearance on each side, good up to about 400 square feet. On the right, a larger room over 400 square feet has two smaller fans spaced across it for even airflow with no dead corners. — Source: DOE; NEC 314.27(C) fan box

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two plan views. On the left, one fan is centered in a room with dimension arrows showing at least 18 inches of blade-to-wall clearance on each side, good up to about 400 square feet. On the right, a larger room over 400 square feet has two smaller fans spaced across it for even airflow with no dead corners.
