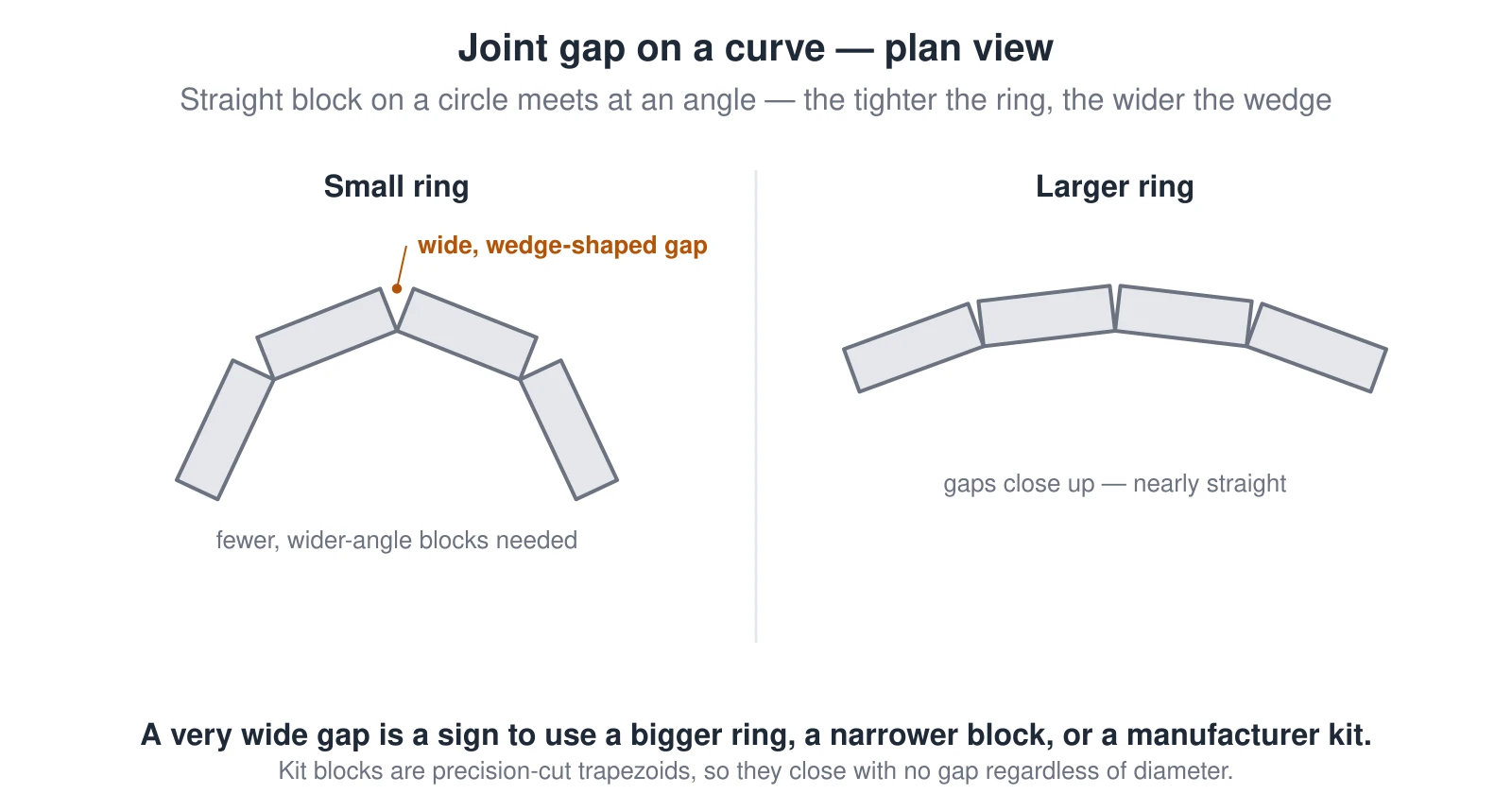

Joint gap on a curve — why a small ring needs a wider mortar joint

Straight block on a circle meets at an angle, not flush — the gap is wedge-shaped and widest on the outer face. A tighter ring needs a bigger angle between blocks, so the gap opens wider. A kit’s precision-cut trapezoids avoid this entirely.

A plan-view (top-down) comparison of two masonry fire pit rings. On the left, a small-diameter ring built from four straight blocks shows a visibly wide, wedge-shaped gap between each block, widest at the outer face, because each block must turn a sharp angle to follow the tight curve. On the right, the same four blocks arranged around a much larger-diameter ring show the gaps almost closed, because a gentler curve needs less angle change between blocks. A note explains that a very wide gap signals the builder should use a bigger ring, a narrower block, or a manufacturer kit with precision-cut trapezoidal blocks that close with no gap regardless of diameter. — Source: Geometry (chord/arc relationship) — companion to the calculator’s own joint-gap warning

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A plan-view (top-down) comparison of two masonry fire pit rings. On the left, a small-diameter ring built from four straight blocks shows a visibly wide, wedge-shaped gap between each block, widest at the outer face, because each block must turn a sharp angle to follow the tight curve. On the right, the same four blocks arranged around a much larger-diameter ring show the gaps almost closed, because a gentler curve needs less angle change between blocks. A note explains that a very wide gap signals the builder should use a bigger ring, a narrower block, or a manufacturer kit with precision-cut trapezoidal blocks that close with no gap regardless of diameter.
