Hot tub electrical clearances — the 5-ft disconnect rule and the 3-ft bonding zone
Two distances an inspector checks first: the disconnect at least 5 ft from the water (within sight), and the bonding zone extending 3 ft beyond the spa walls.

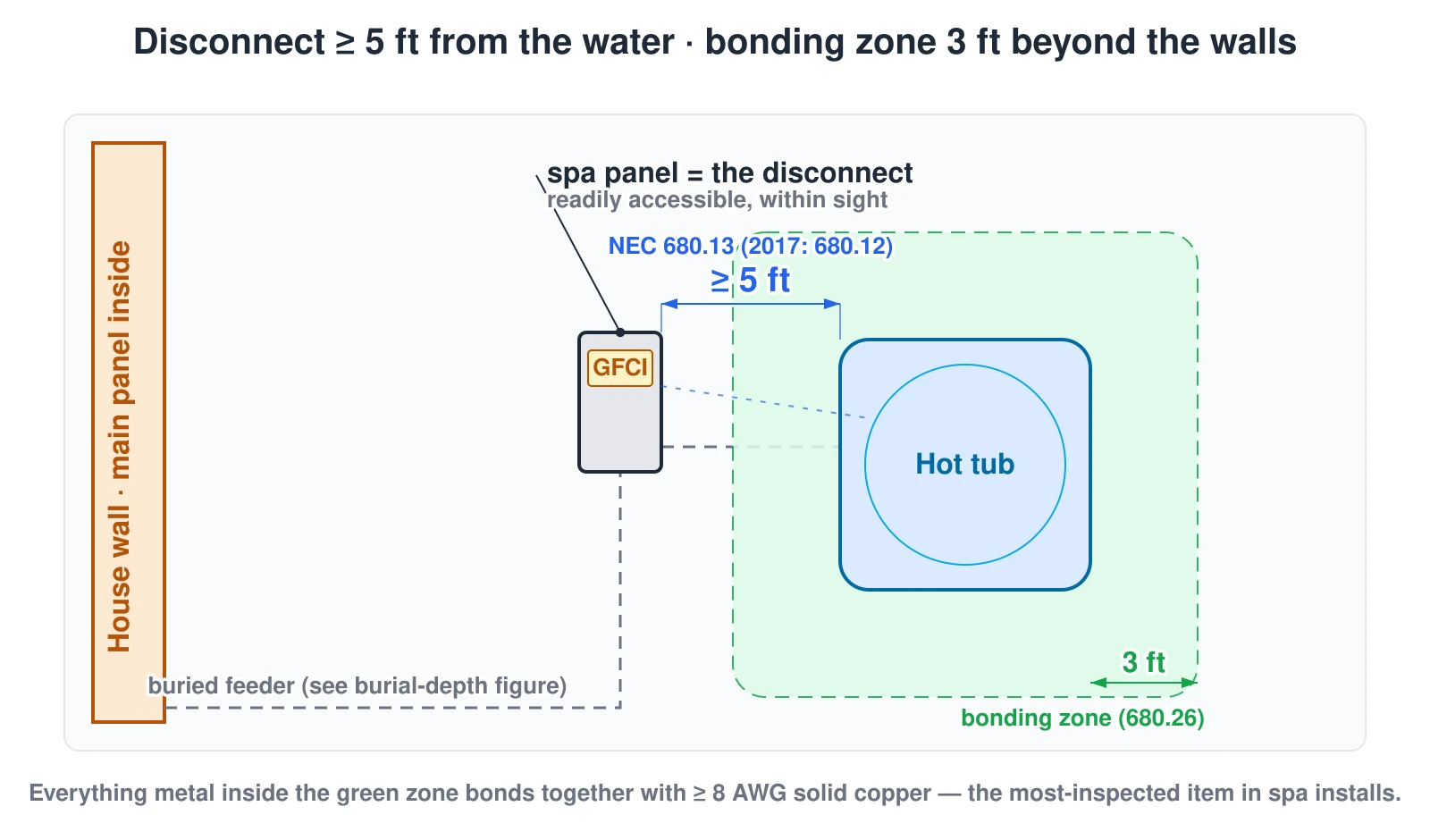

What this diagram shows
Plan view of a hot tub near a house wall. The GFCI spa panel (the maintenance disconnect) is mounted at least 5 feet horizontally from the inside spa wall and within sight of the tub, per NEC 680.13. A shaded band extending 3 feet beyond the inside walls marks the equipotential bonding zone, where perimeter surfaces and all metal parts bond together with solid copper wire not smaller than 8 AWG per NEC 680.26. The feeder arrives from the house panel underground.
Use this diagram — free
You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
Please keep the credit link intact and don't alter the diagram itself. Redistribution as part of a competing diagram library or template pack isn't permitted. Questions? Reach us via the site.
Was this diagram helpful?
