NM-B cable vs THHN in conduit — same copper, different usable ampacity
Same 12 AWG copper: 20 A usable in NM-B (334.80), 25 A as THHN at 75°C terminations — but 240.4(D) caps the breaker at 20 A either way. The THHN headroom is for derating, not bigger breakers.
What this diagram shows

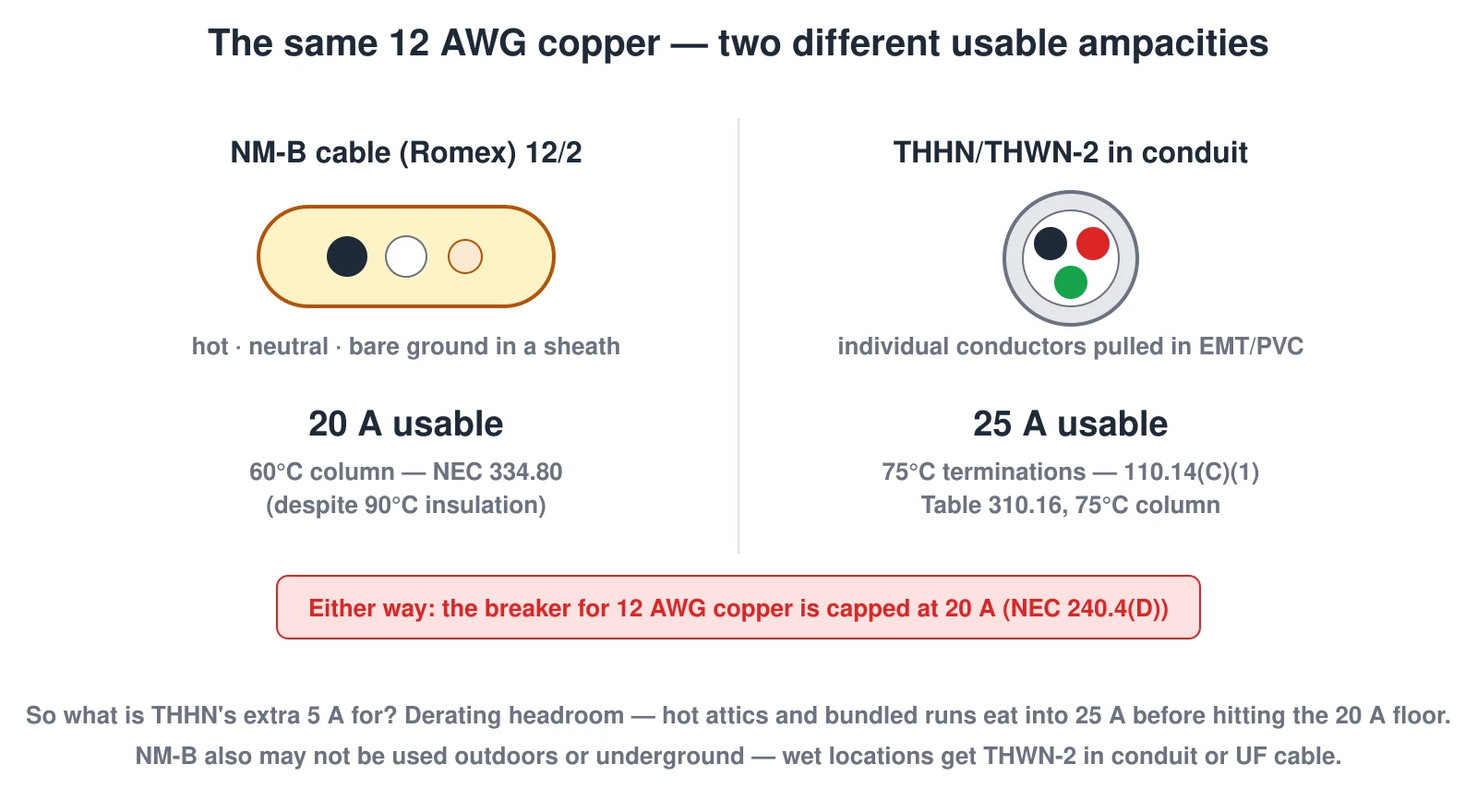

Comparison of the two common residential wiring methods for 12 AWG copper. NM-B cable (Romex) carries 90-degree insulated conductors but its usable ampacity is capped at the 60-degree column — 20 amps — by NEC 334.80. The same 12 AWG copper as THHN in conduit with 75-degree terminations is usable at 25 amps. Either way, NEC 240.4(D) caps the breaker for 12 AWG copper at 20 amps; the extra THHN headroom matters for derating in hot or bundled runs, not for a bigger breaker.
Use this diagram — free
You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
Please keep the credit link intact and don't alter the diagram itself. Redistribution as part of a competing diagram library or template pack isn't permitted. Questions? Reach us via the site.
Was this diagram helpful?
