Map of the IECC climate zones across the United States, with climate zone 4 highlighted

IECC climate zones run from warm zone 1 in the south to cold zone 8 in the north. Find your zone — the colder it is, the higher the insulation R-value the code requires.

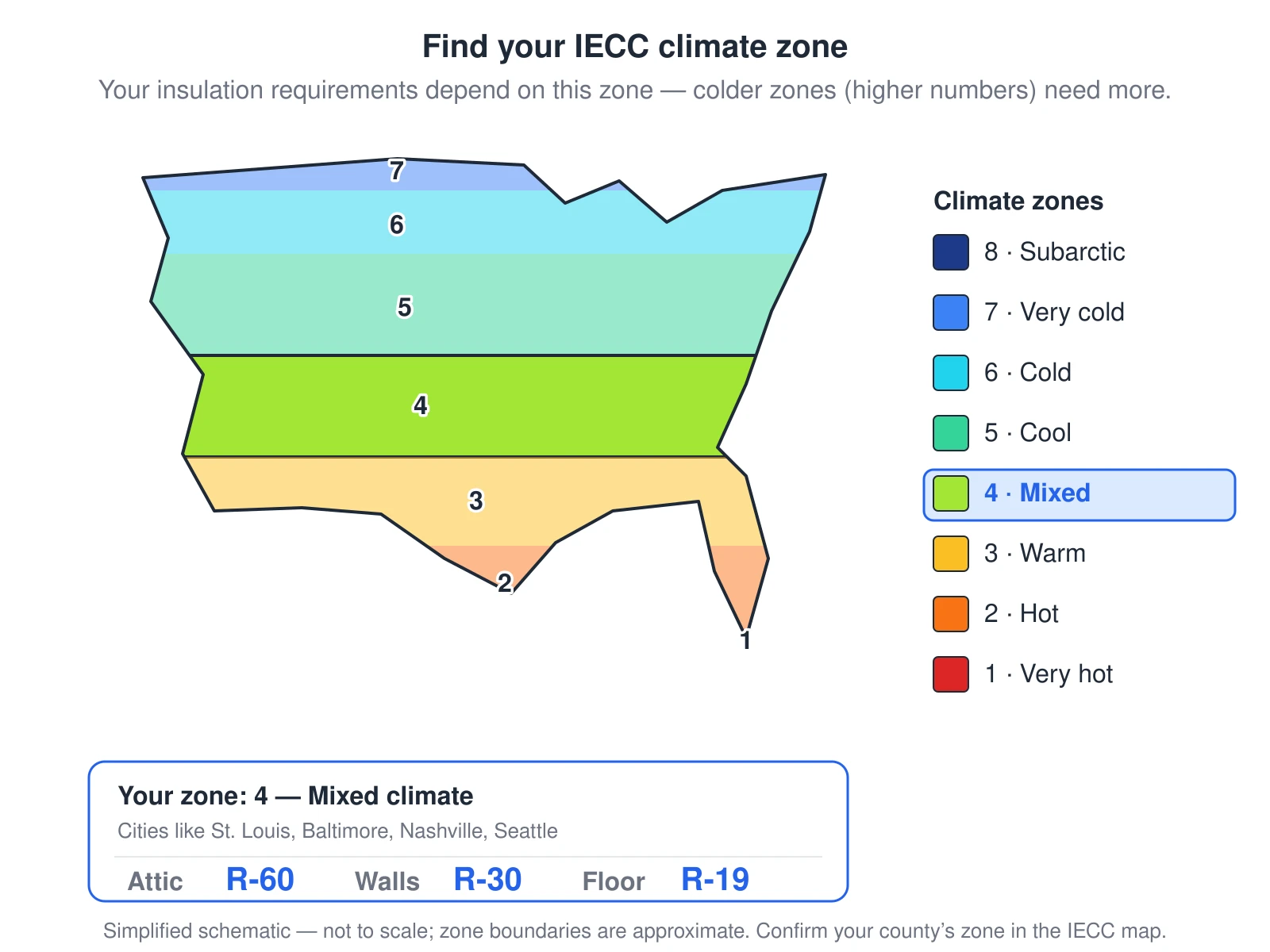

A simplified map of the United States colored by IECC climate zone, from warm zone 1 in the south (red) to cold zone 8 in the far north (navy). Florida and the Gulf coast fall in the hot zones 1 and 2; the deep South in warm zone 3; the middle of the country in mixed zone 4 and cool zone 5; and the northern tier, including Minnesota and Maine, in the cold zones 6 and 7. A legend names each zone’s climate. Climate zone 4 (mixed) is highlighted, because a colder zone requires a higher insulation R-value. The figure also lists example cities in the highlighted zone and the IECC minimum insulation R-values for the attic, walls, and floor. — Source: 2021 IECC Figure R301.1 / Table R301.1

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A simplified map of the United States colored by IECC climate zone, from warm zone 1 in the south (red) to cold zone 8 in the far north (navy). Florida and the Gulf coast fall in the hot zones 1 and 2; the deep South in warm zone 3; the middle of the country in mixed zone 4 and cool zone 5; and the northern tier, including Minnesota and Maine, in the cold zones 6 and 7. A legend names each zone’s climate. Climate zone 4 (mixed) is highlighted, because a colder zone requires a higher insulation R-value. The figure also lists example cities in the highlighted zone and the IECC minimum insulation R-values for the attic, walls, and floor.

Use this diagram — free

You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
