Mini-split heating capacity versus outdoor temperature

Heat-pump capacity is rated at 47°F and fades as it gets colder. Size a cold-climate mini-split on its delivered capacity at your design temperature — from the NEEP list or the manufacturer table — not the nameplate.

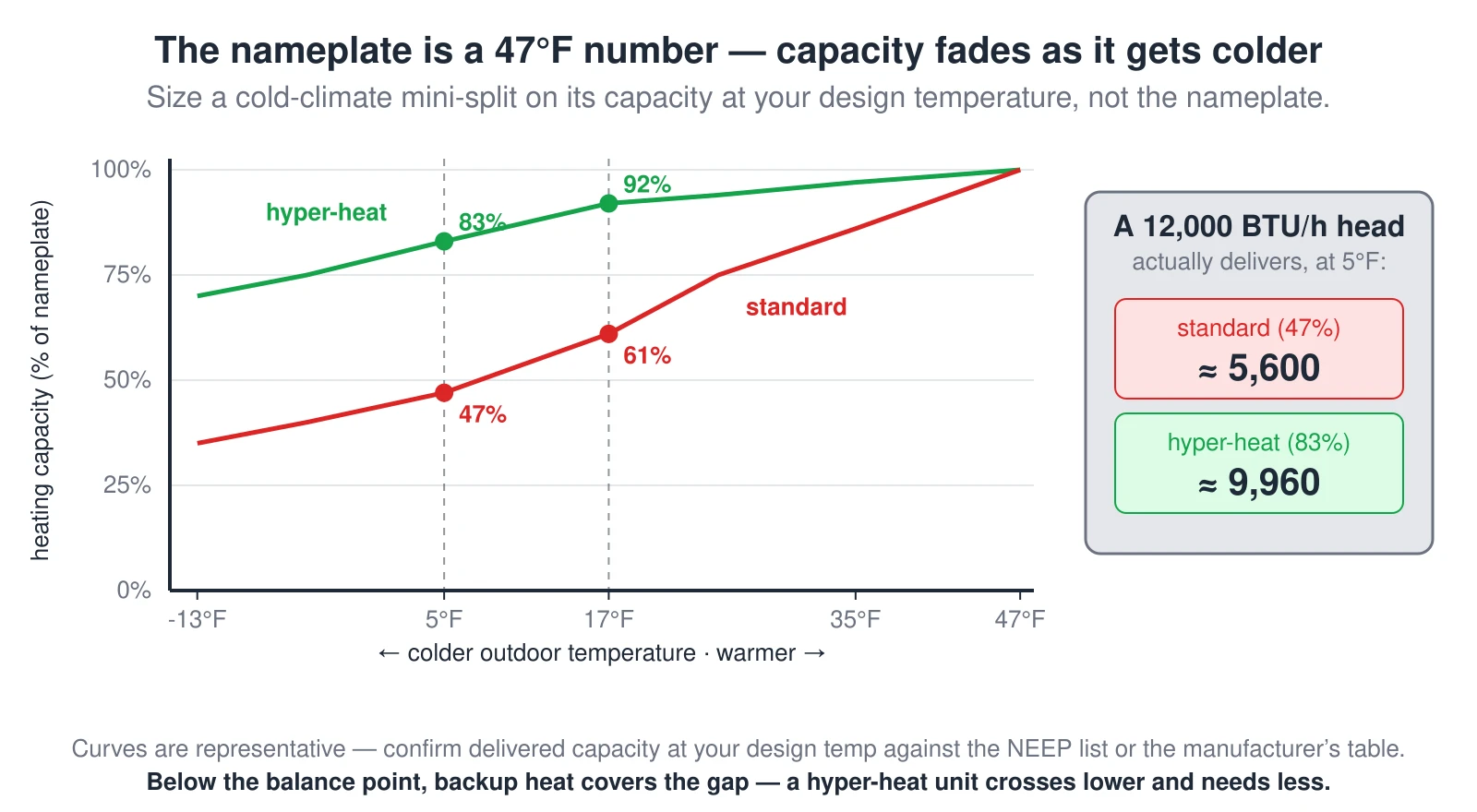

A line chart of heating capacity as a percent of nameplate against outdoor temperature from 47°F down to below zero. A red standard curve falls to about 61 percent at 17°F and 47 percent at 5°F, while a green cold-climate / hyper-heat curve holds about 92 percent at 17°F and 83 percent at 5°F. A callout shows a 12,000 BTU/h head delivering only about 5,600 at 5°F as a standard unit versus about 9,960 as a hyper-heat unit. — Source: NEEP Cold Climate ASHP list; manufacturer capacity tables

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

A line chart of heating capacity as a percent of nameplate against outdoor temperature from 47°F down to below zero. A red standard curve falls to about 61 percent at 17°F and 47 percent at 5°F, while a green cold-climate / hyper-heat curve holds about 92 percent at 17°F and 83 percent at 5°F. A callout shows a 12,000 BTU/h head delivering only about 5,600 at 5°F as a standard unit versus about 9,960 as a hyper-heat unit.
