The undersized return grille

An undersized return is the most common residential duct fault: the same airflow through a smaller opening speeds up, whistles, and raises static — starving the blower. The fix is more grille area, not a bigger blower.

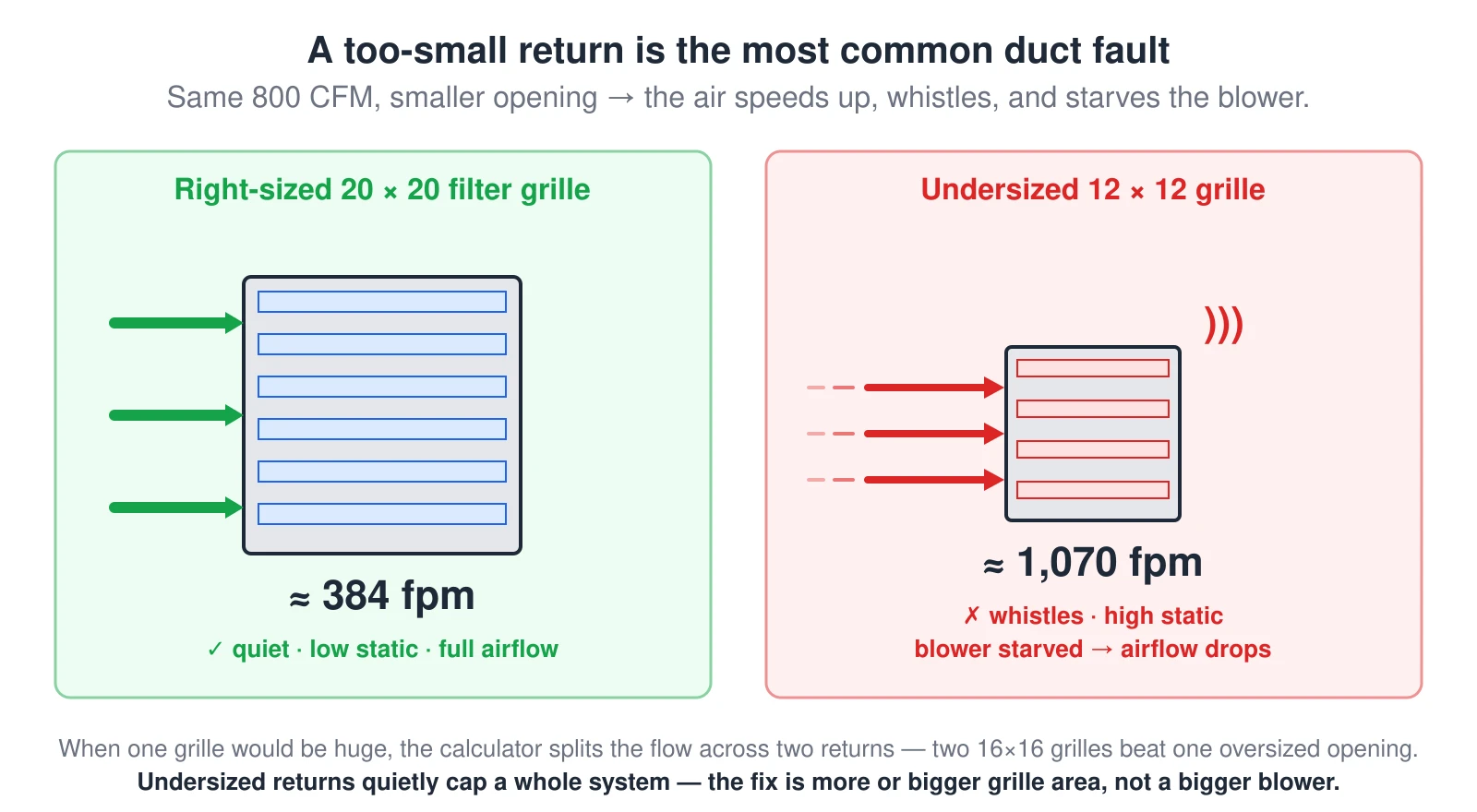

Two panels moving the same 800 CFM. On the left, a right-sized 20 by 20 filter grille with gentle, slow airflow arrows runs about 384 fpm — quiet, with low static and full airflow. On the right, an undersized 12 by 12 grille forces the air through a smaller opening at about 1,070 fpm, shown with fast converging arrows and whistle marks: it whistles, raises static pressure, and starves the blower so total airflow drops. — Source: ACCA Manual D; return-air design guidance

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two panels moving the same 800 CFM. On the left, a right-sized 20 by 20 filter grille with gentle, slow airflow arrows runs about 384 fpm — quiet, with low static and full airflow. On the right, an undersized 12 by 12 grille forces the air through a smaller opening at about 1,070 fpm, shown with fast converging arrows and whistle marks: it whistles, raises static pressure, and starves the blower so total airflow drops.
