A dehumidifier manages humidity, not bulk water — fix the source first

Standing water or seepage is a drainage problem: grade away, extend downspouts, add a drain and sump first — then a dehumidifier holds 30–50% RH.

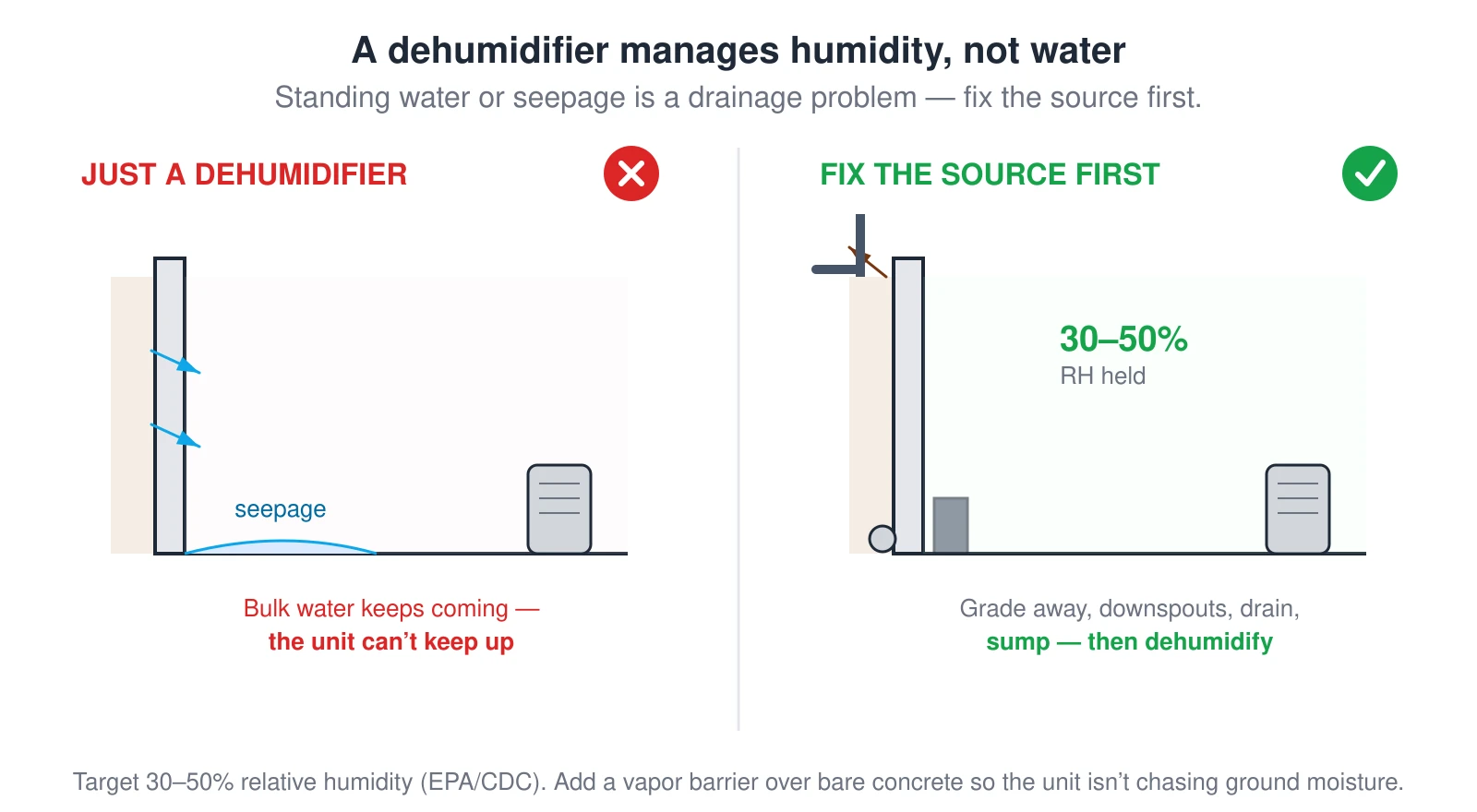

Two basement wall-and-floor sections. The left red one runs a dehumidifier while water seeps through the foundation wall and pools on the floor, which it cannot keep up with. The right green one fixes the source first — soil graded away, a downspout extension, a footing drain and sump — so the dehumidifier only has to hold the air at 30 to 50 percent relative humidity. — Source: EPA/CDC 30–50% RH

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Two basement wall-and-floor sections. The left red one runs a dehumidifier while water seeps through the foundation wall and pools on the floor, which it cannot keep up with. The right green one fixes the source first — soil graded away, a downspout extension, a footing drain and sump — so the dehumidifier only has to hold the air at 30 to 50 percent relative humidity.
