Why posts and piers lift: frost heave vs. adfreeze

A footing inside the frozen zone gets lifted by ice lenses; a deep straight pier can still be gripped and jacked up by frozen soil (adfreeze). Go below the frost line, bell the bottom, and backfill with gravel.

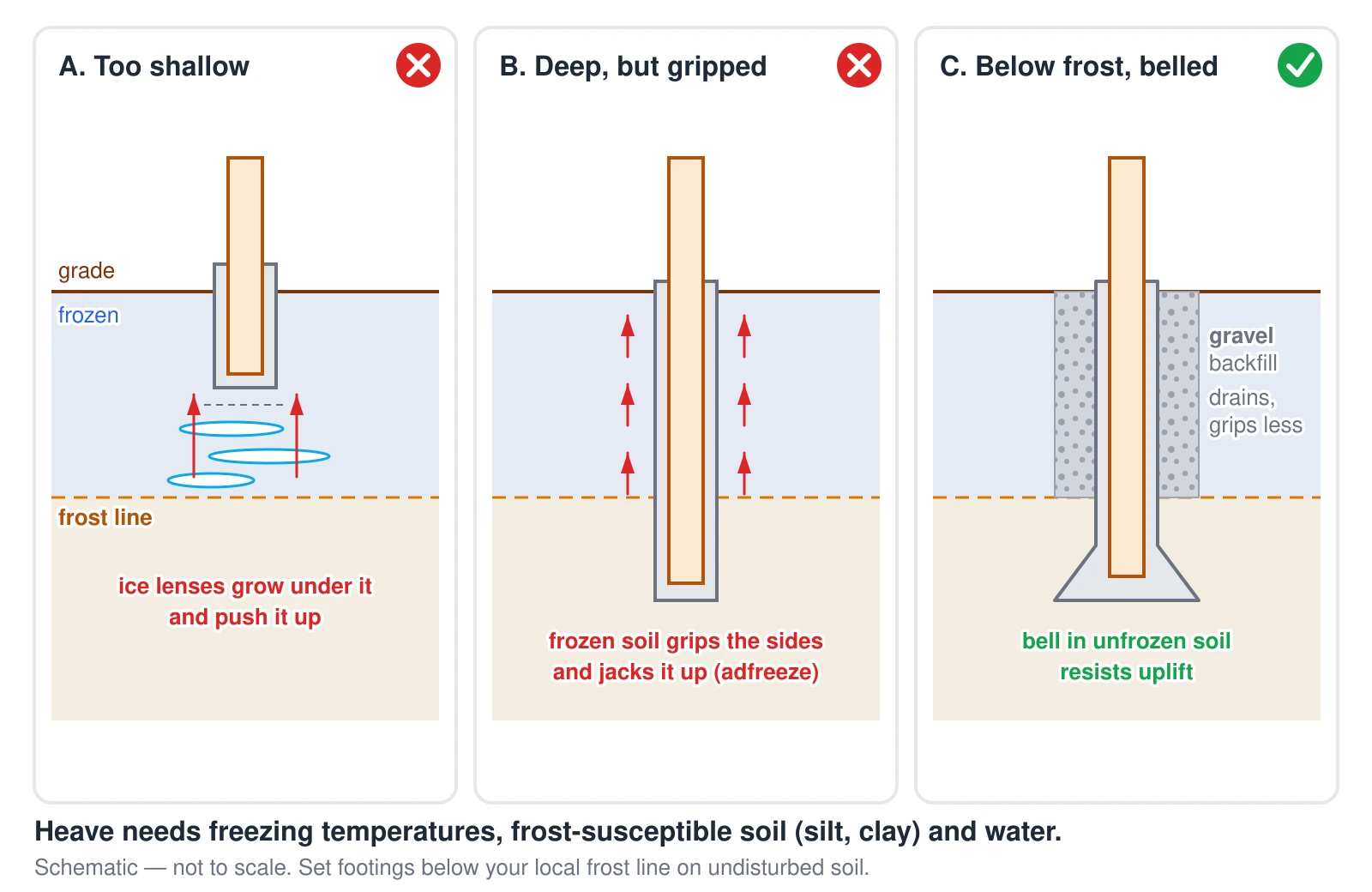

Three cross-sections of a wood post set in a concrete pier, with frozen soil shaded above a dashed frost line. A, marked wrong: the pier is too shallow and sits inside the frozen zone; ice lenses grow beneath it and push it up off its original seat. B, marked wrong: a straight pier reaches below the frost line, but frozen soil bonds to its sides and jacks it upward, which is called adfreeze. C, marked correct: the pier goes below the frost line and ends in a wider bell in unfrozen soil that resists uplift, with free-draining gravel backfill around the shaft in the frozen zone so there is less wet soil to grip it. — Source: Frost heave requires freezing temperatures, frost-susceptible soil and water; IRC R403.1.4.1 frost protection

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Three cross-sections of a wood post set in a concrete pier, with frozen soil shaded above a dashed frost line. A, marked wrong: the pier is too shallow and sits inside the frozen zone; ice lenses grow beneath it and push it up off its original seat. B, marked wrong: a straight pier reaches below the frost line, but frozen soil bonds to its sides and jacks it upward, which is called adfreeze. C, marked correct: the pier goes below the frost line and ends in a wider bell in unfrozen soil that resists uplift, with free-draining gravel backfill around the shaft in the frozen zone so there is less wet soil to grip it.
