Pressure tank drawdown — only about a quarter is usable water
Only the water between cut-in and cut-out is usable — about 28% of the tank on a 40/60 switch. Boyle’s Law: the air cushion does the pushing.
What this diagram shows

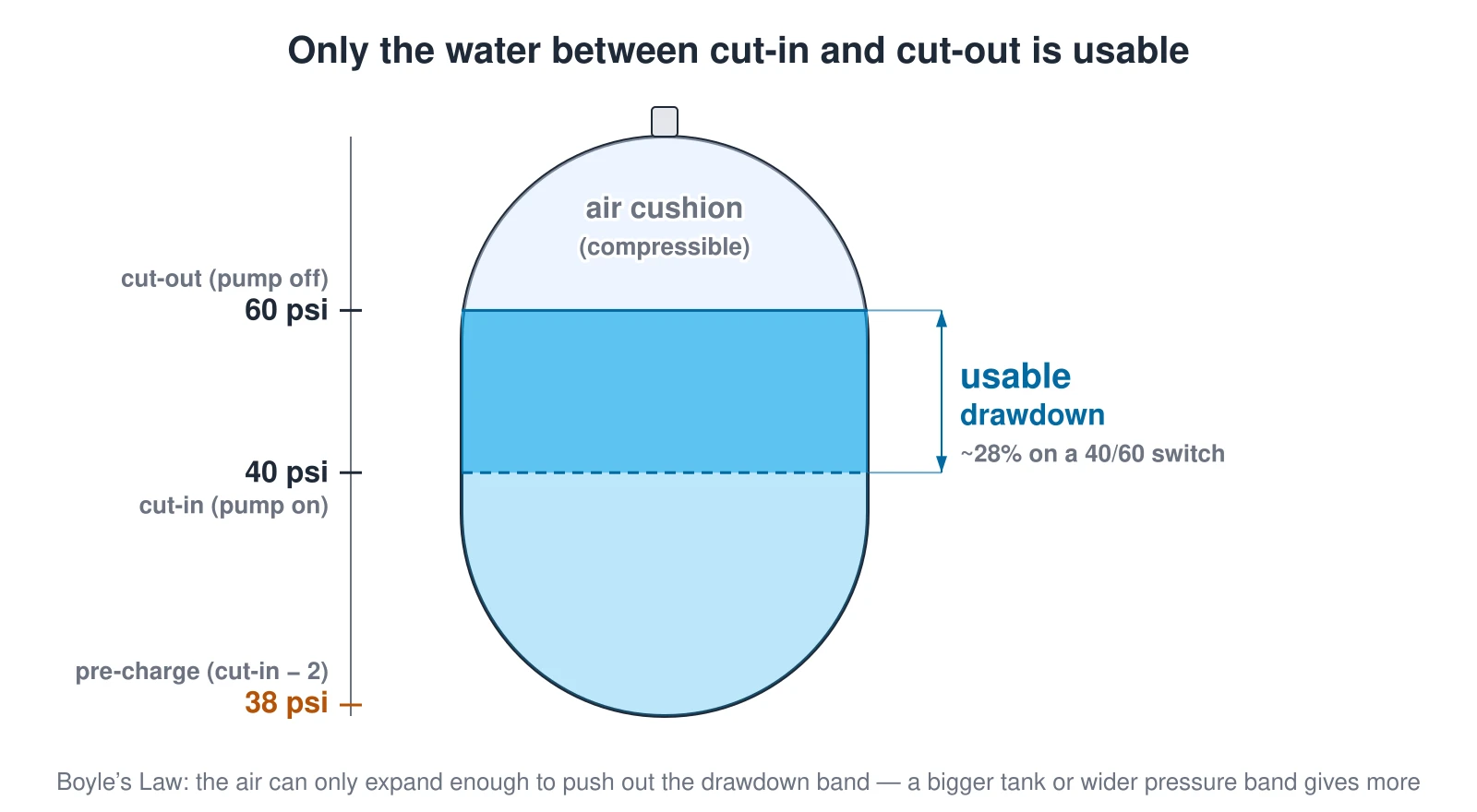

Cutaway of a bladder well-pressure tank showing why only part of the tank is usable water. A compressed air cushion fills the top; water fills the bladder below. Between the pump cut-in pressure (40 psi) and cut-out pressure (60 psi), the air expands to push out only the "drawdown" band — roughly 28 percent of the tank on a 40/60 switch. The air pre-charge is set about 2 psi below cut-in.
Use this diagram — free
You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
Please keep the credit link intact and don't alter the diagram itself. Redistribution as part of a competing diagram library or template pack isn't permitted. Questions? Reach us via the site.
Was this diagram helpful?
