A septic system — the tank is only half of it

The tank is only half the system: solids settle and digest in the tank, then liquid disperses through the drainfield — sized separately by a perc test.

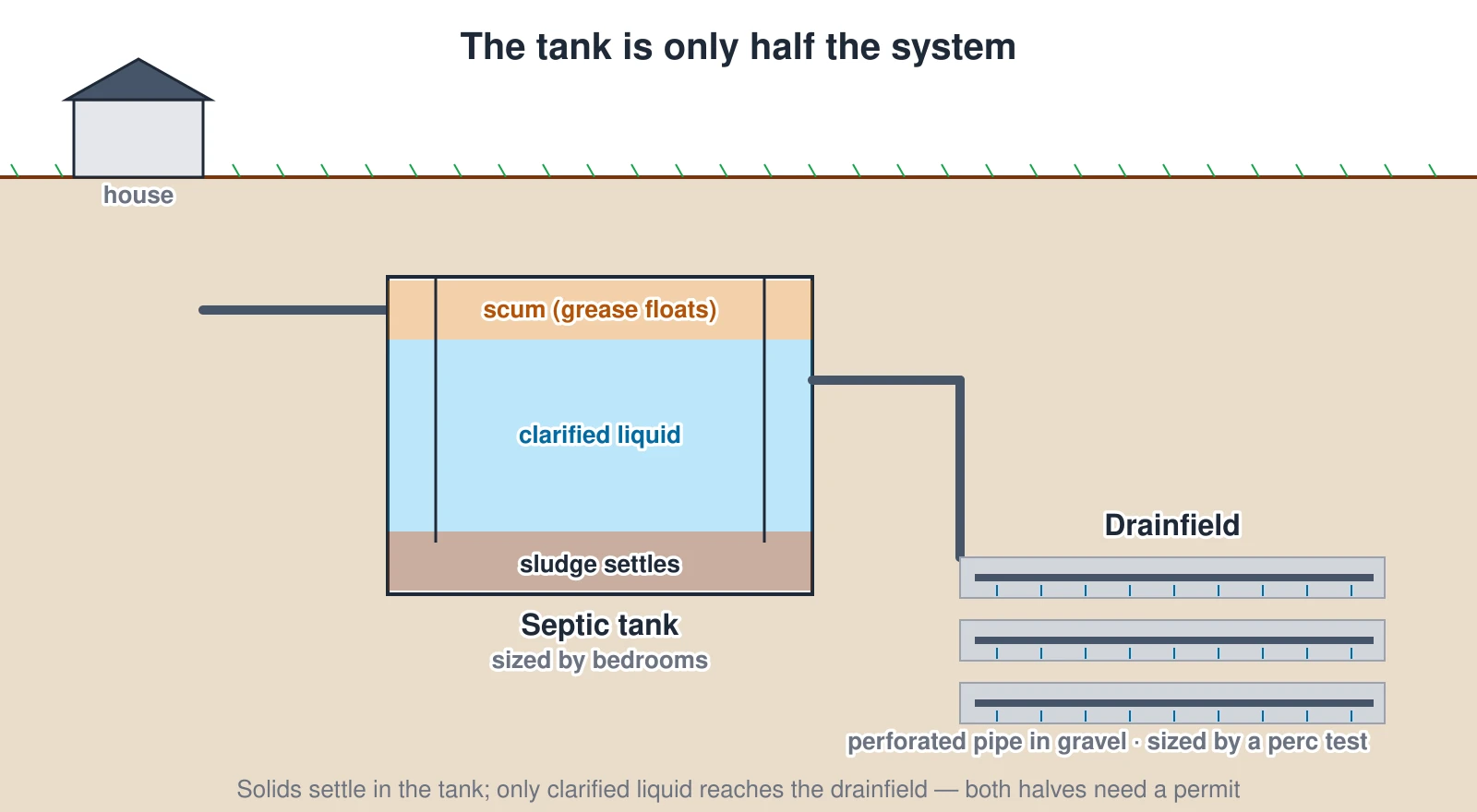

Cross-section of a septic system from house to soil. Waste flows to the septic tank, where solids settle as sludge on the bottom, grease floats as a scum layer on top, and clarified liquid in the middle passes an outlet baffle to the drainfield. In the drainfield, perforated pipe in gravel trenches disperses the effluent into the soil. The tank is sized by bedroom count; the drainfield is sized separately by a percolation test. — Source: State septic code + EPA onsite wastewater

Use this diagram free on your site — grab the embed codeGet the code

What this diagram shows

Cross-section of a septic system from house to soil. Waste flows to the septic tank, where solids settle as sludge on the bottom, grease floats as a scum layer on top, and clarified liquid in the middle passes an outlet baffle to the drainfield. In the drainfield, perforated pipe in gravel trenches disperses the effluent into the soil. The tank is sized by bedroom count; the drainfield is sized separately by a percolation test.

Use this diagram — free

You're welcome to use this diagram on your own site, blog, handout, or lesson at no cost. The only condition is a visible credit link back to the source page. Copy the snippet below and paste it into your page — the credit is already included.
